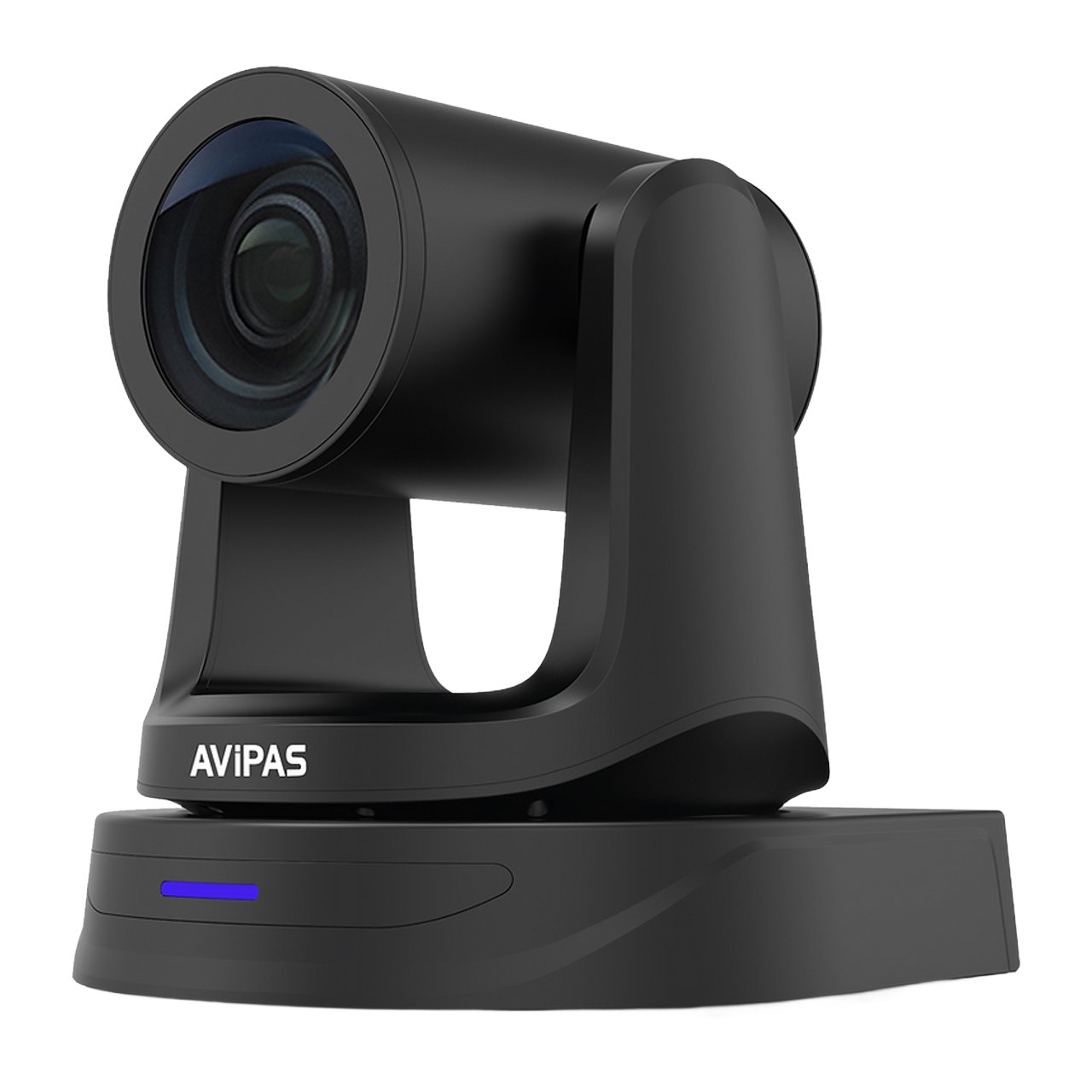

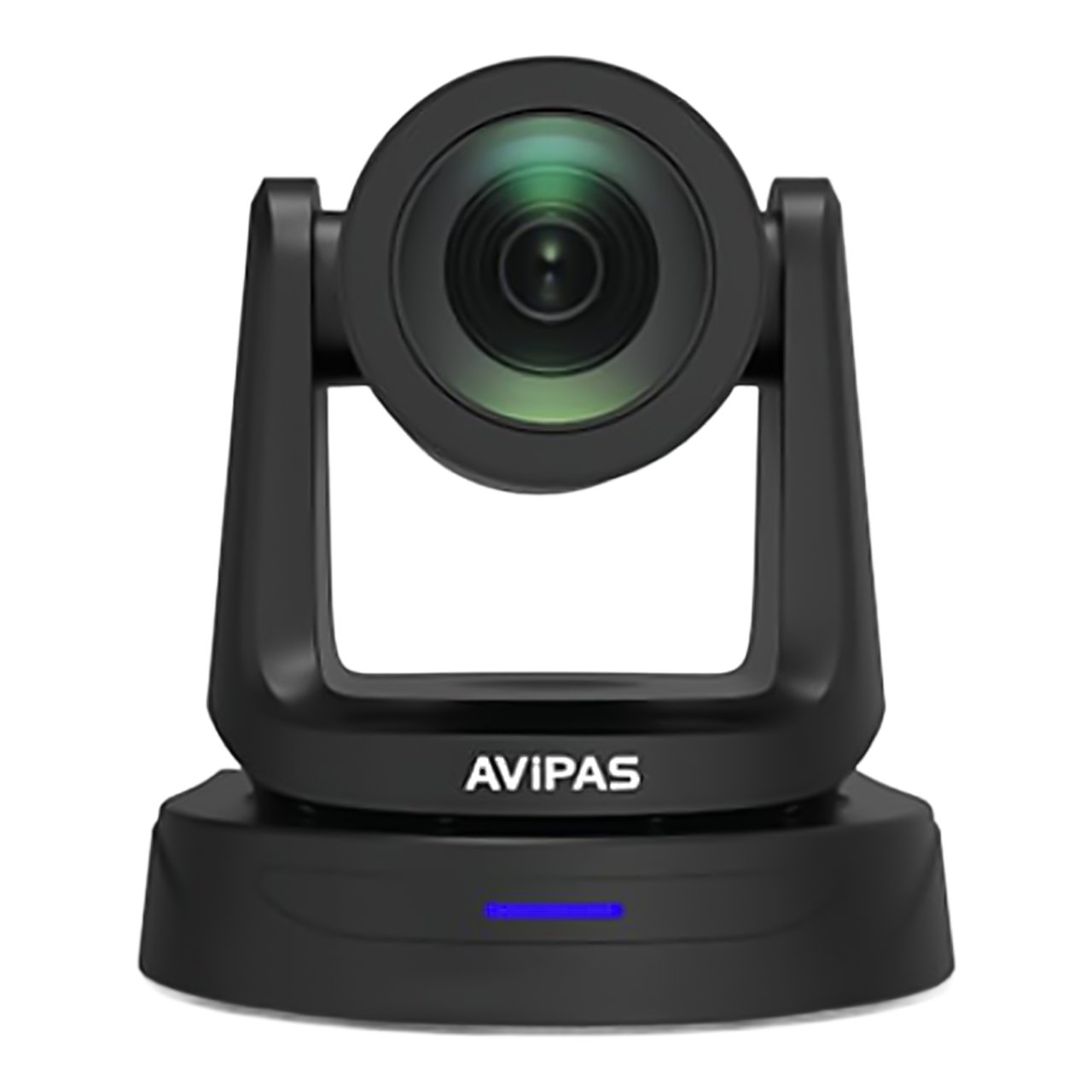

AViPAS AV-2025B 20x Optical Zoom HDMI/USB 2.0 PoE Powered PTZ Camera - 1920 x 1080p - Black

AV-2025B - Overview

• Features:

  • 20X optical zoom, 2x Digital zoom
  • 1/2.8" CMOS Sensor, 2.4MP
  • Resolution: up to 1080p60
  • Lens: f=4.9mm - 98mm, F1.5 - 3.0
  • 0.1Lux minimum illumination @ F1.5
  • Field of View: 60°
  • Pan: -170° - +170°, Tilt: -90° - +90°
  • 2D & 3D digital noise reduction
  • Horizontal/Vertical image flip
  • HDMI, USB 2.0 (Type-C), and LAN simultaneous outputs
  • H.264/H.265 Video streaming encoding
  • 3.5mm Audio Line-In: AAC and LPCM audio encoding, embedded with IP streaming out
  • RTSP, SRT, RTP, and RTMP streaming protocol
  • Preset Positions: 128 via RS232/RS485 and IP; 10 via IR remote control
  • Control Options: IR remote, USB(UVC1.1), LAN(RJ45) and RS232/RS485 serial control
  • Protocol Options: VISCA/VISCA Over IP/Pelco-D/Pelco-P/OnviF/UVC
  • PoE Supported: IEEE 802.3af Standard
  • Standard wall/ceiling mounting/Tripod mountable (1/4"-20 female on the bottom)


• Specifications:

  • Sensor: 1/2.8" Sony CMOS sensor, 2.4MP
  • Zoom:
    - 20x Optical Zoom
    - 2x Digital Zoom
  • Lens: f4.9~98mm, F1.5~3.0
  • Minimum Illumination: 0. 1Lux (F1.5)
  • Horizontal Viewing Angle: 60° (Wide) - 3.23° (Tele)
  • Video Format:
    - HDMI: 1920*1080P60/59.94/50/30/29.97/25/24/23.98, 1920*1080I60/59.94/50, 1280*720P60/59.94/50/30/29.97/25
    - IP Main Stream: 1920*1080@3~60/1280*720@3~60/1024*576 @3~60
    - IP Sub Stream: 1280*720@3~60/1024*576@3~60/640*360 @3~60
    - USB Type-C: MJPG/H.264/H.265: 1920*1080@30/25/20/15/10/5, 1280*720@60/50/30/25/15/10, 720*576@30/25/20/15/10/5, 640*480@30/25/20/15/10/5, 320*240@30/25/20/15/10/5, YUV2: 640*480@10
  • Pan/Tilt Rotation:
    - Pan: ±170°
    - Tilt: -30° - +90°
  • Pan/Tilt Control Speed:
    - Pan: 0° - 120°/sec
    - Tilt: 0° - 80°/sec
  • Max Preset Positions:
    - IR Remote Control: 10
    - Serial RS232/RS485: 128
    - IP: 128
  • Noise Reduction: 2D & 3D
  • SNR: =50dB
  • Exposure: Auto/Manual/Shutter/Iris/Bright
  • White Balance: Auto/Manual/Indoor/Outdoor/ATW/One Push/Color Temperature (Range: 2500K - 10000k)
  • Anti-Flicker: 50Hz, 60Hz, OFF
  • Focus: Auto, Manual
  • Iris: Auto, Manual (CLOSE~F11)
  • Shutter Speed: 1/30s - 1/10000s
  • Backlight Compensation: On/Off
  • Flip Horizontal: On/Off
  • Flip Vertical: On/Off
  • Gamma: Support
  • WDR: Off/Dynamic level adjustment

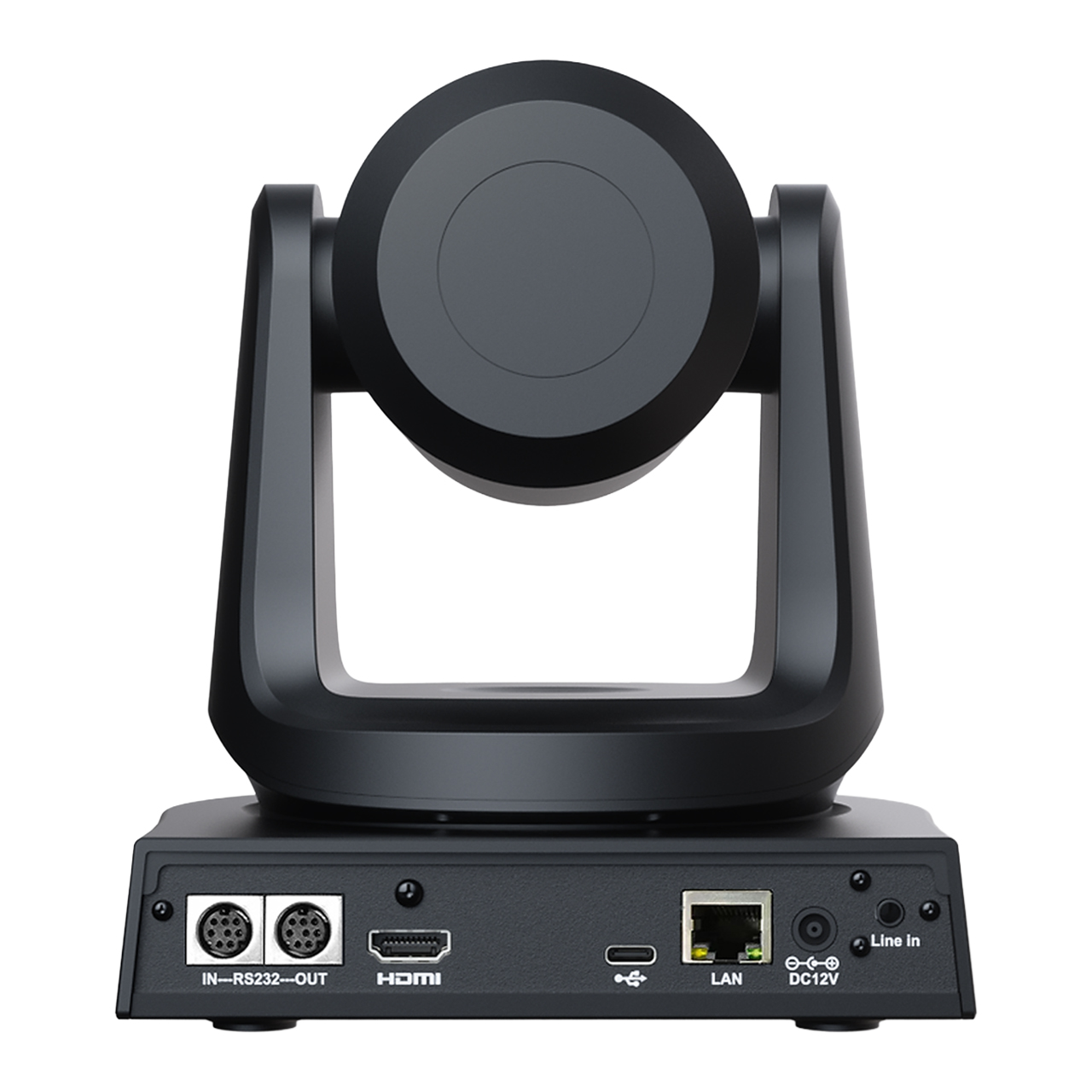

  • Video Output:
    - 1x HDMI
    - 1x LAN (RJ45)
    - 1x USB2.0 (Type-C)
  • Communication Interface:
    - 1x 8-pin Mini DIN RS232-in (Female)
    - 1x 8-pin Mini DIN RS232-out (Female)
    - 1x RS485 (shared with RS232-in port)
    - 1x LAN (RJ45)
    - 1x USB-C (UVC1.1)
  • Control Protocol: ONVIF/VISCA/Pelco-D/Pelco-P/UVC1.1/VISCA-Over-IP
  • Audio Input Interface: 3.5mm TRS Line-in input, embedded audio out via IP streaming
  • RS232 Daisy Chain: Supported up to 7 cameras under VISCA protocol
  • Video Encoding Standard: H.264/H.265
  • Video Streaming Mode: First streaming, Second streaming
  • Video Bitrate Control: Variable Bitrate (VBR), Constant Bitrate (CBR)
  • Video Bitrate Range: 1024Kbps - 16384Kbps
  • Network Port Speed 1000Mbps
  • Streaming Protocols: TCP/IP, HTTP, RTSP, RTMP, SRT, DHCP, ONVIF, VISCA over IP, NTP
  • Audio Encoding Format: AAC & LPCM
  • USB Communication: UVC 1.1 protocol
  • Power Input: DC12V, PoE (IEEE802.3af Standard)
  • Input Electric Current: Maximum: 1A
  • Power Consumption: Maximum: 13W
  • Stored Temperature: 14°F - 122°F (-10°C - 50°C)
  • Working Temperature: 14°F - 122°F (-10°C - 50°C)
  • Working and Stored Humidity: 20% - 80%
  • Dimension: 6.6" x 6.6" x 7.1" (167.5mm x 168mm x 180mm)
  • Net Weight: 3.1lbs (1.4kg)


• Item Includes:

  • 1x Camera
  • 1x Power Adapter (US Standard)
  • 1x Power Cord (US Standard)
  • 1x RS232 Control Cable (DB-9 female to 8-pin Mini-Din male)
  • 1x USB2.0 Cable (Type-C to Type-A)
  • 1x IR Remote Controller
  • 1x User Manual


• Warranty:

  • Limited Two Year Warranty
