Avenview HBT2-C6BPOC-SET [email protected] 4:4:4 HDMI2.0/HDCP2.2 HDR10 8/10 Bit HDBaseT CAT5/6/7 Encoder and Decoder Set


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

HBT2-C6BPOC-SET - Overview

The Avenview HBT2-C6BPOC-SET HDMI HDBaseT CAT5/6/7 Extender SET extends [email protected] high definition video, multi-channel digital audio, data formats IR/RS232 and POC up to 100m (330ft)/70m (230ft) to any display over Cat5/6/7.

This unique model allows 18Gbps data to be encoded and delivered uncompressed [email protected] (UHD or DCI) 4:4:4 8bit or HDR signal with 4:2:0 10 bit chroma subsampling over certified 625Mhz CAT6/7 cables to a HDMI 4K Display.

Video Signals: [email protected] (Ultra HD), 3D, 8/10/12 Deep Color, and Full HD [email protected] Hz/48-bit color depth.
Audio signals: Uncompressed 7.1ch digital
Data Signals: Bi-Directional IR signals 20 KHz to 60 KHz and RS-232 over CAT5/6.

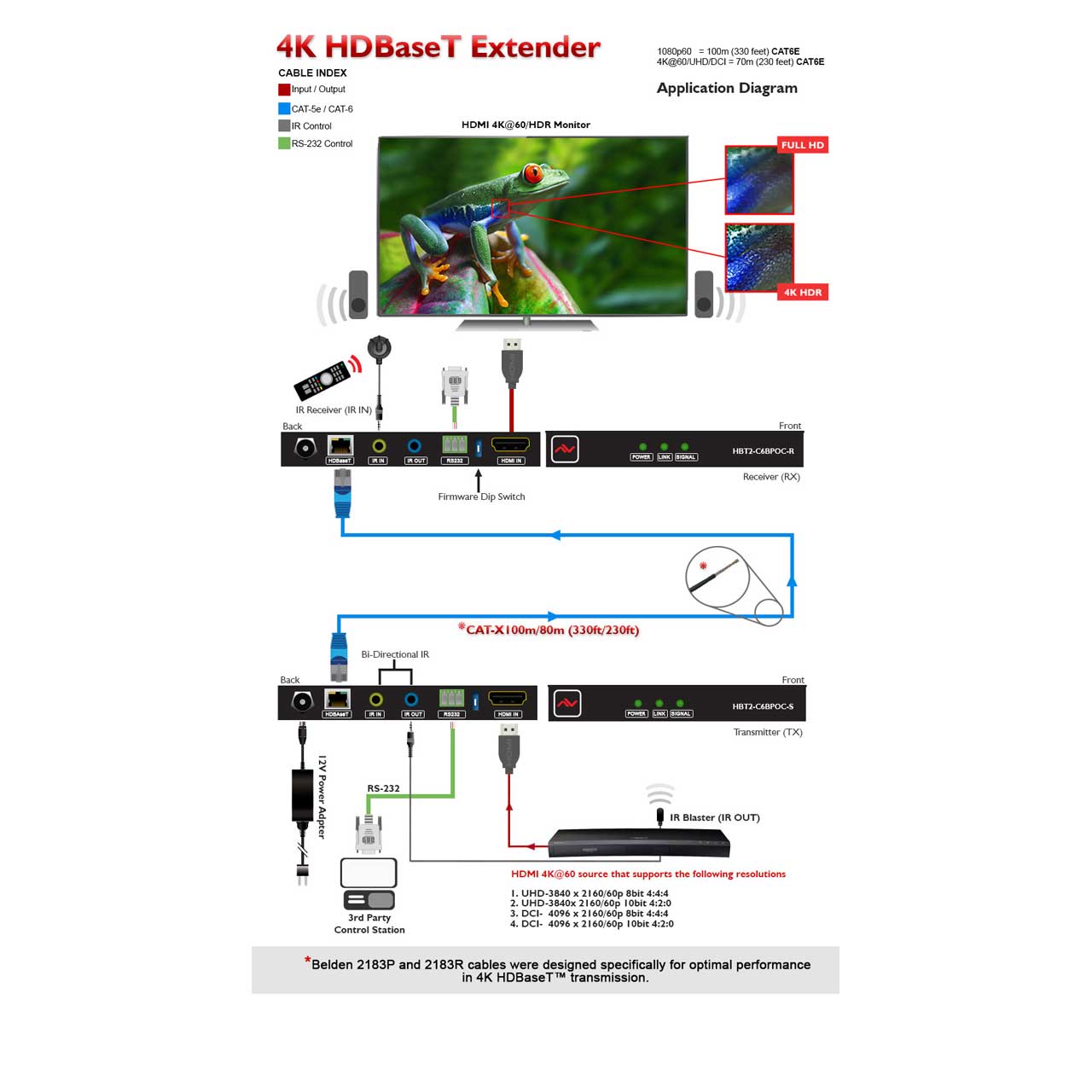

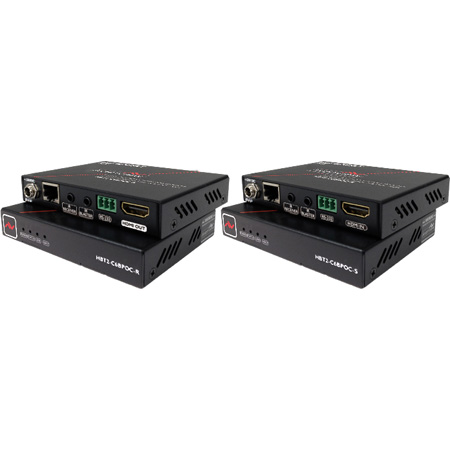

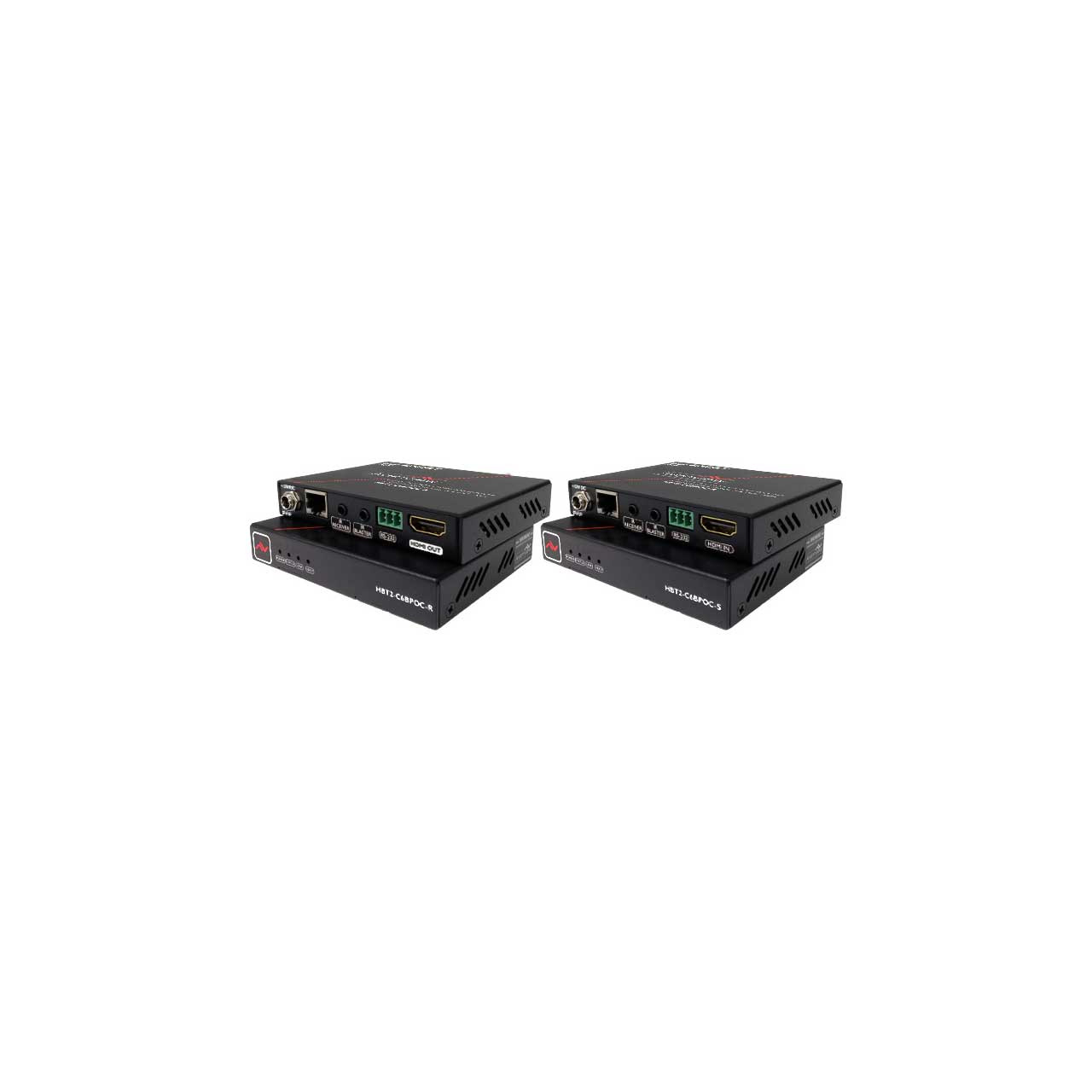

The HBT2-C6BPOC-SET includes two (2) units: Transmitter unit (TX) HBT2-C6BPOC-S and Receiving unit (RX) HBT2-C6BPOC-R with one (1) RJ45 output port which allows the user to extend video, audio and data signals up to 100m 330ft.

The HBT2-C6BPOC-SET supports data pass through via the bi-directional IR and RS-232 ports on both the TX and RX units, allowing the users to transmit any IR or RS-232 information to the desired device to be controlled. The HBT2-C6POE-SET offers the most convenient solution for extending video and audio applications over long distances with high quality results from 4K GPU's, Xbox, PlayStation and Blu-Ray devices.

  • Features:

    • Support HDMI specifications Input: HDMI 1.4/2.0a compliant and DVI compatible;
    • Distance: Full HD 1080p up to 100m (330ft) from the HDMI source 48-bit and [email protected] up to 70m (230ft)/100m(330ft) using CAT6A or Belden comparable 4K rated STP cable;
    • Supported resolutions 480p up to1080p/3D/[email protected] (4:4:4) 8-bit /[email protected](4:2:0)10-bit;
    • Bi-Directional power feature (Only one 12V power supply can be used to send power to the TX or RX;
    • Support PoC (Power over Cable) supplies power to paired unit the TX/RX over UTP/STP;
    • Supports HDCP 2.2 also backward compatible;
    • EDID Bypass and EDID adjustment for HDMI 2.0 pixel clock over 340MHz;
    • Supports CEC bypass;
    • Audio Supported: 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio;
    • Support full frequency IR signal from 20KHz to 60KHz;
    • Bi-directional IR/RS-232 pass-through;
    • Full Duplex RS-232 control up to 115,200 bps.
    • 3D support: Follow by Display / TV's EDID.
    • Wall mounting bracket included.
  • Specifications:

    • Video Bandwidth: Single-link 600MHz [18Gbps]
      Supported Resolutions
    • [email protected]/60, [email protected],
    • [email protected] Up to UHD/DCI ([email protected]/25/30/50/60Hz)
      Resolution and Distance @ 8-BIT
    • Full HD: (1080p) ~ 100meter (328feet) (CAT6)
    • [email protected]: (4096 pixels x 2160) 70meter (230 feet) (CAT6)100meter (330 feet) (CAT6A)

    • Audio Support: Lossless Multi-channel audio formats (DTS-HD Master Audio, Dolby TrueHD, Dolby True HD)
    • Input TMDS Signal: 1.2 Volts (peak-to-peak)
    • Input DDC Signal: 5 Volts (peak-to-peak, TTL)
    • ESD Protection: - Human body model - ±19kV (air-gap discharge) & ±12kV (contact discharge) - Core chipset - ±8kV

    • 1x HDMI
    • 1x 3.5mm
    • 1x RS 232
    • 1x RJ 45 HDBaseT
    • 1x 3.5mm
    • 1x RS 232

    • 1x RJ 45 HDBaseT
    • 1x 3.5mm
    • 1x RS 232
    • 1x HDMI
    • 1x 3.5mm
    • 1x RS 232

    • HDMI Connector: Type A (19 pin female)
    • RJ45 Connector: WE/SS 8P8C with 2 LED indicators 3 pin
    • RS-232 Support: 3 pin Phoenix connector 115,200 bps
    • Dimensions (L x W x H): 4.7" x 2.9" x 0.8" 4.7" x 2.9" x 0.8"
    • Weight: 0.27lbs each

      Power Supply
    • 12V 2A DC (Only one power supply needed)

      Power Consumption
    • Transmitter: 3 Watt (max)
    • Receiver: 7 Watt (max)

    • Operating Temperature: 32° ~ 104°F (0° to 40°C)
    • Storage Temperature: -4° ~ 140°F (-20° ~ 60°C)
    • Relative Humidity: 20~90% RH (non-condensing)
  • Item Includes:

    • 1x HBT2-C6BPOC-S (TX)
    • 1x HBT2-C6BPOC-R (RX)
    • 1x IR Blaster/Receiver
    • 1x 3-pin Terminal Block Connector
    • 1x Power Adapter 12V 2A DC
    • 1x User Guide
