Analog Way Eikos 4K 4K60 MultiLayer Video Mixer & Seamless Presentation Switcher/10 In/2 PGM Out/Edge Blending Support

ITEM #: AWA-EIKOS-4K MFG #: EIKOS 4K

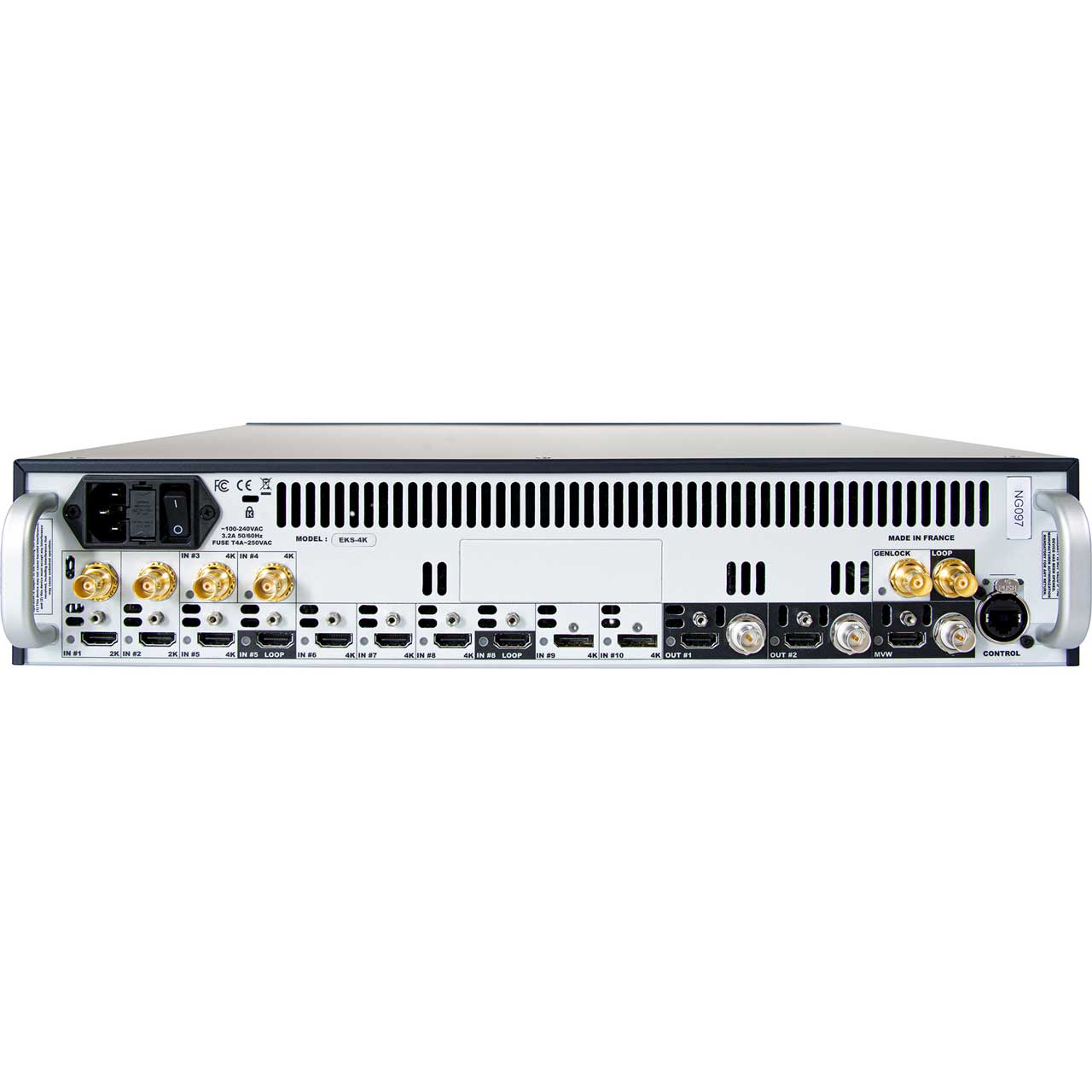

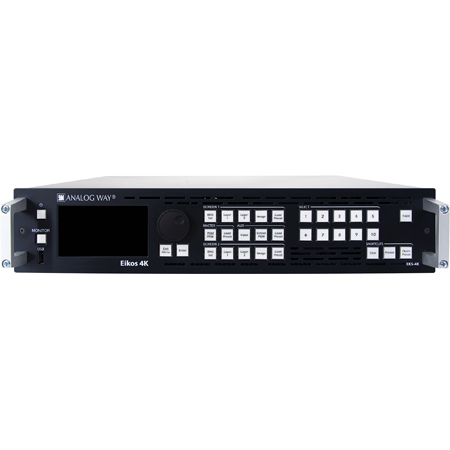

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AWA-EIKOS-4K

EIKOS 4K - Overview

Versatile 4K Connectivity
The Analog Way Eikos 4K is a powerful 4K60 multi-layer mixer and seamless presentation switcher equipped with ten inputs, including eight 4K60 inputs and two 1080p inputs with user-selectable connectors. The Eikos 4K has two 4K60 mirrored HDMI and SDI outputs that can be configured as hard/soft edge Program, or as two independent Program outputs or as Program and AUX. In addition, the Eikos 4K has a dedicated multiviewer to monitor your Program & Preview screens and your inputs.

Quality without Compromise
Based on the extremely robust and reliable Midra™ 4K platform as well as on the 5th generation scaling engine inherited from the LivePremier™ series, the Eikos 4K features ultralow latency 4K60 10-bit 4:4:4 image processing, uncompromising video quality, seamless switching, HDR support and HDCP 2.2 compatibility, which makes it an ideal solution for your small to medium-sized live events and fixed installations.

Smart Functionalities
The Eikos 4K offers dozens of powerful functionalities that will help you to produce elegant AV presentations: edge-blending, custom output formats, IP Streaming of any Input or Output, Luma/Chroma keying, AOI, HFR up to 144Hz..It also allows to de-embed or embed digital audio on all the inputs and outputs. An audio option is available to add Dante™ audio networking support to the Eikos 4K.

  • Features:

    • Compact 2RU rugged chassis
    • Ten inputs (8x 4K60 + 2x 1080p inputs) + two 4K60 multiplug outputs
    • 3 modes: Hard/Soft Edge, Matrix (2 PGM) or Switcher (1 PGM + 1 AUX)
    • Dedicated multiviewer with resizable widgets
    • Real-time 10-bit 4:4:4 video processing compliant with HDR10 & HLG
    • Live background + up to four 4K split layers (or two 4K mixing layers)
    • IP RTMP-based streaming of any Input or Output
    • Intuitive HTML5-based user interface with live source thumbnails
    • Advanced audio processing and dynamic routing
    • Optional analog and Dante audio networking card (32x32 channels)


  • Specifications:

    • 10 Seamless Inputs
    • 4x HDMI 2.0 - up to 4K60 8-bit 4:4:4 or 4K60 12-bit 4:2:2
    • 2x DisplayPort 1.2 - up to 4K60 10-bit 4:4:4 or 4K60 12-bit 4:2:2
    • 2x 12G/6G/3G-SDI (level A & B) - up to 4K60 10-bit 4:2:2
    • 2x HDMI 1.4 or 3G-SDI (user selectable input plug) - up to 2K60 10-bit 4:4:4 (HDMI) or 2K60 10-bit 4:2:2 (SDI)
    • Support custom input formats up to 4096 width

      2 Active Outputs
    • 2x HDMI 2.0 connectors + 2x mirrored 12G/6G/3G-SDI (level A & B) connectors
    • up to 4K60 8-bit 4:4:4 or 4K60 12-bit 4:2:2 (HDMI)
    • up to 4K60 10-bit 4:2:2 (SDI)
    • Support custom output formats up to 4096 width
    • 3 modes available: Edge-Blending, Matrix (2 independent PGM) or Switcher (1 PGM + 1 AUX)

      1 Dedicated Multiviewer Output
    • 1x HDMI 1.4 + 1x mirrored 3G-SDI
    • Resolution up to 2560x1600@60 8-bit 4:2:2
    • 17 resizable widgets - customizable layouts (20 memories)
    • Monitor the Program and Preview screens and all the inputs
    • Built-in clocks, countdown and timers

      Ultra-Low Latency 4K60 Processing
    • Based on Analog Way exclusive 5th generation scaling engine
    • Ultra-low latency (16msec @60Hz)
    • BT.601; BT.709; BT.2020 color spaces support
    • Split layers mode: double the live layer count (no crossfade effect)
    • Advanced EDID management
    • Area of Interest and advanced output/screen test patterns
    • Layer and screen freeze feature
    • Compliant with HDR10 and HLG - Built-in SDR/HDR converters (1)
    • Compatible with HDCP 1.4 and HDCP 2.2

      Advanced Audio Processing
    • De-embed/embed audio channels on all inputs/outputs (PCM): 8 channels per HDMI 2.0, 12G-SDI or DisplayPort 1.2 input, 4 channels per 3G-SDI input and 2 channels per HDMI 1.4 input, 8 channels per active output
    • Level control, Mute, Balance, Delay, 1kHz Sinus Pattern features
    • Fixed or dynamic routing (breakaway or top layer)
    • Optional Analog and Dante audio networking card: 2 analog stereo mini jack line in and line out 1/8" (3.5 mm), 32x32 Dante audio channels @48kHz
    • Dual redundancy Ethernet ports - AES67 support

      8 Concurrent 4K Still Images
    • 4x 4K concurrent still images for the foreground layer
    • 4x 4K concurrent still images for the background
    • Alpha-channel support
    • Still image library with 50 memories
    • Multi-file download/upload via Web RCS - capture from live inputs

      Advanced Video Effects
    • True A/B mix effect
    • Layer border effects and colors with separate shadow
    • Multiple transition effects
    • Luma and Chroma Keying
    • Layer effects: H/V Flip, Transparency
    • Color effects: B&W, Negative, Sepia and Solarize

      Flexible Control Options
    • Full-featured Front Panel with 480x272 color LCD screen
    • Web RCS: on-board intuitive web-based user interface
    • Shot Box2 / Control Box2: Cost effective control solutions
    • RC400T: Ergonomic event controller
    • Compatible with Companion and Universe control solutions
    • Simple REST API (HTTP) and advanced JSON TCP protocol
    • Creston drivers & AW VideoCompositor (Premium Creston GUI)

      2 Active Outputs
    • 2x HDMI 2.0 connectors + 2x mirrored 12G/6G/3G-SDI (level A & B) connectors
    • up to 4K60 8-bit 4:4:4 or 4K60 12-bit 4:2:2 (HDMI)
    • up to 4K60 10-bit 4:2:2 (SDI)
    • Support custom output formats up to 4096 width
    • 3 modes available: Edge-Blending, Matrix (2 independent PGM) or Switcher (1 PGM + 1 AUX)

      Other
    • Dimension (in Rack Units - RU): 2RU
    • Dimension (without rack ears & mounting): W 17.32" x H 3.46" x D 17.08"
    • Dimension (with handles): W 19" x H 3.46" x D 18.66"
    • Weight without accessories: 15.43 lbs
    • Shipping weight (accessories included): 10.60 kg / 22.04 lbs
    • Operating conditions: Temperature: 32 to 104°F, Humidity: 10% to 80%, non condensing
    • Noise (@1,6m height @25°C), Front: 45 DBa@1m, Rear: 45 DBa@1m
    • Thermal dissipation: 273 BTU/hr
    • Power Supply: 100-240 VAC, 3A 50/60Hz, Fuse cartridge F4A 250VAC 5x20mm, Max consumption: 80 W
    • Safety compliance: IEC/UL/EN 62368-1, CSA22.2#62368-1, UL Listed E359143)
    • EMC & Environmental Compliance: EN55032, EB55024, EN61000, FCC part15, ICES


  • Item Includes:

    • 1x Power supply cord
    • x1 Remote Control Software (Web RCS)
    • x1 Rackmount kit
    • x1 Ethernet cross-cable
    • x1 User Manual (pdf)
    • x1 Quick Start Guide including safety instructions


  • Warranty:

    • 3-year parts and labor
