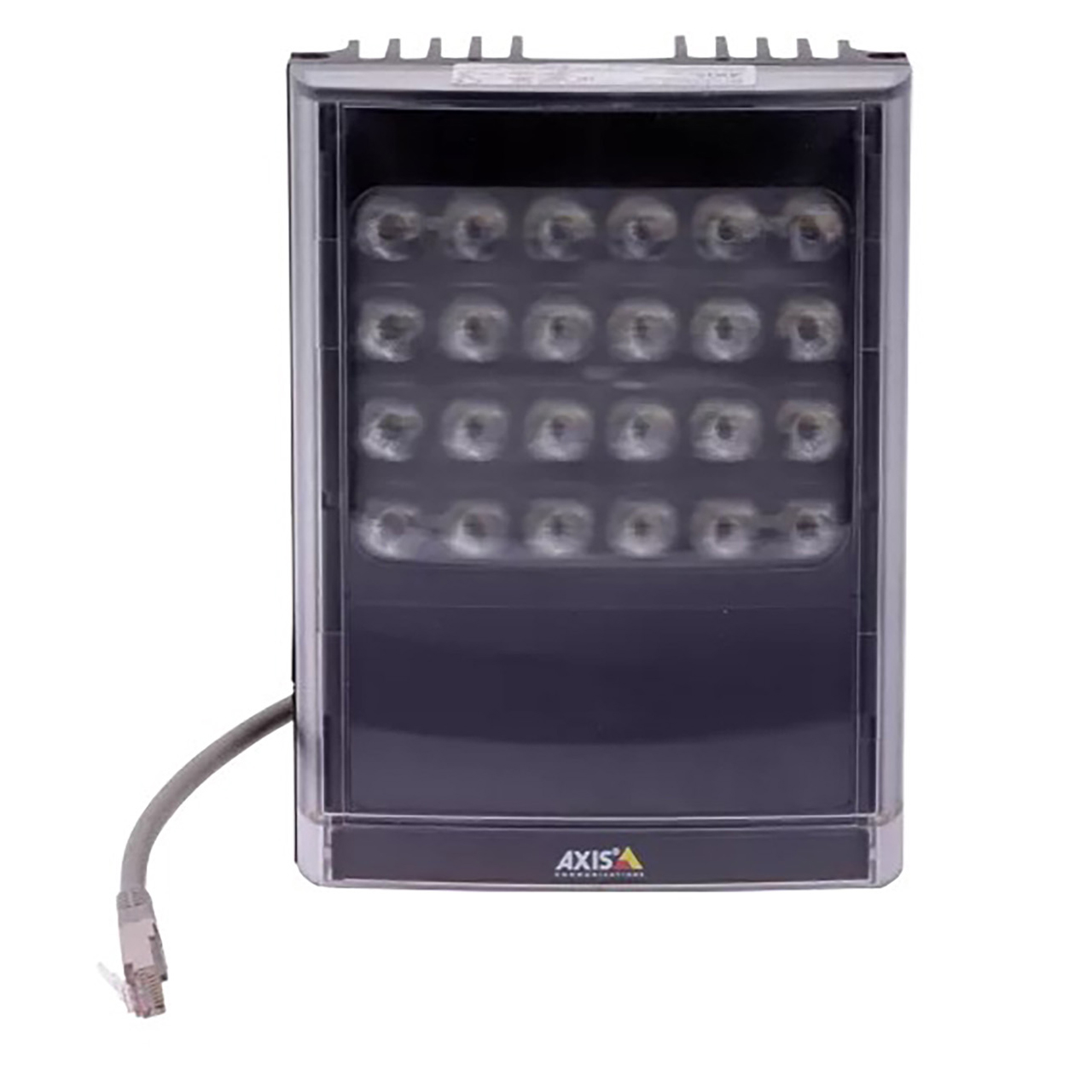

Axis Communications T90D30 PoE IR-LED Illuminator - White Light - Impact Resistant - Polycarb Aluminum - TAA Compliant

ITEM #: AXIS-01213-001 MFG #: 01213-001

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$909.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


01213-001 - Overview

Simplify your solution with PoE-powered illuminator

The AXIS T90D30 PoE IR-LED Illuminator is quick and easy to install with its plug-and-play twisted pair cable. Create a flexible and cost-effective system by connecting the PoE illuminator with any PoE midspans or switches from Axis. Based on the latest LED technology, AXIS T90D30 PoE IR-LED delivers more light where it is needed. It generates longer infrared LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera's field of view. AXIS T90D30 PoE IR-LED Illuminator comes with a pre-mounted 10§ diverging lens, and it includes diverging lenses of 35°, 60° and 80° beam angle.

  • Features:

    • High and efficient IR LED performance
    • PoE-powered illuminator
    • Flexible angle of infrared illumination
    • Various mounting options

  • Specifications:

    • Compatible Products: All Axis cameras with infrared-cut filter
    • Distance:
      - With Standard Lens: 10° x 10°: 1148ft (350m)
      - With Diverging Lens: 35° x 10°: 541ft (165m)
      - With Diverging Lens: 60° x 25°: 311ft (95m)
      - With Diverging Lens: 80° x 30°; 230ft (70m)
      - With Optional Diverging Lens: 120° x 50°; 148ft (45m)
    • Power - PoE Variant:
      - High Power over Ethernet, max 60W
      - Maximum Light: 49W
      - Standby Mode: 2.2W
    • Control Technology - PoE Variant: Through integrated push buttons or remote control: power level, photocell sensitivity, timer
    • Type: 850nm semi-covert
    • Angle:
      - Without Diverging Lenses: 10°
      - With Diverging Lenses: 35°, 60°, 80°, 120°
    • Casing: Aluminum and polycarbonate
    • Color: Black
    • Display and Indicators: Indicator LEDs
    • Environment: Indoor and outdoor
    • Mounting: Wall, ceiling, pole, fixed box camera housing
    • Operating Conditions: -58°F - 122°F
    • Cable Length: 8.2ft
    • Dimensions: 5" x 7" x 3"
    • Weight: 3.61lbs

  • Item Includes:

    • 1x Axis Communications T90D30 illuminator
    • 3x Diverging lenses with different beam angles: 35°, 60° and 80°
    • 1x IP66 cable coupler (for PoE variant only)
