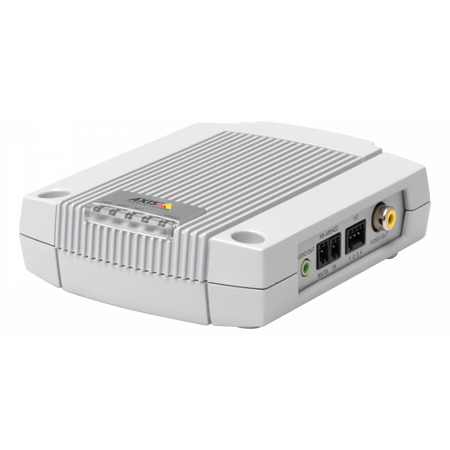

Axis Communications P7701 Video Decoder with H.264 Support - NTSC - PAL

ITEM #: AXIS-P7701 MFG #: P7701

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    P7701 - Overview

    Simple monitoring solution for Axis network video products
    The AXIS P7701 Video Decoder provides a simple monitoring solution by enabling analog or digital monitors/projectors to connect to and display live video from Axis network cameras and video encoders. In situations where only live video display is required-such as with a public view monitor at a store entrance, AXIS P7701 offers a more cost-effective solution than using a PC for connecting a monitor. AXIS P7701 can also complement a video management system by helping to offload the main server from decoding digital streams simply for display purposes.

    Full frame rate video decoding of H.264, MPEG-4 and Motion JPEG
    AXIS P7701 can decode full frame rate video streams in H.264 and MPEG-4 in all resolutions up to D1 (720x480 pixels in NTSC, 720x576 in PAL). Motion JPEG can be decoded in all resolutions up to 720p (1280x720). The video decoder can provide either digital or analog video output. Video from any number of cameras can be shown in sequence.

    Alarm-triggered video and high-quality audio
    When an alarm is triggered in a network camera or video encoder, AXIS P7701 can be configured to automatically display alarm-triggered video. AXIS P7701 also decodes mono audio. The video decoder can be powered either through Power over Ethernet or through an external power supply.

    • Features:

      • Decodes H.264, MPEG-4 and Motion JPEG
      • Digital or analog video output
      • Sequence mode and auto-connect on alarm
      • High-quality audio
      • Power over Ethernet
    • Specifications:

      • Video decoder
      • Video compression: H.264 (MPEG-4 Part 10/AVC, Baseline profile), MPEG-4 Part 2, Motion JPEG
      • Resolutions: H.264 and MPEG-4 Part 2: All resolutions up to D1 (720x480 NTSC, 720x576 PAL)
      • Motion: JPEG: All resolutions up to 720p (1280x720)
      • Frame rate: 30/25 (NTSC/PAL) fps in up to D1 resolution for all compression standards. Up to 15 fps in 720p resolution in Motion JPEG
      • Video streaming: One stream
      • Video output: NTSC 720x480, PAL 720x576, VGA (60/75 Hz) 640x480, S-VGA (60/75 Hz) 800x600, HDTV 720p 1280x720
      • Serial commands: Forwarding of serial commands

      • Audio streaming: One way
      • Audio compression: AAC-LC 8 kHz 32 kbit/s, 16 kHz 64 kbit/s, (AAC audio included in a later firmware release), G.711 PCM 8 kHz 64 kbit/s, G.726 ADPCM 8 kHz 32 or 24 kbit/s
      • Audio input/output: Line output

      • Security: Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access control, digest authentication, user access log
      • Supported protocols: IPv4/v6, HTTP, HTTPS*, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SSL/TLS*

        System integration
      • Application Programming Interface: Open API for software integration, including VAPIXr from
      • Axis Communications available at
      • Alarm triggers VAPIX alarm API
      • Alarm events Notification via email

      • Casing :Metal casing. Standalone or wall mount
      • Processor and memory: TI DM6443, 128 MB RAM, 128 MB Flash
      • Power: 8-20 V DC, max. 8.3 W, Power over Ethernet IEEE 802.3af Class 3

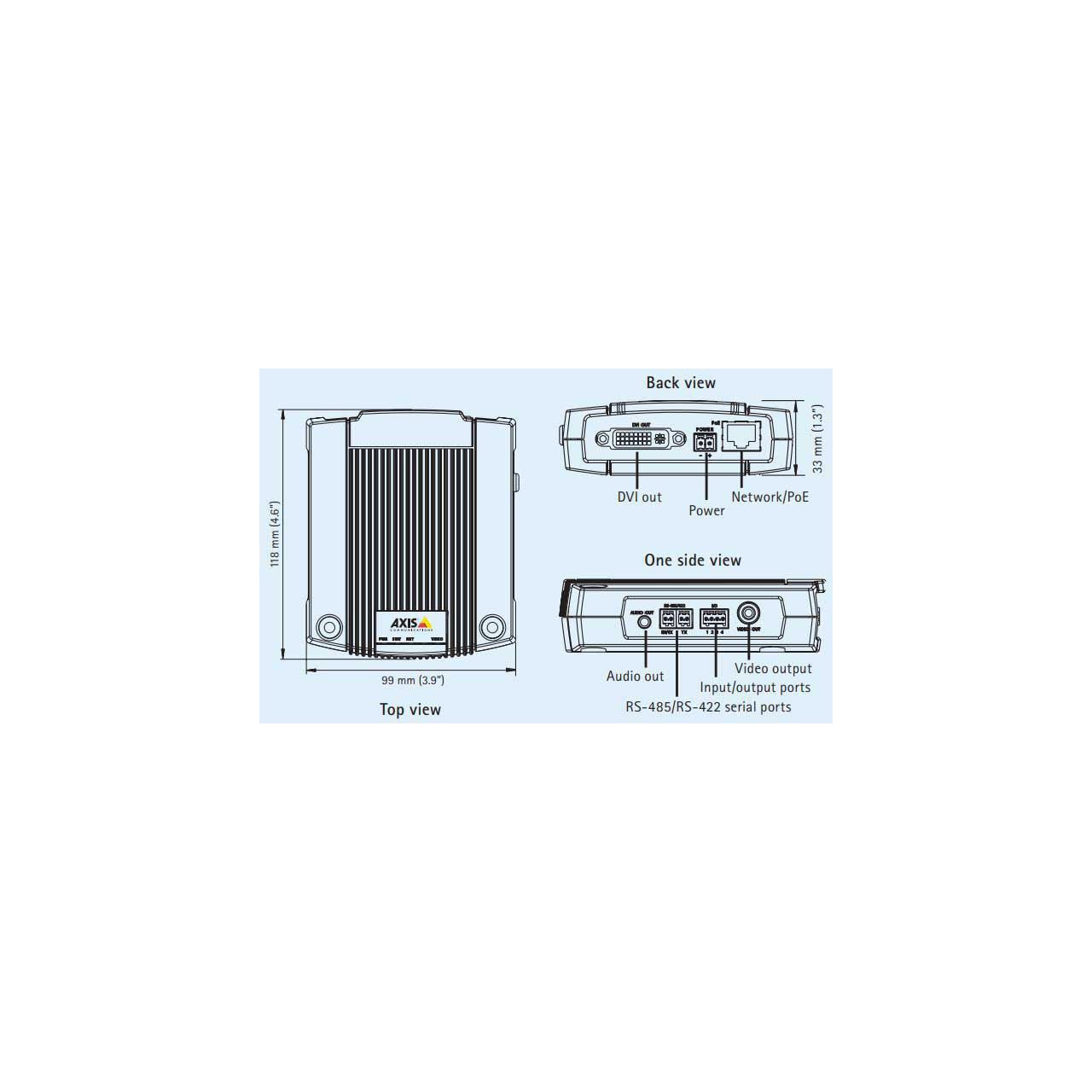

      • Connectors: RCA composite video output, DVI-I (digital and analog) output, RJ-45 10BASE-T/100BASE-TX PoE, DC terminal block: power in 8-20 V DC, max. 8.3 W, I/O terminal block: 1 digital input for video selector and power, out only. RS-485/ RS-422 terminal block, 3.5 mm audio line output, mono
      • Operating conditions: 32-122 °F, Humidity 20-80% RH (non-condensing)
      • Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class B, ICES-003, VCCI Class B, AS/NZS CISPR 22, EN 60950-1, KCC
      • Weight 318 g (0.70 lb.)
    • GTIN:
