Blackmagic Design TERANEXEXP12GDL Teranex Express SD/HD/Ultra HD Broadcast Up/Down Converter

ITEM #: TERANEXEXP12GDL MFG #: TERANEXEXP12GDL

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$1,395.00

Availability: In Stock
iAvailability Description Popup


    TERANEXEXP12GDL - Overview

    The Blackmagic Design Teranex Express is the ultimate 12G-SDI real time up, down, cross and standards converter with 1089 conversions, embedded audio, closed captions, timecode and more! With most Blackmagic Design product lines now supporting Ultra HD a way was needed to convert to and from the Ultra HD world, the Teranex Express is the perfect solution. It features the same amazing Teranex de-interlacer, but it also includes a whole new scaling engine so the up and down conversions are even better than before. Good quality image scaling is important when scaling to Ultra HD frame sizes.

    Teranex Express is the world's first real time SD, HD and Ultra HD broadcast standards converter! Featuring advanced patented algorithms, Teranex Express gives you the visually transparent, high-quality conversions that are mandated by major broadcasters and studios worldwide! You get an incredible 1089 SD, HD and Ultra HD up, down and standards conversions in full 10-bit quality! You also get amazing processing with high quality de-interlacing, noise reduction, automatic cadence detection, removal and correction even with edited content, adjustable scaling and aspect ratio conversion, all with full timecode and multi-channel audio conversion.

    • Features:

      • Familiar Teranex controls
      • On Screen Menus
      • Broadcast Connections
      • Integrated Universal Power Supply
      • Up/Down Broadcast Converter in real time
      • 12G-SDI/Dual Link 6G-SDI In/Out
      • SD/HD/3G-SDI Compatible
      • Supports SD, HD, and Ultra HD (3840x2160)

    • Specifications:

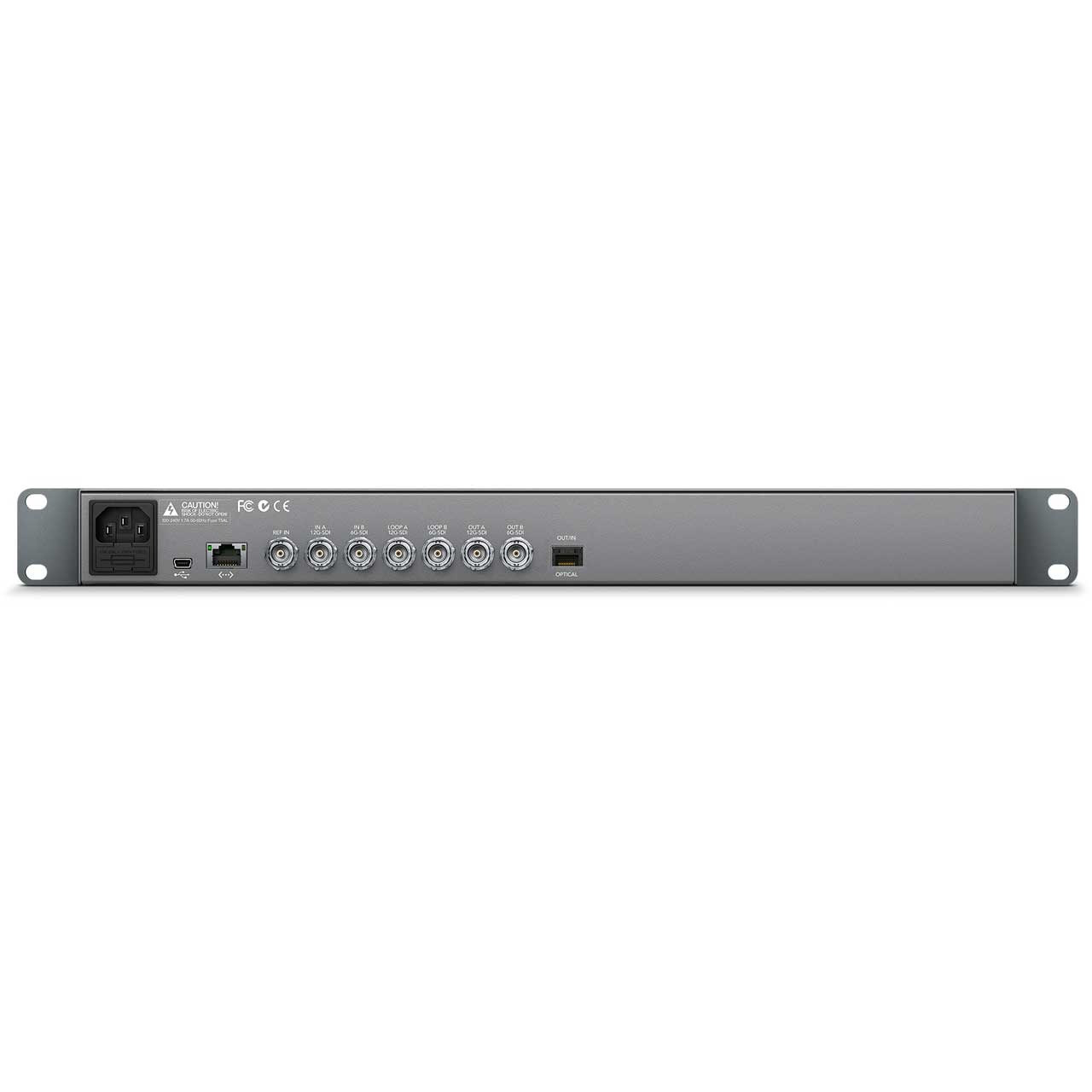

      • SDI Video Inputs: 1x BNC (IN A) - 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. 1x BNC (IN B) - 10-bit SD, HD, 2K, 3G HD and 6G Ultra HD auto switching. Usable as dual link input for 4:2:2 3G or 6G UHD.
      • SDI Video Input Loops: 1x BNC (IN A Loop) - Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching. 1x BNC (IN B Loop) - Reclocked, 10-bit SD, HD, 2K, 3 Gb/s HD, 6G Ultra HD auto switching.
      • SDI Video Outputs: 1x BNC (OUT A) - 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. 1x BNC (OUT B) - 10-bit SD, HD, 2K, 3G HD levels A and B and 6G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.
      • Quad SDI Video Outputs: SMPTE 435-1 - Quad HD Split (square division method) only. Utilizes SDI Out A for quadrant A, SDI Out B for quadrant B; reconfigures SDI In A Loop for quadrant C, SDI In B Loop for quadrant D.
      • Optical Fiber Video Inputs: 1x 10-bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
      • Optical Fiber Video Outputs: 1x 10-bit SD, HD, 3G HD, 2K, Ultra HD auto switching. Not available while operating in Dual Link or Quad Link output modes.
      • SDI Audio Inputs:16 channels in SD, HD, 3G HD, 2K and Ultra HD
      • SDI Audio Outputs: 16 channels in SD, HD, 3G HD, 2K and Ultra HD
      • Optical Fiber Connection: (optional) 1x SMPTE optical fiber SFP socket
      • Optical Fiber Audio Inputs: 16 channels in SD, HD, 3G HD, 2K and Ultra HD
      • Optical Fiber Audio Outputs: 16 channels in SD, HD, 3G HD, 2K and Ultra HD
      • Dolby ® Support: Built In Dolby ® AC-3 pass through in all conversions. Dolby ® E pass through except during video frame rate conversions.
      • Timecode Inputs: Support for VITC/ATC. No support for LTC
      • Timecode Outputs: Support for VITC/ATC. No support for LTC
      • Multi Rate Support: SDI connections are switchable between standard definition, high definition and UltraHD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
      • Reference Input: 1x BNC - Black Burst or Tri-level sync
      • Computer Interface: 1x USB 2.0 mini B port for software updates. 1x RJ45 10/100 Ethernet for remote control and configuration.

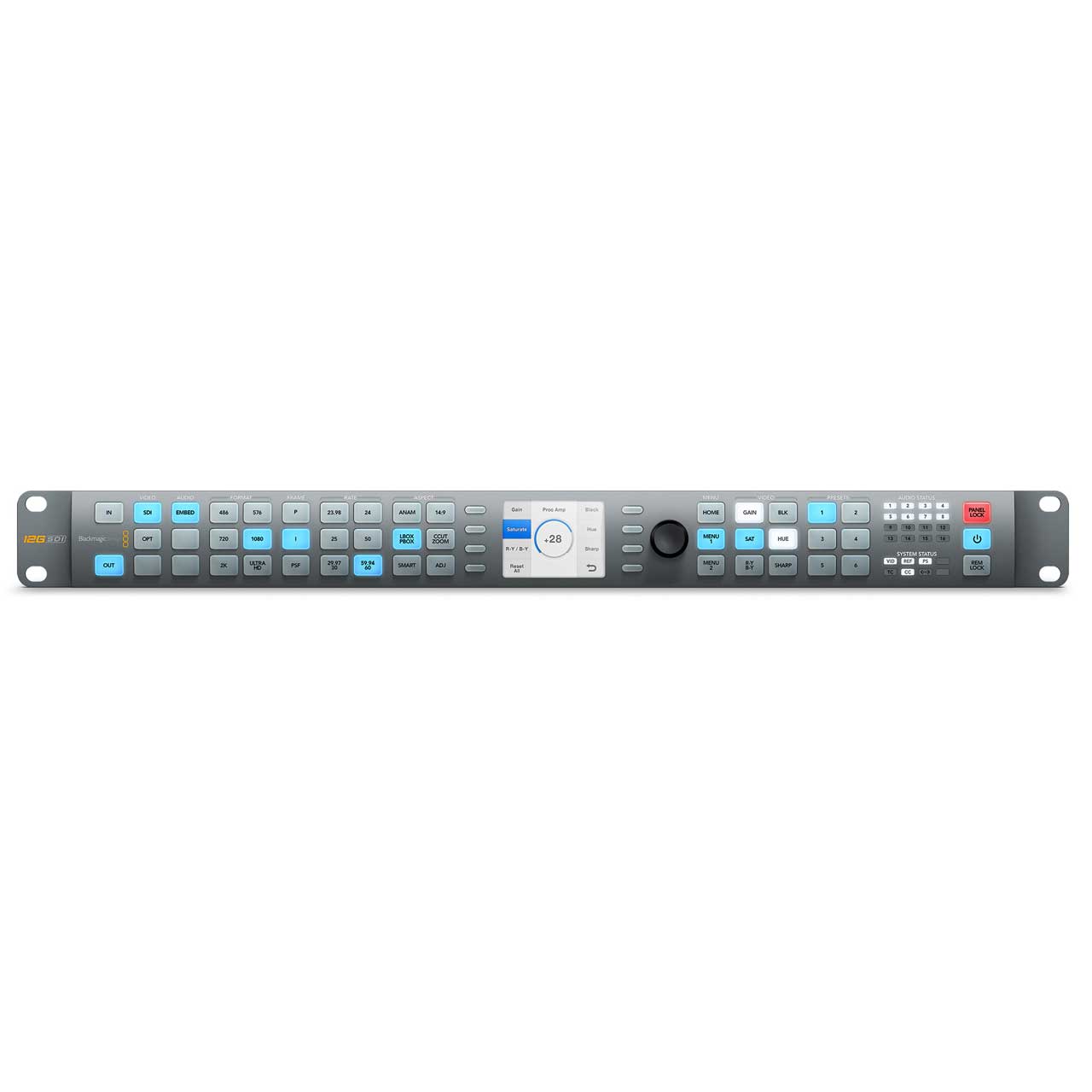

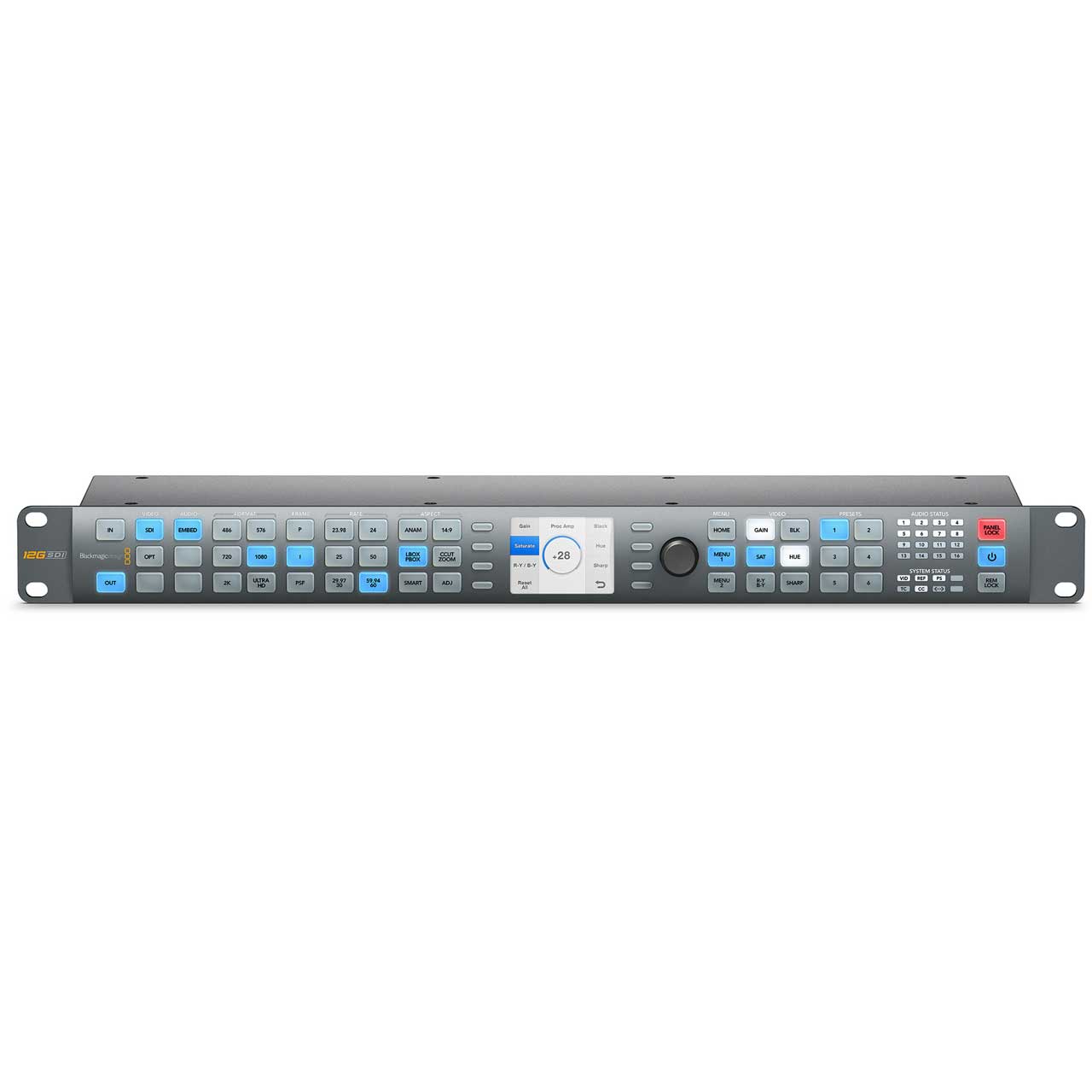

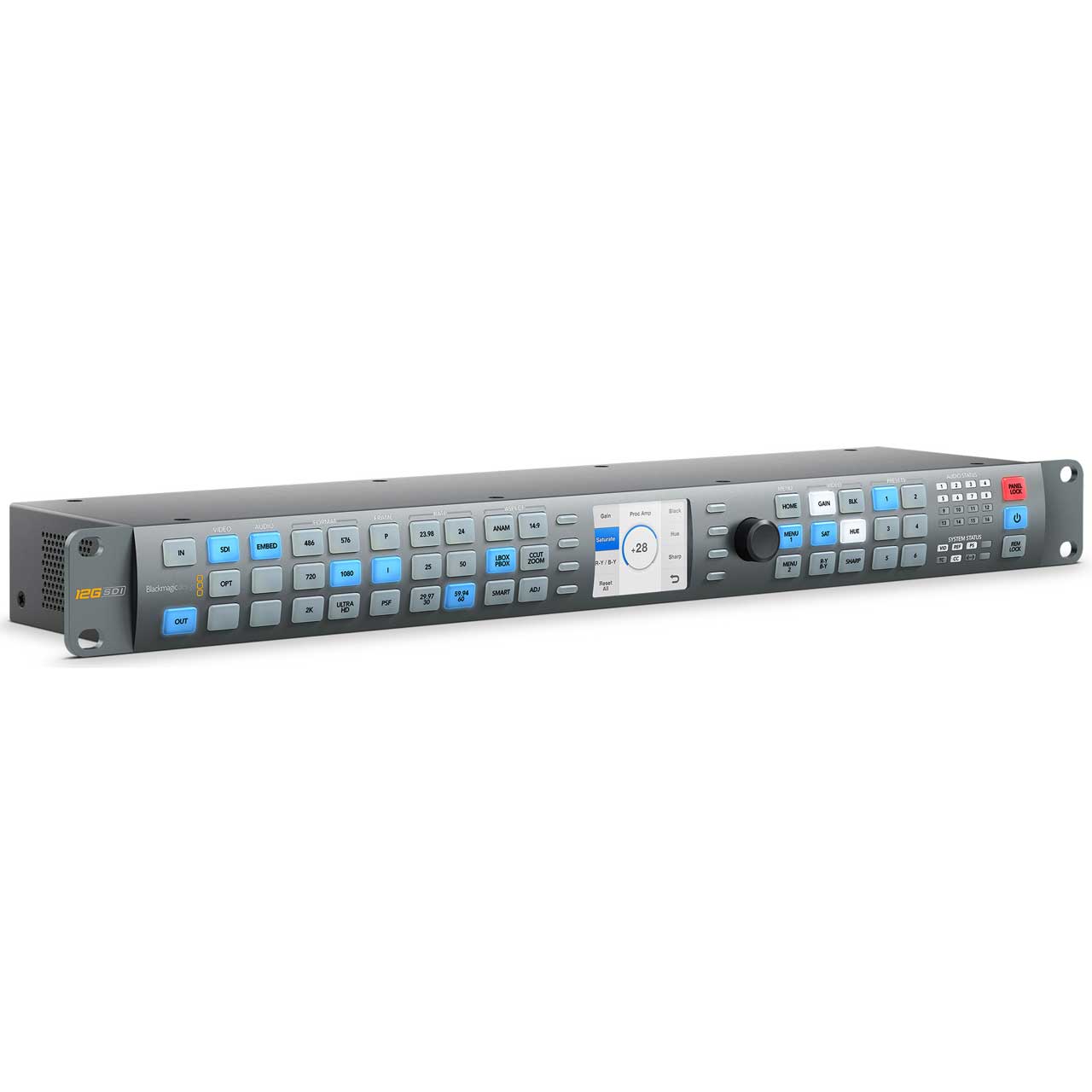

      • Processor Interface: Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • 1.5G-SDI HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 3G-SDI HD Video Standards: 1080p50, 1080p59.94, 1080p60 levels A and B
      • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 23.98PsF, 2K DCI 24PsF
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
      • SDI Metadata Support: VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
      • Audio Sampling: Television standard sample rate of 48kHz and 24-bit
      • Video Sampling: 4:2:2 SDI
      • Aspect Ratio Conversion: Real time variable and fixed aspect ratio conversions

    • Item Includes:

      • Teranex Express
      • SD card with software and manual
      • 2x Bumper guards with 4x M4 screws

    • Warranty:

      • 12 Month Limited Manufacturer's Warranty

    • GTIN:

      9338716002645
