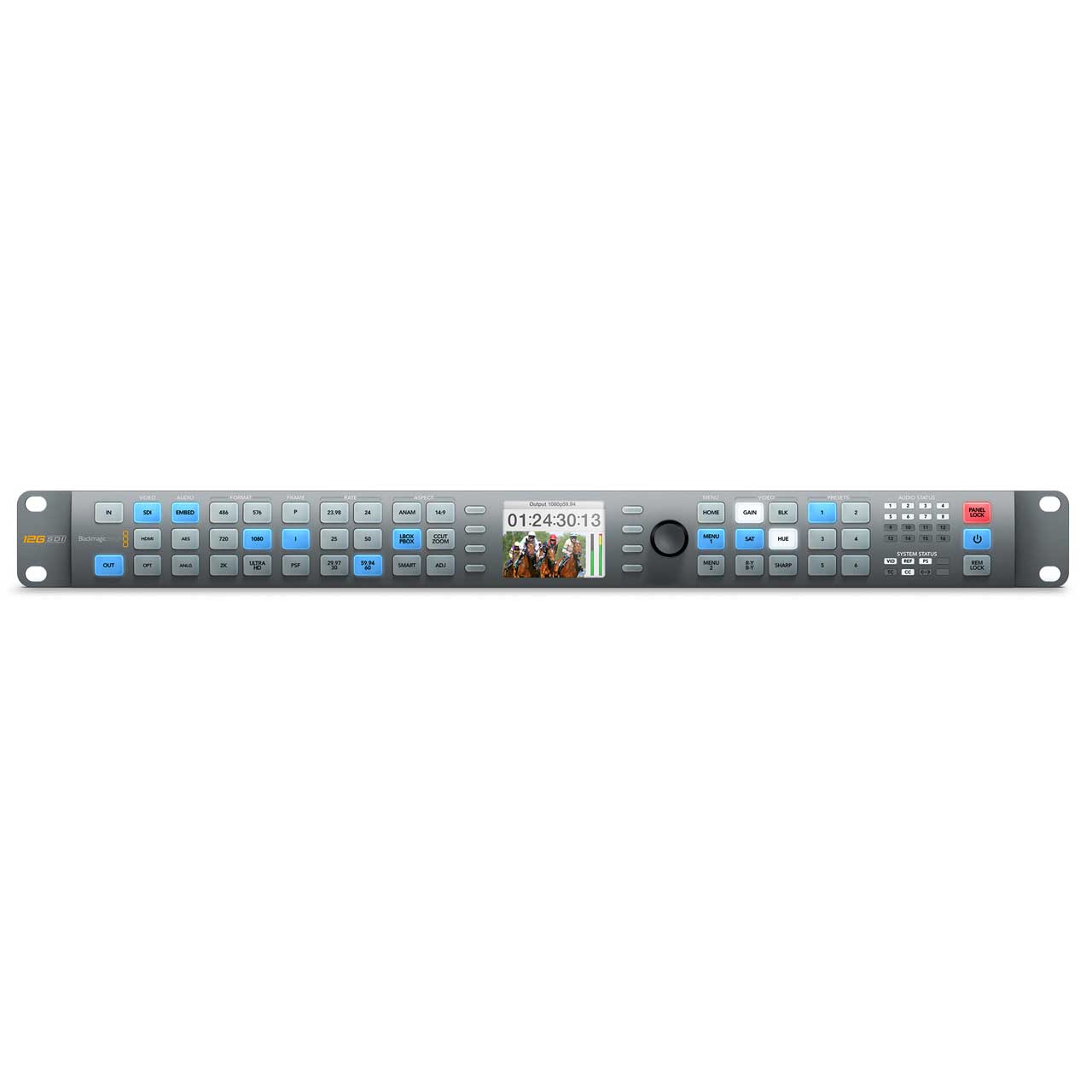

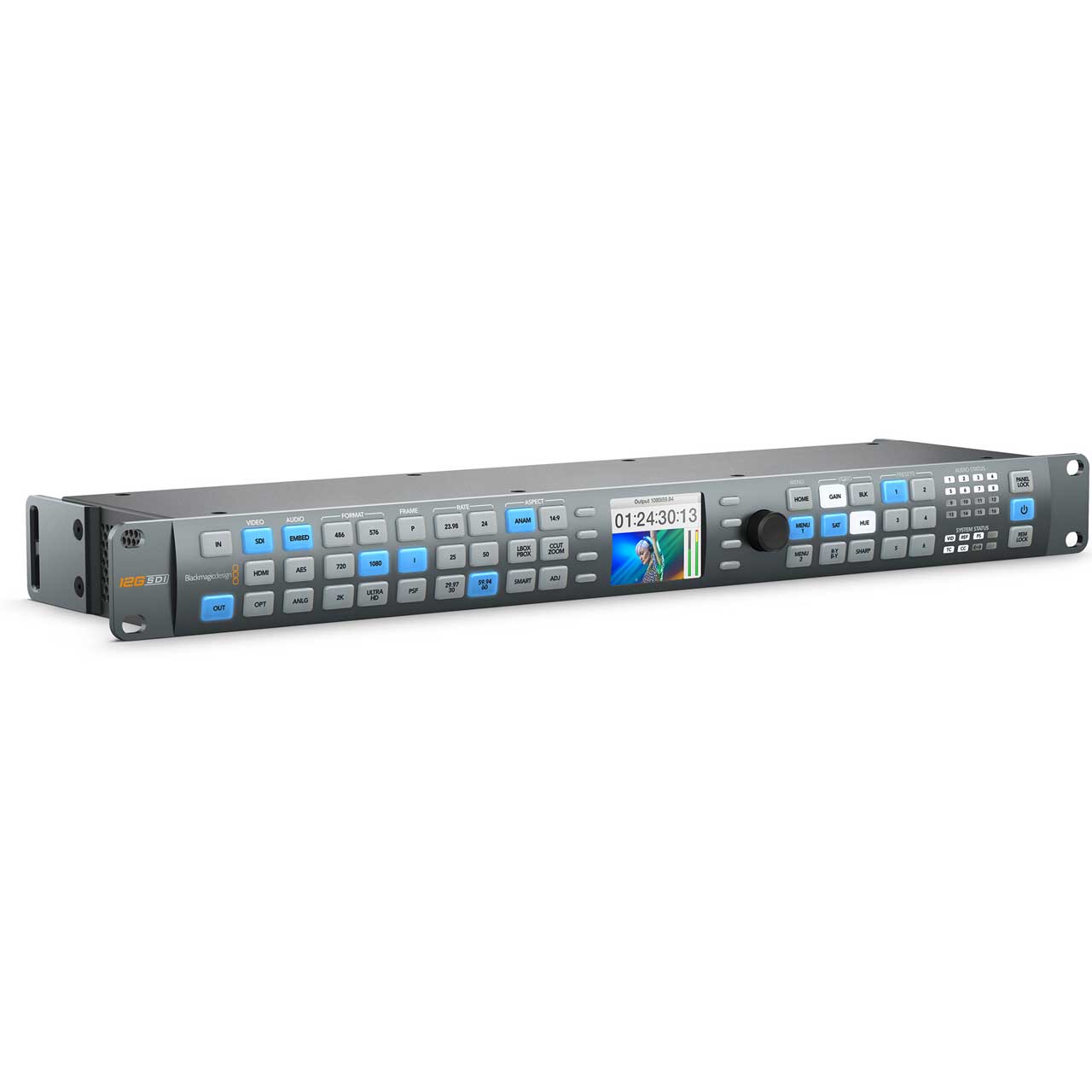

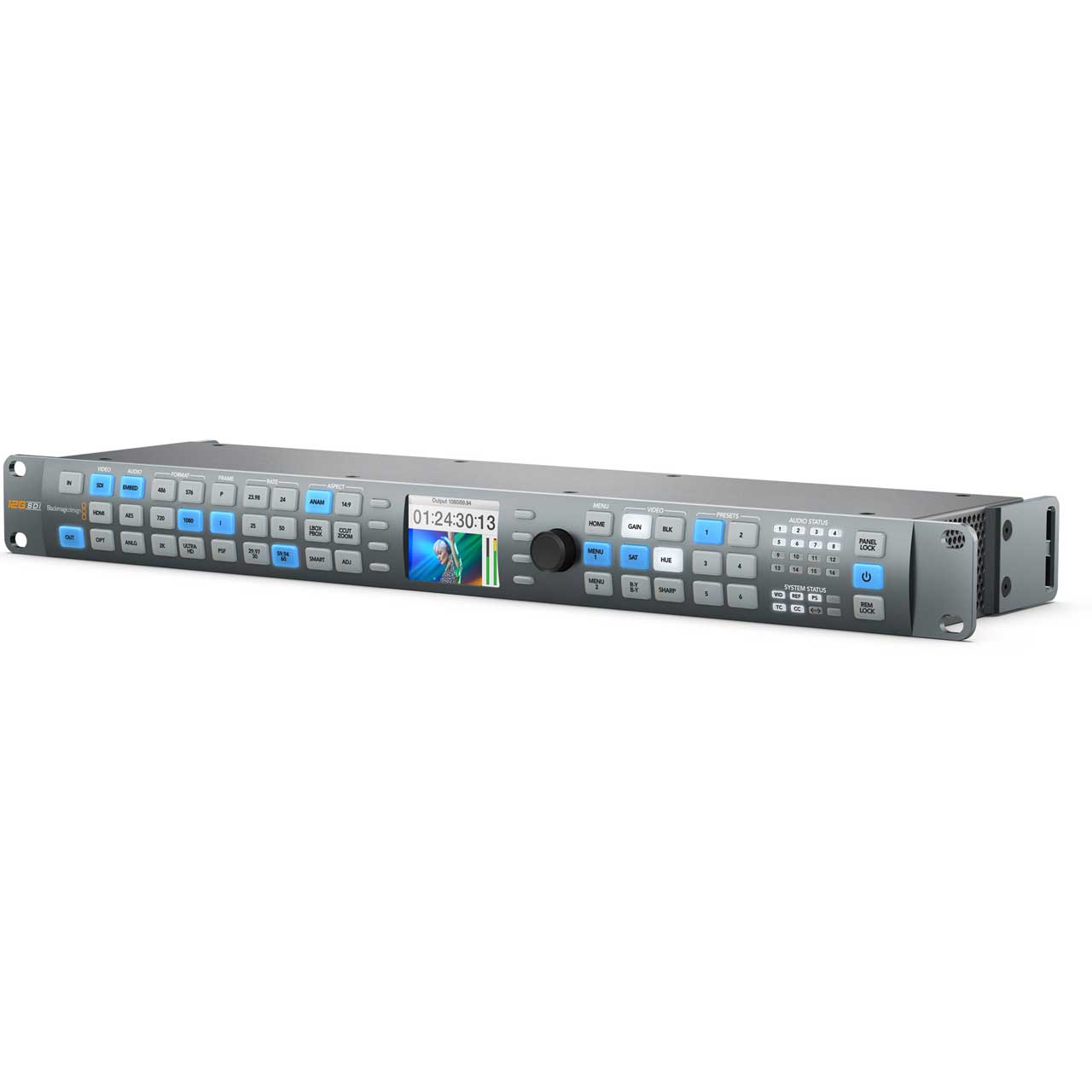

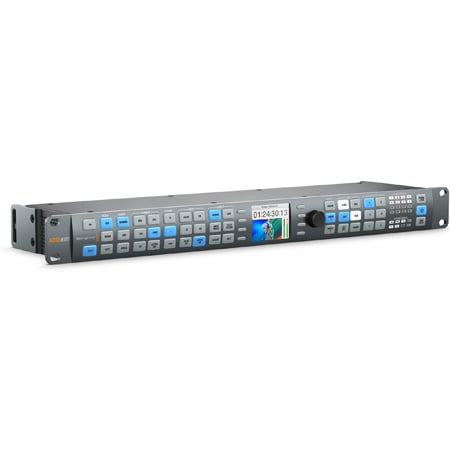

Blackmagic Design TERANEXEXPAV12GQL Teranex AV Standards Converter - 12G-SDI & HDMI 2.0

ITEM #: BMD-TERANEX-AV MFG #: TERANEXEXPAV12GQL

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$1,695.00

Availability: In Stock
iAvailability Description Popup


    TERANEXEXPAV12GQL - Overview

    The Blackmagic Design Teranex AV is specifically designed with new features for live events and professional AV installations, as well as broadcast and post production workflows. You get 1,089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex's patented algorithms and legendary image quality. Teranex AV offers low latency, and features a still store for adding logos and graphics, a live freeze frame and can generate a reference signal. You get professional 12G-SDI and quad SDI connections which can be used simultaneously, consumer HiFi, XLR audio, HDMI in, loop and outputs, and more! There are even metal brackets at the rear to prevent cables and connections from getting damaged when installed in tight locations!

    Whether you're out in the field or in the studio, you never know what kind of video format you're going to get or which video format you're going to have to provide. You get 1,089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex's patented algorithms and legendary image quality. Teranex AV offers low latency, and features a still store for adding logos and graphics, a live freeze frame and can generate a reference signal. You get professional 12G-SDI and quad SDI connections which can be used simultaneously, consumer HiFi, XLR audio, HDMI in, loop and outputs, and more! There are even metal brackets at the rear to prevent cables and connections from getting damaged when installed in tight locations!

    • Features:

      • Ultra low latency, as low as 67 milliseconds.
      • HDMI 2.0a, 12G-SDI in, out and loop through connections.
      • XLR connections for 2 channels of balanced analog and 4 channels of AES/EBU audio input.
      • Consumer HiFi connections for 2 channels of audio input from devices like laptops and iPods.
      • Optical fiber cage for adding optional SMPTE compatible fiber optic SDI modules.
      • Internal still store and live freeze modes.
      • Patented Teranex processing for extremely high quality up, down, cross and standards conversions.
      • Retains all ancillary data such as timecode and subtitles.
      • 16 channels of frame accurate audio conversions and full audio channel remapping.
      • Classic Teranex front panel makes it extremely easy for Teranex customers to integrate and use.
      • Reference input for built in frame sync feature and reference output for sync generation.
      • Built-in video test pattern generation with audio test tones.
      • Gigabit Ethernet connectivity for remote control.
      • Built in power supply supports 110V to 240V AC.

    • Specifications:

      • Connections
      • SDI Video Inputs: 1x BNC (IN A) - 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. 1x BNC (IN B) - 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD
      • SDI Video Input Loops: 1x BNC (IN A Loop) - Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching. 1x BNC (IN B Loop) - Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
      • SDI Video Outputs: 1x BNC (OUT A) - 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. 1x BNC (OUT B) - 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.
      • Quad SDI Video Outputs: 4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.
      • HDMI Video Inputs: 1x HDMI 2.0 type A connector. YUV or RGB, auto switching.
      • HDMI Video Loop Inputs: 1x HDMI 2.0 type A connector. Active Input loop.
      • HDMI Video Outputs: 1x HDMI 2.0 type A connector. YUV or RGB, user selectable.
      • SDI Audio Inputs: 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
      • SDI Audio Outputs: 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
      • HDMI Audio Inputs: 8 channels in SD, HD, 3G HD, 2K and Ultra HD.
      • HDMI Audio Outputs: 8 channels in SD, HD, 3G HD, 2K and Ultra HD.
      • Optical Fiber Connection (optional): 1x SMPTE optical fiber SFP socket.
      • Optical Fiber Video Inputs: 1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
      • Optical Fiber Video Outputs: 1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
      • Optical Fiber Audio Inputs: 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
      • Optical Fiber Audio Outputs: 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
      • Analog Audio Inputs: 2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs). 2x RCA - stereo unbalanced analog audio on RCA connectors for consumer equipment.
      • AES/EBU Digital Audio Inputs: 2x XLR - 2 pairs (4 channels) professional 110? balanced digital audio (XLRs are shared with analog inputs)
      • Dolby® Support Built In: Dolby®AC-3 pass through in all conversions. Dolby®E pass through except during video frame rate conversions.
      • Timecode Inputs: Support for VITC/ATC. No support for LTC.
      • Timecode Outputs: Support for VITC/ATC. No support for LTC.
      • Multi Rate Support: SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
      • Reference Input: 1x BNC - Black Burst in SD or Tri-level sync in HD.
      • Reference Output: 1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.
      • Computer Interface: 1x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.
      • Processor Interface: Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.

        Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • 1.5G-SDI HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 3G-SDI HD Video Standards: 1080p50, 1080p59.94, 1080p60 levels A and B
      • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 23.98PsF, 2K DCI 24PsF
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
      • SDI Metadata Support: VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.

    • Item Includes:

      • Teranex AV
      • SD card with software and manual

    • Warranty:

      • 12 Month Limited Manufacturer's Warranty

    • GTIN:

      9338716004373
