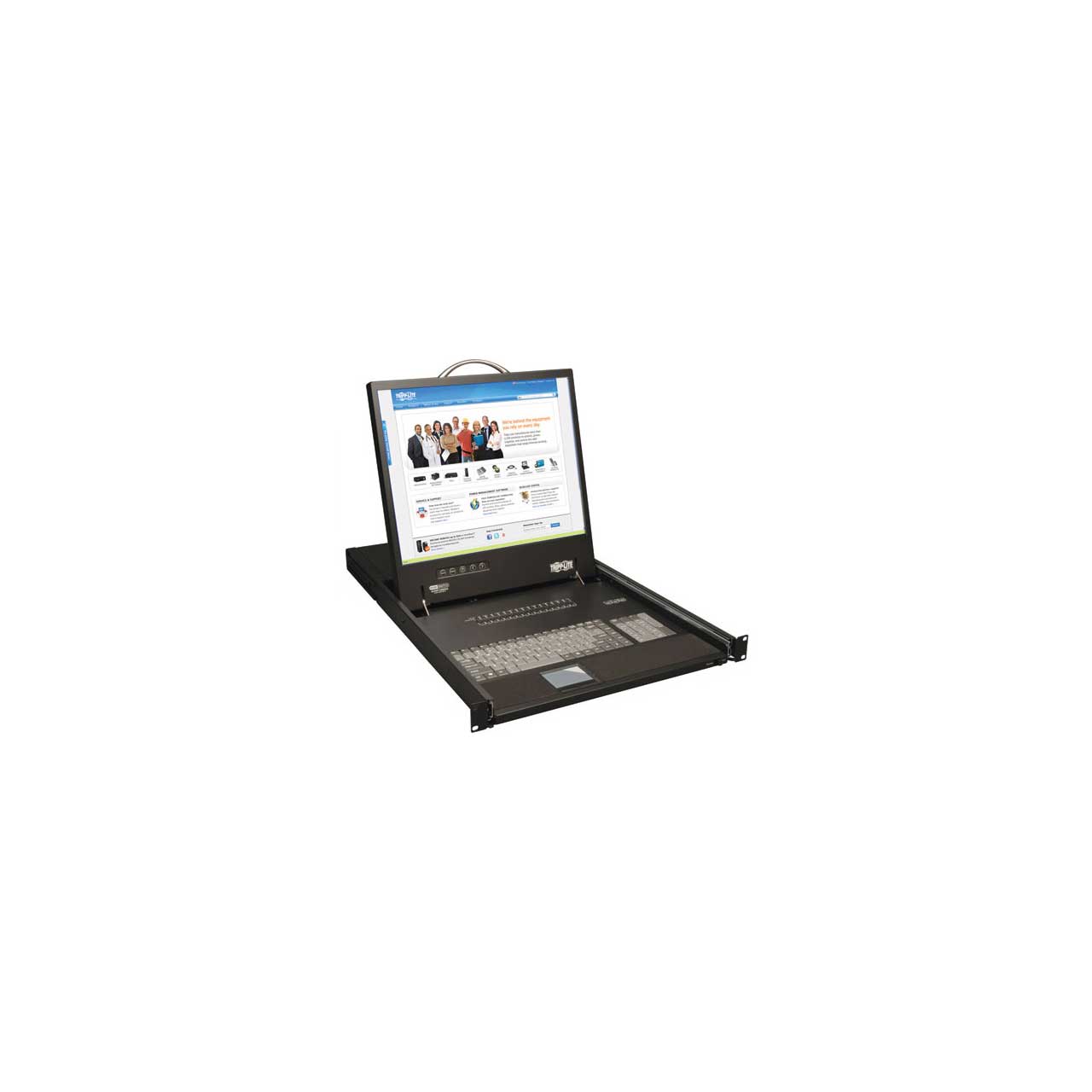

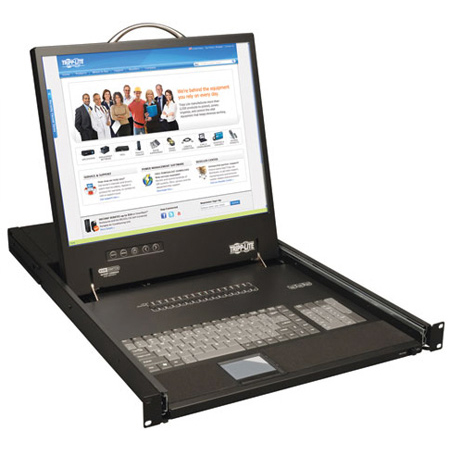

Tripp Lite B040-016-19 NetController 19 Inch VGA Console KVM Switch - 16 Port
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Tripp Lite B040-016-19 NetController 19 Inch VGA Console KVM Switch - 16 Port

    Manufacturer: Tripp Lite

    Item #: B040-016-19   •   MFG #: B040-016-19


    List Price:$2,016.00
    Our Price:$1,239.84

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


      California Residents:
      Cancer and Reproductive Harm -


      The B040-016-19 NetController 16-Port Console KVM switch is a cost effective and highly flexible system for controlling multiple computers from a single keyboard, monitor and mouse. Directly connect up to 16 computers, or expand the number of connected computers to up to 256 by daisy chaining up to 15 additional B042-Series KVM switches. Switching between connected computers can be accomplished via Push button, On Screen Display (OSD) menu, or Hotkey commands.Connect computers to the KVM using a Tripp Lite P780-Series USB/PS2 Combo KVM cable kit. Cable kits come with both USB and PS/2 connectors, allowing you to connect to either a USB or PS/2 computer without the need to purchase additional cables or adapters.

      An additional VGA port and USB port are located on the back panel of the unit, allowing for the connection of an external VGA monitor and USB keyboard or mouse, or a Tripp Lite B051-000 IP remote access unit.Password feature provides additional security to prevent unauthorized access to connected computers. Rackmount hardware is included with the unit, and is designed for easy, one person installation. Fits into any rack from 27 to 42 inches deep, and can be installed in a 2-post rack using Tripp Lite's B019-000. Compatible with all major operating systems. 1 year limited warranty.

      • Features

        • 1U rackmount console with built-in NetController 16-Port KVM switch, 19" LCD, keyboard, and touchpad
        • Control 16 directly connected computers, or expand to up to 256 by daisy chaining up to 15 additional B042-Series KVM switches
        • Supports video resolutions up to 1280 x 1024 (60Hz)
        • Use in racks from 27 to 42 inches deep
        • OSD menu for intuitive, easy control of the KVM
        • Password protection and auto-log out features
        • Firmware upgradeable
        • Add IP Remote Access with a Tripp Lite B051-000
        • Hot-swappable: disconnect and reconnect USB computers w/o reboot
        • Easy port selection via On Screen Display (OSD), Pushbutton or Hot key commands
        • P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase additional cables or adapters
        • Compatible with all major operating systems
        • 1 year limited warranty
      • Item Includes

        • B040-016-19 16-Port, 19" console KVM switch
        • 4 ft. HD15 to DB9 firmware upgrade cable
        • C13 to 5-15P power cord
        • External VGA terminator
        • CD with owner's manual and quick start guide
        • Quick start guide
      • GTIN:
