Black Box MD650A-13 Async RS232 RS422 RS485 Extender Fiber Terminal Block ST SM

ITEM #: BBX-MD650A-13 MFG #: MD650A-13

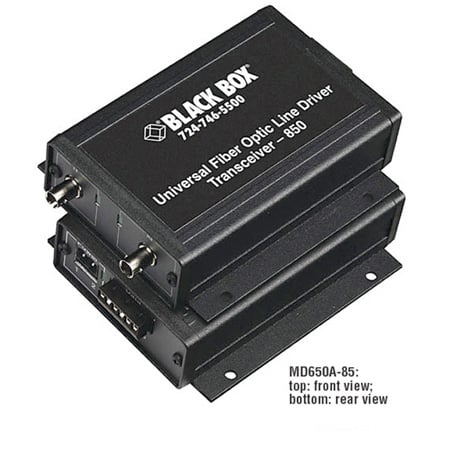

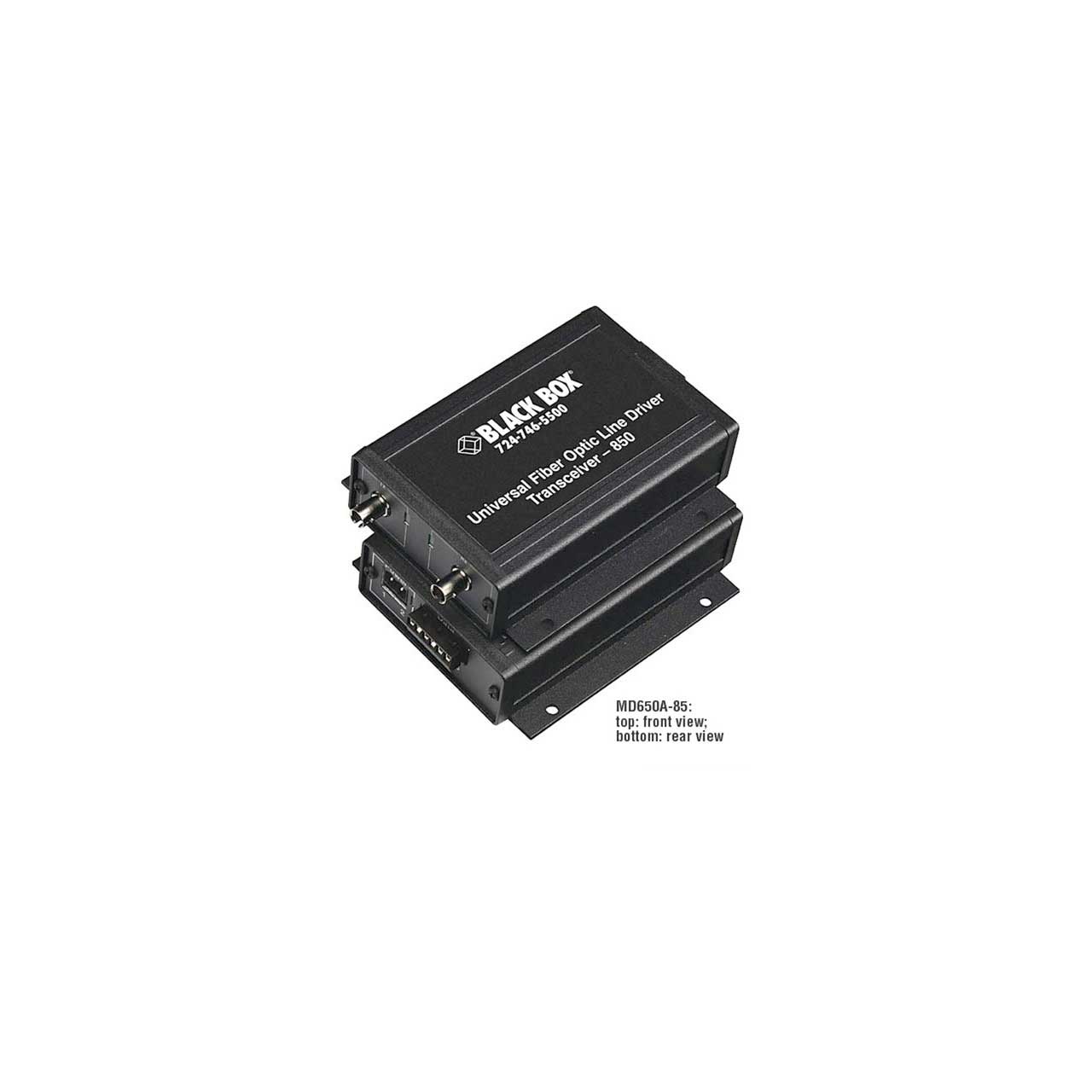

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    MD650A-13 - Overview

    The MD650A-13 is a Async RS232 RS422 RS485 extender fiber Terminal Block ST SM. Use fiber instead of copper to send your RS-232, RS-422, and RS-485 data-and do so without having to route it through protocol converters. Universal Fiber Optic Line Driver Transceivers also offer a wide range of speeds and distances-up to 21.75 miles (35 km) with the single-mode version.

    Universal Fiber Optic Line Driver Transceivers enable you to transmit and receive the signals over fiber optic cabling in both point-to-point or drop-and-repeat topologies. You can even mix protocols. For instance, you can set one transceiver to interface with an RS-232 device at one end and another to interface with an RS-485 device at the opposite end. There's no need for a converter box at either end of the fiber link!

    Note: Must be used in pairs.

    • Features:

      • End-to-end protocol conversion-no separate box is needed
      • Ideal for fiber applications that use different interface protocols
      • Communicate signals in a point-to-point or ring topology
      • Speeds up to 10 Mbps for RS-422 and RS-485, 200 kbps for RS-232
    • Specifications:

      • CE: Yes
      • Connectors: (1) terminal block, (1) pair of ST
      • Dimensions (H x W x D): 1.3" x 3.5" x 4"
      • Distance: 21.75 miles
      • Operating Wavelength: Single-mode 1310 nm
      • Operation: Simplex, full or half-duplex, point-to-point or multipoint
      • Power Input: 100 to 240 VAC, 50/60 Hz
      • Power Output: 12 VDC
      • Protocol: Asynchronous
      • Signal Interface: 2- or 4-wire: RS-232, RS-422, RS-485
      • Speed: RS-422, RS-485: Low speed: 2.1 Mbps; High speed: 10 Mbps; RS-232: 200 kbps
    • GTIN:
