Canare BCP-D55UHW Crimp Plug 12G BNC Connector for Canare L-5.5CUHWS 12G Coax

ITEM #: BCP-D55UHW MFG #: BCP-D55UHW

free ship

List Price:

$7.31

Our Price:

$6.54

Availability: In Stock
iAvailability Description Popup


    BCP-D55UHW - Overview

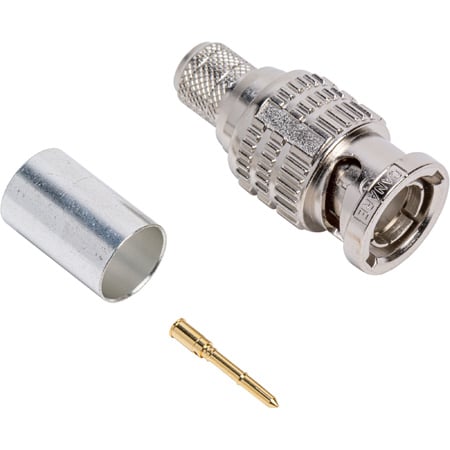

    Canare BCP-D55UHW is a crimp type 75Ω BNC plug.

    • Specifications:

      • Applicable Standard: IEC*1 61169-8, JIS*2 C 5412
      • Nominal Impedance: 75Ω unbalanced
      • Weight: Approx 15g (including center contact and crimp sleeve)
      • Designation: Stamp model name (BCP-D55UHD) on washer and brand name (CANARE) on coupling sleeve.
      • Applicable Cable: L-5.5CUHWS (CANARE)
      • Crimp Tool:
        Frame: TC-1
        Die: TCD-57C
      • Operating Temperature: -40° to 185°F (-40° to 85°C)
      • Operating Humidity: 90%
      • Please Note: *1 - International Electrotechnical Commission - *2 - The Japanese Electric Wire & Cable Maker's Association Standard
      • Insulation Resistance: 5000MΩ or more
      • Voltage Proof: Without any damage such as electric breakdown etc.
      • Contact Resistance:
        Between External Contacts: 3mΩor less
        Between center contacts: 6mΩor less
      • Return loss
        26.4dB or more(0 to 3GHz)
        20dB or more(0 to 6GHz)
        15dB or more(0 to 12GHz)
      • Intermatability: To be engaged without any abnormality.
      • Fixing Force of Contact with Lock Mechanism: No displacement more than 0.5 mm.
      • Strength of Coupling Mechanism: Coupling sleeve shall not be disconnected or no deformation shall be made.
      • Cable Connecting Force: 250N or more for L-5.5CUHWS
      • Mechanical Operation (Repeated): Contact resistance: 10m Ω or less
      • Corrosion Resistance (Salt mist): Appearance: By visual inspection, without noticeable rust.
      • Contact Resistance: 50m Ω or less
