    8/16-8 SWITCHER - Overview

    8/16 Channel A/B Switcher

    The BDI 8/16 8-Channel A/B Switcher is a passive relay based broadcast switcher that accepts two sets of 8 or 16 channels that can be switched between; available in two models: either an 8- or 16-channel configuration. Use in any application where multiple switch connections are needed, such as studio switching, emergency switching or multi-channel audio switching. Simple ground start remote control and status are available from the rear panel. Front panel command and status buttons are standard. All connections are via DB-25 connectors. Signal connections conform to the Tascam D-88 standard for use with standard DB-25 to XLR break out cables, which are also available as an option from Broadcast Devices, Inc.

    If your requirement is for more than 16 pairs simply stack additonal 8/16 switchers and slave the remote control function.

    Constructed from steel providing superior shielding against 50/60 Hertz hum pickup in analog applications. Through the use of a rugged switching power supply the 8/16 series switchers can endure harsh electrical environments and are compatible with most power distribution systems worldwide.

    • Features:

      • 8 or 16 A/B Balanced Inputs
      • 8 or 16 Common Outputs
      • Passive Relays for Reliability
      • Emergency MulO Pair Backup Switcher
      • 7/5.1 Audio Monitor Selector
      • Emergency Studio Switcher
      • Emergency Router Bypass Switcher
      • Emergency Digital Console Switchover
    • Specifications:

      • Number of Inputs: 8 or 16 Model Specific 8/16-8 8 inputs, 8/16-16 16 Inputs
      • Number of Outputs: 8 or 16 Model Specific as Above

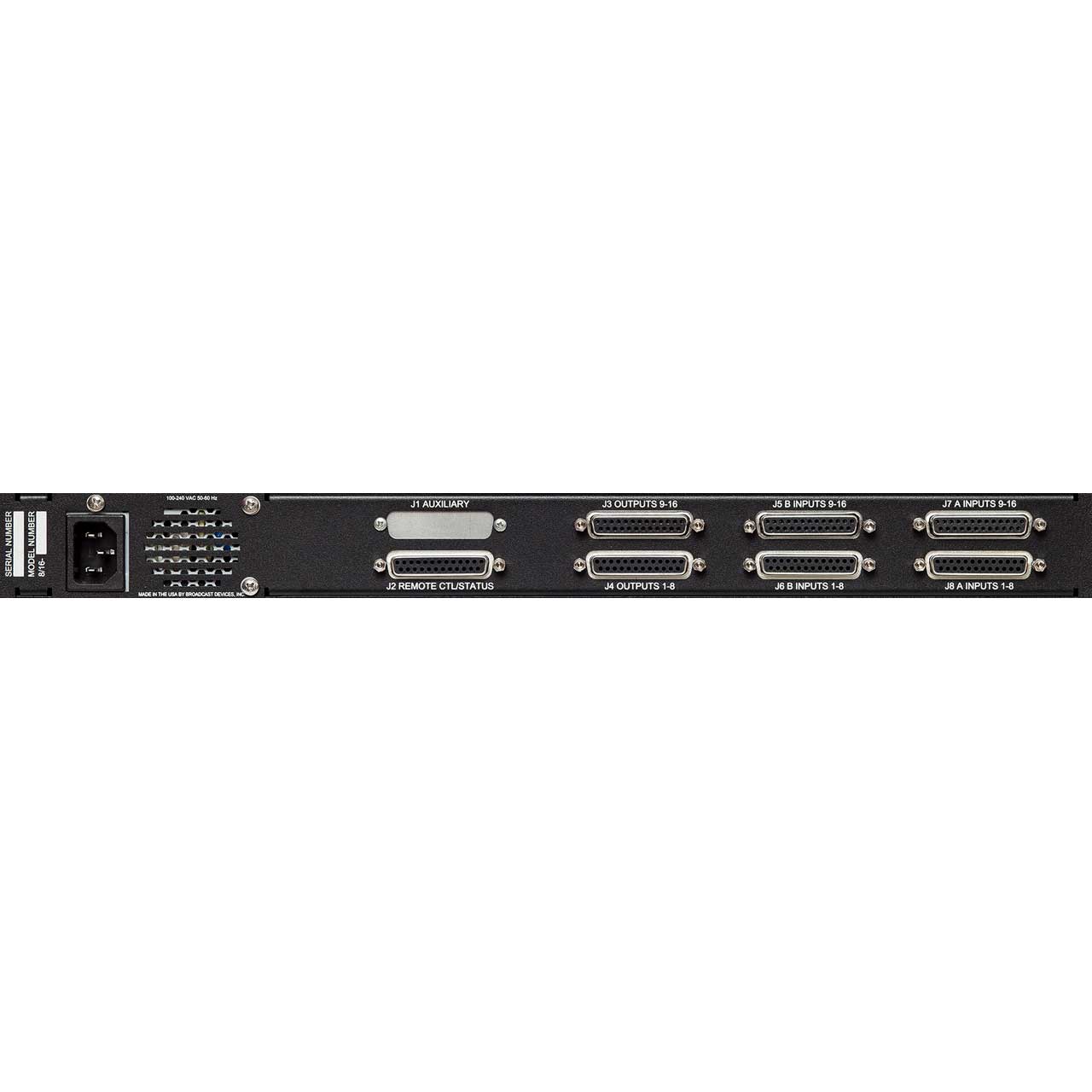

      • Connector Style: DB25 Female - Tascam™ Pin Configuration Standard
      • Remote Control: Momentary or Maintained Latch Closure Using Contact Closure
      • Status: Dry Relay Contact NO/C/NC for Position Status

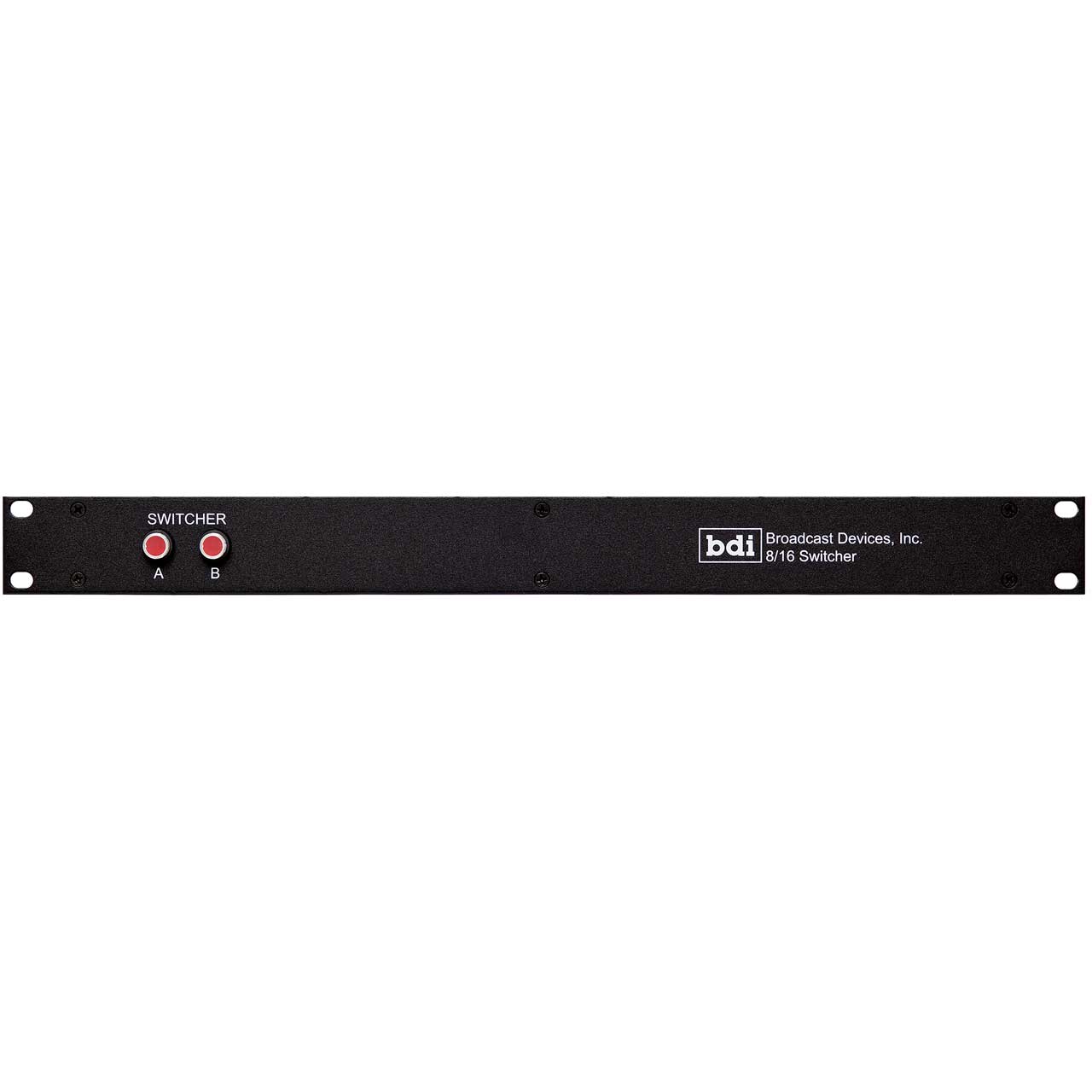

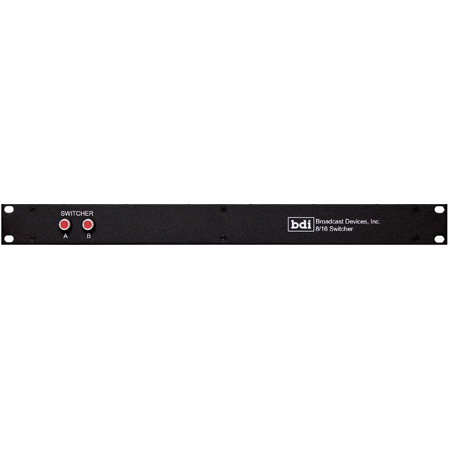

      • Front Panel Controls: Pushbutton Selection of A/B Inputs
      • Front Panel Status: Lighted Button of Selected Position
      • Other Features: Programmable Momentary or Latched Control From Rear Panel
      • Power Recovery State: Jumper Selectable Recover to Last Position or A position upon Recovery of Power Loss
      • Power Requirements: 100-240 VAC 50-60 Hertz @ 1 A.
      • Mechanical Specifications: 19" W X 10"D X 1.75" H - Standard EIA Steel Rack Unit Enclosure
      • Environmental: 0-60 Degrees Celsius Non Condensing Atmosphere
      • Shipping Weight: 15 lbs. Including Carton. Carton Size 22" W X 14" D X 7" H
      • Accessories Available: AIP-100 DB25 to XLR Breakout 19" Rack Panel, DIP-100-75 DB25 5o 75 Ohm BNC Connector Rack Panel
    • Item Includes:

      • 1x BDI 8/16-8 8-Channel A/B Single Point of Failure Bypass Switcher
