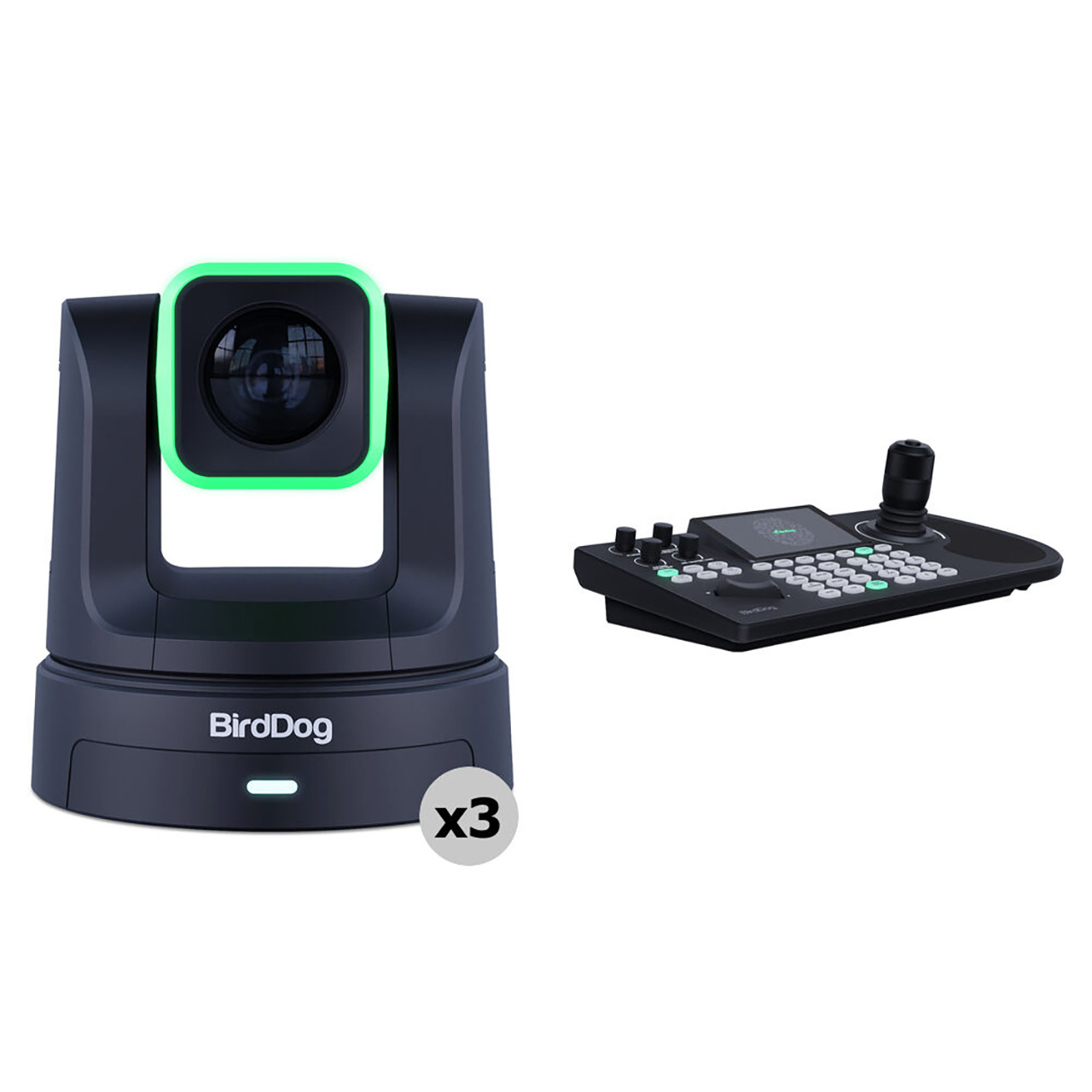

BirdDog BDX5UCOMBO-B UHD 4K60 X5 Ultra PTZ 3-Camera Combo with 20x Optical Zoom - KBD PTZ Controller Included - Black

ITEM #: BDS-BDX5UCOMBO-B MFG #: BDX5UCOMBO-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$8,985.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BDX5UCOMBO-B - Overview

The Ultimate Production Powerhouse
For top-tier creators, the BDX5UCOMBO-B bundle includes 3x black X5 Ultra cameras with 12G-SDI for broadcast quality and the intuitive BirdDog KBD Controller, made for effortless control. Your ultimate toolkit for high-end production!

Simply Xtreme
Productions are demanding; the X5 Ultra makes demanding a walk in the park. Featuring unparalleled capability, quality, and performance, take your PTZ game up a notch with X5 Ultra. Imagine next-level robotic controls with ultra-fine and precise movement thanks to its category-busting advanced motor drive system. Movements on air are a breeze, and the acceleration/deceleration of moves look natural and slick. Sporting BirdDog's signature Halo tally system for true audience engagement, revolutionary built-in NDI decoding, all the video connectors, including 12G-SDI, dual e-ink displays make branding and maintenance a snap, all wrapped up with a stunning Sony 4K60 image sensor delivering the highest performance NDI HX3 possible.

Connectivity for Days
The X5 Ultra makes this a snap. In a world of compromise, the X5 Ultra stands proud. With 12G-SDI output, dual HDMI outputs, multiple network formats, including NDI HX3, SRT, RTMP, and RTSP, Webcam connectivity over USB, however you work and whatever demand in quality you've got it at your fingertips.

Integrated NDI HX Decoder
The X5 Ultra is part of the family of PTZ cameras featuring the first simultaneous NDI HX Decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. We've pulled all this connectivity into a single cable, radically simplifying how you interface with your equipment. Whether you're broadcasting live or delivering a CEO address, the integrated NDI HX decoder enables more engagement with less setup.

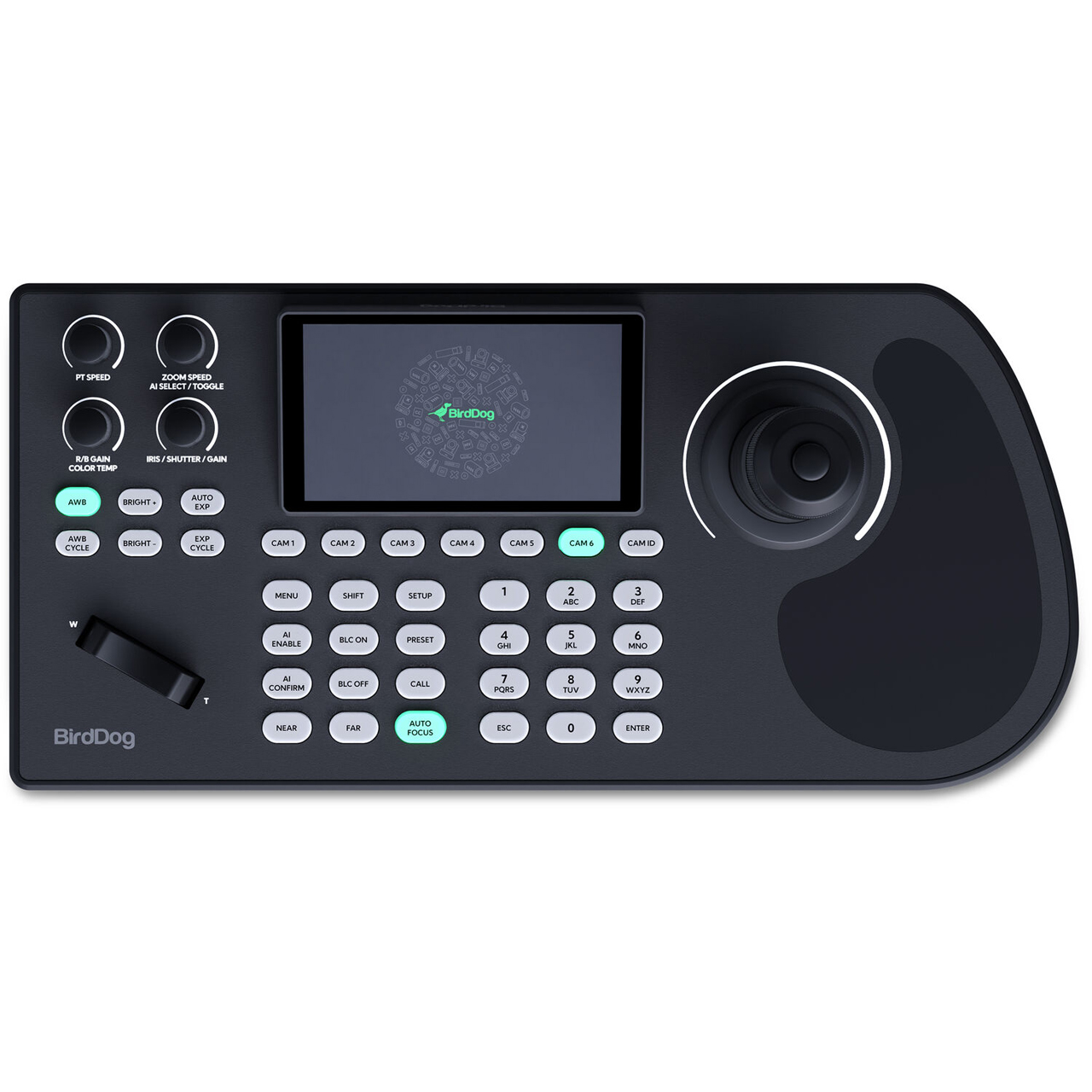

BirdDog KBD PTZ Controller Included
The BirdDog KBD Controller offers PTZ camera operators a rugged, ergonomic design, a large multi-camera display, and direct access to essential functions. With a built-in tally display and physical feedback for camera switching, it's intuitive and eco-friendly, made with Ocean-Bound Plastics and recyclable Aircraft-grade Aluminum. NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity ensure versatility no matter what language you speak.

  • Features:

      X5 Ultra PTZ Camera
    • Smooth PTZ Motion
    • AI Tracking
    • Flexible Power
    • ND Filter
    • Ultra Low Latency
    • Dual Network Output
    • NDI Ecosystem
    • Serial Control
    • API 2.0 Support

      KBD PTZ Controller
    • 5" Multiview Display
    • Built-in Tally Borders
    • Direct Access to Key Functions
    • Ultimate Connectivity in an Eco-Friendly Design
    • Seamless Control
    • Integrated Carry Handle
    • API-based Camera Selection
    • Light & Dark Mode

  • Specifications:

      X5 Ultra PTZ Camera Specs
    • Dimensions (WxHxD): 7.31" x 6.76" x 7.90" (185.7mm x 171.9mm x 200.90mm)
    • Weight: 5.1lbs (2.31kg)
    • Environmental Operation: Internal
    • Input Voltage: DC 12V, PoE+ IEEE 802.3at
    • Input Current: 2.0A (Max)
    • Power Consumption: 18W (Max)

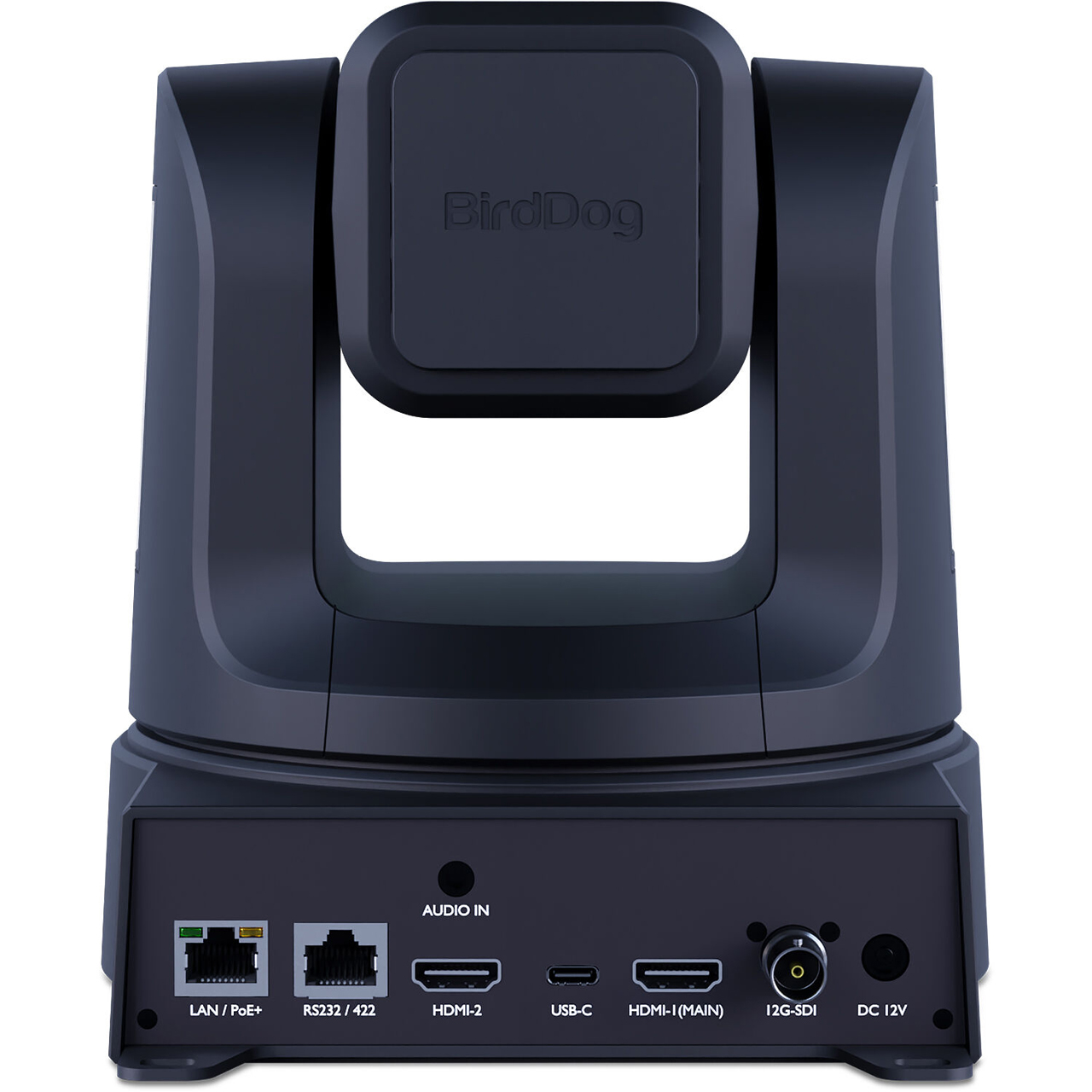

    • Video Output Interfaces:
      - 12G-SDI
      - HDMI 2.0
      - HDMI 1.4
      - USB-C UVC 1.1
      - 1Gb Network
    • Video Compression Formats: H.264, H.265
    • Network Interfaces: 1GbE adaptive Ethernet port; PoE+ IEEE 802.3at
    • Encoder Network Protocols:
      - NDI HX2
      - NDI HX3
      - SRT
      - RTSP
      - RTMP
    • HDMI Decoder Network Protocols: NDI HX2, NDI HX3
    • Decoder Supported Resolutions:
      - 1080p @ 60/59.94/50/30/29.97/25fps
      - 720p @ 60/59.94/50fps
    • Control Interfaces:
      - 1GbE Ethernet
      - RS232 (Input & Output)
      - RS422
      - TYPE-C (UVC1.1)
    • Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
    • Analogue Audio: 3.5mm (1/4") Mic In / Line In (Stereo)
    • Digital Audio: Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC)
    • Pan/Tilt Rotation: ±170°, -30° - 90°
    • Pan Control Speed: 0.1 -200°/sec
    • Tilt Control Speed: 0.1 -200°/sec
    • Preset Number: 128 presets, Speed Adjustable
    • Integrated Tally Light: Halo style, RGB
    • Pan/Tilt Drive System: Ultra-fine drive
    • Quietness: Max 28dB at full speed pan
    • Image Sensor: Sony 1/2.8" CMOS - ULTRA HD
    • Lens: f=5.4-104mm
    • Optical Zoom: 20x
    • Video Format:
      - 2160p @ 60, 59.94, 50, 30/29.97/25fps,
      - 1080p @ 60, 59.94, 50, 30/29.97/25fps,
      - 720p @ 60, 59.94, 50fps
    • Horizontal Angle of View: 56.6° (W) - 3° (T)
    • Vertical Angle of View: 32.5° (W) - 1.7° (T)
    • Diagonal Angle of View: 64.7° (W) - 3.5° (T)
    • Aperture: F1.6 (W)-F3.6 (T)
    • Focus: Auto, Manual
    • Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
    • Shutter Speed: 1/1 - 1/10000s
    • Backlight Compensation: Yes
    • Digital Noise Reduction: 3D Noise Reduction
    • SNR: > 50dB
    • Effective Pixels: 8.46 MP

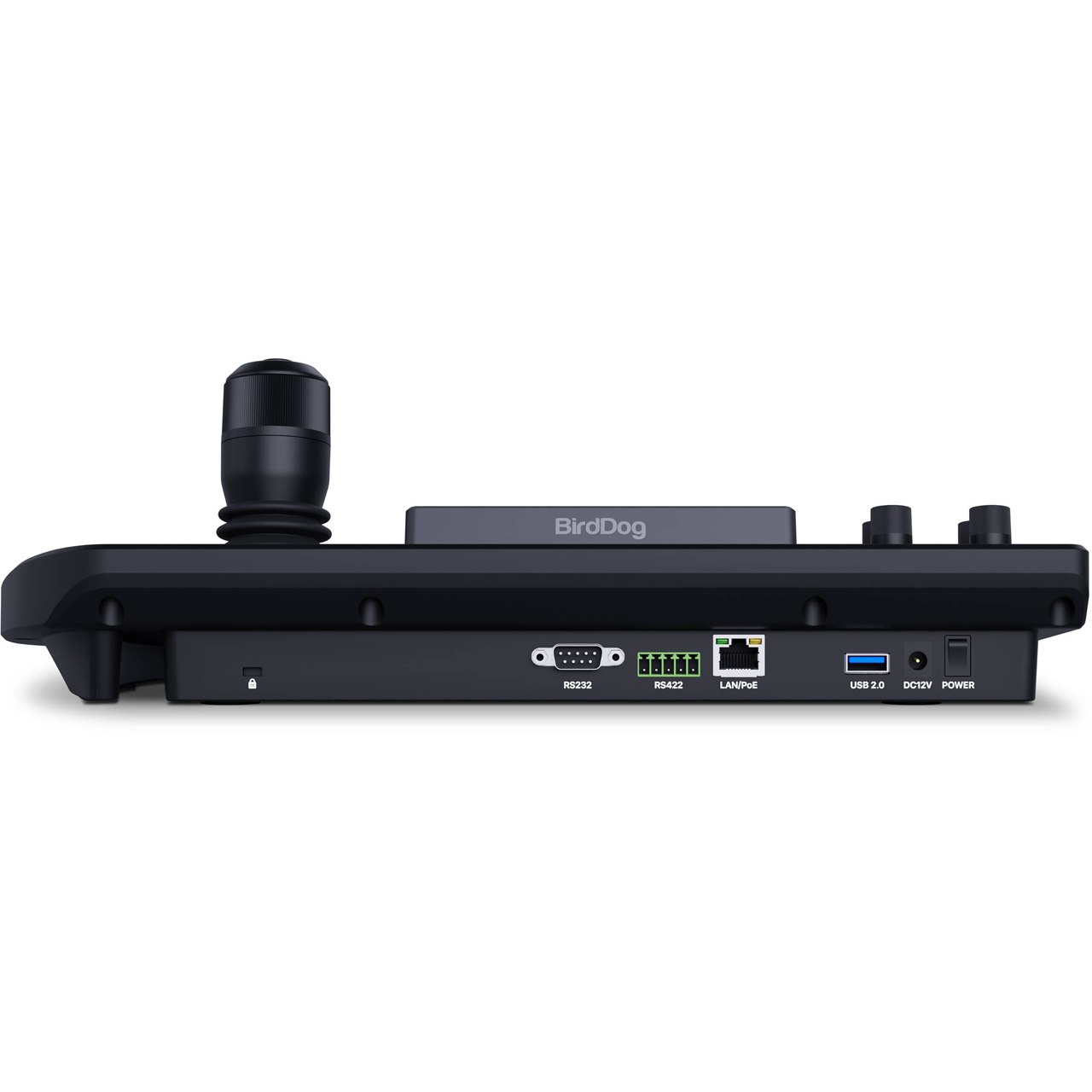

      KBD PTZ Controller
    • Dimensions (LxWxH): 14.84" x 6.96" x 4.64" (377mm x 177mmx 118mm)
    • Weight: 7.025lbs (3.1kg)
    • Joystick Type: 4D (Integrated Trigger button)
    • Power Supply: PoE (802.3af), DC12V
    • Power Consumption: ≤ 5W
    • Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
    • Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
    • Zoom Rocket: Spring-loaded, adjustable
    • NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
    • NDI Multiview: NDI HX2, NDI HX3
    • Display Diagonal Dimension: 5" (127mm)
    • Display Resolution: 1280x720
    • Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30fps)
    • Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30fps)
    • IP Video CODEC Support: h.264, h.265
    • Max. Camera Support: 255
    • Direct Camera Access Keys: 6
    • Direct Preset Access Keys: 10
    • Max Preset Support: 255 per camera
    • PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
    • Fine PTZ Control: VISCA-IP, NDI
    • Focus Control: Auto Focus, Manual Focus buttons
    • Auto Exposure: Direct Button
    • Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
    • Auto White Balance: Direct Button
    • Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
    • Auto Focus: Direct Button
    • Manual Focus: Direct Button (Near/Far)
    • BLC (Backlight Compensation): Direct Button
    • Zoom Ring on Joystick: Yes (Enable/Disable)
    • Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
    • AI Camera Mode Control: Camera Dependent, Supported

  • Item Includes:

    • 3x BirdDog Black UHD 4K60 X5 Ultra PTZ Camera
    • 1x BirdDog KBD PTZ Controller

  • Warranty:

    • 5 Year Limited Warranty
