The BZBGEAR BG-8K-1212MA 8K HDMI matrix switch is an excellent device for situations where you need to share up to twelve HDMI sources with up to twelve displays. It comes with twelve HDMI 2.1a inputs and twelve HDMI 2.1a outputs, allowing you to switch between multiple sources and display them on various screens at the same time, or select one source and display it on all screens simultaneously with the push of a button. The device supports 8K resolutions and various high-quality audio formats, ensuring professional-grade picture and audio quality.
Play Games at 4K@120Hz!
For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the BG-8K-1212MA can help ensure that your games are displayed with the highest level of detail and fluidity. This is particularly important for fast-paced games where a high frame rate can make a significant difference in your ability to react to in-game events. Whether you're playing competitively or just looking for the most realistic and engaging gaming experience possible, the 8K HDMI 12x12 matrix switcher's support for 4K at 120Hz can help you get the most out of your favorite games.
Connectivity and Quality
The BG-8K-1212MA supports high resolutions up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4, and 4K@120Hz 4:4:4 with HDR. With 48 Gbps of uncompressed bandwidth, HDMI signals are routed with no loss of quality. All HDMI ports on this matrix are HDCP 2.3 compliant. This device is also equipped with auto Downscaling on all outputs, ensuring compatibility with legacy displays.
The BG-8K-1212MA supports Digital S/PDIF and Balanced audio output formats.
Control

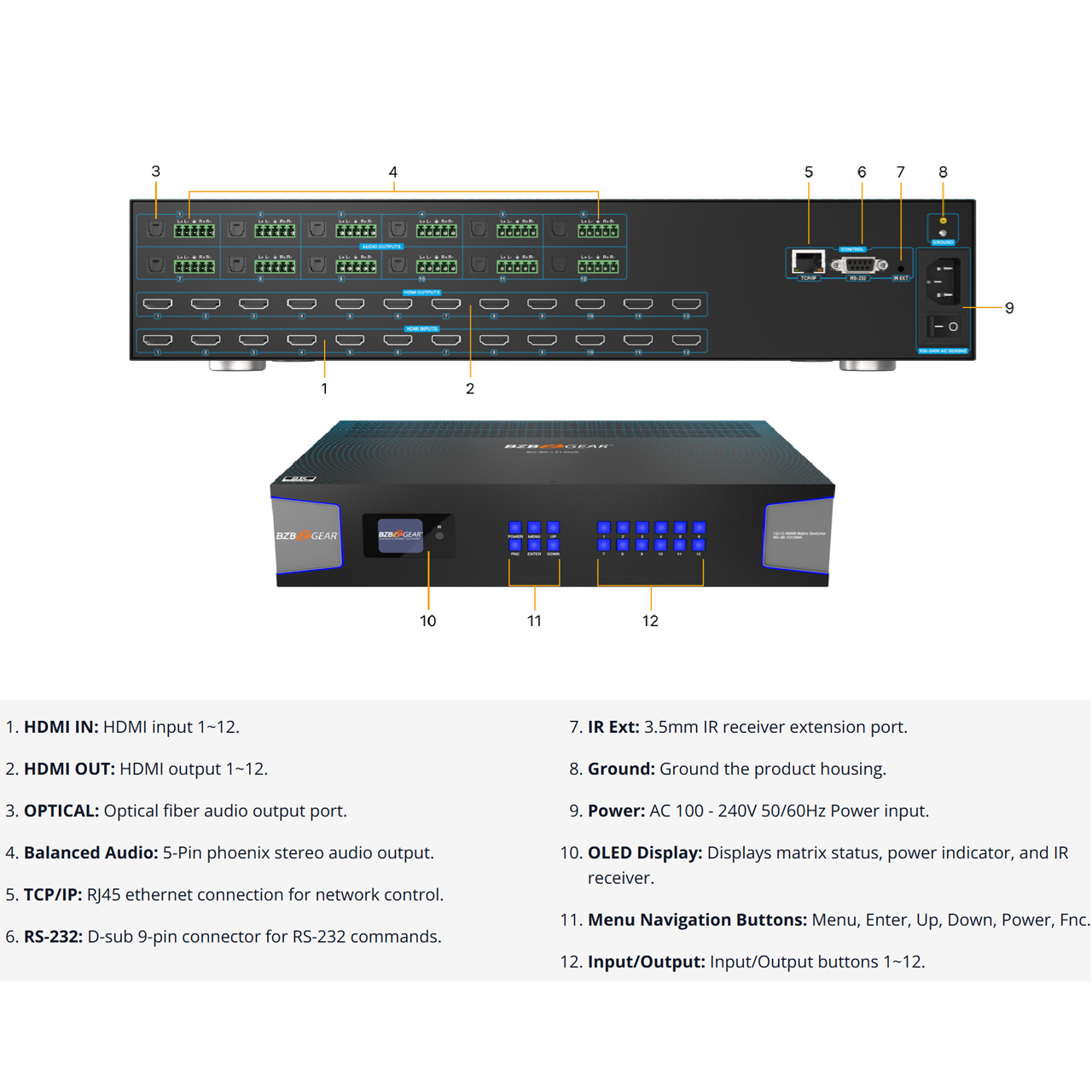

The BG-8K-1212MA offers multiple control methods including front panel controls, IR remote control, RS-232, or TCP/IP(Web GUI). The included IR receiver allows the unit to be controlled with the included remote while located out of sight for a clean installation.
In addition to a full-featured web interface, the BG-8K-1212MA includes control software that can be operated via the RS-232 connection. These interfaces allow users to adjust advanced features like EDID management, mapping, and network settings.
Recommended HDMI Cables/Lengths:
8K: Ultra HDMI 2.1 - 10ft/3m
4K60: HDMI 2.0 - 26ft/8m
4K24: HDMI 1.4 - 39ft/12m
1080p: HDMI 1.4 - 49ft/15m
**The use of a "Premium High-Speed HDMI" cable is highly recommended.
