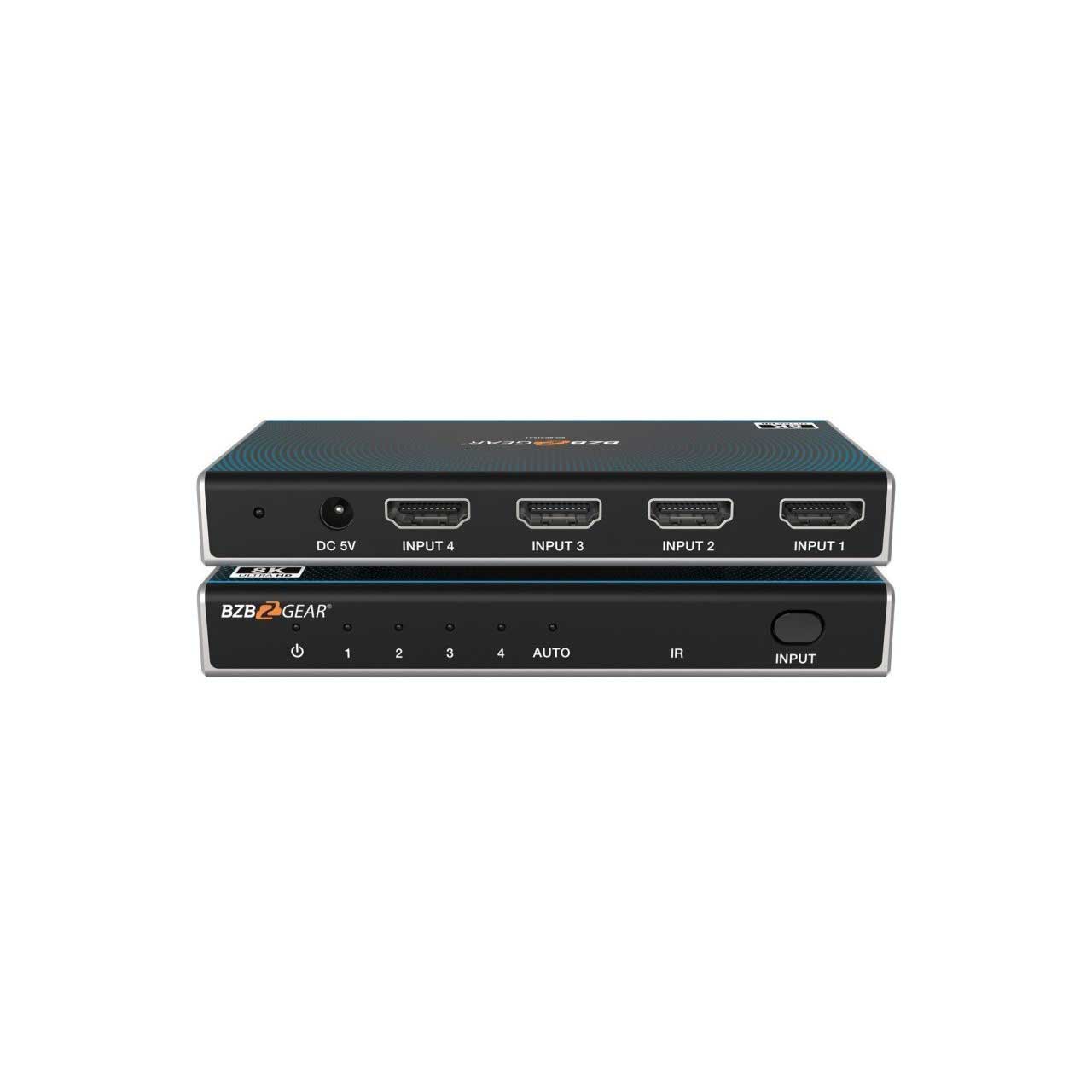

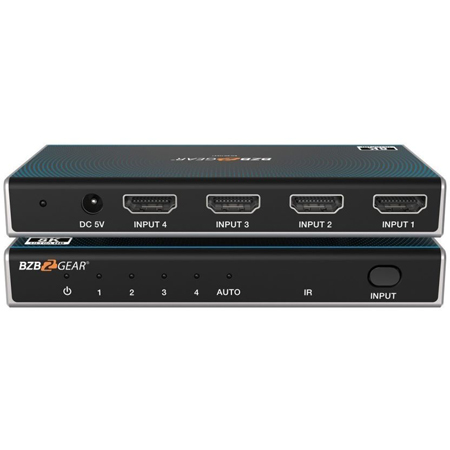

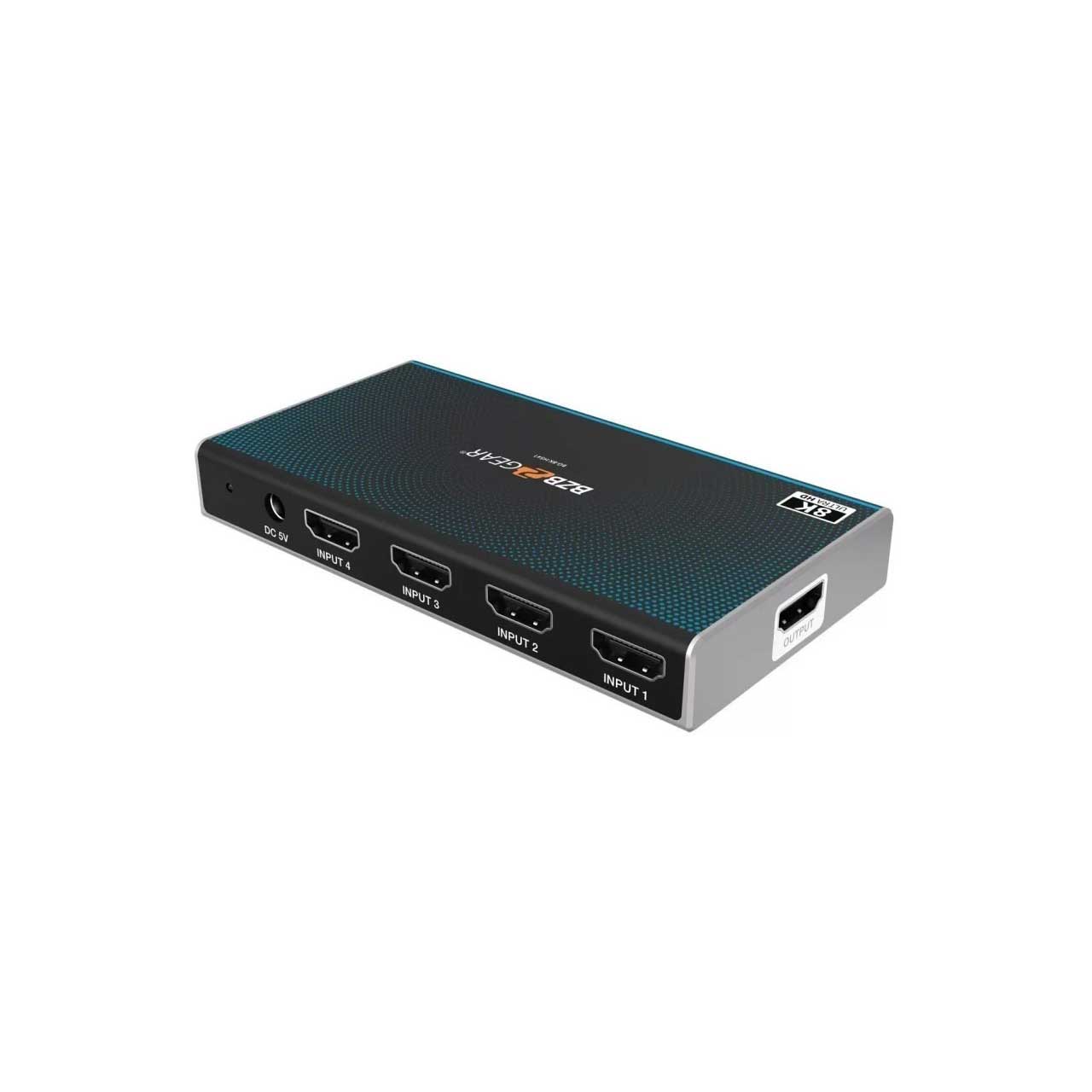

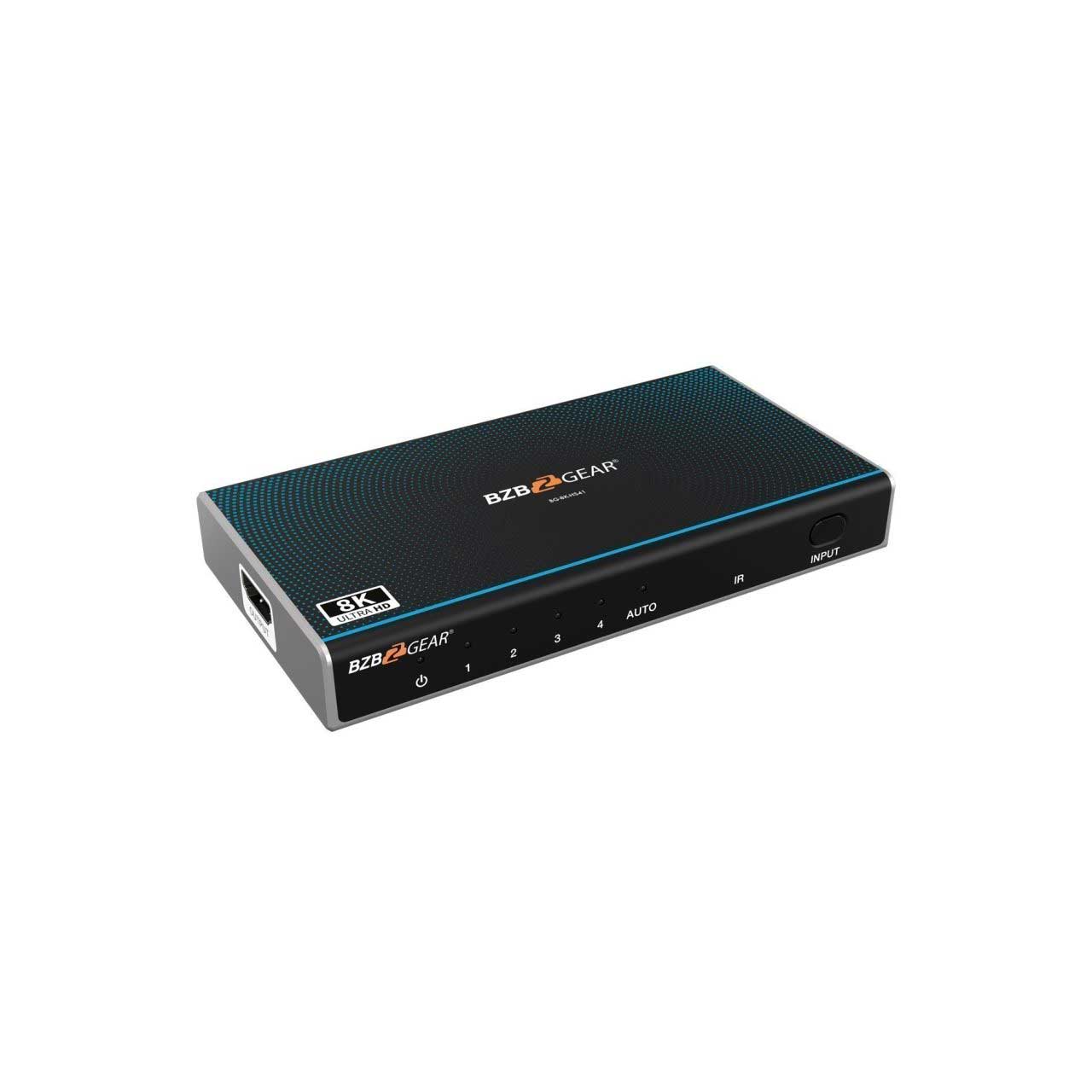

BZBGEAR BG-8K-HS41 4x1 8K/60 UHD Ultra Slim HDMI 2.1 Switcher - 4K120Hz - 4:4:4 - 10 Bit - Black

ITEM #: BG-8K-HS41 MFG #: BG-8K-HS41

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$81.00

Our Price:

$74.99

Availability: In Stock
iAvailability Description Popup


BG-8K-HS41 - Overview

High-resolution graphics at high frame rates crucial for a smooth and immersive gaming and viewing experience

The BZBGEAR BG-8K-HS41 is an 8K, 4x1, HDMI 2.1 switcher. This versatile device allows you to switch between four HDMI sources and display the selected input on a single HDMI display. It offers support for high-resolution video up to 8K at 60Hz with 4:4:4 chroma subsampling, providing crisp and detailed images with excellent color accuracy. Additionally, the switcher has a high video bandwidth of 48Gbps, which enables it to handle the large amounts of data required for high-quality 8K video.

This switcher is an ideal solution for those who want to be able to easily switch between multiple HDMI sources, such as a gaming console, Blu-ray player, or streaming device. Whether you're watching movies, playing games, or simply want to be able to easily access multiple sources of content, the 8K 4x1 HDMI 2.1 switcher can help ensure that you have access to the best possible video quality.

For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the BG-8K-HS41 can help ensure that your games are displayed with the highest level of detail and fluidity. This is particularly important for fast-paced games where a high frame rate can make a significant difference in your ability to react to in-game events. Whether you're playing competitively or just looking for the most realistic and engaging gaming experience possible, the 8K HDMI 4x1 switcher's support for 4K at 120Hz can help you get the most out of your favorite games.

Secure Content
HDMI 2.1 and HDCP 2.3 compliant

8K And 4K@120HZ
8K@60Hz 4:4:4 8/10/12-bit, 8K@60Hz 4:2:0 12-bit, 8K@ 30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support

Audio Formats
LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

4X1 Switching
Switch sources at the push of a button or enable automatic switching

EDID Management
Seamless scaling for the best results

Compact Design
For easy and flexible installation

  • Features:

    • Support 48Gbps video bandwidth
    • HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
    • VRR, FVA, ALLM
    • Built-in Equalizer and Driver

  • Specifications:

    • Technical
    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3
    • Video Bandwidth: 48Gbps
    • Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
    • Color Depth: 8-bit, 10-bit, 12-bit
    • Color Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
    • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

      Connection
    • Input: 4x HDMI IN [Type A, 19-pin female]
    • Output: 1x HDMI OUT [Type A, 19-pin female]

      Mechanical
    • Housing: Plastic Enclosure
    • Silkscreen Color: Black
    • Dimensions: 4.8" (W) x 2.6" (D) x 0.75" (H) [122mm (W) x 65mm (D) x 19mm (H)]
    • Weight: 0.19lbs [88g]
    • Power Supply Input: AC 100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 3.4W (Max)
    • Operation Temperature: 32°F ~ 104°F / 0°C ~ 40°C
    • Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
    • Relative Humidity: 20~90% RH (non-condensing)

  • Item Includes:

    • 1x 8K HDMI 4x1 switcher
    • 1x IR Remote
    • 1x 5V/1A Power Supply
    • 1x User Manual

  • Warranty:

    • BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years.

  • GTIN:

    0850033687750
