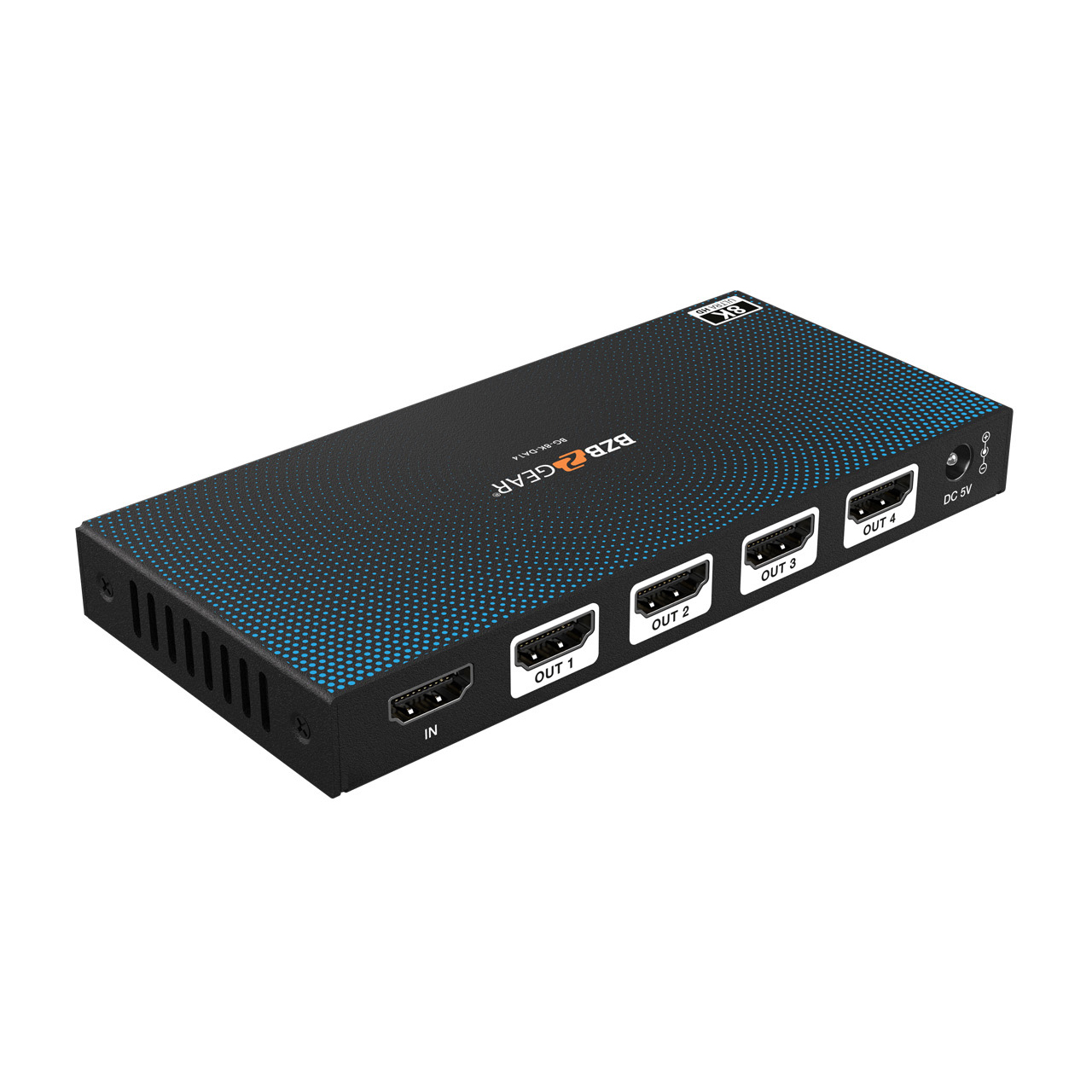

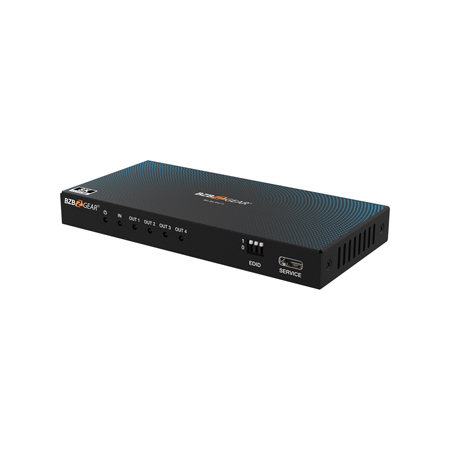

BZBGEAR BG-8K-DA14 1x4 8K UHD HDMI 2.1 Splitter with Auto Downscaling - 8K60 4K120 and VRR ALLM QMS QFT and SBTM Support

ITEM #: BG-8K-DA14 MFG #: BG-8K-DA14

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$169.00

Our Price:

$135.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BG-8K-DA14 - Overview

The BZBGEAR BG-8K-DA14 1x4 HDMI Splitter is HDCP 2.3 compliant, ensuring secure content protection and seamless connectivity with the latest devices. It supports 48Gbps FRL and 18Gbps TMDS video bandwidth, providing ultra-high-speed data transmission for optimal performance. The splitter accommodates high-resolution video, supporting up to 8K at 60Hz (4:2:0, 12-bit) and 4K at 120Hz (4:4:4, 12-bit) as specified in HDMI 2.1. It also supports HDMI 2.1 protocols, including VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QMS (Quick Media Switching), QFT (Quick Frame Transport), and SBTM (Source-Based Tone Mapping).

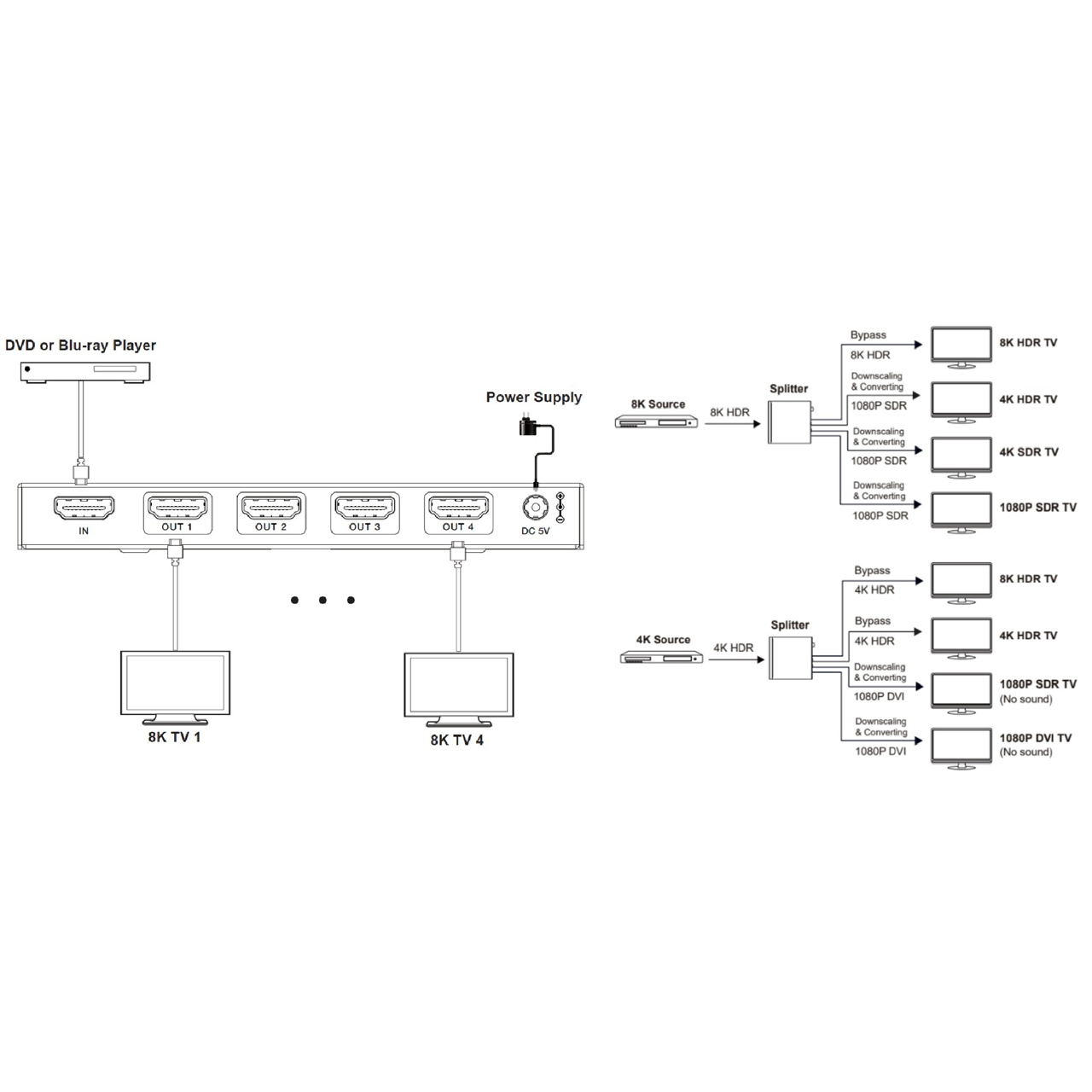

Additionally, the splitter is compatible with HDR formats, including HDR 10, HDR 10+, Dolby Vision, and HLG, ensuring vivid and lifelike visuals. It supports advanced audio pass-through for LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS audio formats, delivering immersive sound. The splitter features auto downscaling, which automatically scales 8K to 4K or 8K/4K to 1080P on all outputs, ensuring compatibility with various displays. It also includes HDR to SDR conversion, automatically converting HDR to SDR on all outputs for compatibility with older displays. With advanced EDID management, the integration process is simplified, enhancing compatibility with various devices. Its compact design offers easy and flexible installation, fitting seamlessly into any setup.

  • Features:

    • HDCP 2.3 Compliant
    • High-Resolution Video
    • HDMI 2.1 Protocols
    • Auto Downscaling
    • Supports VRR, ALLM, QMS, QFT, and SBTM for enhanced gaming and dynamic video performance
    • Advanced Audio Support
    • Wide Device Compatibility
    • Versatile Control Options

  • Specifications:

      General
    • Dimensions (WxDxH): 5.7" x 2.7" x 0.71" (14.5cm x 6.8cm x 1.8cm)
    • Weight: 0.58lbs (263g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 5.5W (Max)
    • Operation Temperature: 32°F - 104°F (0°C - 40°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)
    • Color: Black

      Technical
    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3
    • Video Bandwidth: 48Gbps
    • Video Resolution: Up to 8K @ 60Hz 4:2:0 12bit, 4K @ 120Hz 4:4:4 12bit
    • Color Depth: 8/10/12bit
    • Color Space:
      - RGB
      - YCbCr 4:4:4
      - YCbCr 4:2:2
      - YCbCr 4:2:0
    • HDR:
      - HDR
      - HDR10
      - HDR10+
      - Dolby Vision
      - HLG
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) and ±4kV (contact discharge)

      Audio Formats
    • HDMI Input/Output:
      - LPCM
      - Dolby Digital/Plus/EX
      - Dolby True HD
      - Dolby Atmos
      - DTS
      - DTS-EX
      - DTS-96/24
      - DTS High Res
      - DTS-HD Master Audio
      - DSD

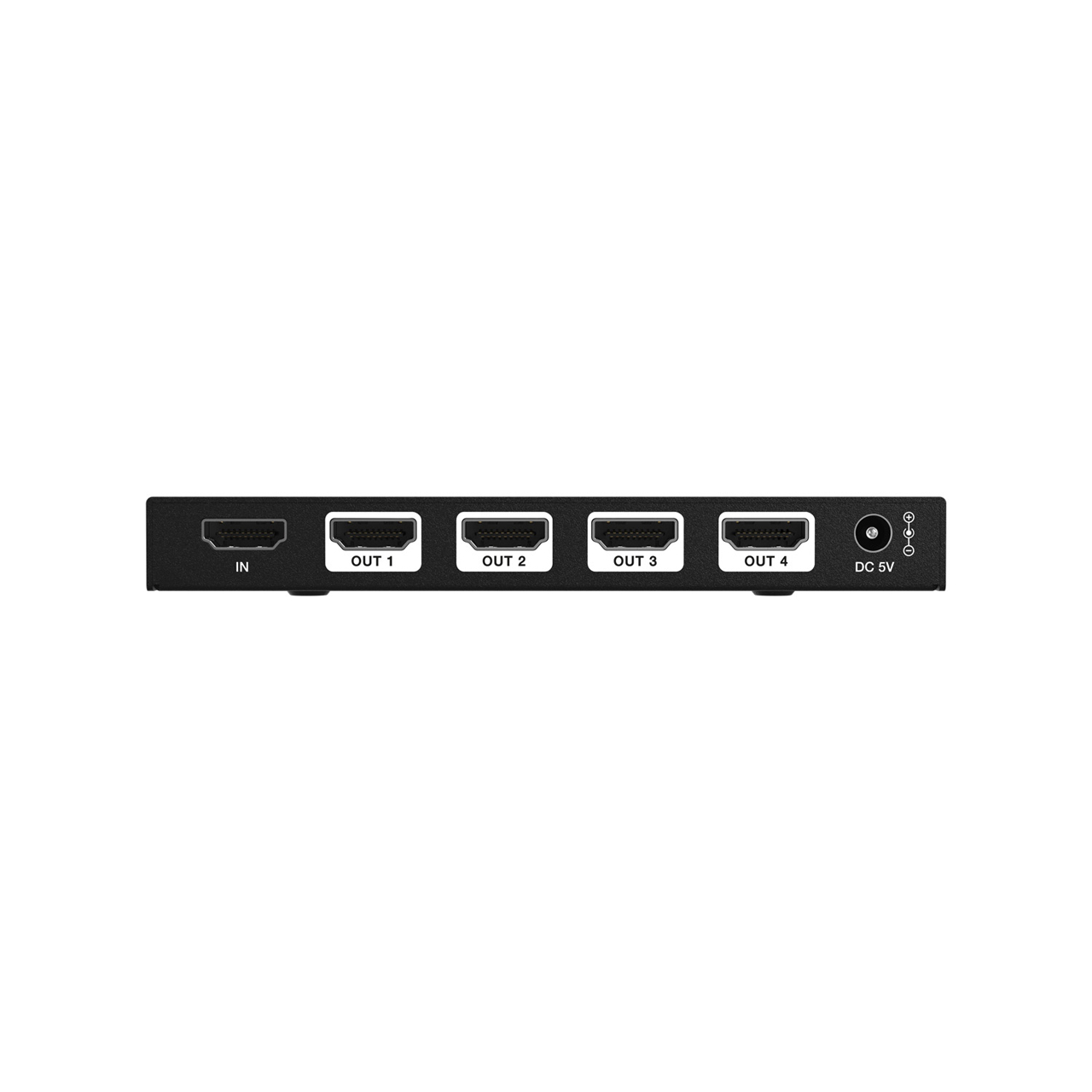

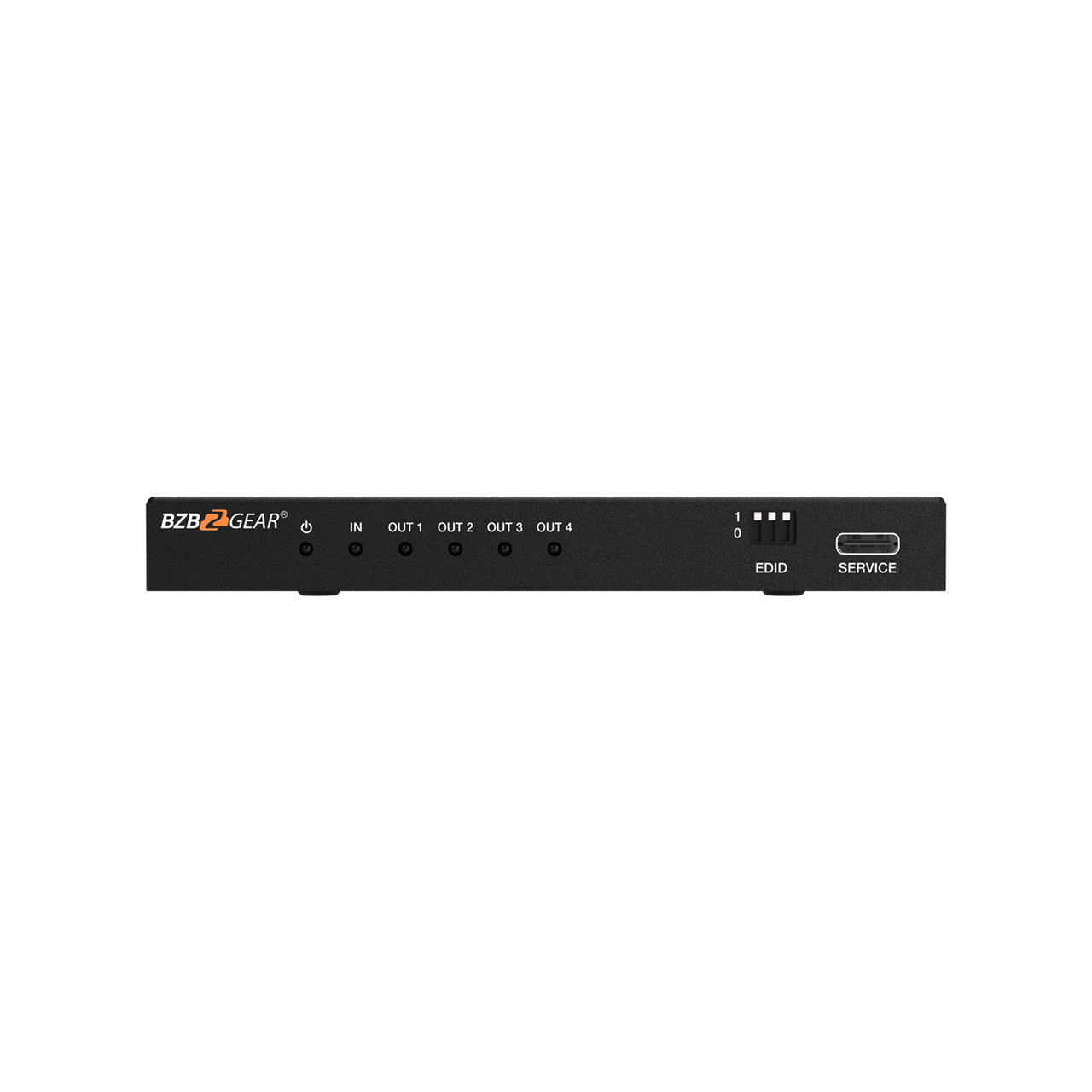

      Connection
    • Input: 1x HDMI In (Type A, 19-pin female)
    • Output: 4x HDMI Out (Type A, 19-pin female)
    • Control: 1x Service (USB Type C, Update port)

  • Item Includes:

    • 1x BZBGEAR BG-8K-DA14 1x4 8K UHD HDMI 2.1 Splitter with Auto Downscaling
    • 1x 5V/2A Multinational Power Supply
    • 1x User Manual

  • Warranty:

    • 3 Year Limited Warranty

  • GTIN:

    0850050134572
