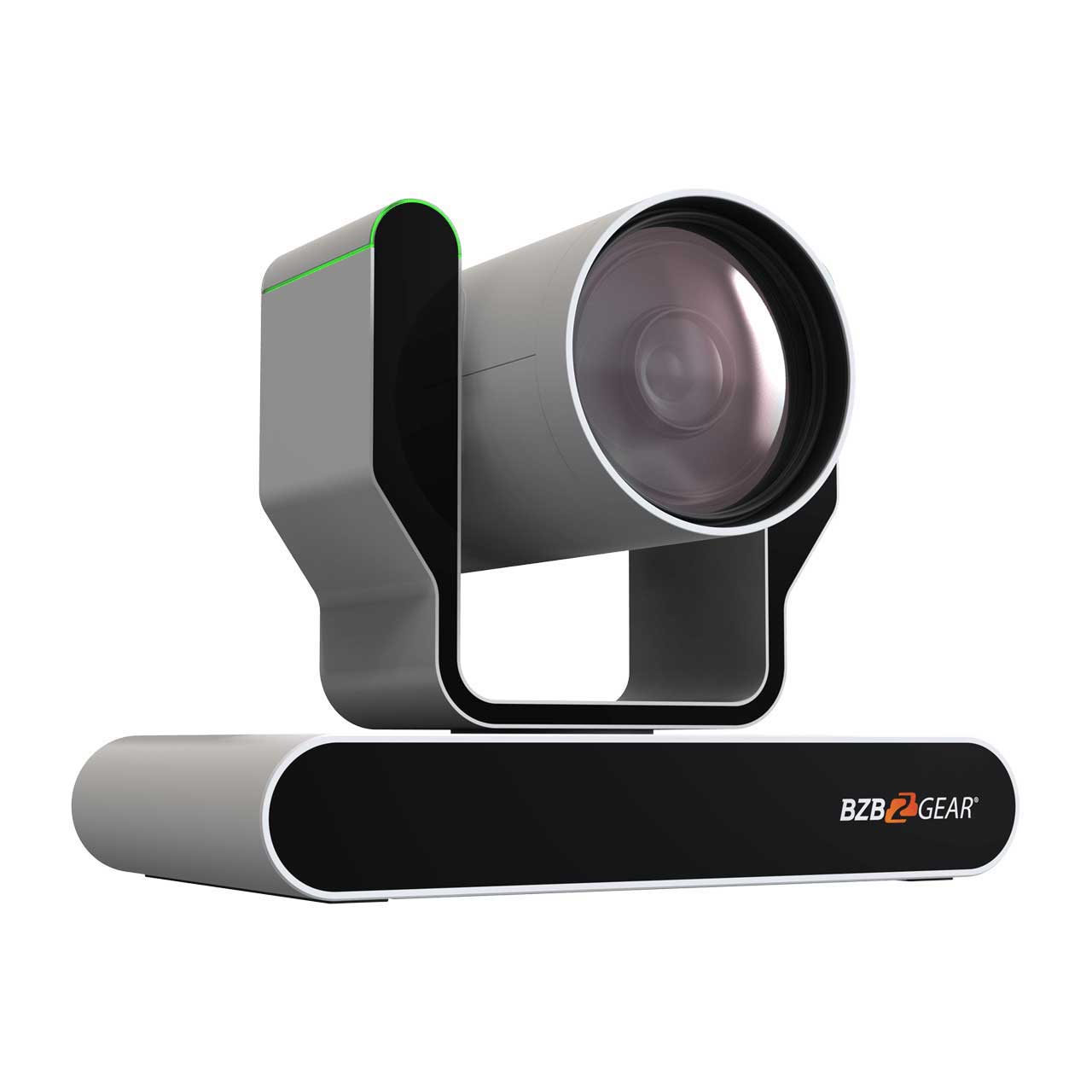

BZBGEAR BG-ADAMO 12x 4K UHD Auto Tracking 12G-SDI/USB 2.0/3.0 Live Streaming PTZ Camera with Tally Lights - White

ITEM #: BG-ADAMO-4K12X-W MFG #: BG-ADAMO-4K12X-W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$2,699.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    BG-ADAMO-4K12X-W - Overview

    BG-ADAMO: The Next Generation
    BZBGEAR is proud to announce the next generation of PTZ cameras: the BG-ADAMO. Brilliantly designed with exclusive features and a unique form factor, the BG-ADAMO is unrivaled in its class on the live stream broadcasting market.

    4K@60Hz: Just the Beginning
    The BG-ADAMO-4K is loaded with features including a full interface of video connections, and immaculate 4K@60Hz resolution. The 12G-SDI connection enables long distance cable runs without compromising image quality. Compose shots ahead of time utilizing the up to 255 programable presets, with 10 conveniently accessible using the IR remote. Capable of storing 1 TB of video footage with the Micro SD Card writer, start recording on the fly when other connections are inaccessible.

    The lens is designed with an advanced auto-focusing algorithm that promptly snaps into focus with dependable accuracy and stability. The 3D noise reduction technology combined with the low-noise CMOS sensor ensures impeccable image clarity. Choose between the 12x optical zoom lens with an 80.4° wide-angle, or the 25x optical zoom lens with a 59.2° wide-angle.

    This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

    The auto-tracking technology uses the latest human detection AI algorithms to exhibit unparalleled tracking speed and accuracy. This monocular tracking method uses only one camera and one lens to easily detect and capture human forms and moving objects in seconds.

    The auto tracking is presented in two modes: Presenter Tracking and Zone Tracking. Presenter Tracking tracks its target everywhere without the need to wear any receiving devices. It has strong locking and anti-interference capabilities giving presenters the flexibility to leave the stage and interact with the audience while continuously being tracked. Zone Tracking can be set to track a specific area providing a clear, smooth representation of what's being shown behind the presenter such as a whiteboard.

    Packed with an array of video connections including USB 2.0, USB 3.0, LAN, HDMI, and 12G-SDI, the BG-ADAMO-4K boasts unparalleled functionality with sophistication and style. The dual stream USB facilitates concurrent main-stream and sub-stream outputs. While the HDMI, SDI, and USB 2.0 connections are capable of transmitting 4K video and audio signals simultaneously.

    Innovative Design
    Available in either classic white or black finishes, the chassis of the BG-ADAMO is designed to be as functional and attractive as its formidable feature set. The high-stability substructure provides a solid foundation for the precision lens delivering 4K resolution video at 60fps. Eliminating the need for bulky external accessories, the control arms feature distinctive built-in tally lights that illuminate either green or red with 360-degree visibility.

    • Features:

      • 12G SDI - Output up to 4k@60Hz resolution over SDI cabling
      • Tally Lights - Integrated red/green LED tally lights
      • MicroSD - Record and store up to 1 TB of 4K video
      • Zoom - Available with 12x optical zoom lens
      • Multiple Video Outputs - Choose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming
      • PoE - Data, power, and control over a single category cable
      • Multiple forms of control including RS232, RS422, Web GUI, Control App, or IR Remote
      • Stream to your choice of platform directly from the camera, no capture card needed

    • Specifications:

      • Parameters
      • Optical zoom: 12X
      • Focal length range: f=3.85 mm ~ 43.06 mm Ý5%
      • View Angle: H: 7.59°(tele) ~ 80.4°(wide), V: 4.6°(tele) ~ 50.0°(wide)
      • Sensor: 1/2.5 inch SONY CMOS sensor
      • AV: F1.8 ~ F3.56±5%
      • Effective Pixels: 8.51 Megapixels 16:9
      • Minimum Illumination: 0.05Lux (F1.8, AGC ON)
      • DNR: 3D DNR
      • White Balance: Auto / Manual / One Push / specified color temperature
      • Focus: Auto / Manual / One key focus
      • Exposure mode: Auto, Manual / Shutter Priority / Aperture Priority / Brightness Priority
      • Aperture parameters: F1.8 ~ F11, Closeshutter speed: 1/25 ~ 1/10000
      • BLC: Off/On
      • Dynamic range: OFF / Dynamic Level Adjustment
      • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
      • SNR: ≥50dB
        Video Formats
      • HDMI: 3840x2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50,30/59.94Hz; 720p@60/50/59.94Hz;
      • 12G-SDI: 3840x2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50/59.94Hz; 720p@60/50/59.94Hz;
      • USB2.0: MJPG: 3840x2160/1920x1080/1280x720/1024x768/1024x576/800x600/720x576/720x480/704x576/640x480/640x360/352x288/320x240p@30Hz; H264: 3840x2160/1920x1080/1280x720/1024x768/1024x576/800x600/720x576/720x480/704x576/640x480/640x360/352x288/320x240p@30Hz; YUY2: 800x448/720x480p@25; 640x360/432x240p@30Hz NV12: 800x448p@25; 640x480/640x360/432x240p@30Hz
      • USB3.0: YUY2: 1920x1080/1280x720p@60/50/30/25Hz; 960x540/800x600p@30Hz; 720x576p@50Hz; 720x480p@60Hz; 640x480p@30Hz;

        Interface Features

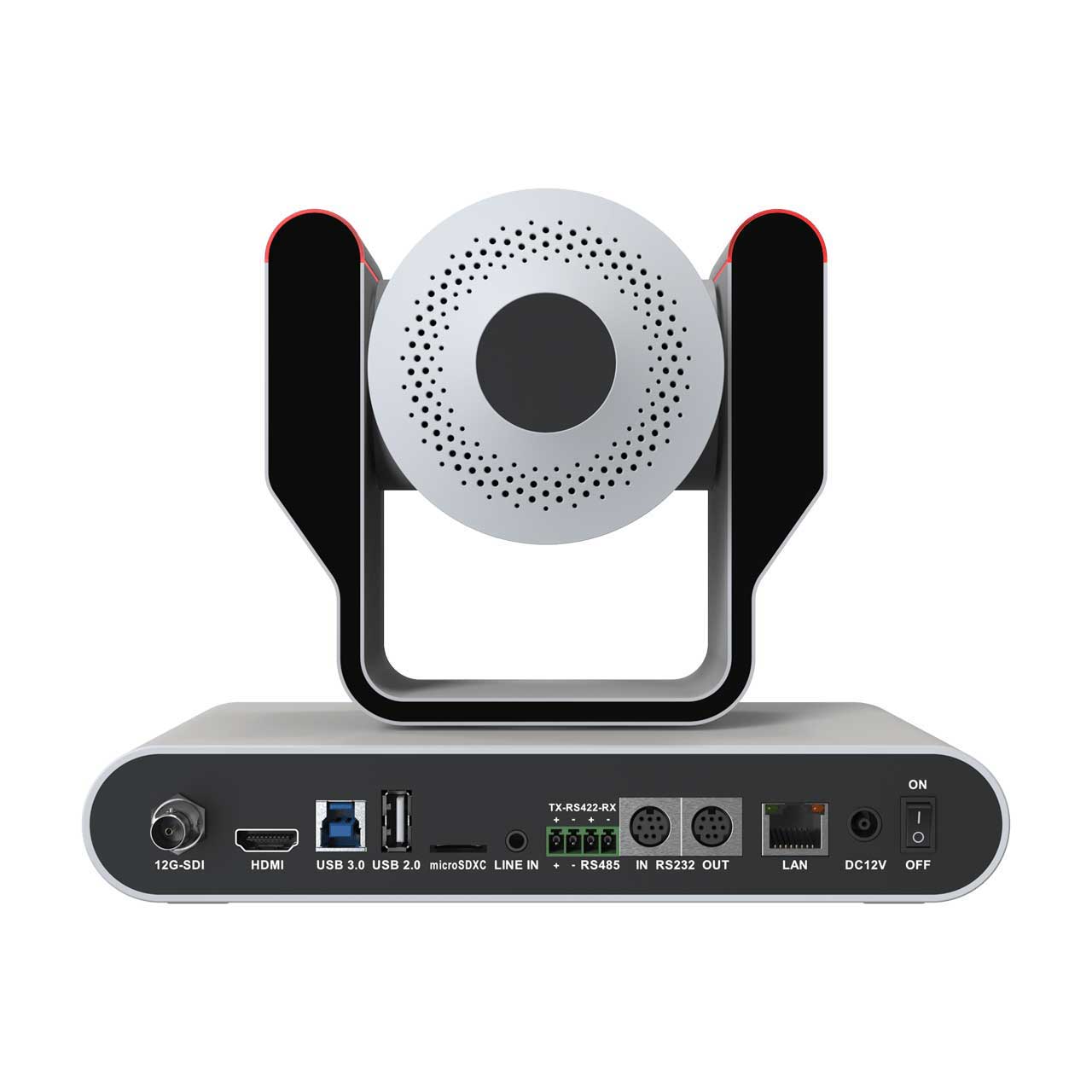

      • Interfaces: HDMI, 12G-SDI, LAN (support POE), USB2.0, A-IN, USB3.0, Micro SD, RS232-IN,
      • RS232-OUT, RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch
      • Video Compression: LAN: H.264, H.265
      • USB 2.0: MJPG, H264, H265, YUY2, NV12
      • USB 3.0: YUY2
      • Audio-in Interface: Double track 3.5mm linear Input
      • Audio out: HDMI, SDI, LAN
      • Audio Compression: AAC, G.711A
      • Sampling frequency: 32000, 44100, 48000
      • LAN: 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output
      • Network Protocol: RTSP, RTMP, ONVIF, SRT, GB/T28181; VISCA Control Protocols
      • Control Interface: RS232-IN, RS232-OUT, RS422 compatible with RS485
      • Serial Protocol: VISCA/Pelco-D/Pelco-P; Baud rare:115200/38400/9600/4800/2400
      • USB Communication Protocol: UVC (video)
      • Power Interface: HEC3800 (DC12V)
      • Power Adapter: In: AC110V-AC220V; Out: DC12V/2.5A
      • Input Voltage: DC12VÝ10%
      • Input Current: <1.5A
      • Power Consumption: <12W

        PTZ Parameters
      • Pan Rotation: -170° ~ +170°
      • Tilt Rotation: -30° ~ +90°
      • Pan Control Speed: 0.1°/s ~ 100°/s
      • Tilt Control Speed: 0.1°/s ~ 70°/s
      • Preset Speed: Pan: 78.8°/s, Tilt: 31.7°/s
      • Preset Number: 255 Presets (10 presets by remote control)

    • Item Includes:

      • 1x BG-ADAMO-4K
      • 1x RS232 Control Cable
      • 1x 12V/1.5A Power Supply
      • 1x IR Remote Control
      • 1x User Manual

    • Warranty:

      • 3 Year

    • GTIN:

      0850033687286
