BZBGEAR BG-ADAMO 12X 4K UHD Auto Tracking 12G-SDI/USB Dante AV-H Live Streaming PTZ Camera w/ Tally Lights - Black

ITEM #: BG-ADAMO4KDA12XB MFG #: BG-ADAMO4KDA12XB

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$2,799.00

Availability: In Stock
iAvailability Description Popup


    BG-ADAMO4KDA12XB - Overview

    BZBGEAR BG-ADAMO-4KDA12X-B is a 4K UHD auto tracking HDMI 2.0/12G-SDI/USB 2.0/USB 3.0/POE/Dante AV-H live streaming PTZ camera with tally lights and 12x zoom, in black.

    BZBGEAR is proud to announce the next generation of PTZ cameras: the BG-ADAMO-4KDA. Brilliantly designed with exclusive features and a unique form factor, the BG-ADAMO is unrivaled in its class on the live stream broadcasting market.

    The BG-ADAMO-4KDA is loaded with features including the latest Dante AV-H technology by Audinate, a full interface of video connections, and immaculate 4K@60Hz resolution. The integration with Dante AV-H technology enables the BG-ADAMO-4KDA to distribute the stream to multiple devices on the network using nothing more than a simple Ethernet connection. The 12G-SDI connection enables long distance cable runs without compromising image quality. Compose shots ahead of time utilizing the up to 255 programmable presets, with 10 conveniently accessible using the IR remote. Capable of storing 1 TB of video footage with the Micro SD Card writer, start recording on the fly when other connections are inaccessible.

    The lens is designed with an advanced auto-focusing algorithm that promptly snaps into focus with dependable accuracy and stability. The 3D noise reduction technology combined with the low-noise CMOS sensor ensures impeccable image clarity. Choose between the 12x optical zoom lens with an 80.4° wide-angle, or the 25x optical zoom lens with a 59.2° wide-angle.

    Packed with an array of video connections including Dante AV-H, USB 2.0, USB 3.0, LAN, HDMI, and 12G-SDI, the BG-ADAMO-4KDA boasts unparalleled functionality with sophistication and style. The dual stream USB facilitates concurrent main-stream and substream outputs. While the HDMI, SDI, and USB 2.0 connections are capable of transmitting 4K video and audio signals simultaneously.

    • Features:

      • 12x Optical Zoom lens
      • Multiple Video Outputs
      • PoE
      • 4k 12G SDI Output up to 4K@60Hz resolution over SDI cabling
      • Integrated red/green LED tally lights
      • MicroSD: Record and store up to 1 TB of 4K video
      • Multiple forms of control including RS232, RS422, Web GUI, Control App, or IR Remote
      • Stream to your choice of platform directly from the camera, no capture card needed

    • Specifications:

      • Optical Zoom: 12x
      • Focal Length Range: f=3.85 mm ~ 43.06 mm ±5%
      • View Angle: H: 7.59°(tele) ~ 80.4°(wide), V: 4.6°(tele) ~ 50.0°(wide)
      • AV: F1.8 ~ F3.56±5%
      • Sensor: 1/2.5 inch SONY CMOS sensor
      • Effective Pixels: 8.51 Megapixels 16:9
      • Video Formats:
        HDMI: 3840*2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50,30/59.94Hz; 720p@60/50/59.94Hz;
        12G-SDI:3840*2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50/59.94Hz; 720p@60/50/59.94Hz;
        USB2.0: MJPG: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz;
        H264: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz;

        YUY2: 800*448 /720*480p@25; 640*360 /432*240p@30Hz
        NV12: 800*448p@25; 640*480 /640*360 /432*240p@30Hz
        USB3.0: YUY2: 1920*1080 /1280*720p@60/50/30/25Hz; 960*540 /800*600p@30Hz; 720*576p@50Hz; 720*480p@60Hz; 640*480p@30Hz;
      • Minimum Illumination: 0.05Lux (F1.8, AGC ON)
      • DNR: 3D DNR
      • White Balance: Auto / Manual / One Push / specified color temperature
      • Focus: Auto / Manual / One key focus
      • Exposure Mode: Auto, Manual / Shutter Priority / Aperture Priority / Brightness Priority
      • Aperture Parameters: F1.8 ~ F11, CLOSE
      • Shutter Speed: 1/25 ~ 1/10000
      • BLC: Off/On
      • Dynamic Range: OFF / Dynamic Level Adjustment
      • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
      • SNR: =50dB

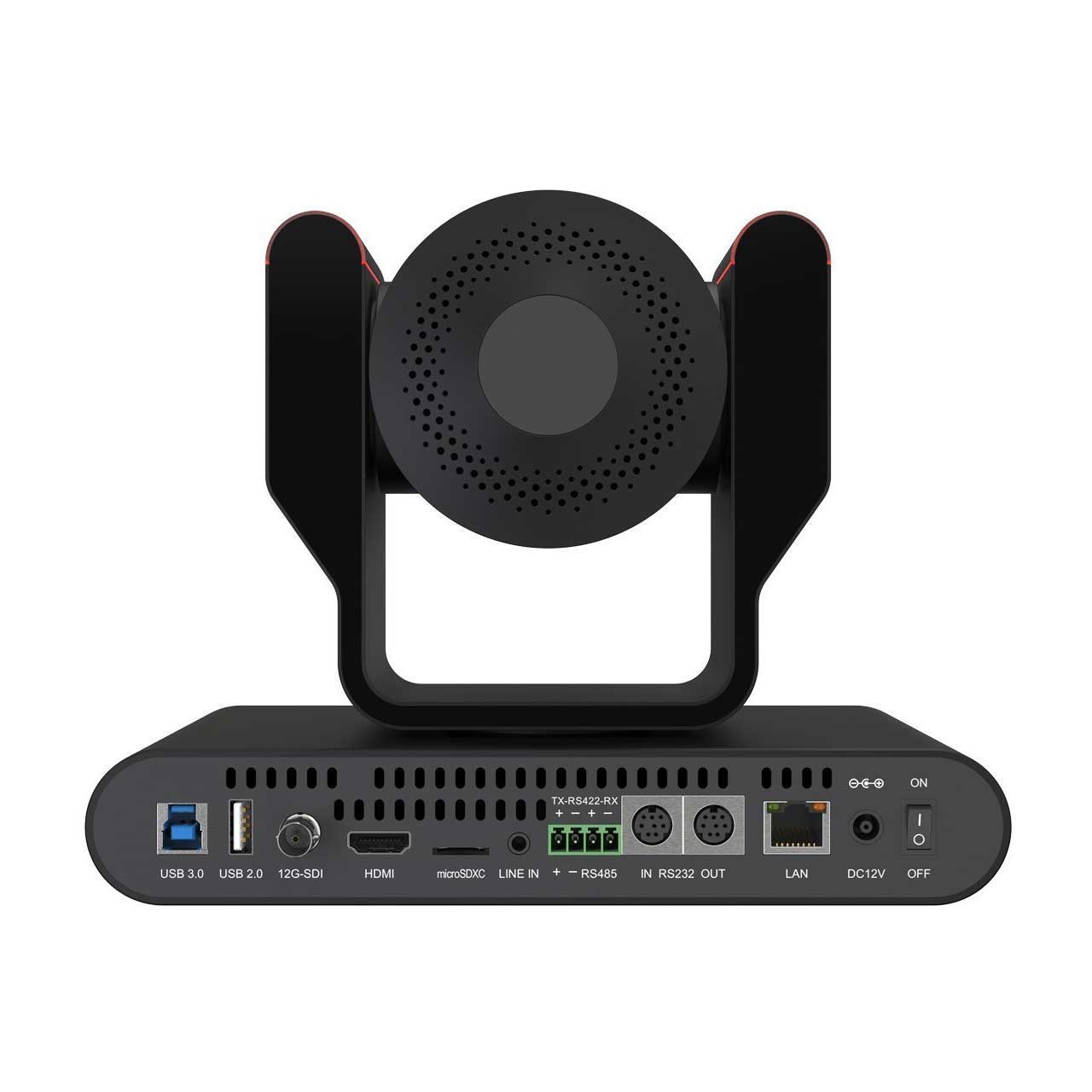

      • Interfaces: HDMI, 12G-SDI, LAN (support POE), USB2.0, A-IN, USB3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch
      • Video Compression: LAN: H.264, H.265 / USB 2.0: MJPG, H264, H265, YUY2, NV12/ USB 3.0: YUY2
      • Audio-in Interface: Double track 3.5mm linear Input
      • Audio Out: HDMI, SDI, LAN
      • Audio Compression: AAC, G.711A
      • Sampling Frequency: 32000, 44100, 48000
      • LAN: 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output
      • Network Protocol: RTSP, RTMP, ONVIF, SRT, GB/T28181; VISCA Control Protocols
      • Control Interface: RS232-IN, RS232-OUT, RS422 compatible with RS485
      • Serial Protocol: VISCA/Pelco-D/Pelco-P; Baud rare:115200/38400/9600/4800/2400
      • USB Communication Protocol: UVC (video)
      • Power Interface: HEC3800 (DC12V)
      • Power Adapter: In: AC110V-AC220V; Out: DC12V/2.5A
      • Input Voltage: DC12V±10%
      • Input Current: <1.5A
      • Power Consumption: <12W

    • Item Includes:

      • 1x BG-ADAMO-4K (12x, Black)
      • 1x IR Remote Control
      • 1x 12V/1.5A Power Supply
      • 1x RS232 Control Cable
      • 1x User Manual

    • GTIN:

      0850033687545
