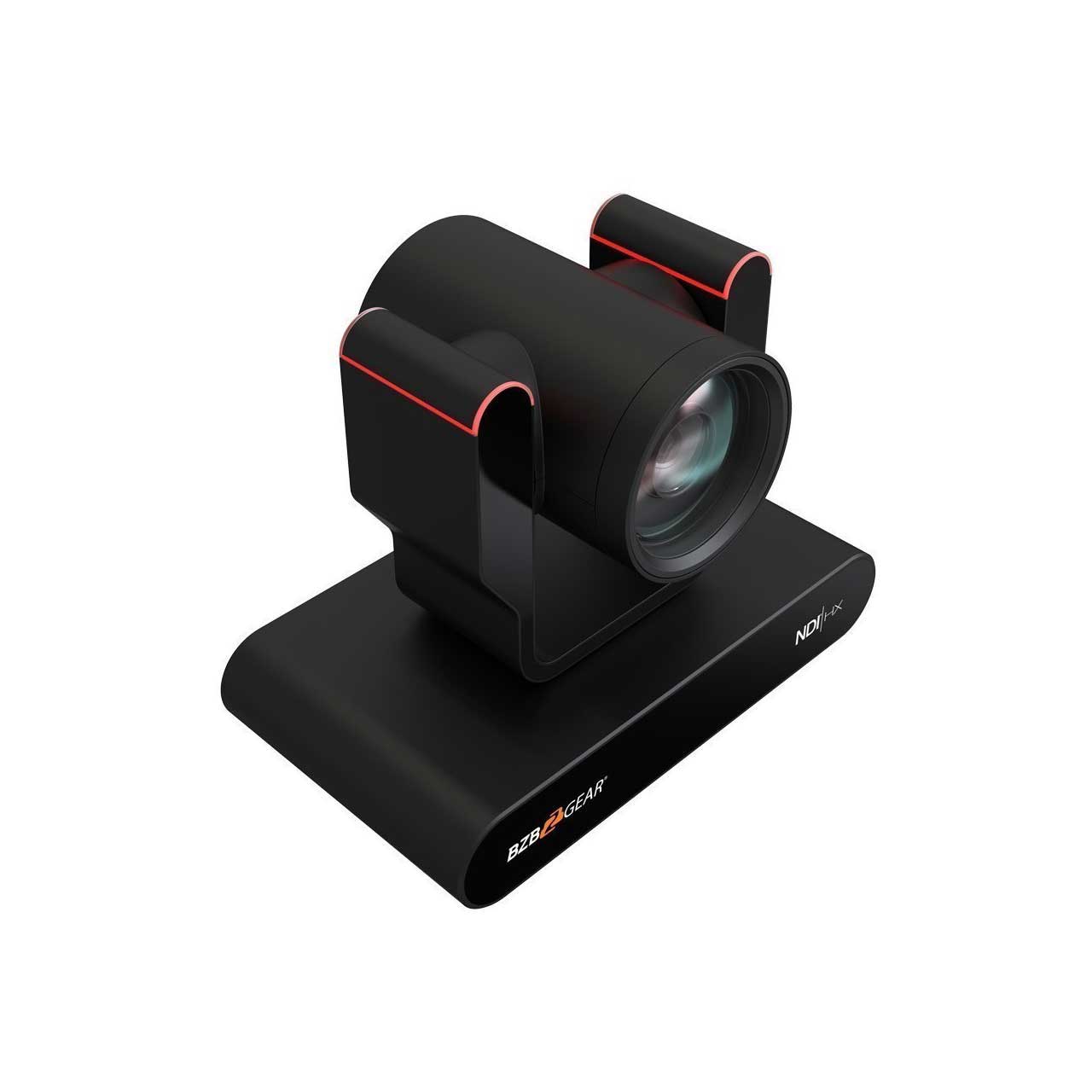

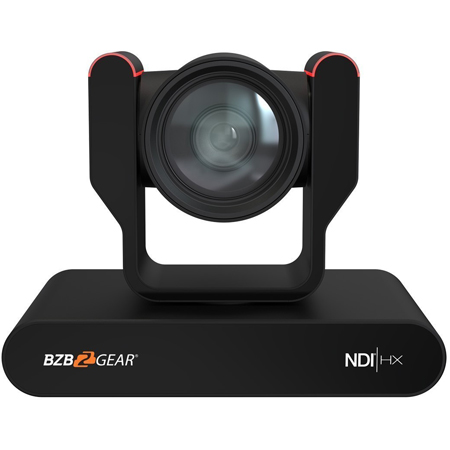

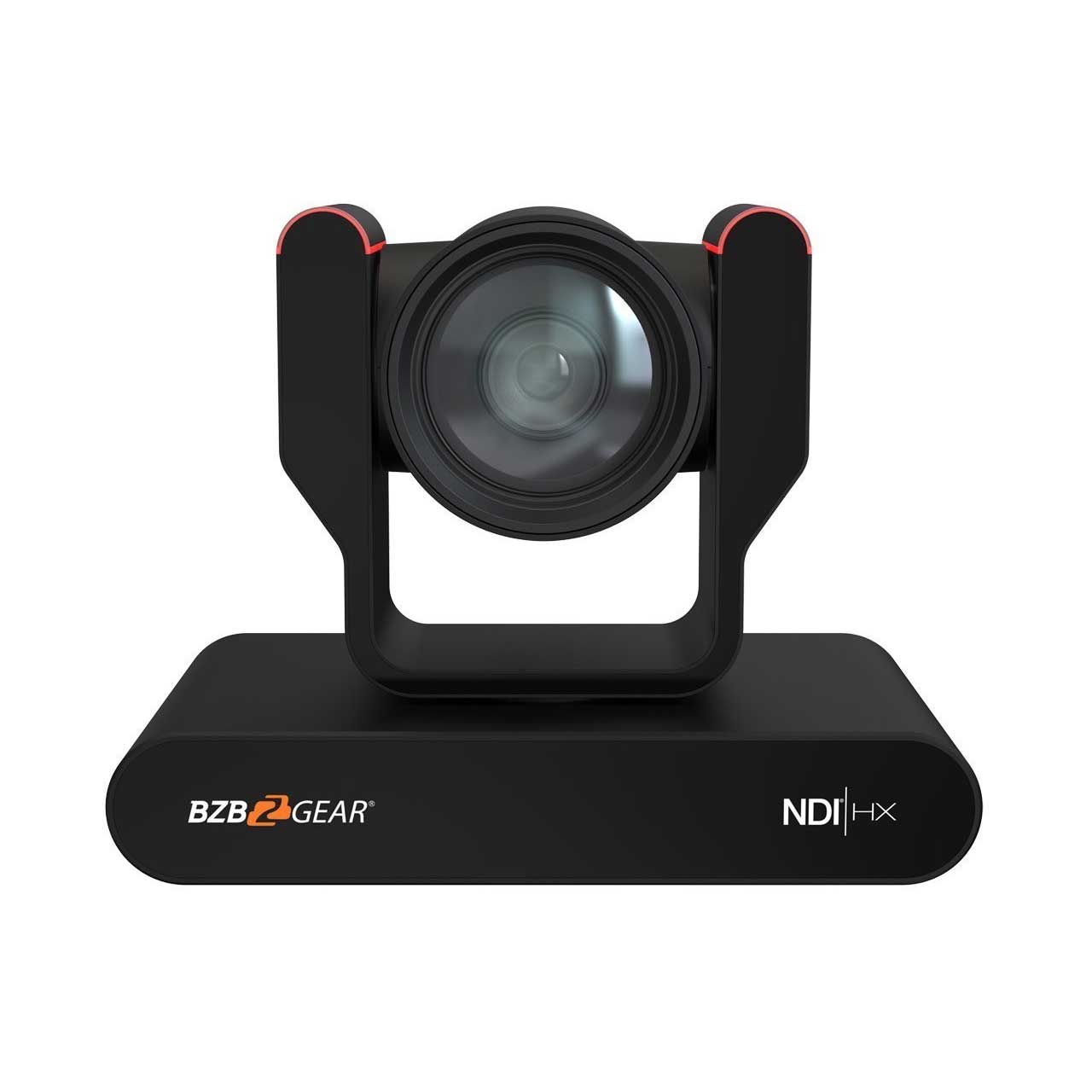

BZBGEAR ADAMO JR 12x 1080P Auto Tracking NDI/HX3 Live Streaming PTZ Camera with Tally Lights - Black

ITEM #: BG-ADAMOJRND12XB MFG #: BG-ADAMO-JRND12X-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,599.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    BG-ADAMO-JRND12X-B - Overview

    The Next Generation of Full HD PTZ Cameras
    The BZBGEAR BG-ADAMO-JRND is a Full HD NDI|HX3 certified PTZ camera with 3 types of lenses available: 12X optical zoom with 70.3 FOV, 20X optical zoom with 60.04 FOV, and 30X optical zoom with 58.1 FOV. It features smooth PTZ functions, advanced image processing features and flexible connection options.

    What is NDI?
    Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 tool-kit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.

    What is NDI|HX3?
    NDI|HX3 is an updated version of the HX2 standard. The difference is, HX3 provides a better image quality and lower latency than HX2. NDI|HX3 also uses slightly more bandwidth than NDI|HX2, but the increase in bandwidth is not significant enough to be an issue. There are a limited amount of NDI|HX3 compliant devices due to a hardware limitation most NDI|HX2 compliant devices have. Overall, NDI|HX3 is the latest update to the standard and offers the best features. Learn more about NDI technology.

    Applications:
    Studio Recordings
    Houses of Worship
    Sporting Events
    Event Businesses
    Doctors
    Clergy

    • Features:

      • Advanced Visual Performance: With the high quality 1/2.8-inch SONY CMOS image sensor, the resolution of this camera can get up to 1080@60fps. Additionally, the low noise 1/2.8-inch SONY CMOS guarantees high SNR and the advanced 3D noise reduction technology further reduces the noise while ensuring pristine image clarity. The advanced ISP processing technology and algorithms also allow the camera to deliver true-to-life image quality for the most natural and accurate viewing experiences.
      • Optical Zoom: The BG-ADAMO-JRND offers three different optical zoom lenses that users can choose from: 12X optical zoom with 70.3 viewing angle, 20X optical zoom with 60.04 viewing angle and 30X optical zoom with 58.1 viewing angle.

    • Specifications:

      • Camera/Lens
      • Optical Zoom: 12x
      • Focus Range: f=4.1 mm ~ 49.2 mm ±5%
      • FOV:
        Horizontal (H): 6.57°(tele) ~ 70.28°(wide)
        Vertical (V): 3.76°(tele) ~ 42.06°(wide)
      • Iris Value: F1.8 ~ F2.68±5%
      • Image Sensor: 1/2.8 inch SONY CMOS sensor
      • Effective Pixels: 2.07 Megapixels 16:9
      • Video Signal:
      • HDMI: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
      • SDI: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
      • USB2.0: MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30; H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30; YUY2: 800*448 /720*480P25; 640*360 /432*240P30 NV12: 800*448P25; 640*480 /640*360 /432*240P30
      • USB3.0: YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*480P30;
      • Minimum Illumination: 0.05Lux (F1.8, AGC ON)
      • DNR: 3D
      • White Balance: Auto / Manual / One-Push / Specified Color Temperature
      • Focus Mode: Auto / Manual / One-Push
      • Exposure Mode: Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority
      • Iris Value: F1.8 ~ F11, CLOSE
      • Shutter Speed: 1/25 ~ 1/10000
      • BLC: On/Off
      • Dynamic Range: Off / Dynamic Level Adjustment
      • Video Adjustment: Brightness, Hue, Saturation, Contrast, Sharpness, W/B Mode
      • SNR: ≥50dB

        Interface Parameters

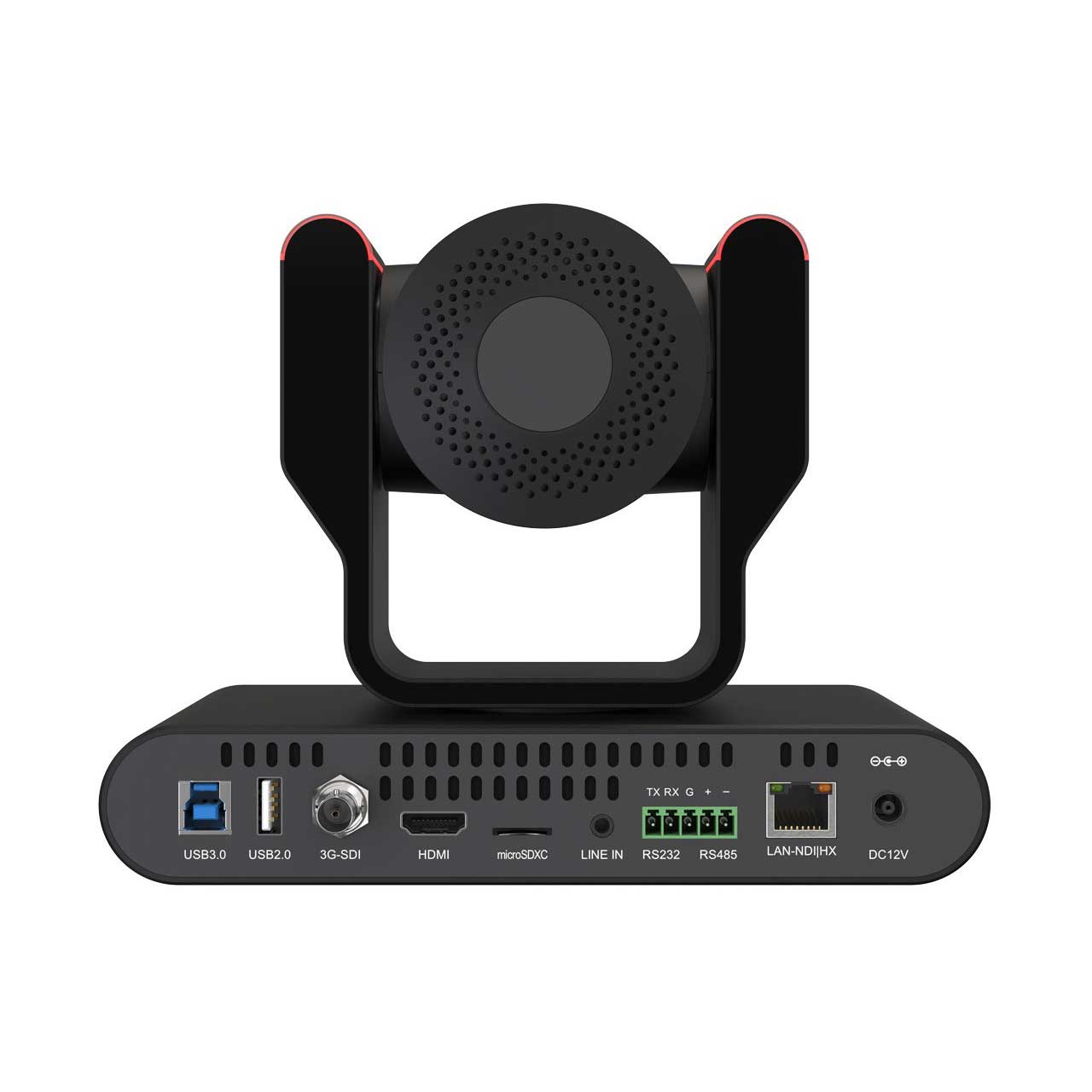

      • Interface: HDMI, SDI, LAN-ND|HX (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
      • Video Compression Format: LAN-ND|HX: H.264, H.265
      • USB 2.0: MJPG, H264, H265, YUY2, NV12
      • USB 3.0: YUY2
      • Audio Input: Dual channel 3.5mm line input
      • Audio Output: HDMI, SDI, LAN-ND|HX
      • Audio Compression Format: AAC
      • Network Jack: 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output
      • Network Protocols: RTSP, RTMP, ONVIF, GB/T28181; support network VISCA control protocol
      • Control Jack: RS232-IN, RS232-OUT, RS422 compatible with RS485
      • Serial Port Communication: VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400
      • USB Communication Protocol: UVC (Video Communication Protocols)
      • Power Supply: HEC3800 Power Outlet (DC12V)
      • Power Adapter: Input: AC110V-AC220V; Output: DC12V/1.5A
      • Input Voltage: DC12V±10%
      • Input Current: <1.5A
      • Power Consumption: <12W

        PTZ Parameters
      • Pan: -170° ~ +170°
      • Tilt: -30° ~ +90°
      • Pan Speed: 1.4°/s ~ 100°/s
      • Tilt Speed: 2.9°/s ~ 30°/s
      • Preset Speed: Pan (H): 78.8°/s, Tilt (V): 31.7°/s
      • Preset Quantity: 255 Presets (10 can be set via remote control)

    • Item Includes:

      • 1x BG-ADAMO-JRND 12x NDI|HX3 PTZ Camera (Black)
      • 1x Power Adapter
      • 1x RS232 Control Cable
      • 1x USB 2.0 Cable
      • 1x USB 3.0 Cable
      • 1x Remote Control
      • 1x Manual
