BG-COMMANDER-ULTRA - Overview

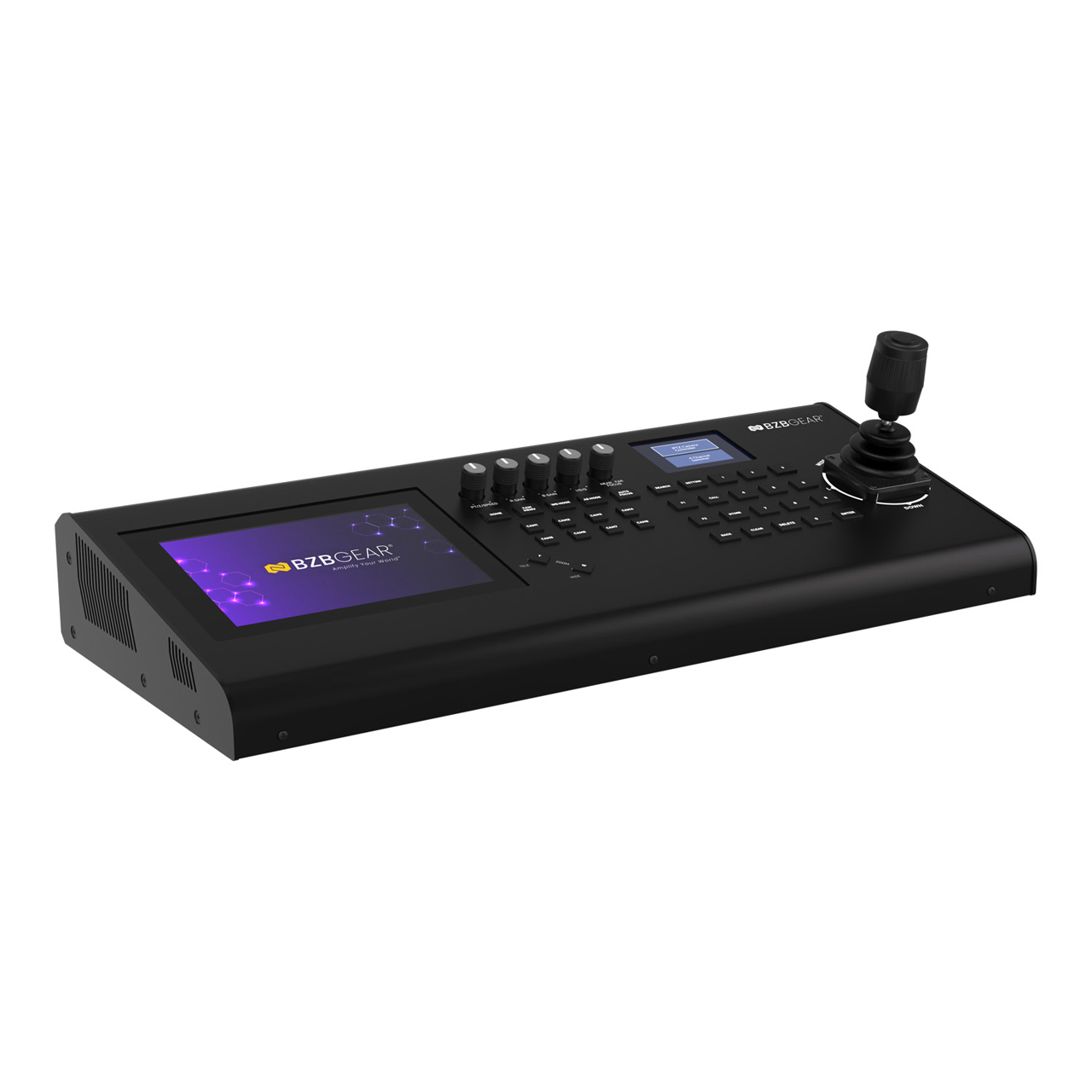

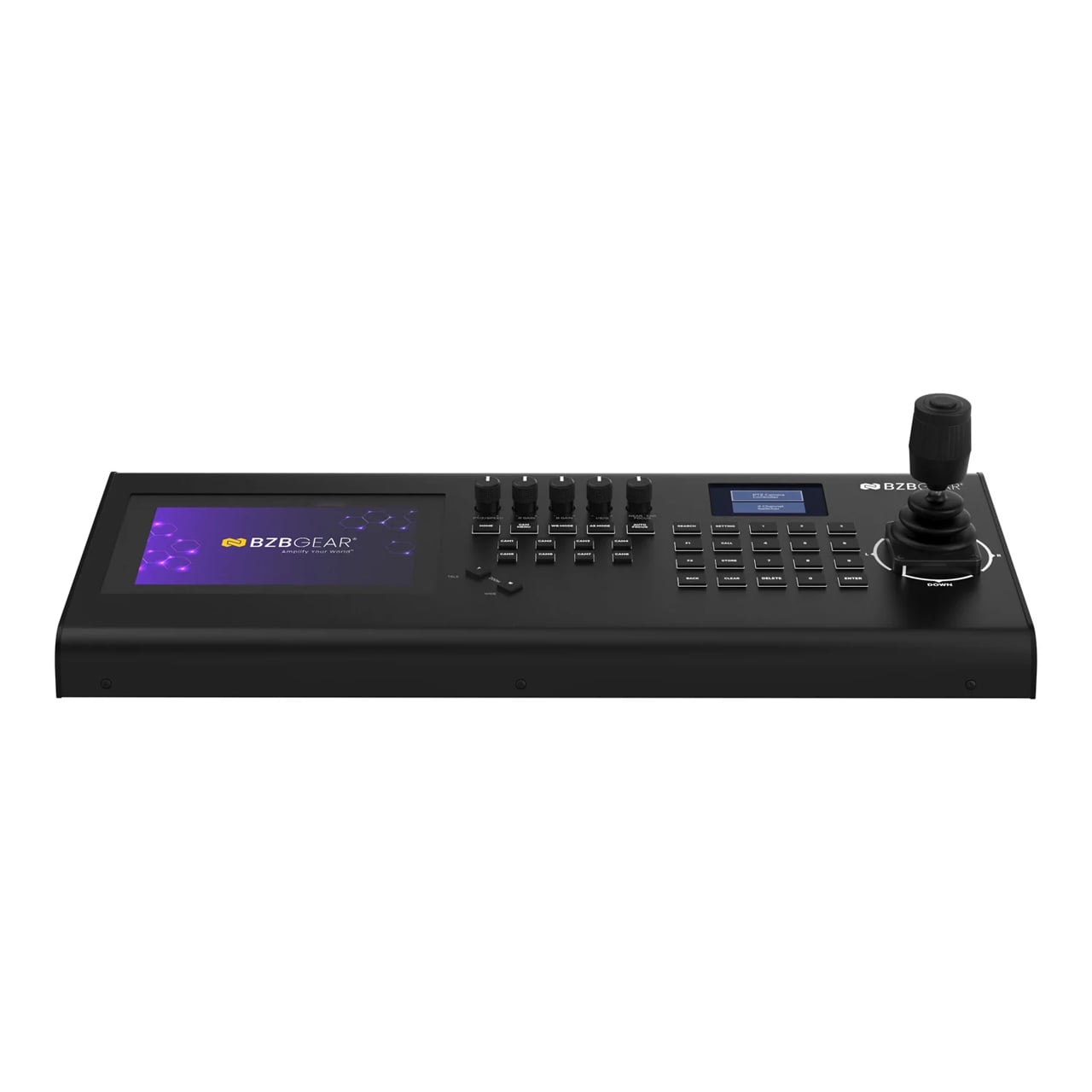

The BZBGEAR BG-COMMANDER-ULTRA is a state-of-the-art 4K HDMI production studio device that integrates a 4K HDMI switcher interface and a PTZ joystick controller. Designed to meet the needs of high-performance video production environments, it offers a comprehensive range of features and robust connectivity options. This versatile unit excels in handling complex video and audio tasks, including camera control, video mixing, and advanced signal management.

The BG-COMMANDER-ULTRA is the ideal solution for high-end video production studios seeking a reliable and feature-rich device to handle complex video and camera control tasks. Its advanced functionality, robust build, and extensive connectivity options make it a valuable addition to any professional AV setup.

Features:
- 4K HDMI Production: Supports up to 4K2K@60Hz resolution with both HDR and SDR capabilities, ensuring superior video quality and color depth for professional production applications.
- Advanced Audio Support: Provides LPCM audio support and analog stereo output via XLR connectors for high-quality sound management.
- Advanced Switcher Software: Unlock a powerful suite of video and audio mixing and switching tools with intuitive, free software interface. Accessible via RS-232 and IP.
- Integrated Capture Card: Stream high-quality content directly from the integrated capture through the USB-C output port.
- Integrated Micro SDXC: Capture and store your Program output feed directly with the built-in Micro SDXC card slot for hassle-free recording.
- Versatile Operating Modes: Effortlessly toggle between PTZ Camera Controller and 4-Channel Switcher modes via the on-screen display (OSD) menu.
Specifications:
- HDMI Compliance: HDMI 2.0
- HDCP Compliance: HDCP 1.4/2.2
- HDR Support: Supports HDR for both inputs and outputs, HDR to SDR conversion
- Video Bandwidth: Single-link 600MHz (18Gbps)
- Video Format Support: HDMI 2.0
- Video Support: Up to HDR 4K2K@60 (4:2:0 10 bits)/4K2K@60 (4:4:4 8 bits)
- Audio Support: LPCM
- Control Options: Ethernet/RS-232/RS-422
- Camera Control:
  - Remote Control of Multiple Camera Settings: Pan, Tilt, Zoom, Focus, Iris, White Balance
  - Protocols: VISCA, VISCA over IP, Pelco-D, Pelco-P
- Embedded Video Mixer: Yes
- Input TMDS Signal: 1.2V (peak to peak)
- ESD Protection: Human-body Model: ±15kV (Air-gap discharge), ±8kV (Contact discharge)

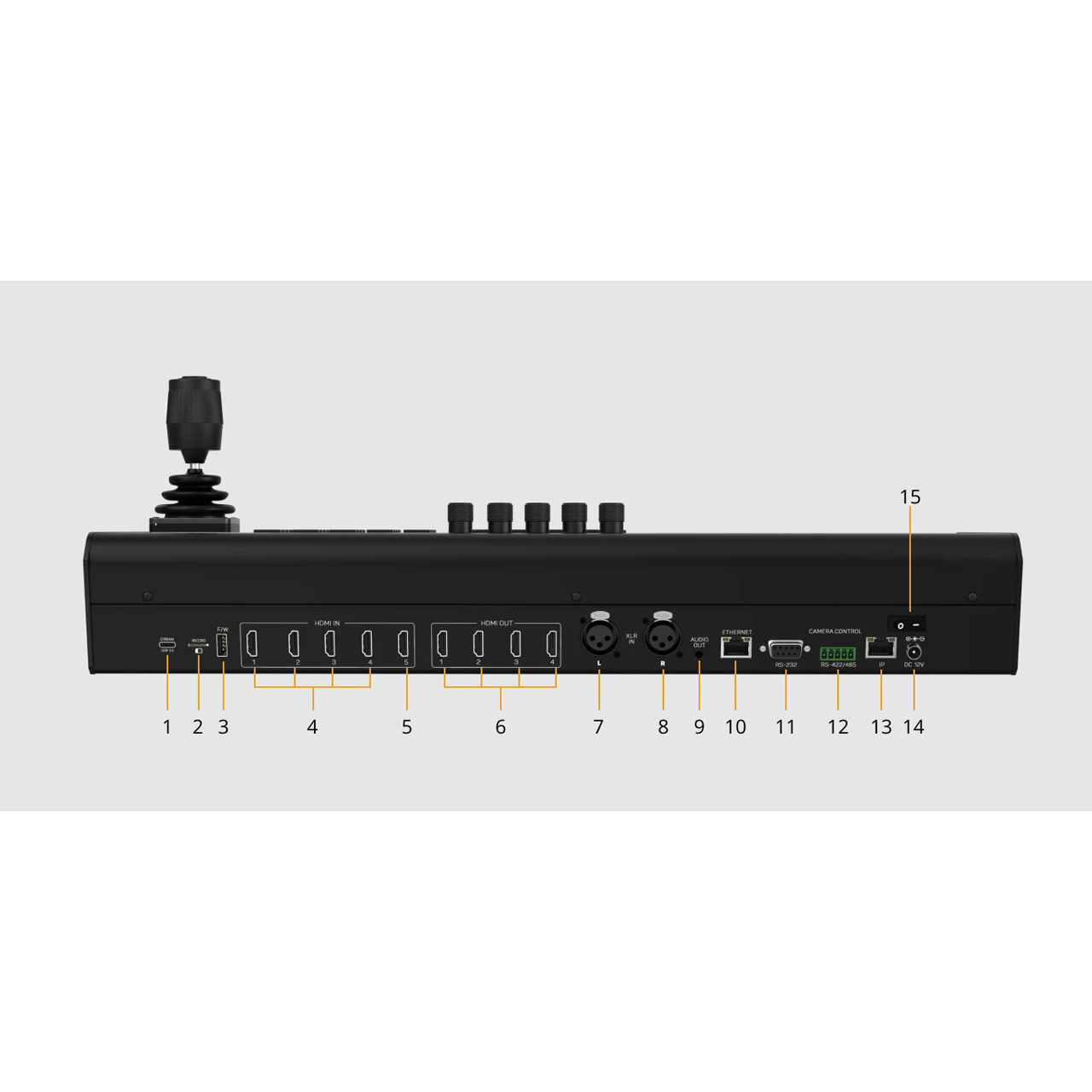

- Input:
  - 5x HDMI
  - 2x XLR
  - 2x RJ-45 (LAN)
  - 1x USB (Type A)
  - 1x RS-232
  - 1x Terminal Block (RS-422)
- Output:
  - 4x HDMI
  - 1x 3.5mm
  - 1x USB-C
- Connectors:
  - HDMI Connector: Type A (19-pin female)
  - USB Connector: USB Type A, USB Type C
  - RJ45 Connector: WE/SS 8P8C
- Housing: Metal Enclosure
- Fixedness: Wall-mounting case
- Power Supply: 12V DC
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (no condensation)
- Dimensions (LxWxH): 14" x 9.6" x 6.1"
- Weight: 6lbs
Item Includes:
- 1x BG-COMMANDER-ULTRA
- 1x 12V5A DC Adapter
- 1x User Manual
Warranty:
- 5 Year Limited Warranty
