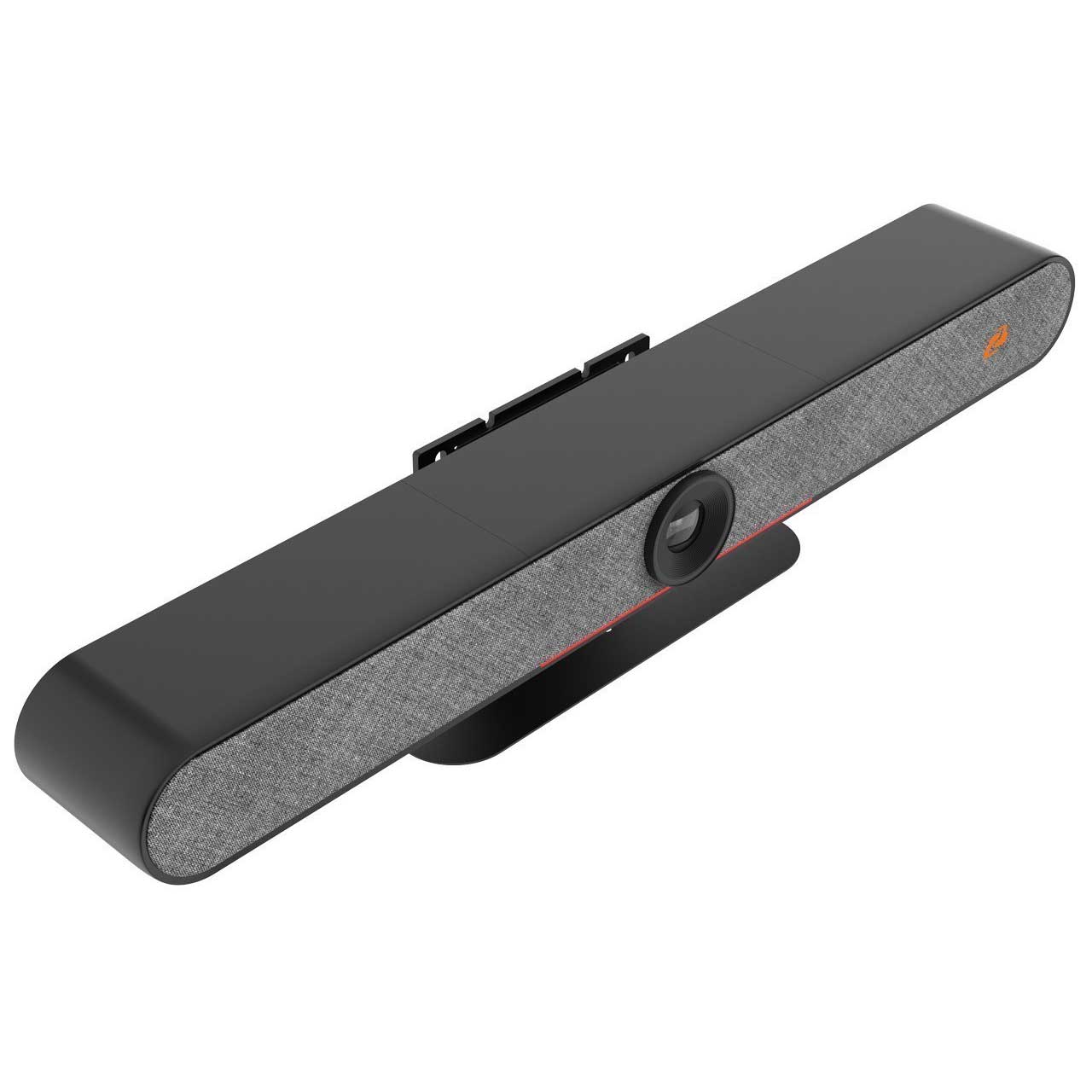

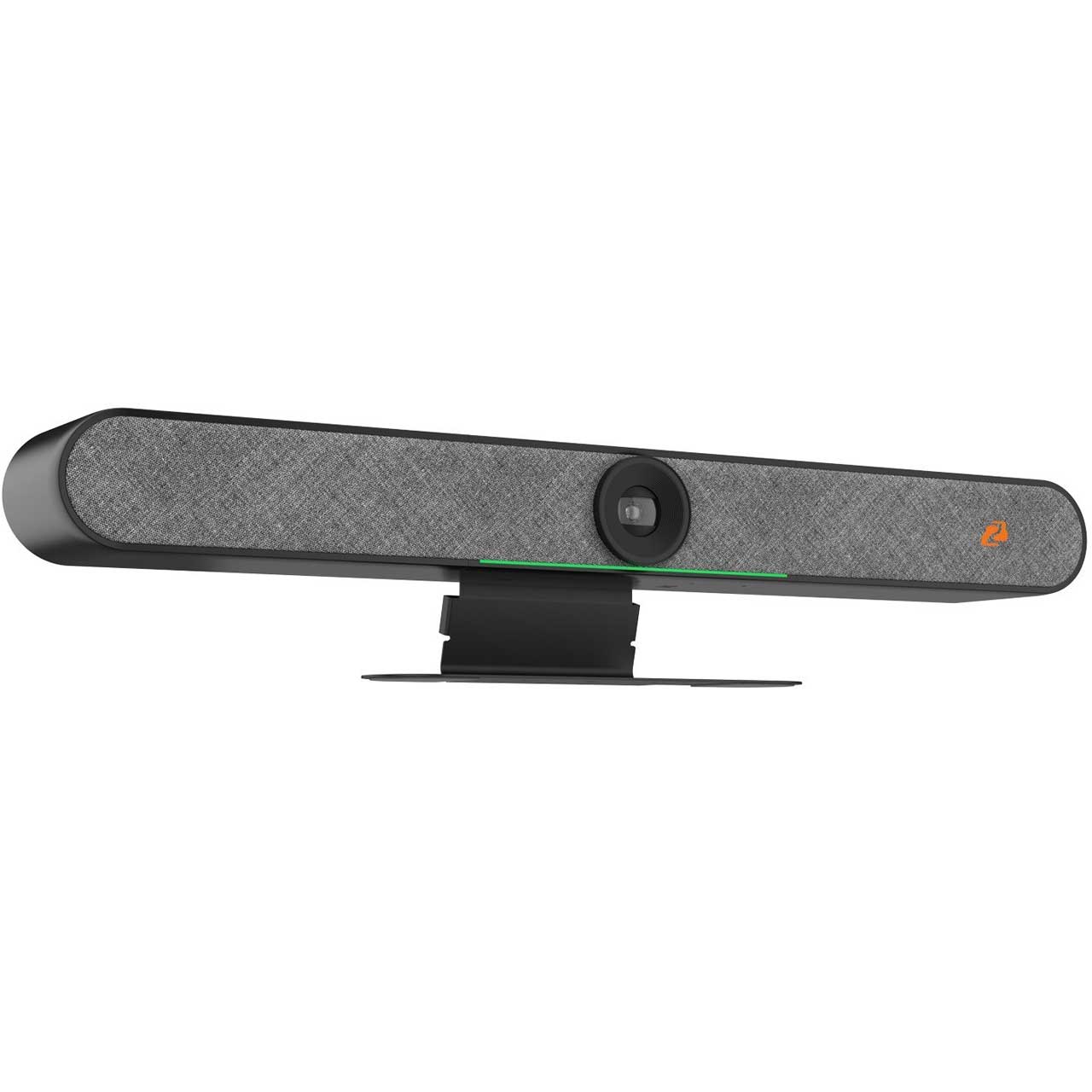

BZBGEAR BG-CYCLOPS-4K Intelligent 4K All-In-One Auto Tracking Video Bar with HDMI/USB-C - Black

BG-CYCLOPS-4K-B - Overview

• Features:

  • Crystal clear image quality at 4K2K
  • Automatic privacy cover
  • Wide angle lens
  • 6 Microphones
  • Auto framing
  • Compatible with Windows, Mac OS, and major conferencing software such as Zoom, Skype, etc.
  • Bluetooth enabled
  • Low noise CMOS
  • Brackets for desktop or wall mounting included


• Specifications:

  • Camera
  • Lens FOV: 120°(D) / 106°(H) / 72°(V)
  • Lens Iris: F2.0
  • Lens Focal Length: 0.07" (1.89mm)
  • Sensor: High quality CMOS sensor, effective pixel 8 million, 16:9
  • Minimum Illumination: 0.5Lux
  • DNR: 2D & 3D
  • Focus: Auto/Manual
  • BLC: On/Off
  • Exposure: Parameter can be adjusted, and AE (Auto Exposure) is available
  • Video Adjustment: Brightness, sharpness, saturation, contrast, white balance, gain, anti-flicker, low brightness compensation and other parameters can be adjusted
  • SNR: =50dB
  • Video Format: HDMI: 4KP30,1080P60 compatible downward / USB: 4KP30,1080P60 compatible downward
  • Video Compression Format: MJPEG, YUY2, H.264, H.265, NV12
  • Privacy Cover: Automatic privacy cover will close when no image output and open when there are image output.

    Audio
  • Microphone: 6x MEMS Microphones
  • Microphone Pickup Distance: 19.68ft (6 meters)
  • Microphone Frequency Response: 120 Hz - 16 kHz
  • Speaker: Built in dual speaker
  • Speaker Voltage: 2x10W
  • Speaker Output Voice Pressure: 80±3 dB 1.0M/1.0W
  • Speaker Frequency Response: 100 Hz - 20 KHz
  • Audio Processing: AEC, AGC, ANS

    AI Function
  • Group Framing: Automatically adjust the screen size according to the number of participants to present the best framing
  • Speaker Tracking: Track each speaker in real time, and ensure that the speaker is in the center of the screen.

    Physical Interfaces

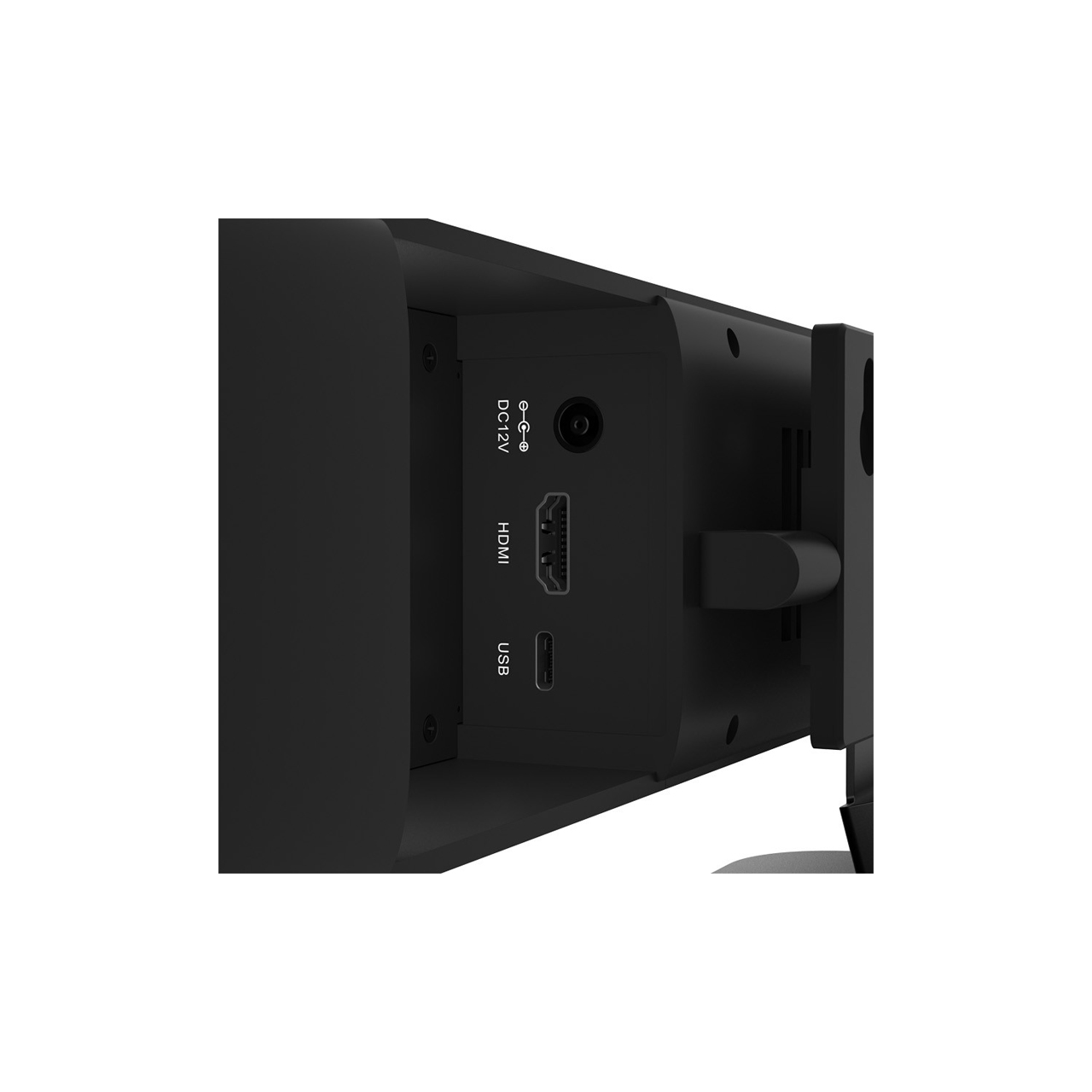

  • USB: USB3.0 audio video output interface, Type C - Support UVC1.1, UAC1.0 and higher
  • HDMI: HDMI video output interface, HDMI also compatible with HDMI2.0 standard

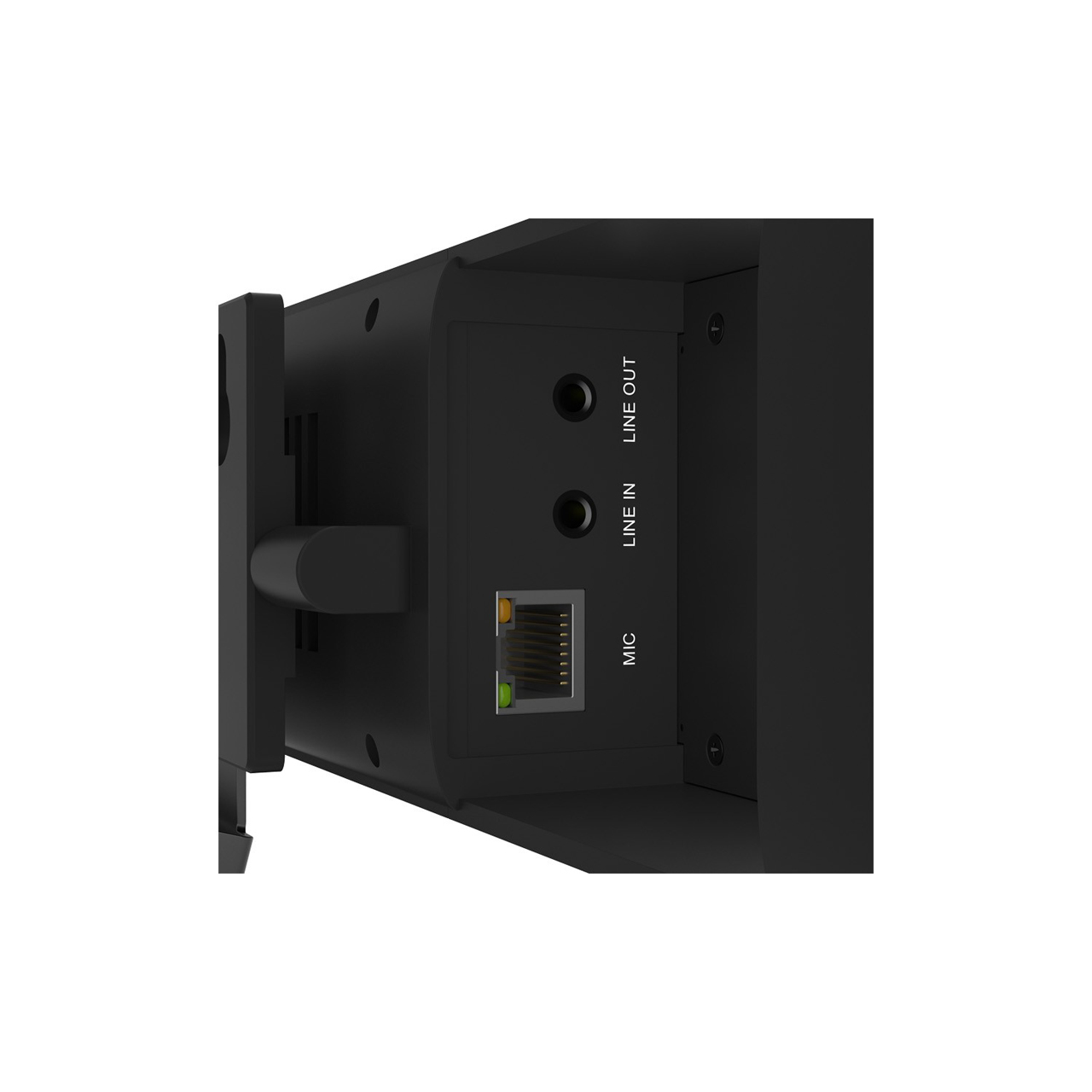

  • LINE IN: 3.5mm audio line input interface (when an external pickup is connected, the audio input is automatically switched to the external pickup)
  • LINE OUT: 3.5mm line output, can be connected to external speakers (when connecting to external speakers, the audio output will automatically switch to external speakers)
  • Expansion Mic Interface: RJ45 interface, able to connect to expansion microphone.
  • Power Interface: HEC3800 power socket (DC12V), input AC110V-AC220V output DC12V/2.5A
  • Indicator: Bar-shaped Indicator While displaying the working status, it can also be lit where the speaker's voice comes from.
  • Bluetooth: Bluetooth 5.0 Can be connected to a mobile phone or other device via Bluetooth as a Bluetooth microphone and speaker
  • Compatibility: Available System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
  • Power Supply Method: Supply power through power adapter

    Working Condition
  • Storage Temperature: 14° to 158° (-10° to +70°C)
  • Storage Humidity: 20%~95%
  • Working Temperature: 14° to 122° (-10° to +50°C)
  • Working Humidity: 20%~80%
  • Environment: Indoor

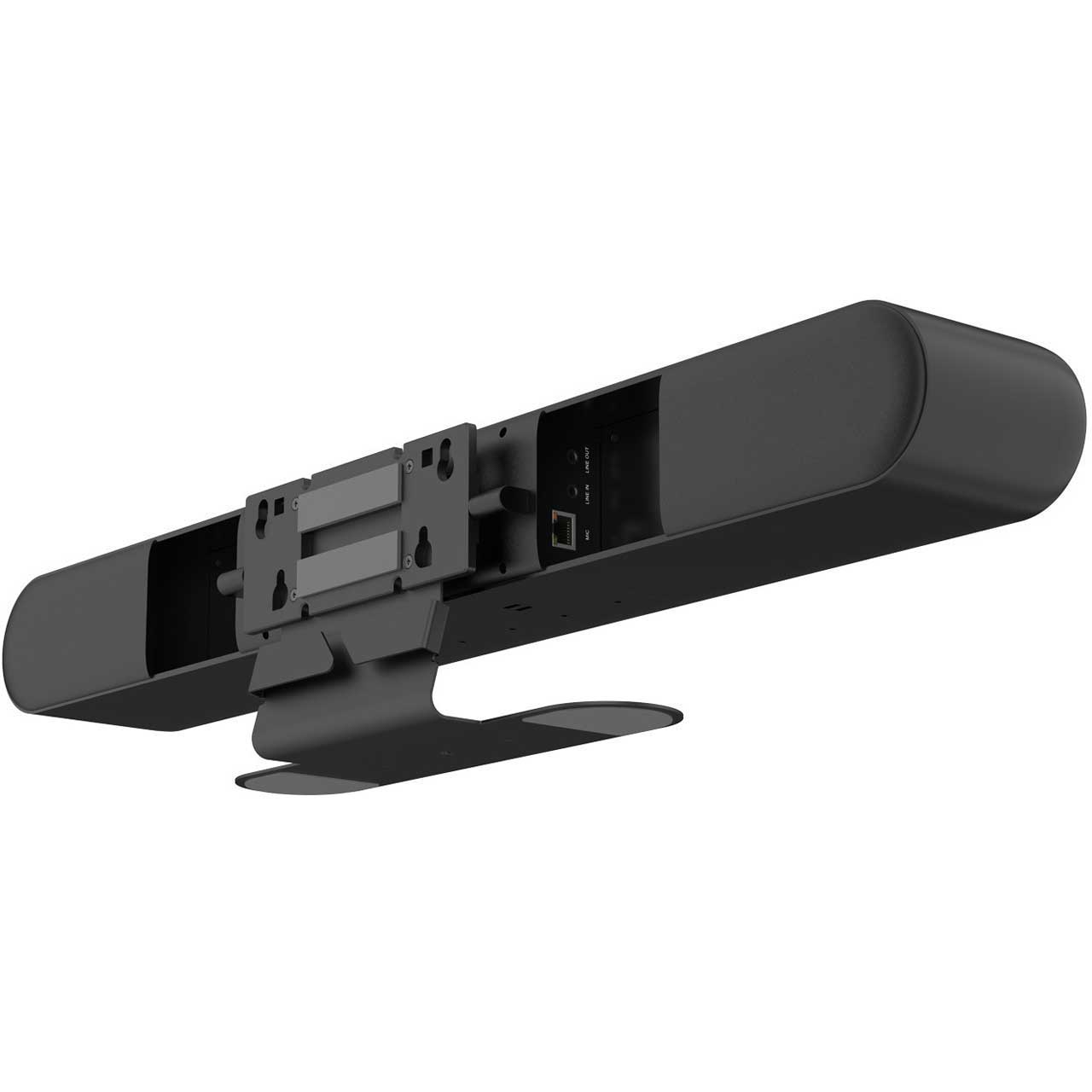

    Installation Method
  • Walling Mount: Comes with walling mount bracket. While mounting, the camera need to be as close to the wall as possible.
  • Desktop: Comes with desktop mounting bracket
  • Installed on monitor: Bracket for monitor installation (optional)


• Item Includes:

  • 1x BG-CYCLOPS-4K All-in-one video bar (Black)
  • 1x USB cable
  • 1x Remote control
  • 1x Quick start guide
  • 1x Power adapter


• GTIN:

  0850033687613
