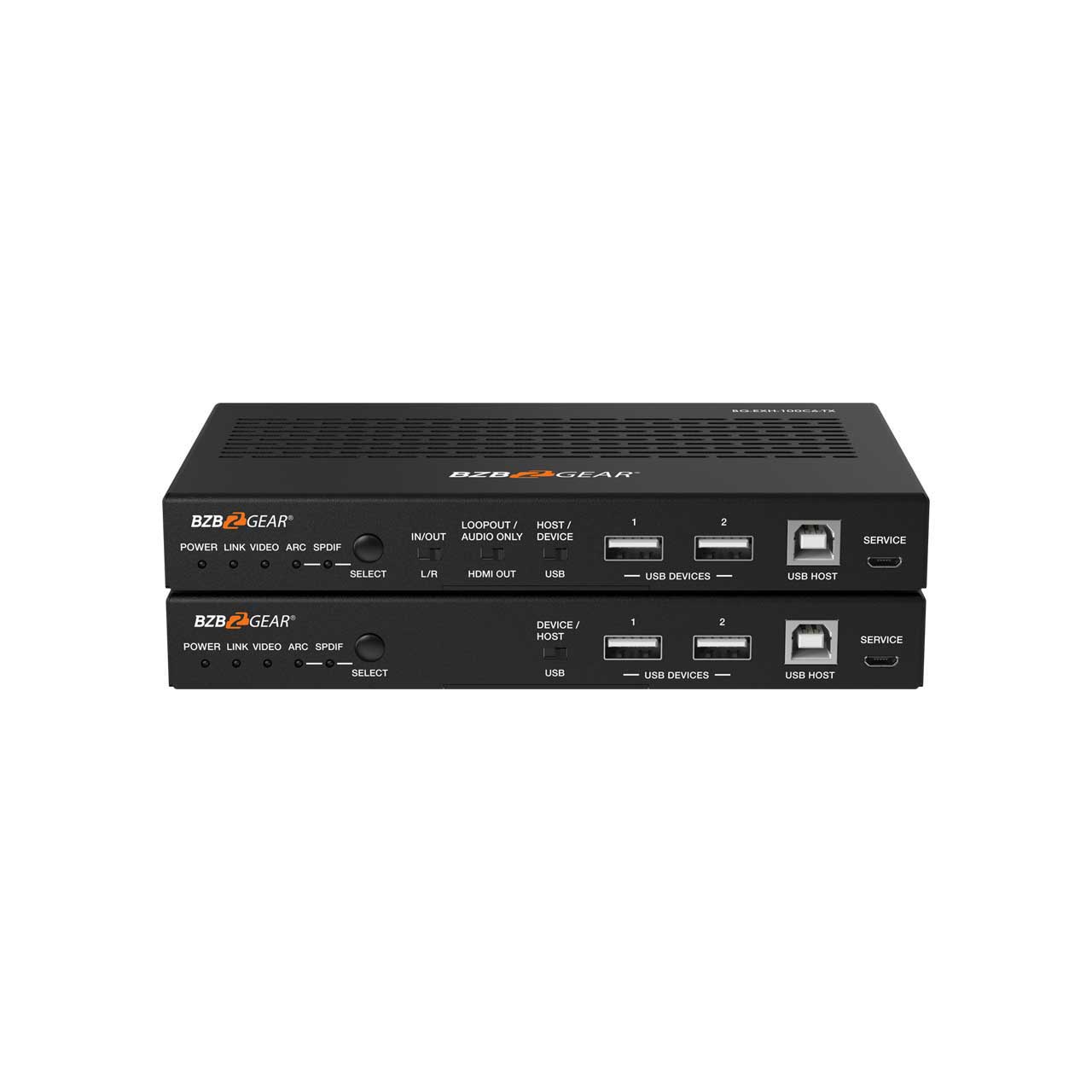

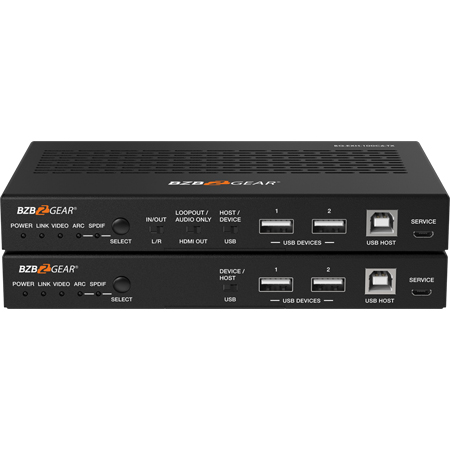

BZBGEAR BG-ExH-100C6 4K 18Gbps HDMI/HDBaseT 3.0 Extender IR/eARC/ARC/PoC/RS232/Ethernet/USB & Audio De-/Embedding 330-Ft

BG-EXH-100C6 - Overview

• Features:

  • Transmit signals up to 328ft (100m)
  • Utilize two USB 2.0 ports on both transmitter and receiver
  • Audio Embedding and de-embedding through S/PDIF optical port and 3.5mm stereo mini on transmitter
  • HDMI ARC from receiver to transmitter
  • LED lights on transmitter and receiver to verify connection status at a glance
  • 1Gbps LAN ports on receiver and transmitter to connect extra devices to a network


• Specifications:

  • Technical
  • HDCP Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K@60Hz 4:4:4
  • HDBaseT Bandwidth: 16Gbps on main and 2Gbps on return link
  • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Color Depth: 8/10/12-bit
  • Audio Formats: LPCM, Dolby Digital/Plus/Ex, Dolby True HD, DTS, DTS-Ex, DTS-96/24, DTS High Res, DTS-HD, Master Audio, DSD
  • L/R Audio Formats: PCM 2.0
  • SPDIF Audio Formats: LPCM2.0, AC3 5.1, DTS 5.1
  • IR Level: 12Vp-p
  • IR Bandwidth: 20K - 60KHz
  • USB Bandwidth: Up to 350Mbps
  • Ethernet: 1000Mbps
  • RS-232: Up to 921600bps
  • Transmission Distance: 100m (via a single CAT 6A/7 cable)
  • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

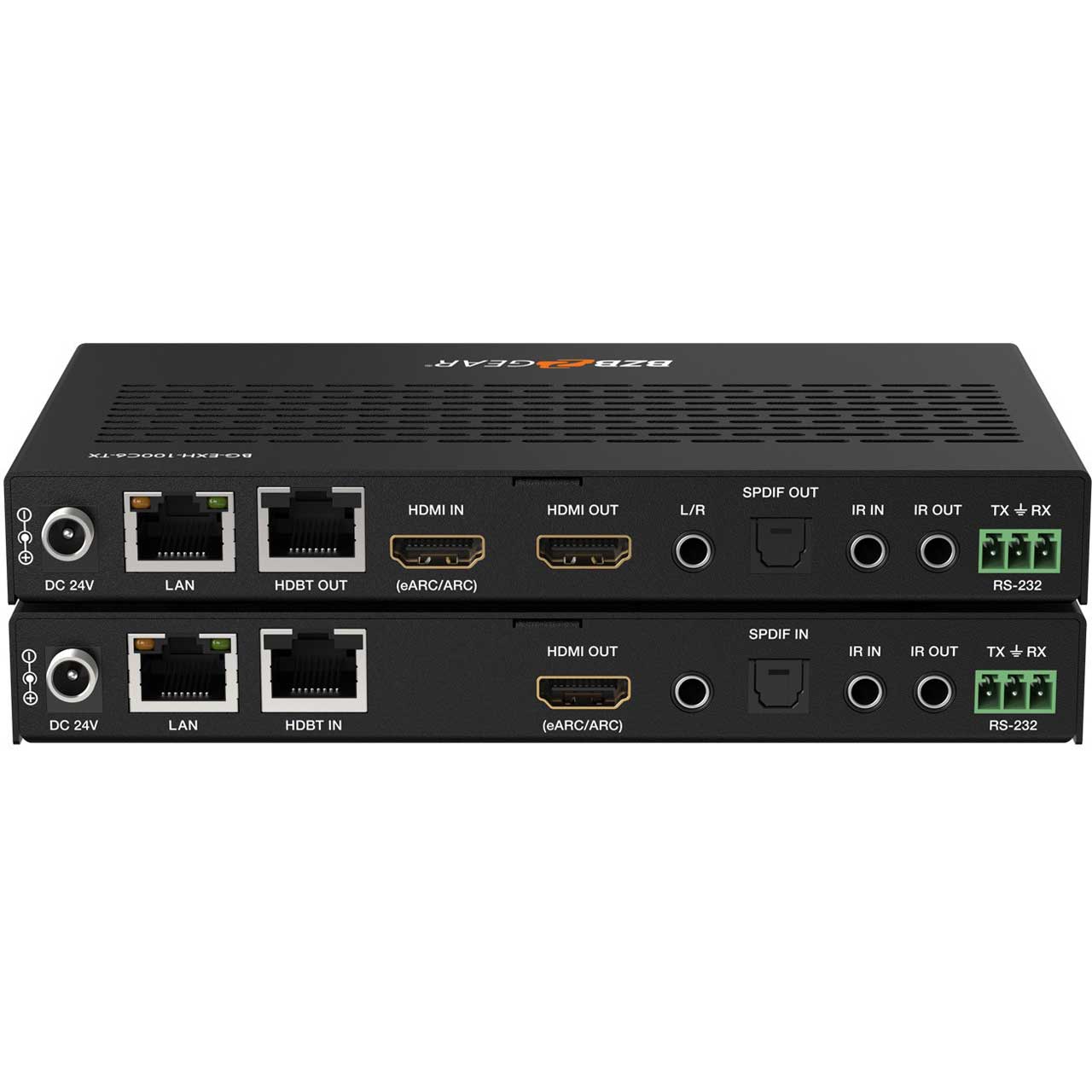

    Connection
  • Transmitter:
    Input: 1 x HDMI IN (Type A, 19-pin female)
  • Output:
    1 x HDMI OUT (Type A, 19-pin female)
    1 x HDBT OUT (RJ45, 8-pin female)
    1 x SPDIF OUT (S/PDIF)
    1 x L/R OUT (3.5mm Stereo Mini-jack)
  • Control:
    1 x IR IN (3.5mm Stereo Mini-jack)
    1 x IR OUT (3.5mm Stereo Mini-jack)
    1 x RS-232 (3pin-3.81mm Phoenix jack)
    1 x SERVICE (Mini-USB, Update port)
    1 x USB HOST (USB Type B)
    2 x USB DEVICES (USB Type A)
    1 x LAN (RJ45)
  • Receiver:
    Input: 1 x HDBT IN (RJ45, 8-pin female) / 1 x SPDIF IN (S/PDIF)
  • Output:
    1 x HDMI OUT (Type A, 19-pin female)
    1 x L/R OUT (3.5mm Stereo Mini-jack)
  • Control:
    1 x IR IN (3.5mm Stereo Mini-jack)
    1 x IR OUT (3.5mm Stereo Mini-jack)
    1 x RS-232 (3pin-3.81mm Phoenix jack)
    1 x SERVICE (Mini-USB, Update port)
    1 x USB HOST (USB Type B)
    2 x USB DEVICES (USB Type A)
    1 x LAN (RJ45)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions TX/RX (WxDxH): 6.69 x 4.01 x 0.86" (170 x 102 x 22mm)
  • Weight: Transmitter: 0.93Lbs (425g) Receiver: 0.96Lbs (437g)
  • Power Supply: Input: AC 100 - 240V 50/60Hz
  • Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
  • Power Consumption: 15.36W (P0C)
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Relative Humidity: 20 - 90% RH (no condensation)
  • Resolution/Cable Length: 4K60 - Feet / Meters: 4K30 - Feet / Meters: 1080P60 - Feet / Meters
  • HDMI IN / OUT: 16ft / 5M: 32ft / 10M: 50ft / 15M
  • Note: The use of "Premium High-Speed HDMI" cable is highly recommended.


• Item Includes:

  • 1x HDBaseT 3.0 Extender (Transmitter)
  • 1x HDBaseT 3.0 Extender (Receiver)
  • 1x IR Blaster Cable (1.5 meters)
  • 1x IR Receiver Cable (1.5 meters)
  • 2x 3pin-3.81mm Phoenix Connectors
  • 4x Mounting Ears
  • 8x Machine Screws (KM3*4)
  • 1x 24V/1A Locking Power Supply
  • 1x User Manual


• GTIN:

  0850033687392
