BZBGEAR BG-EXH-50C 4K 18Gps HDMI Extender with Bi-directional IR over a Single Cat5e/6/7 up to 165ft

BG-EXH-50C - Overview

• Features:

  • HDMI 2.0 and HDCP 2.2 compliant to ensure copyright protections.
  • PoC: Only one of the units, TX or RX, needs to be plugged into AC power.
  • HDR Support: HDR, HDR10+, Dolby Vision, and HLG.
  • Loop-out: Connect a local display to view content on the transmitter side.
  • Stunning Image Quality. View crystal clear 4K@60Hz 4:4:4 images up to 164ft.
  • Durable metal structure built to withstand years of operation.
  • Supports 18Gbps bandwidth.
  • Supports one-way IR pass-through.
  • Compact design for easy and flexible installation.


• Specifications:

  • Technical
  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2 / HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K@60Hz 4:4:4
  • Color Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
  • Color Depth: 8/10/12-bit (1080P@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K@60Hz 4:4:4 )
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • ESD Protection: Human body model - ±8kV (Air-gap discharge) &±4kV (Contact discharge)

    Connections

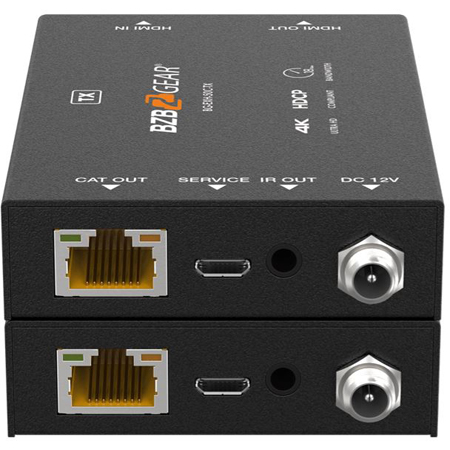

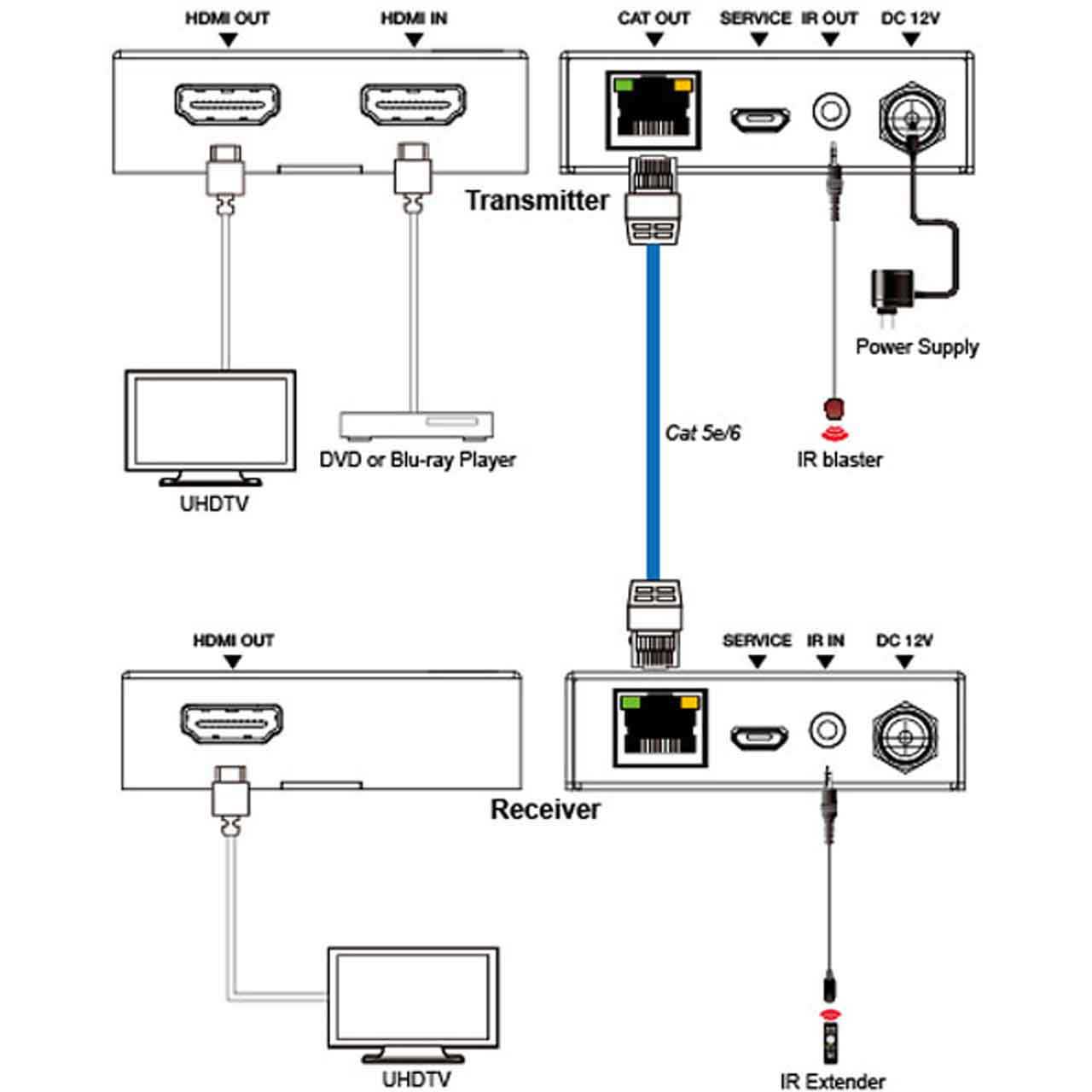

  • Transmitter: Inputs: 1x HDMI Type A [19-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female]
  • Receiver: Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: Transmitter / Receiver: 2.4" (W) x 3.5" (D) x 0.7" (H)
  • Weight: Transmitter: 0.35lbs [160g], Receiver: 0.34lbs
  • Power Supply: Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A
  • Power Consumption: 3.84 W
  • Operating Temperature: 32 - 104°F
  • Storage Temperature: -4 - 140°F
  • Relative Humidity: 20 - 90% RH (no condensation)
  • Resolution / Distance: 4K@60 - Feet / Meters: 4K@30 / 1080P - Feet / Meters, CAT5e: 164ft / 50M: 164ft / 50M, CAT6/6a/7: 197ft / 60M: 230ft / 70M, HDMI IN/OUT: 10ft / 3M: 30ft / 10M
    The use of "Premium High Speed HDMI" cable is highly recommended.


• Item Includes:

  • 1x HDMI 18Gbps Extender (Transmitter)
  • 1x HDMI 18Gbps Extender (Receiver)
  • 1x IR Blaster cable (1.5 meters)
  • 1x 20~60KHz IR Receiver cable (1.5 meters)
  • 1x 12V/1A Locking Power adapter


• GTIN:

  0850009357922
