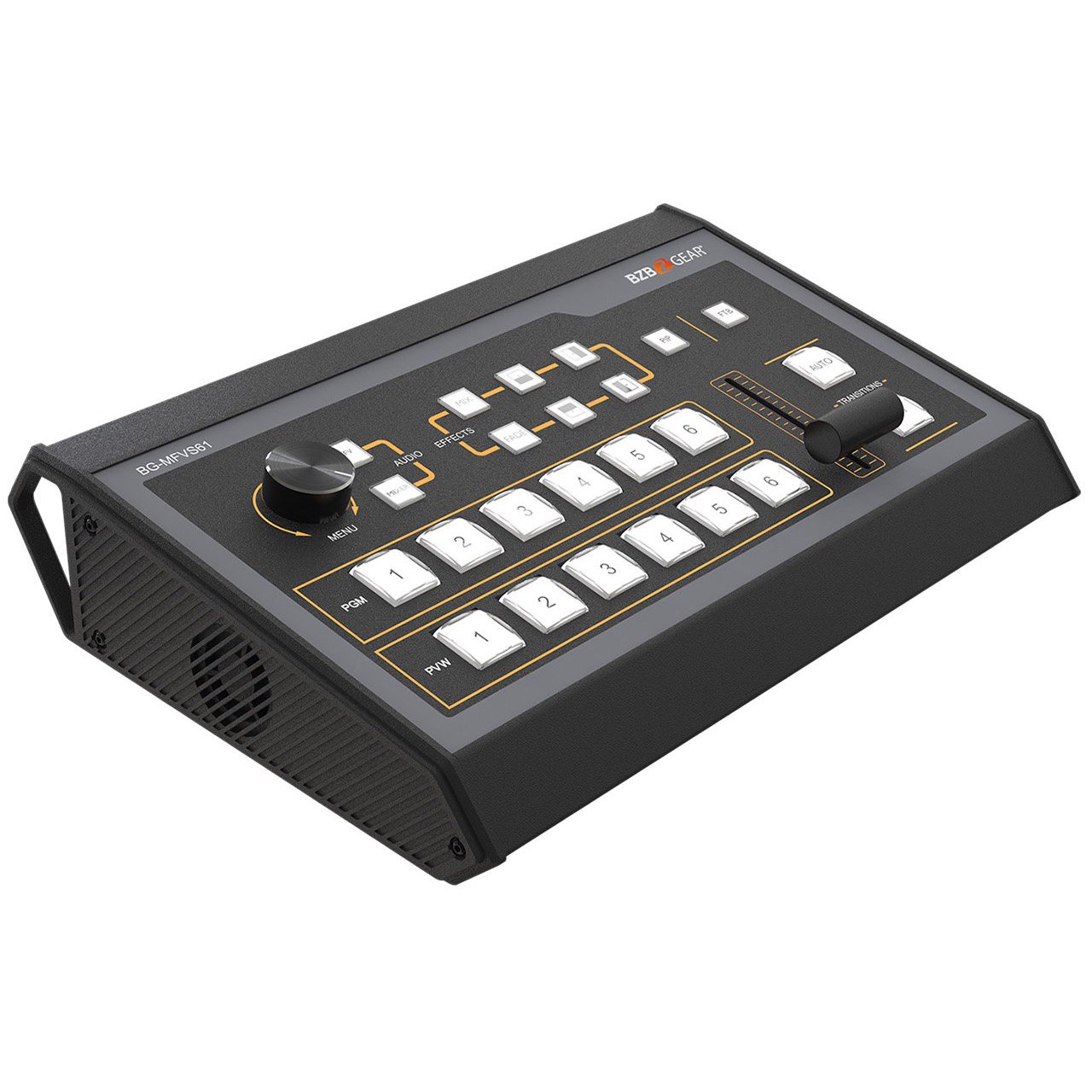

The BZBGEAR BG-MFVS61-G2 is a 3G-SDI/HDMI video switcher with four 3G-SDI inputs, two HDMI inputs, four 3G-SDI outputs, two HDMI outputs, and one USB-C output. Durable and easy to use, this switcher is ideally suited for both mobile and fixed production environments.
Connectivity

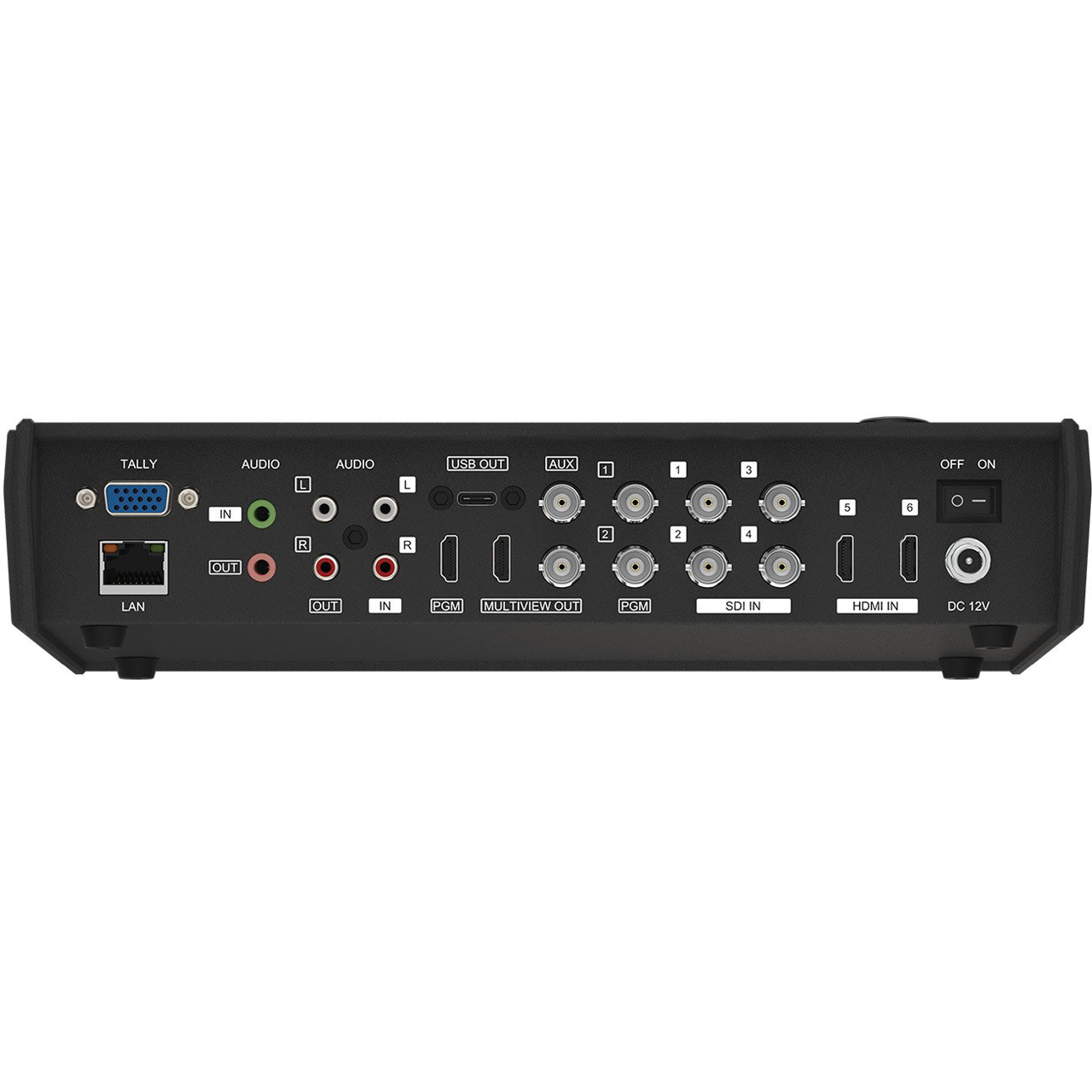

The BG-MFVS61-G2 supports resolutions up to 1080p@60Hz. The integrated scaler provides compatibility with a large number of display resolutions. Featuring two multiview outputs (3G-SDI & HDMI) three program outputs (2 x 3G-SDI, HDMI), and one assignable 3G-SDI output this unit fits seamlessly in almost any production environment. The USB-C output allows a connected PC to be used to record or livestream the program output. The tally port (DB-15) provides support for compatible systems. Audio can be de-embedded from all inputs and mixed with the 3.5mm and RCA analog inputs. Mixed audio can be output from the 3.5mm and RCA analog outputs, or embedded to the program output.
Control

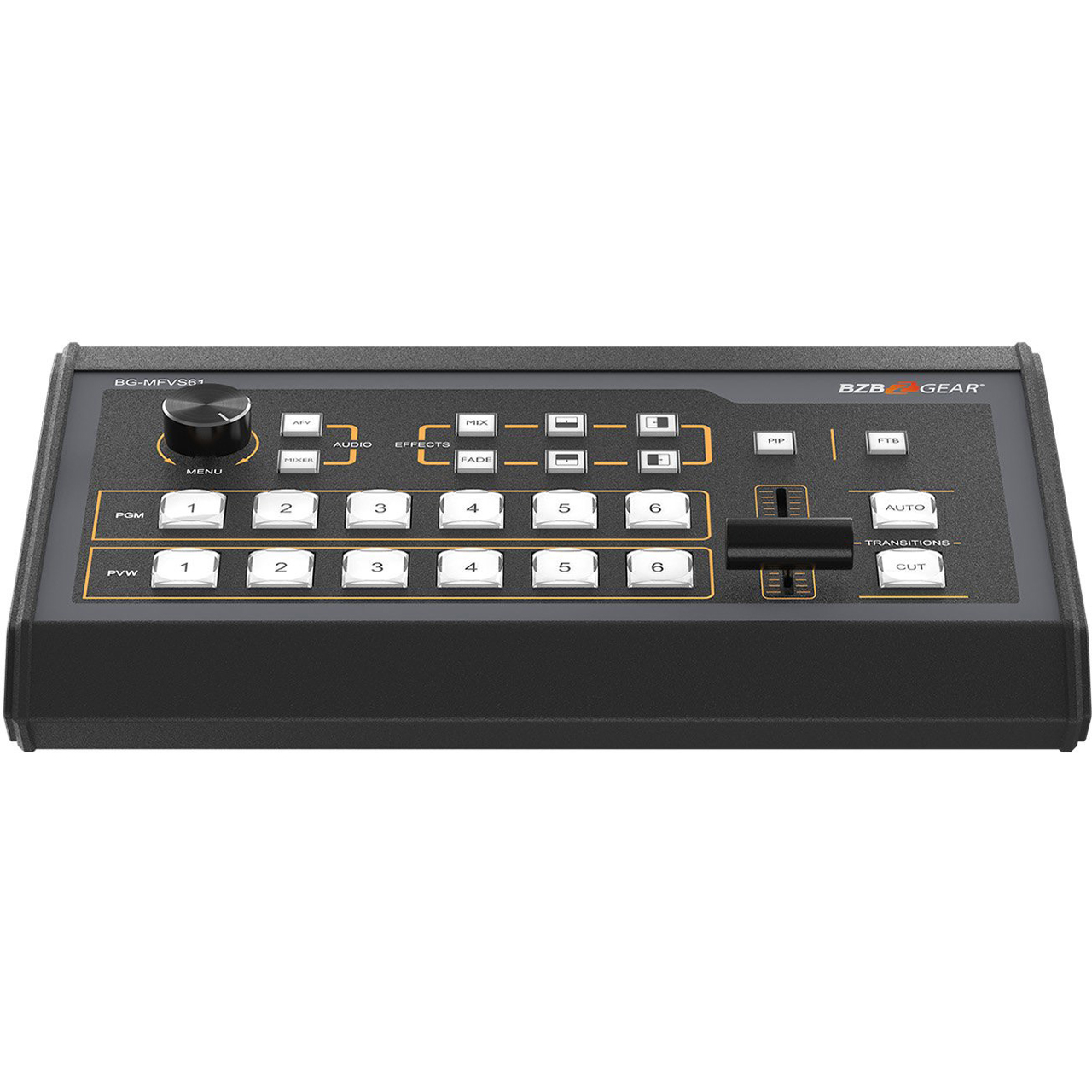

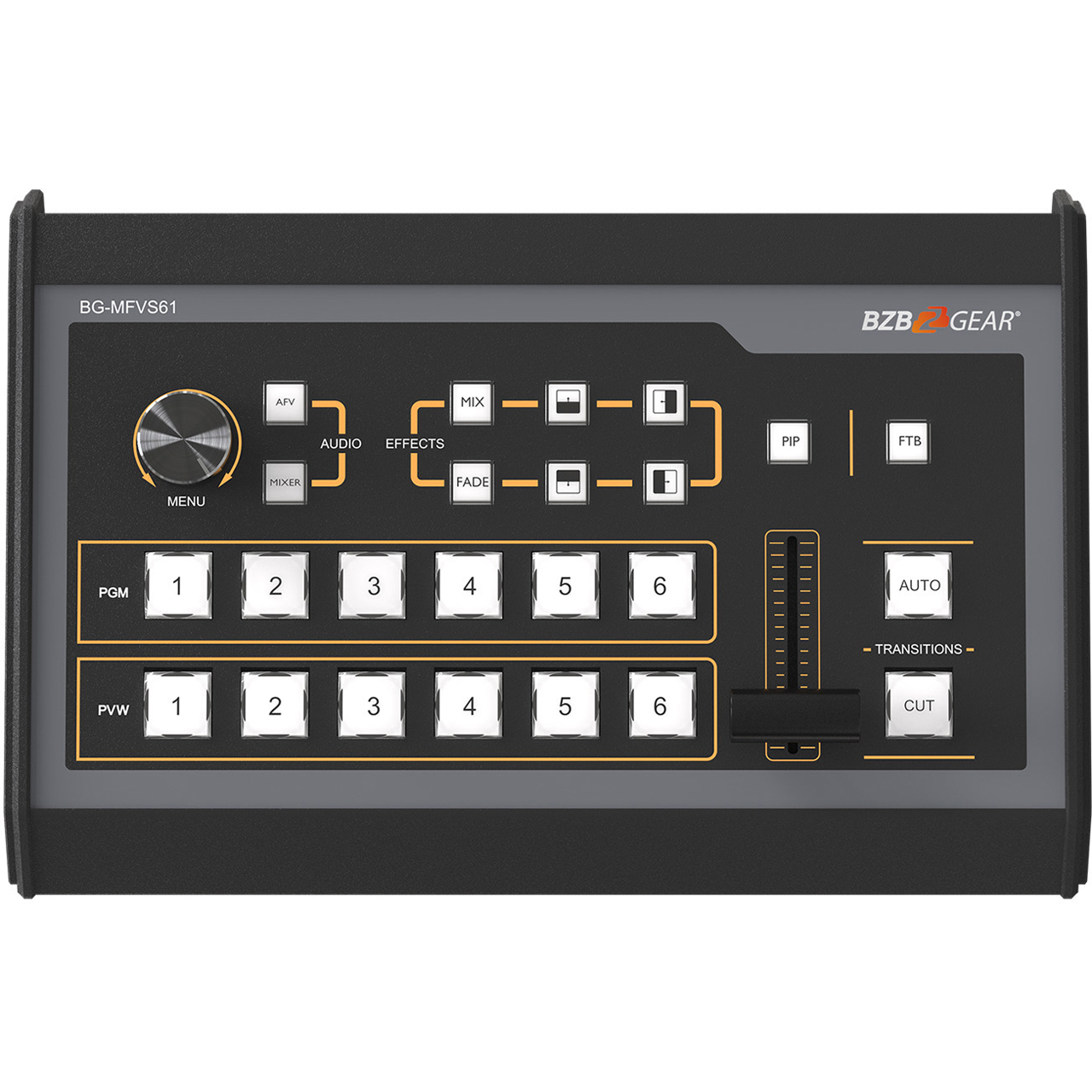

The T-bar slider, auto, and cut buttons provide control for transitions using the BG-MFVS61-G2’s various wipe, mix, and fade effects. Picture in Picture (PIP) mode allows userse to easily resize and reposition the PIP window. The easy to use control layout allows even novice users to acheive professional quality results.
