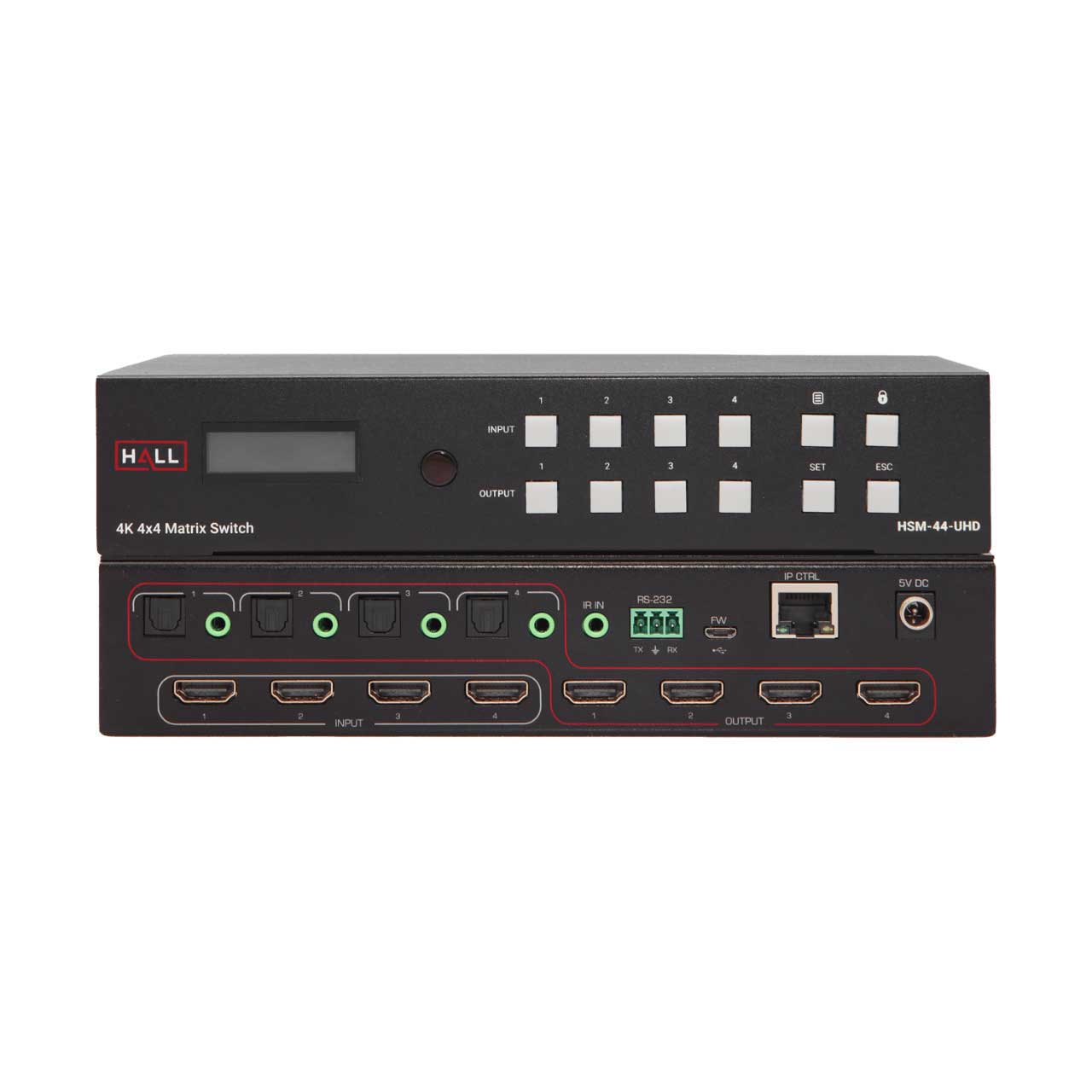

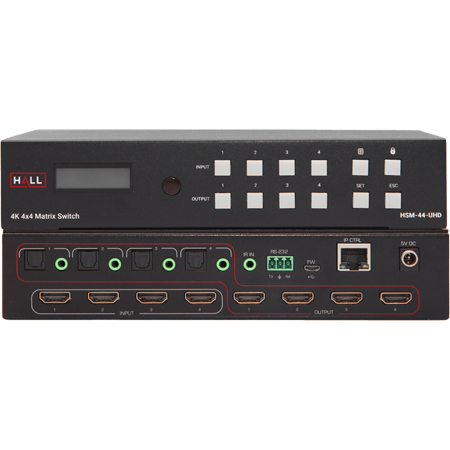

Hall Technologies HSM-44-UHD 4x4 HDMI 2.0 Matrix Video Switcher - up to 18Gbps - HDCP2.2 & HDCP1.4

ITEM #: HRT-HSM-44-UHD MFG #: HSM-44-UHD

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$1,099.99

Our Price:

$1,044.99

Availability: In Stock
iAvailability Description Popup


    HSM-44-UHD - Overview

    As a member of the Genesis Digital Matrix series the Hall Technologies HSM-44-UHD video matrix switch provides exceptional quality, intuitive operation and powerful control methods that are hallmarks of Hall Technologies video matrix switchers.

    The 4K matrix is a 4x4 cross-point switch in a compact 1-RU enclosure. The HSM-44-UHD supports HDMI resolutions up to 4K @ 60Hz4:4:4. It also supports HDCP 2.2 and 1.4, 3D, deep-color and PCM, Dolby, DTS, and HD audio standards. The matrix intelligently calculates EDID for each input based on the EDID of the connected sinks. Users can save and recall multiple matrix routing configuration PRESETs. HDMI outputs can also be blanked.

    The matrix includes a two-line character LCD on its front panel to display the current video routing and to facilitate creating or recalling presets.

    The HSM-44-UHD matrix is ideal for conference rooms, multimedia presentations, digital signage, houses of worship, and many other settings.

    • Features:

      • HDMI 2.0 version (Support [email protected] YUV4:4:4)
      • Bandwidth up to 18Gbps
      • HDCP2.2 input ,HDCP2.2 output
      • HDCP1.4 input, HDCP1.4 output
      • Support HDR10
      • 4xHDMI Input, 4xHDMI output
      • Analog and Digital Audio extraction
      • Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
      • Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
      • Support Dolby True HD and DTS-HD master audio, Dolby Atmos under copy EDID mode
      • Support firmware updating through USB port

    • Specifications:

      • Video Input Ports: (4) HDMI 2.0
      • Video Output Ports: (4) HDMI 2.0
      • HDCP: HDCP 2.2 and HDCP 1.4
      • HDMI Bandwidth: 18 Gbps
      • HD Resolutions: Up to 4K60 (4:4:4)
      • PC Resolutions: VGA through WQXGA
      • Audio Output Ports: (4) TOSLINK (S/PDIF digital supports all formats listed below)
      • Control: Front Panel / Telnet / RS-232/ IR / WebGUI
      • Baud Rate: 115200 bps
      • Power Consumption: Max 12.5 W / Min 4 W
      • Power Supply: External 5V 4A
      • Housing: Metal Enclosure
      • Color: Black
      • ESD Protection: Human body model - ±12 kV [air-gap discharge] & ±8 kV
      • Operating Temperature: 32 to 122 °F, 10%~90%, non-condensing
      • Storage Temperature: -40 to +158 °F
      • Dimensions: Device (including protrusions): 8.50" W x 5.00" D x 1.75" H, Shipping: 11.1" W x 9.25" D x 3.23" H
      • Weight: Device: 2.05 lbs.
      • Shipping: 4.25 lbs.
      • EMI/EMC: CE, FCC Class B
      • MTBF: 90,000 hours

    • Item Includes:

      • 1x Model HSM-44-UHD
      • 1x External Universal Power Supply
      • 1x IR Remote
      • 2x Rack mounting brackets with (6) screws
      • 1x IR Detector (for use with IR Remote)
      • 1x 3 Pin screw-terminal (for use with RS-232 connector)
      • 1x User's Manual Card

    • Warranty:

      • 3-years

    • GTIN:

      0608415712268
