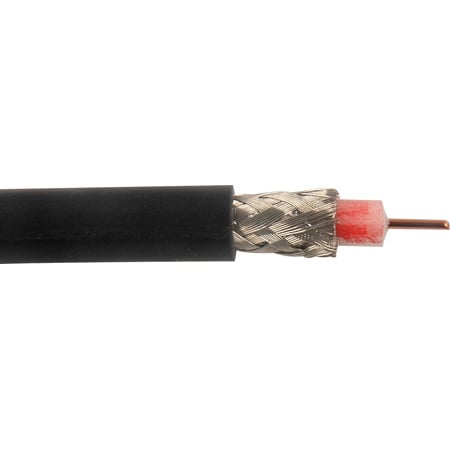

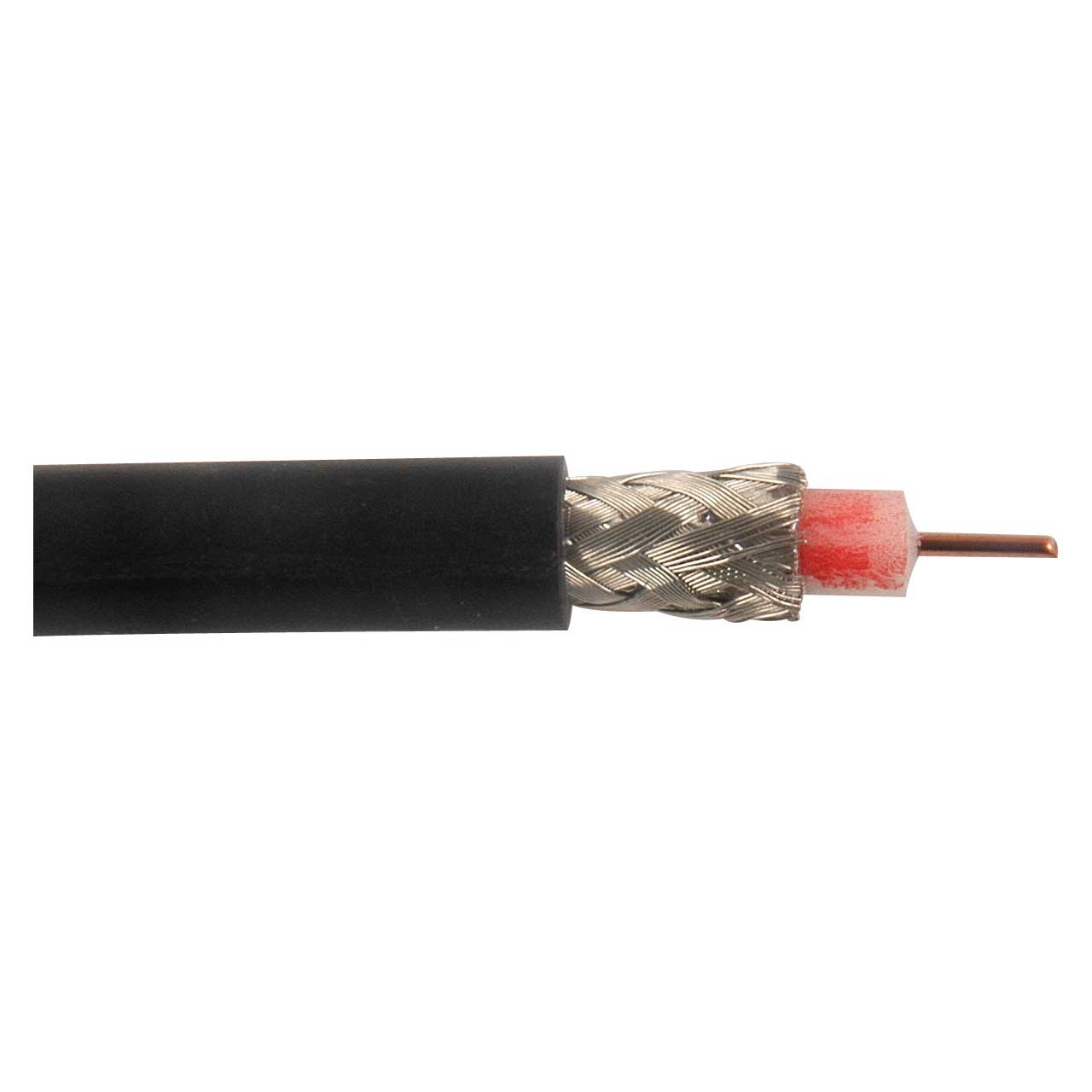

Belden 1505A CMR Rated 6G-SDI RG59 75 Ohm Digital Coaxial Video Cable 20AWG - Black - 500 Foot

1505A 010500 - Overview

1505A 010500 - Overview

• Features:

  • Convenient Installation: Only one cable can be installed to send 10 Bit 4:2:2 4K at 30p or 24p & support 6 Gb/s of bandwidth for 6G-SDI
  • Durable Materials: The flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
  • High Quality Signal Transmission: Professional quality 4K, 75 ohm BNC connectors for proper 6G performance

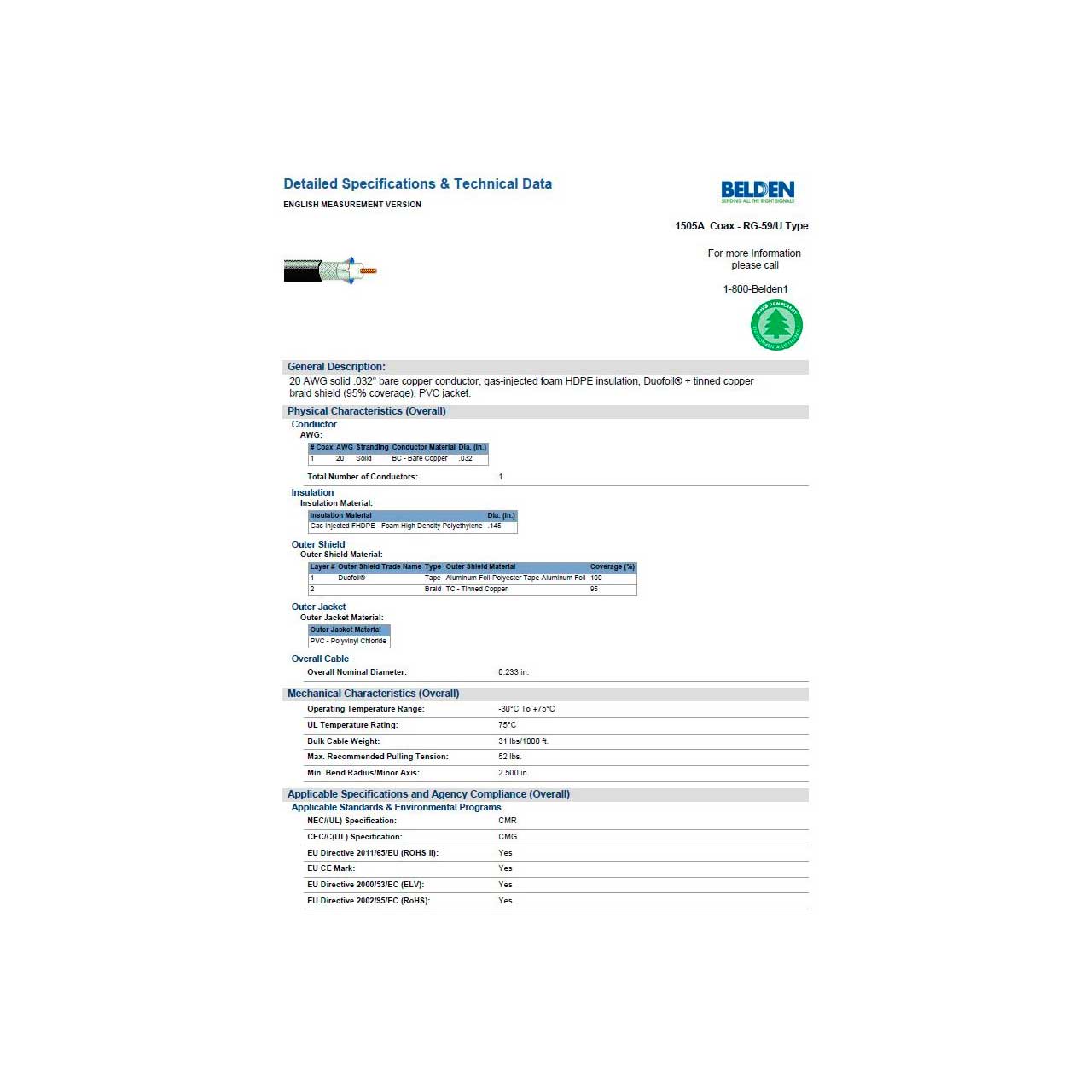

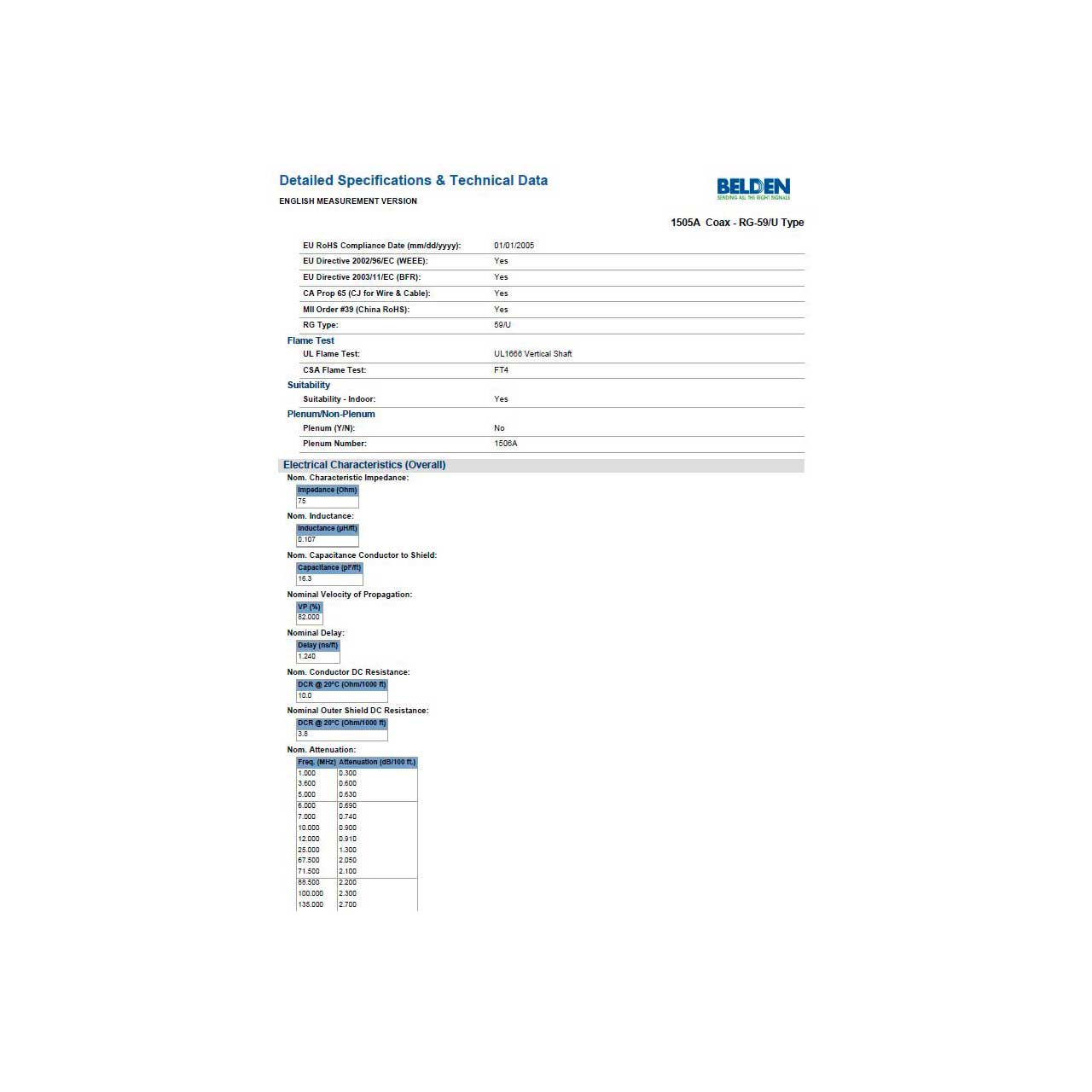

• Specifications:

  • Number of Coax: 1
  • RG Type: 59/U
  • Overall Cable Diameter (Nominal): 0.233 in (5.92 mm)Conductor Size AWG: 20
  • Conductor Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Outer Shield Material Trade Name: Duofoil
  • Outer Shield Material: Dual Shield - Bonded Duofoil/TC - Tinned Copper
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Plenum (Y/N): N
  • Plenum Number: BL-1506A
  • Nom. Characteristic Impedance: 75 +/- 1.5O
  • Nom. Conductor DCR: 10 Ohm/1000ft
  • Nom. Outer Shield DCR: 3.8 Ohm/1000ft
  • Nom. Capacitance Cond-to-Shield: 16.3 pF/ft
  • Nom. Impedence: 75 Ohm
  • UL Voltage Rating: 300 V (CMR, CMG)
  • UL Rating Temp: 60°C
  • Operating Temp: -20°C to +75°C
  • Bulk Cable Weight: 31 lbs/1000ft
  • Max. Pull Tension: 52 lbs
  • Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance
  • Sustainability: CA Prop 65
  • Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4


• Item Includes:

  • 1505A Digital Coaxial Video Cable 20AWG - Black - 500 Foot Reel


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825358732
