Belden 19364 3 Conductor 14 AWG Portable Cordage- UL/CSA Types: SJO SJT - 250 Foot

ITEM #: BL-19364-250 MFG #: 19364 010250

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

List Price:

$2,073.88

Our Price:

$1,760.47

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

19364 010250 - Overview

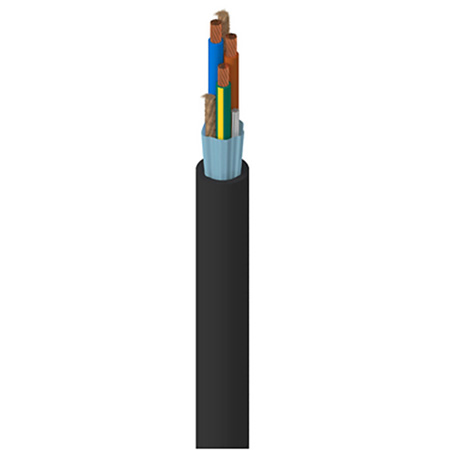

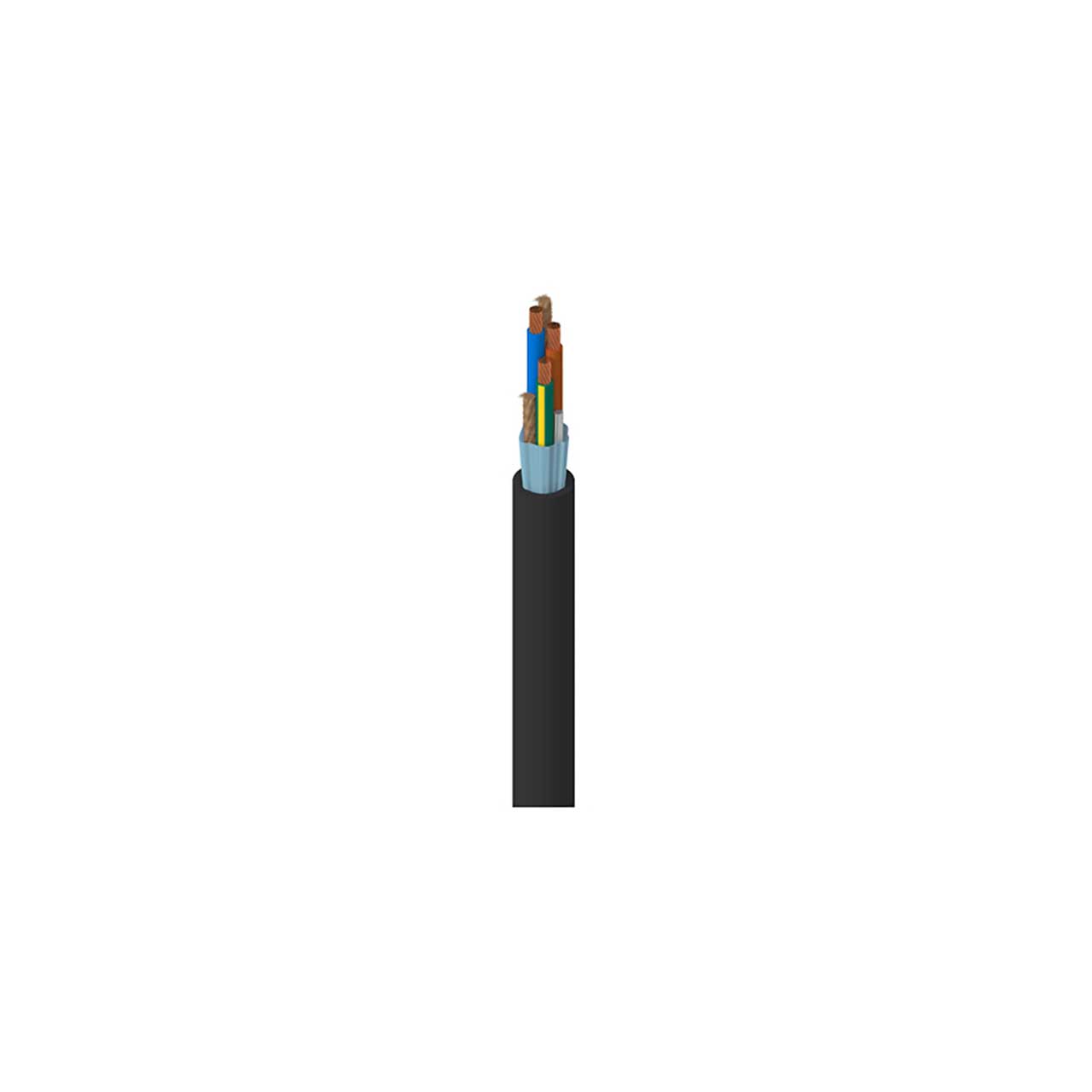

Belden 19364 Portable Cordage, 3 Conductor 14AWG (41x30) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJT. Suitable for Portable cordage for supplying power to appliances and tools applications.

  • Specifications:

    • Number of Conductors: 3
    • Total Number of Conductors: 3
    • AWG: 14
    • Stranding: 41x30
    • Conductor Material: BC - Bare Copper
    • Type of Cordage: SJT
    • Insulation Material: PVC - Polyvinyl Chloride
    • Nom. Insulation Wall Thickness: .033 in.
    • Outer Shield Trade Name: Beldfoil
    • Outer Shield Material: Aluminum Foil-Polyester Tape
    • Outer Shield %Coverage: 100%
    • Outer Shield Drain Wire AWG: 20
    • Outer Shield Drain Wire Stranding: 7x28
    • Outer Shield Drain Wire Conductor Material: TC - Tinned Copper
    • Overall Nominal Diameter: .402 in.


  • GTIN:

    0612825127017
