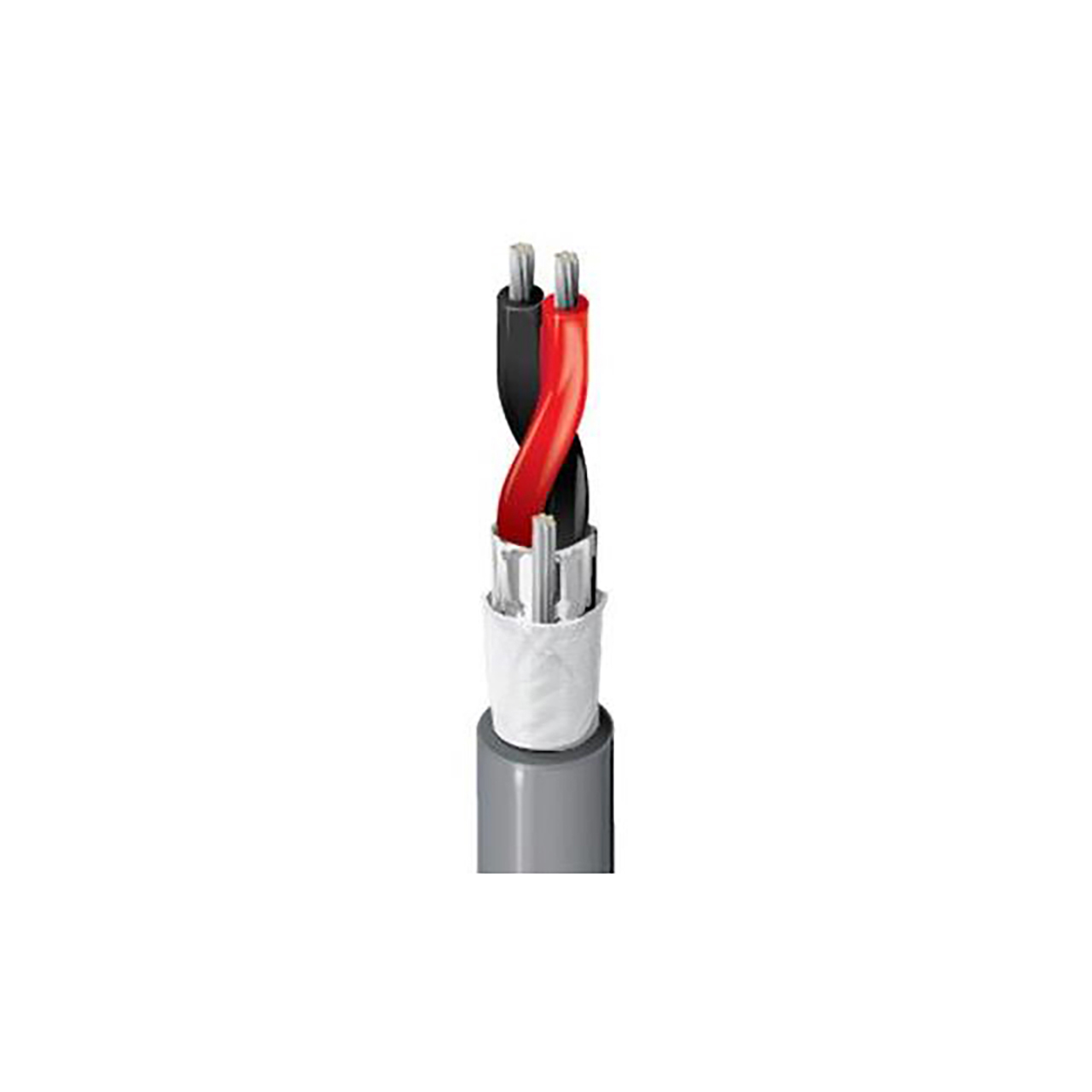

Belden 2451RW 1-Pair 22 AWG Stranded TC Indoor/Outdoor Stadium Line Level Audio Cable - Black - 1000 Foot

2451RW 0101000 - Overview

• Specifications:

  • Cable Type: Multi-Conductor
  • Number of Conductors: 2 (1 Pair)
  • Wire Gauge: 22 AWG
  • Conductor Strand: 7/30
  • Conductor Material: Copper, Tinned
  • Jacket (Insulation) Material: Chlorinated Polyethylene (CPE)
  • Jacket (Insulation) Diameter: 0.158" (4.01mm)
  • Shield Type: Foil
  • Length: 1000.0' (304.8m)
  • Jacket Color: Black
  • Ratings: UL Style CMR
  • Features: Drain Wire
  • Voltage: 300V
  • Operating Temperature: -4°F - 167°F (-20°C - 75°C)
  • Usage: Audio
  • Jacket (Insulation) Thickness: 0.0230" (0.584mm)
  • Conductor Insulation: Polypropylene (PP)
  • Shield Material: Aluminum, Polyester
  • Shield Coverage: 100%


• GTIN:

  0612825384847
