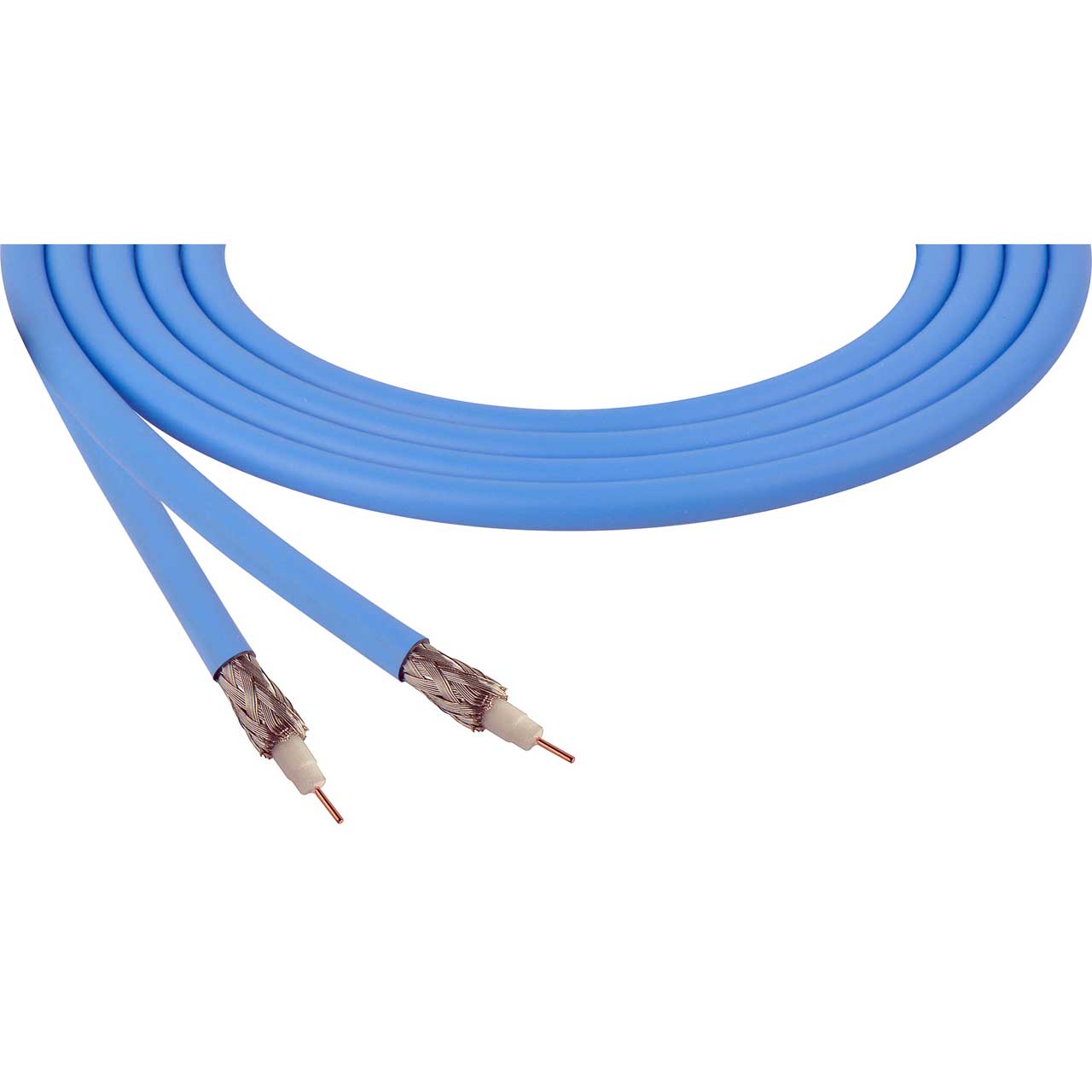

Belden 4855R is a 12 GHz, 4K UHD Precision Mini RG-59, 75 Ohm Video Cable. It's 23 AWG and features a solid 0.023 silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, with Duofoil® bonded to the core plus a tinned copper braid shield (95% coverage) in a PVC Jacket.
Belden 4K UHD Coax Cables for 12G-SDI maximize 4K signal transmission distance over a single coax, minimizing weight and space utilization compared to multi-link solutions. This solution provides significant headroom and guarantees -15 dB return loss from 4.5 to 12 GHz.
Ultra-High Definition Digital Video
4K Single-link 12 Gb/s UHDTV
8K Quad-link UHDTV
