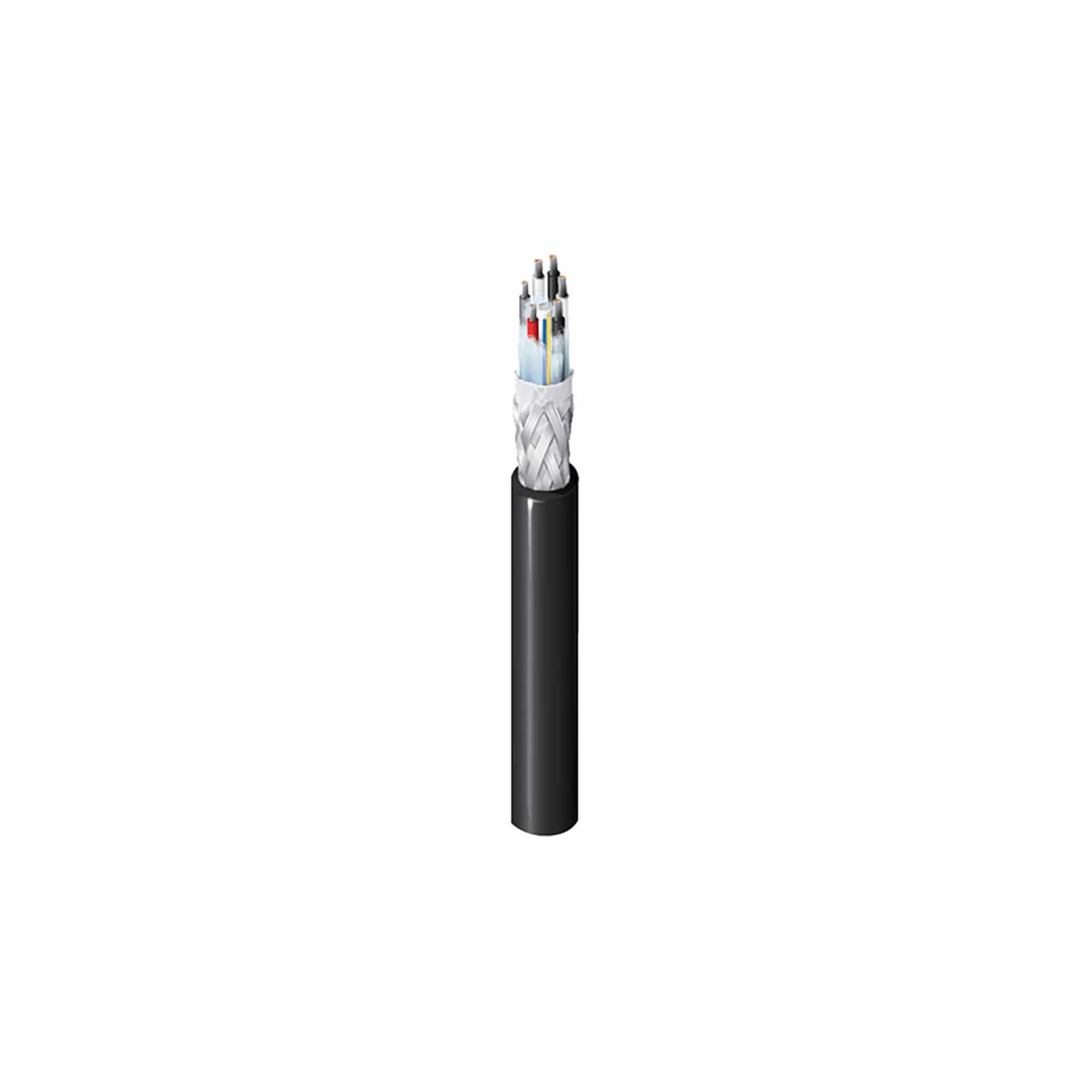

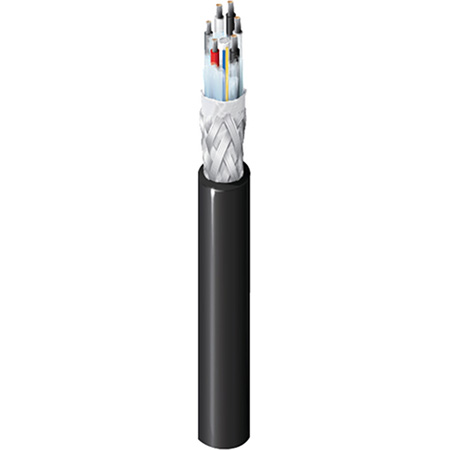

Belden 7804WB SMPTE 311M Waterblocked Outdoor Camera Cable - 2 SM Fiber / 2 cond 24AWG / 4 cond 20AWG - 2500 Ft - Black

7804WB 0102500 - Overview

• Specifications:

  • Mode Field Diameter: 9.2 µm
  • Wavelength@Optical SM1: 1310 nm, 1550 nm
  • Max Attenuation at 1310 nm: 0.5 dB/km
  • Max Attenuation at 1550 nm: 0.5 dB/km
  • Jacket: Polyolefin (PO, PE, PP)
  • Operating Temp Range: -40°C to 70°C
  • Installation Temp Range: -10°C to 70°C
  • Storage Temp Range: -40°C to 70°C
  • Max. Pull Tension: 1350 N
  • Bulk Cable Weight: 80 lbs/1000ft
  • Suitability - Outdoor: Yes
  • Fiber: Type OS2
  • Fiber Count: 2
  • Element: 24 AWG
  • No. of Conductors: 2
  • AWG: 24
  • Stranding: 7x32
  • Material: TC - Tinned Copper
  • Nominal Conductor: DCR 23.3 Ohm/1000ft
  • Insulation Material: PE - Polyethylene
  • Insulation Nominal Diameter: 0.043 in
  • Element: 20 AWG
  • No. of Conductors: 4
  • AWG: 20
  • Stranding: 19x32
  • Material: TC - Tinned Copper
  • Nominal Conductor: DCR 8.8 Ohm/1000ft
  • Insulation Material: PE - Polyethylene
  • Insulation Nominal Diameter: 0.057 in


• Item Includes:

  • 1x Belden 7804WB SMPTE 311M 2 Fiber Composite Cable - 2 Conductor - 24 AWG - PE Jacket - 2500 Feet


• Warranty:

  • 10 years


• GTIN:

  0612825418306
