Belden 8205 20 AWG High-Conductivity Copper Speaker Cable Twisted Jacketed Conductor - Chrome - 500 Foot/Unreeled

ITEM #: BL-8205-U500 MFG #: BL-8205-U500

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$609.30

Our Price:

$349.41

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

BL-8205-U500 - Overview

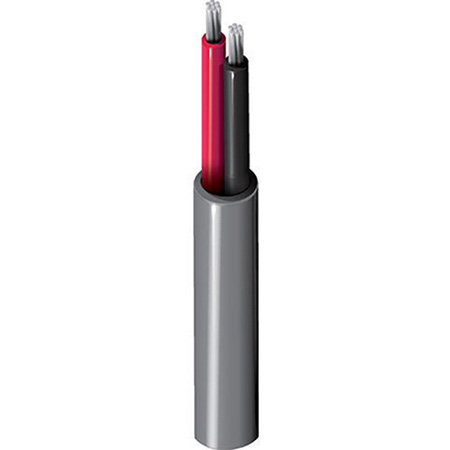

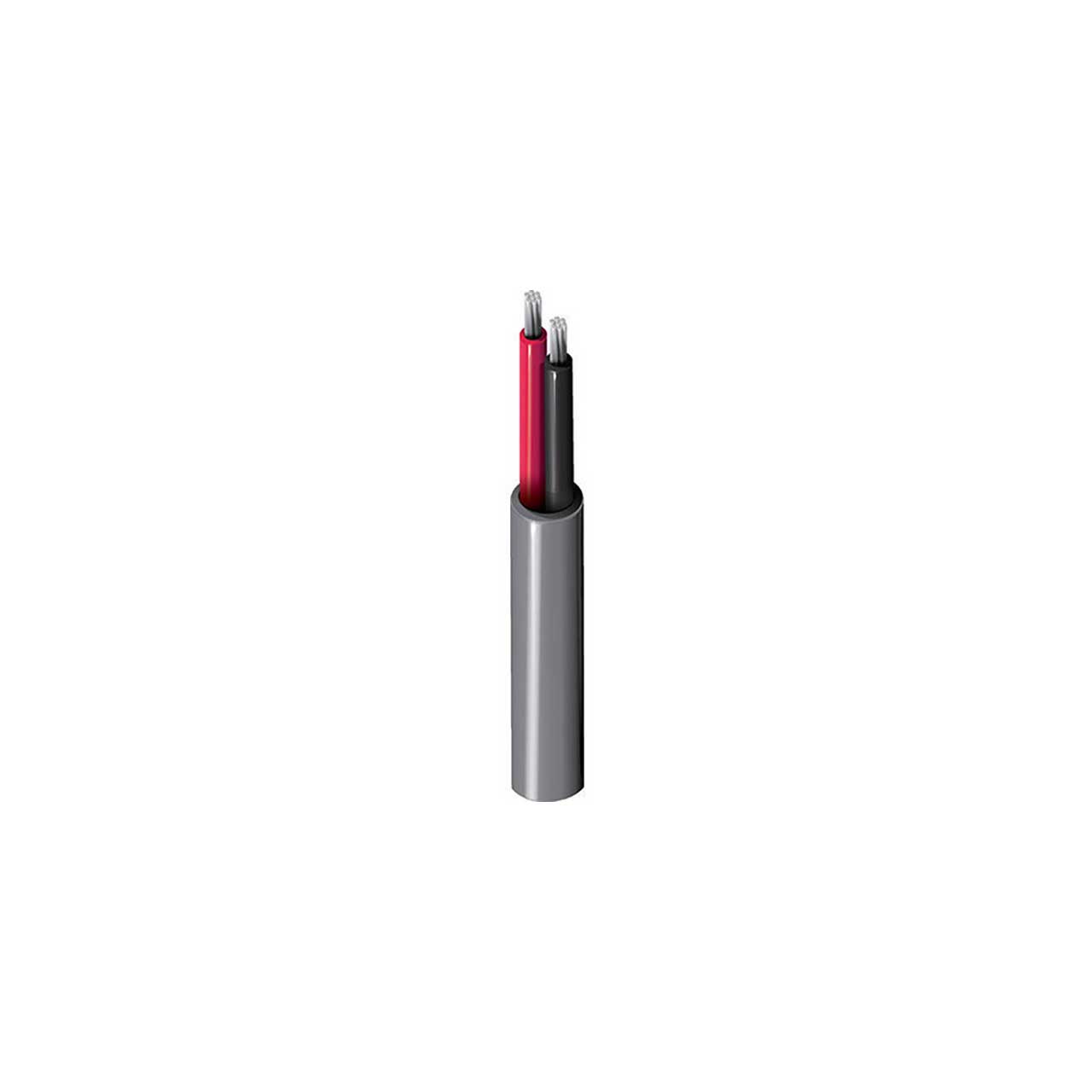

Belden's 8205 is a 500' cable that has 20 AWG stranded (7x28) tinned copper conductors, PVC insulation, twisted pairs, and a PVC jacket.

Please Note: The Belden 8205-060U500 is unreeled.

  • Specifications:

    • Conductor
    • AWG: 20
    • Stranding: 7x28
    • Material: TC - Tinned Copper
    • No. of Pairs: 1
    • Conductor Count: 2
    • Total Number of Pairs: 1

      Insulation
    • Material: PVC - Polyvinyl Chloride
    • Nominal Wall Thickness: 0.0145"
    • Color Chart: 1 - Black & Red
    • Outer Shield Material: Unshielded
    • Outer Jacket Material:
    • Material: PVC - Polyvinyl Chloride
    • Nominal Diameter: 0.18"
    • Nominal: 0.025"

      Electrical Characteristics
    • Nominal Conductor DCR: 10 Ohm/1000ft
    • Nom. Capacitance Conductor to Conductor: 24.5 pF/ft
    • Max. Recommended Current [A]: 3.7 Amps per conductor @ 20°C
    • UL Voltage Rating: 300 V RMS

      Temperature Range
    • Operating Temp Range: -4° to 140°F (-20° to 60°C)

      Mechanical Characteristics
    • Bulk Cable Weight: 16 lbs/1000ft
    • Max Recommended Pulling Tension: 28Lbs
    • Min Bend Radius/Minor Axis: 2"

      Standards
    • NEC Articles: 800
    • NEC/(UL) Specification: CMG
    • CEC/C(UL) Specification: CMG
    • CPR Euroclass: Eca
