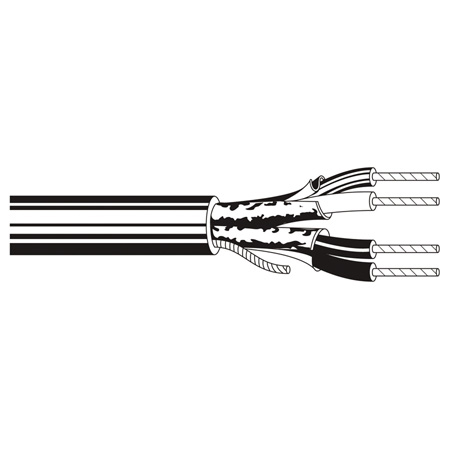

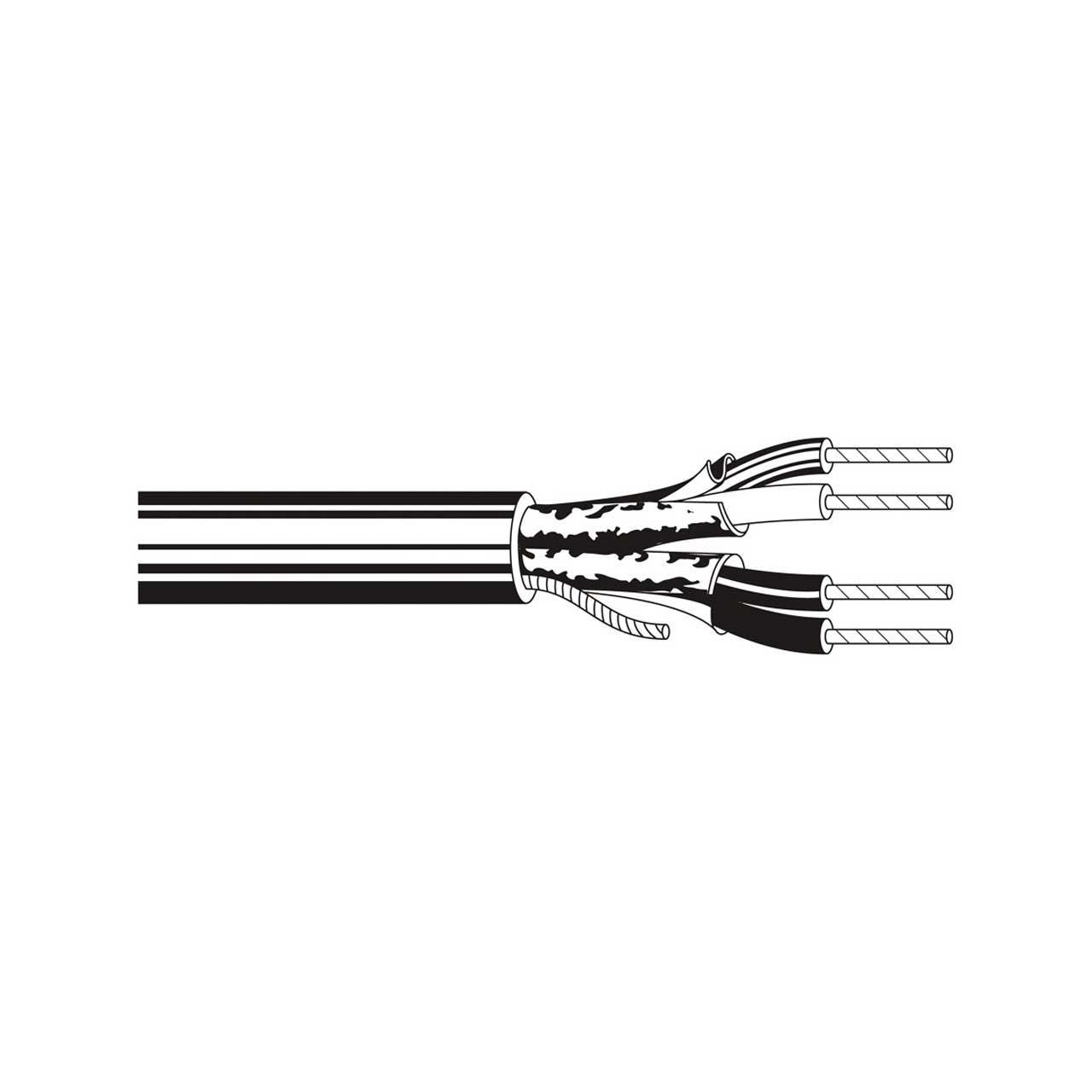

Belden 8723ZH 0601000 8723ZH Multi-Conductor - GreenChoice Multi Conductor - 1000 Foot Roll

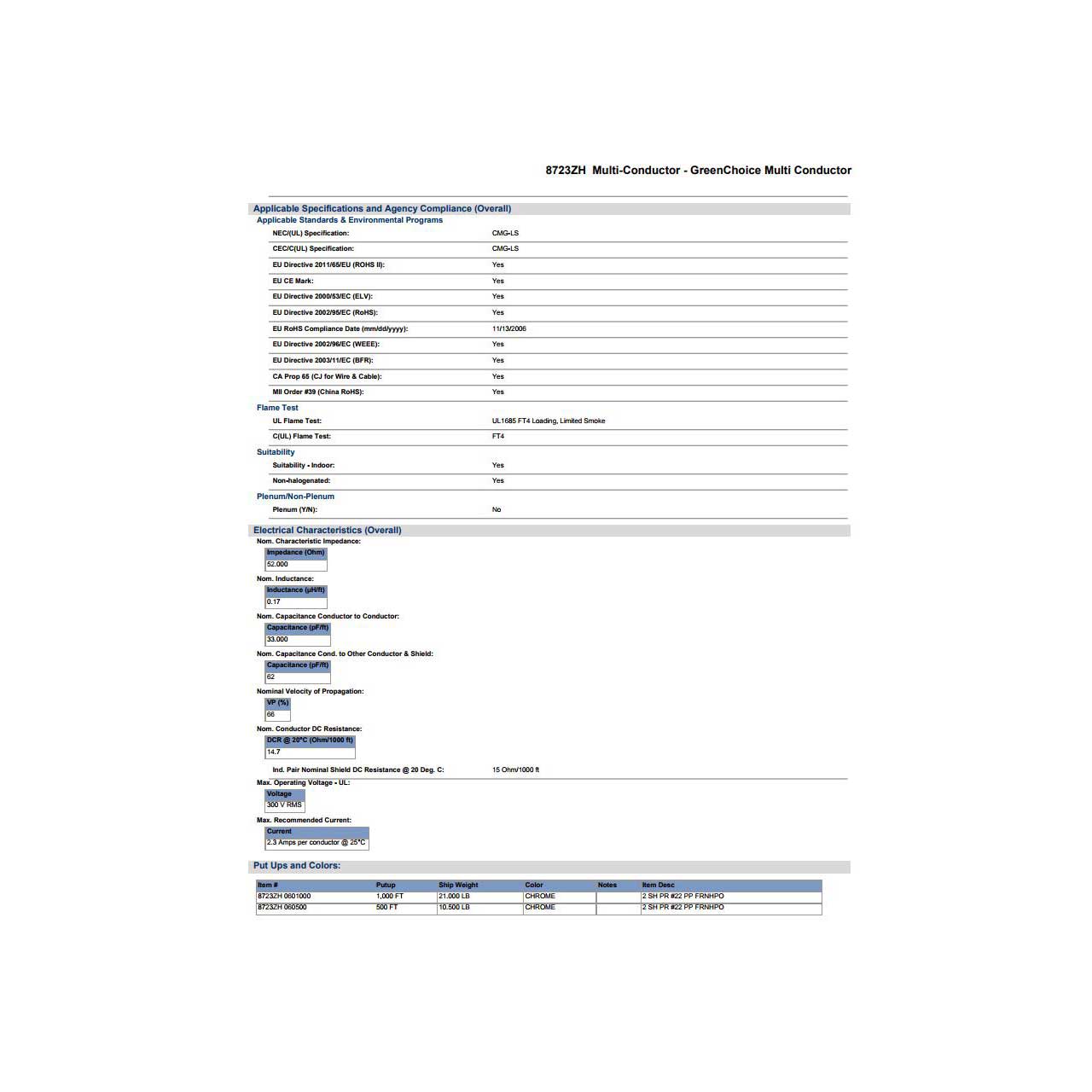

8723ZH 0601000 - Overview

• Specifications:

  • Conductor: 2 pair 22 AWG 7x30 stranding Tinned COpper
  • Insulation Material: 0.009" thick Polypropylene
  • Inner Shield Material Beldfoil (Z-Fold) Aluminum Foil-Polyester Tape (24 AWG drain wire)
  • Outer Jacket Material: Low Smoke Zero Halogen
  • Overall Nominal Diameter: 0.196 in.
  • Operating Temperature Range: -20°C To +105°C
  • UL Temperature Rating: 105°C
  • Bulk Cable Weight: 24 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 42 lbs.
  • Min. Bend Radius/Minor Axis: 2 in.
  • NEC/(UL) Specification: CMG-LS
  • CEC/C(UL) Specification: CMG-LS
  • EU Directive 2011/65/EU (ROHS II): Yes
  • EU CE Mark: Yes
  • EU Directive 2000/53/EC (ELV): Yes
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 11/13/2006
  • EU Directive 2002/96/EC (WEEE): Yes
  • EU Directive 2003/11/EC (BFR): Yes
  • CA Prop 65 (CJ for Wire & Cable): Yes
  • MII Order #39 (China RoHS): Yes
  • UL Flame Test: UL1685 FT4 Loading, Limited Smoke
  • C(UL) Flame Test: FT4
  • Suitability - Indoor: Yes
  • Non-halogenated: Yes
  • Plenum (Y/N): No
  • Impedance: 52 Ω
  • Inductance: 0.17 µH/ft
  • Conductor Capacitance: 33 pF/ft
  • Conductor and Shield Capacitance: 62 pF/ft
  • Velocity of Propagation: 66%
  • Conductor DC Resistance @ 20°C: 14.7& Omega;/1000 ft
  • Voltage: 300 V RMS
  • Current: 2.3 Amps per conductor @ 25°C


• GTIN:

  0612825382270
