Belden 89913 50 Ohm Wireless Transmission Coax RG-8 Plenum Antenna Cable - 1000 Foot

Name: Belden 89913 50 Ohm Wireless Transmission Coax RG-8 Plenum Antenna Cable - 1000 Foot
Brand: Belden
SKU: BL-89913-1000
Price: 14333.46 USD
Availability: Backorder

ITEM #: BL-89913-1000 MFG #: 89913 0101000

Belden

Lengths:

Lengths

List Price:

$17,665.20

Our Price:

$14,333.46

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

89913 0101000 - Overview

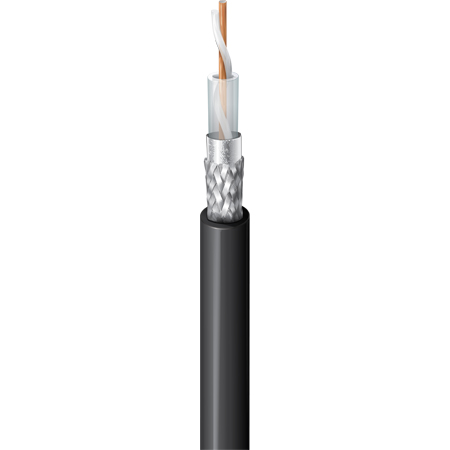

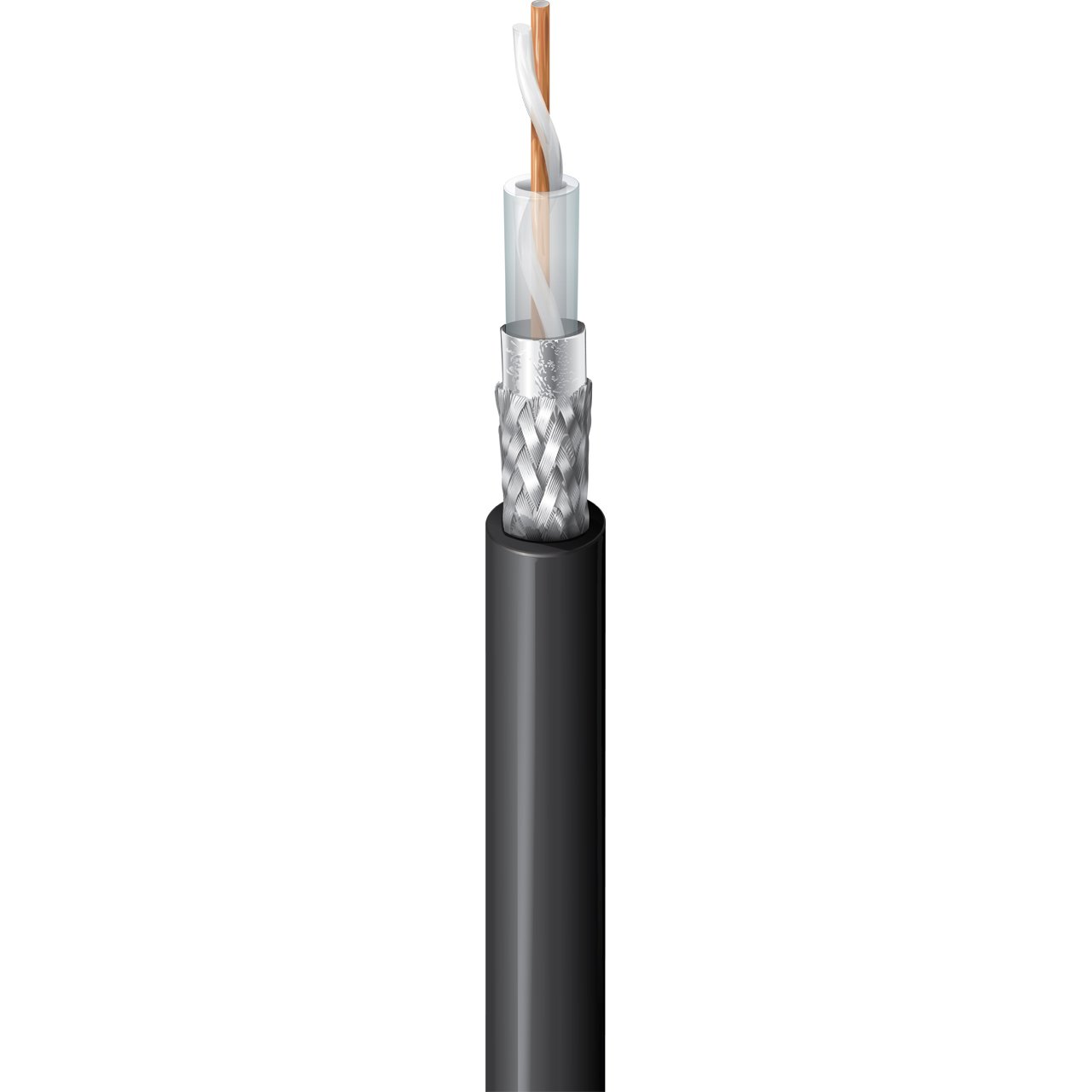

The Belden 89913 is a 10 AWG solid .108 inch bare copper conductor, plenum, with semi-solid FEP insulation, Duobond® II, tinned copper braid shield (90% coverage), fluorocopolymer jacket.

Specifications:
- Size: 10 AWG
- Stranding: Solid
- Nom. Diameter: 0.108"
- Material: BC - Bare Copper

  Insulation
- Material: FEP - Fluorinated Ethylene Propylene
- Nom. Insulation Diameter: 0.292" (7.42mm)
- Color Code: Clear

  Outer Shield
- Layer 1 Outer Shield Type: Tape
- Layer 1 Material: Tri-Laminate (Alum+Poly+Alum)
- Layer 1 Material Trade Name: Duobond II
- Layer 1 Coverage: 100%
- Layer 2 Outer Shield Type: Braid
- Layer 2 Material: Tinned Copper (TC)
- Layer 2 Coverage: 90%

  Outer Jacket
- Material: PVDF - Polyvinylidene Fluoride
- Nom. Diameter: 0.360" (9.14mm)

  Attenuation
- 1MHz: 0.1dB/100ft
- 10MHz: 0.4dB/100ft
- 50MHz: 1.0dB/100ft
- 100MHz: 1.6dB/100ft
- 200MHz: 2.3dB/100ft
- 400MHz: 3.4dB/100ft
- 700MHz: 5.0dB/100ft
- 900MHz: 6.0dB/100ft
- 1000MHz: 6.9dB/100ft

  Electricals
- Nom. Conductor DCR: 0.9Ω/1000ft
- Nom. Outer Shield DCR: 3.3Ω/1000ft
- Nom. Capacitance Cond-to-Shield: 25pF/ft
- Nom. Characteristics Impedance: 50Ω
- Nom. Velocity of Prop.: 83%

  Voltage
- UL Voltage Rating: 300V (CMP)

  Mechanical Characteristics
- UL Temperature: 302°F (150°C)
- Operating Temp: 5°F - 302°F (-15°C - 150°C)
- Bend Radius Installation Min. 3.6" (91mm)
- Max Pull Tension: 174lbs (78.9kg)
- Bulk Cable Weight: 119/1000ft

  Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability/Reaction to Fire: NFPA 262
- CPR Compliance: CPR Euroclass: Eca
- NEC/UL Compliance: CMP
- CEC/C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
GTIN:
0612825221463
