Belden AX104141 10GX KeyConnect CAT 6A 1RU 24 Port Coupler Patch Panel - Titanium

AX104141 - Overview

• Specifications:

  • Height: 1.75" (44.45mm)
  • Width: 19" (482.60mm)
  • Depth: 1.52" (38.61mm)
  • Port Count: 24 Port
  • Front Connection: Flush
  • Packaging: Individually packaged in a cardboard box.
  • Weight: 1.98lbs (0.897kg)
  • Max Capacity: 24 connectors (Patch Panel is factory-assembled)
  • Dielectric Strength: 1,000V RMS @ 60Hz for 1 minute
  • Current Rating: 1.500A
  • Insulation Resistance: 500MΩ Minimum
  • Termination Resistance: 2.5mΩ
  • Dielectric Strength: 1,000V RMS @ 60Hz for 1 minute
  • Current Rating: 1.500A
  • Insulation Resistance: 500500MΩ Minimum
  • Termination Resistance: 2.5mΩ
  • Installation Temperature Range: -14°F - 140°F (-10°C - 60°C)
  • Storage Temperature Range: -40°F - 158°F (-40°C - 70°C)
  • Operating Temperature Range: -14°F - 140°F (-10°C - 60°C)
  • Footprint/Type: KeyConnect
  • Plug/Jack Compatibility: RJ45
  • Termination Type: Universal T568A/B
  • Data Category: Category 6A
  • TIA/EIA Compliance: Class EA - ISO/IEC 11801:2002 Amendment 2
  • Other Standards: FCC Part 68, Subpart F, IEC 60603-7

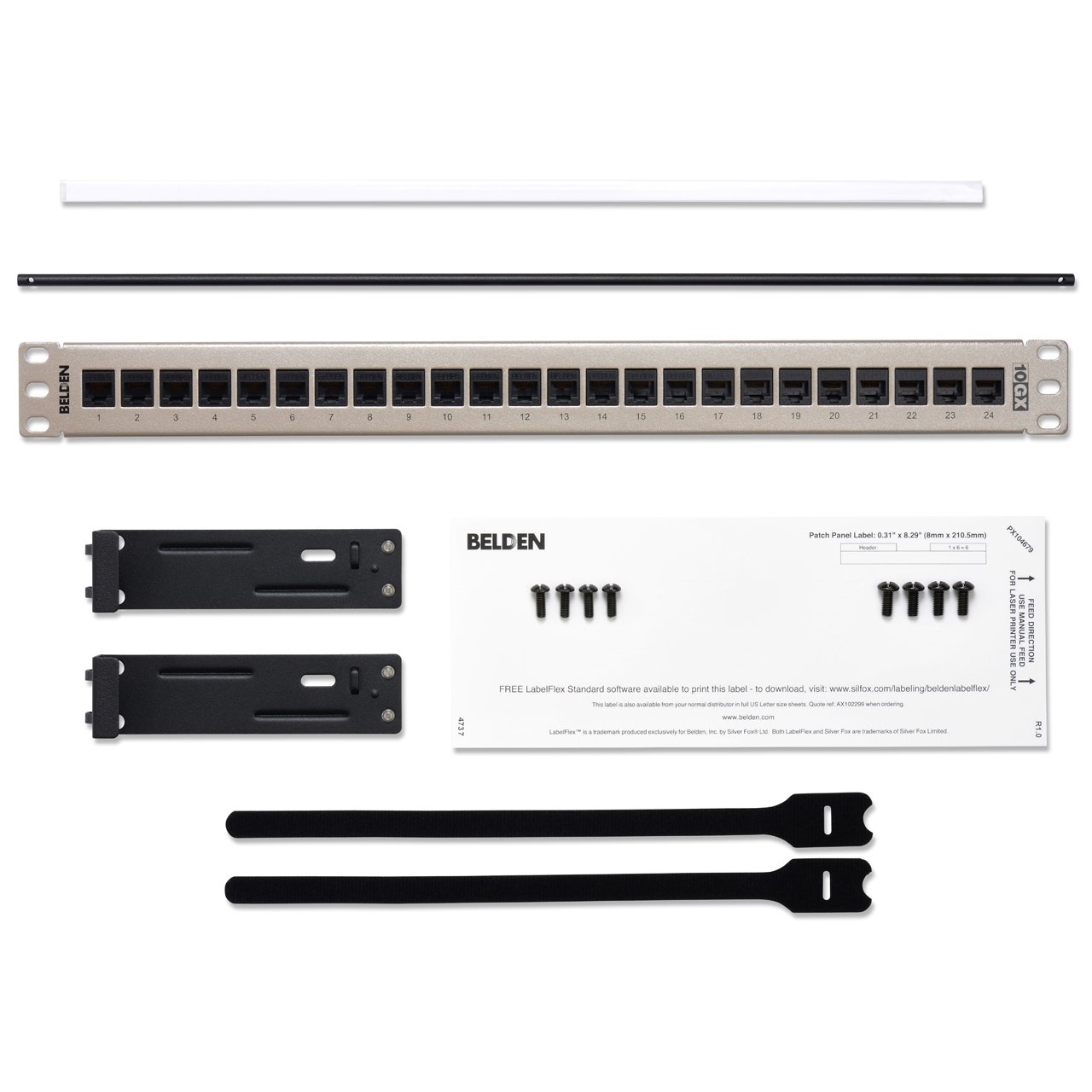

• Item Includes:

  • 4x Screws (10x32)
  • 4x Screws (12x24)
  • 1x Label Holder
  • 1x Printable LabelFlex Half-Sheet
  • 2x Velcro Straps
  • 2x Rear Cable Management Bracket
  • 1x Installation Guide
  • 1x 10GX X-BAR kit
