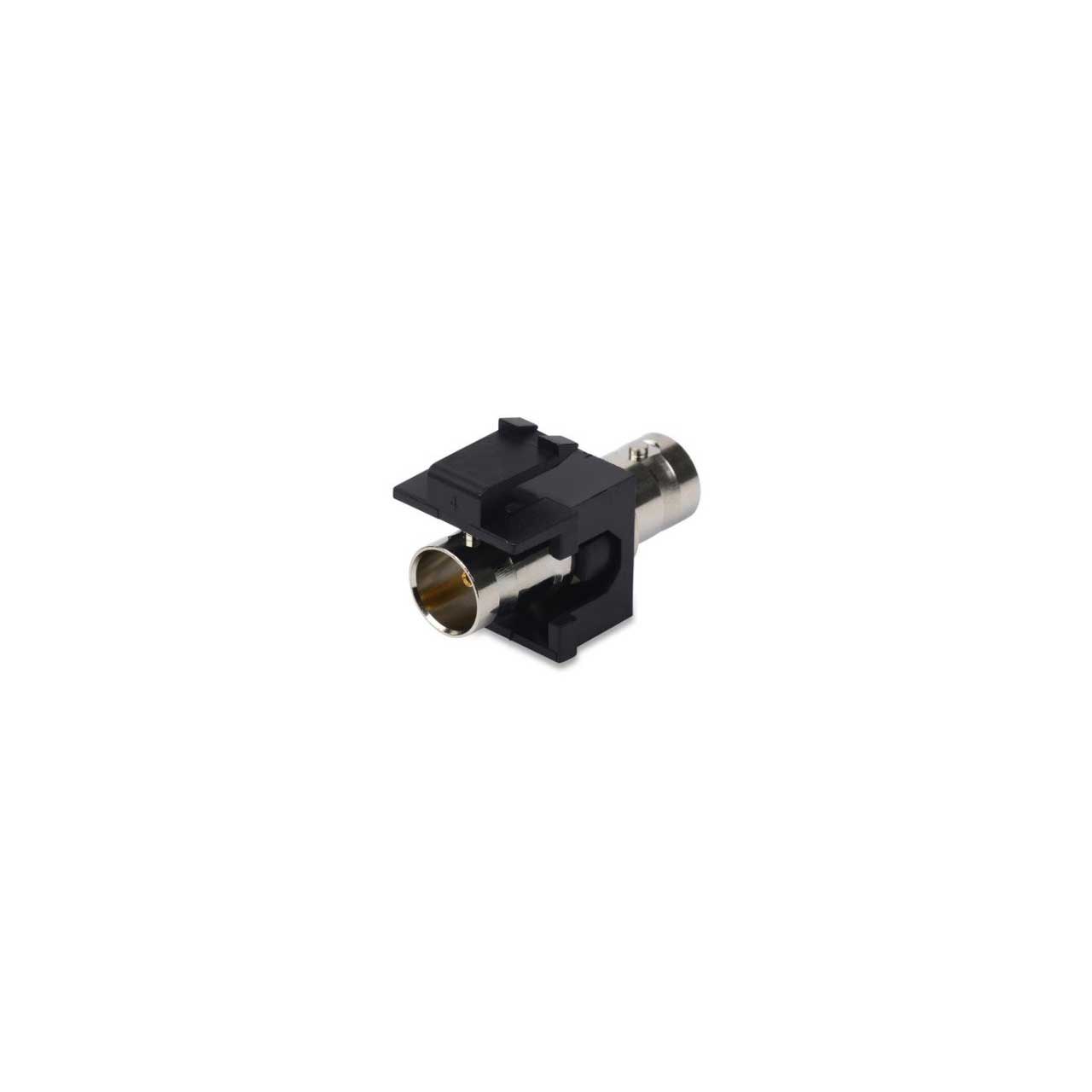

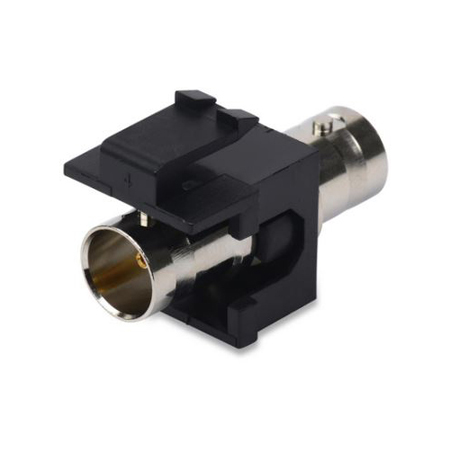

Belden AX104575 KeyConnect Video BNC 50/75 Ohm Module - Coax - Flush/White

AX104575 - Overview

• Features:

  • Compatible with KeyConnect Patch Panel and Faceplate, BNC Coax Cable Assembly


• Specifications:

  • Product Overview
  • Suitable Applications: BNC Coax


  • Physical Characteristics (Overall)
  • Height: 0.87 m
  • Width: 0.66
  • Depth: 1.28
  • Front Connection: Flush
  • Packaging: 10 units packaged in a plastic bag.
  • Weight: 0.011 lbs


  • Connectors
  • Materials
  • Material:Plastic - UL94V-0


  • Temperature Range
  • Installation Temp Range: -10°C To +60°C
  • Storage Temp Range: -40°C To +70°C
  • Operating Temp Range: -10°C To +60°C


  • Mechanical Characteristics
  • Footprint/Type: KeyConnect
  • Connector/Hardware Retention: 20 lbs


  • Applicable Environmental and Other Programs
  • Environmental Space: Indoor
  • EU Directive 2002/95/EC (RoHS): Yes
  • MII Order #39 (China RoHS): EUP 50


  • Flammability, LS0H, Toxicity Testing
  • Safety Listing: c(UL)us Listed


• Item Includes:

  • AX104575 KeyConnect Video BNC 50/75 Ohm Module


• GTIN:

  0611589006835
