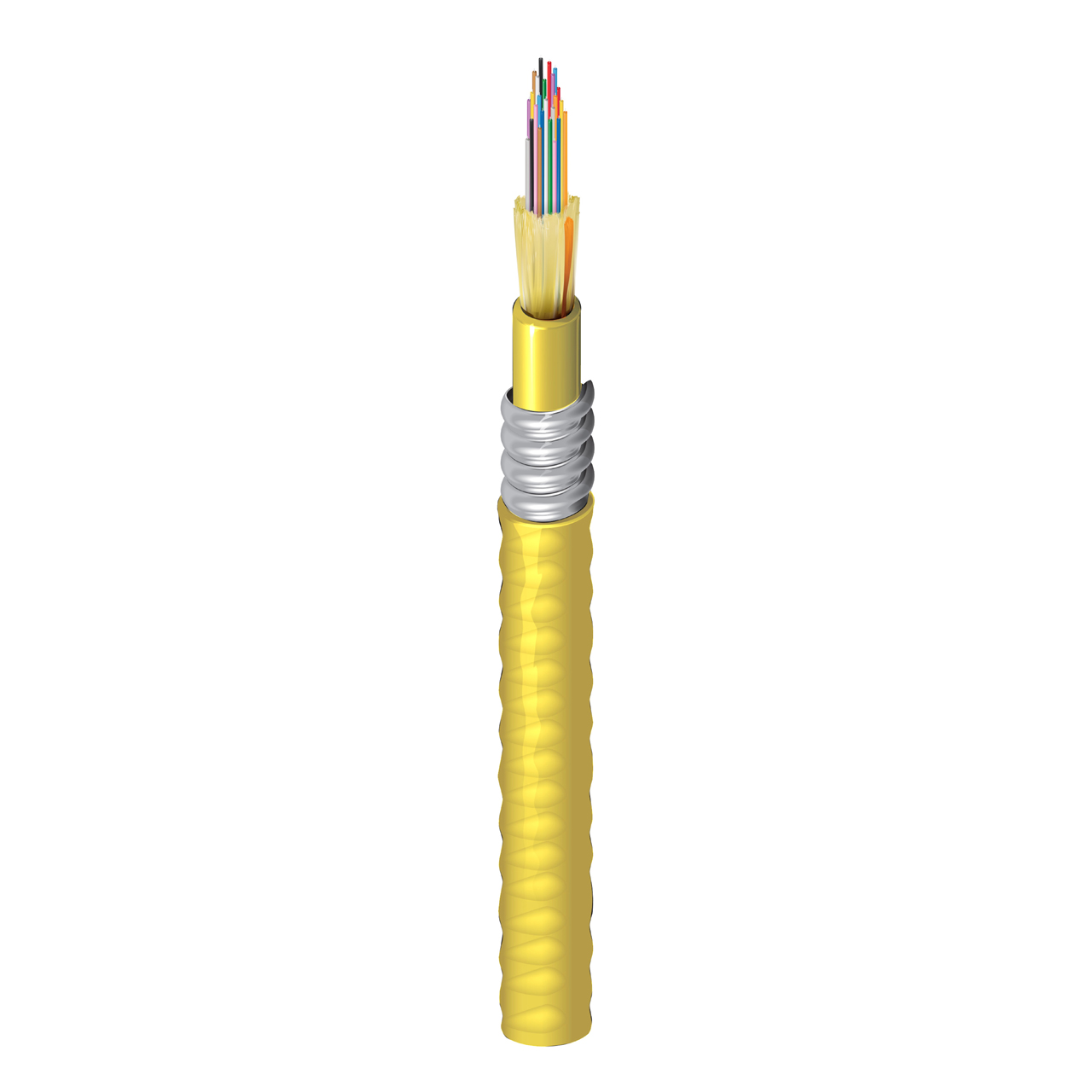

Belden FISD024F9 Indoor Riser OS2 Distribution 24-Fibers Tight Buffer Cable - Aluminum Interlocked - 3280 Foot

FISD024F9 - Overview

• Specifications:

  • Fiber Type: OS2
  • Fiber Core Diameter: 8.2/125µm
  • Fiber Buffer Material: PVC - Polyvinyl Chloride
  • Fiber Buffer Diameter: 900µm
  • Fiber Count: 24
  • Fiber Color Coding: TIA-598-D
  • Inner Jacket Strength Member: Aramid Yarns
  • Material: PVC - Polyvinyl Chloride
  • Nominal Diameter @ InnerJacket1 (cnv): 0.325" (8.3mm)
  • Color: Yellow
  • Number of Inner Jacket Ripcords: 1
  • Armor Type and Material: AIA - Aluminum Interlock Armor
  • Jacket Material: PVC - Polyvinyl Chloride
  • Nom. Diameter: 0.600" (15.2mm)
  • Outer Jacket Color: Yellow
  • Max. Attenuation (1310nm/1550nm): 0.50dB/km
  • Mode Field Diameter:
    - 1310nm: 9.2µm
    - 1550nm: 10.4µm
  • 1 Gigabit Ethernet Performance (1310nm): 5,000m
  • 10 Gigabit Ethernet Performance:
    - 1310nm: 10,000m
    - 1550nm: 50,000m
  • Minimum Bend Radius During Installation: 20x Cable OD
  • Minimum Bend Radius During Operation: 10x Cable OD
  • Max. Tensile Strength During Installation: 1320 N (300 lbf)
  • Max. Tensile Strength During Operation: 400 N (90 lbf)
  • Crush Resistance: 440N/cm
  • Bulk Cable Weight: 188lbs/kft (280kg/km)
  • Installation Temperature: 14°F - 140°F (-10°C - 60°C)
  • Operating Temperature: -4°F - 158°F (-20°C - 70°C)
  • Storage Temperature: -40°F - 158°F (-40°C - 70°C)
  • Environmental Suitability: Indoor
  • Sustainability: CA Prop 65, Product LensT, Environmental Product Declaration (EPD) Available
  • Flammability/Reaction to Fire: OFCR, FT4
  • ICEA Compliance: S-83-596


• GTIN:

  0612825376798
