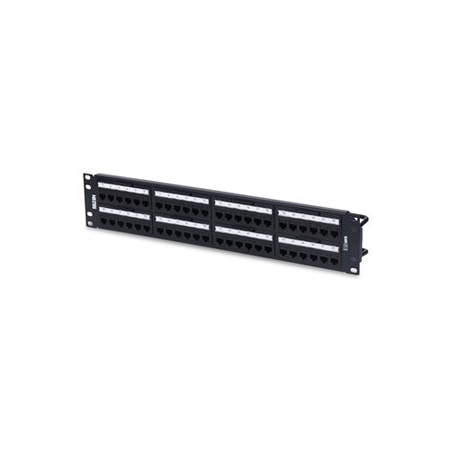

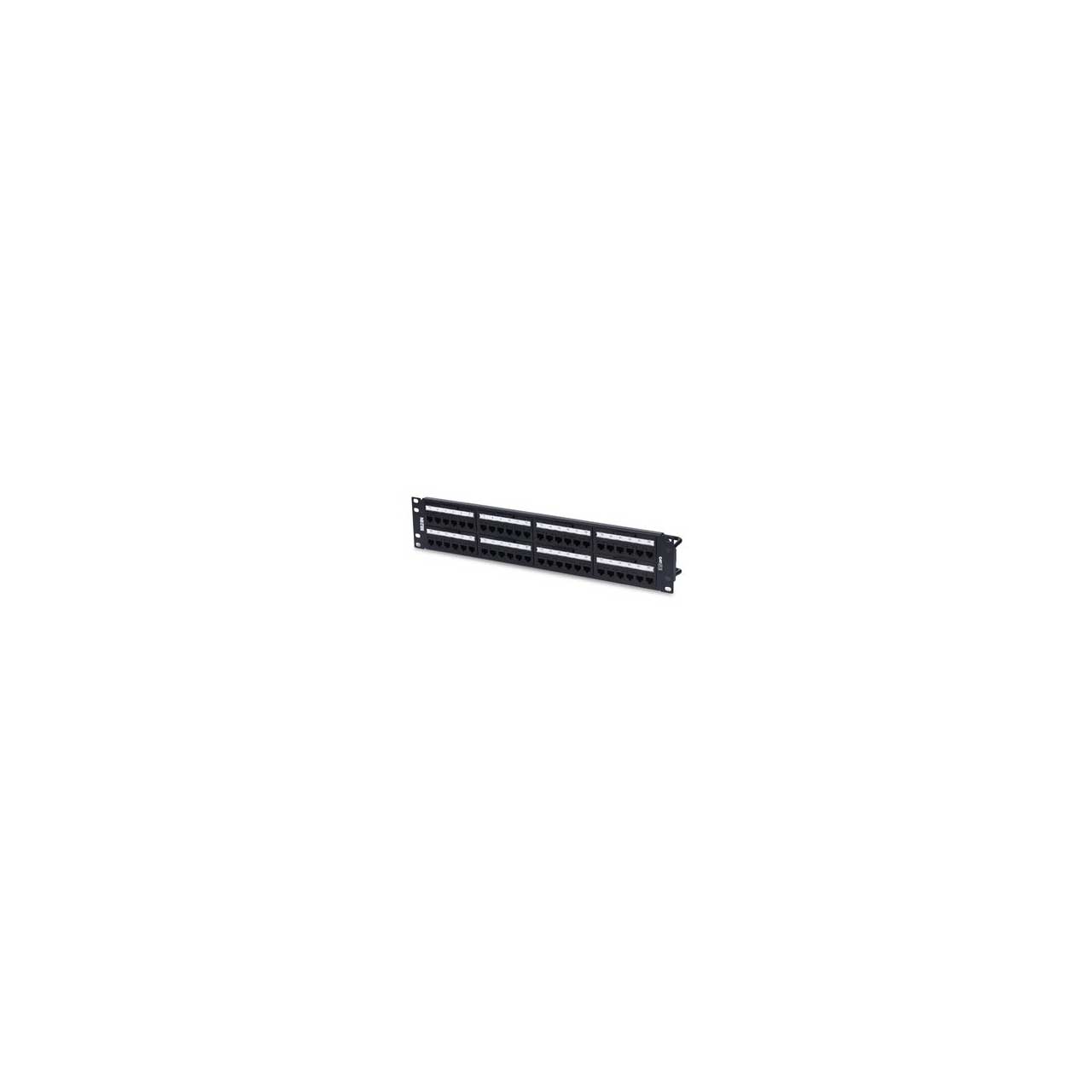

Belden RV5PPF2U48BK CAT5E REVConnect Patch Panel - Flat - 48-Port - 2RU (Preloaded)

ITEM #: BL-RV5PPF2U48BK MFG #: RV5PPF2U48BK

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$519.00

Our Price:

$406.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    RV5PPF2U48BK - Overview

    Not ready to migrate to Category 6 or 6A solutions yet? Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with a Category 5e system that exceeds standards. The Belden RV5PPF2U48BK is a preloaded REVConnect 2RU 48-port CAT5E flat patch panel that is suitable for the 1200 System, TIA Category 5E, ISO Class D, and 1GBASE-T applications.

    • Specifications:

      • Height: 3.47 in
      • Width: 19.000 in
      • Depth: 2.000 in
      • Port Count: 48 Port
      • Front Connection: Flush
      • Packaging: Individually packaged in a cardboard box.
      • Weight: 3.083 lbs
      • Max Capacity: 48 connectors (preloaded)
      • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute (Signals to Ground)
      • Current Rating: 1.300 A
      • Insulation Resistance: 500 M-Ohm Minimum
      • Termination Resistance: 2.5 mOhm
      • Installation Temp Range: -10°C To +60°C
      • Storage Temp Range: -40°C To +70°C
      • Operating Temp Range: -10°C To +60°C
      • Footprint/Type: REVConnect
      • Tool Compatibility: REVConnect Termination Tool (RVUTT01)
      • Plug /Jack Compatibility: RJ45
      • Cable/Connector Retention: 15 lbs
      • Connector/Hardware Retention: 20 lbs
      • Plug/Connector Retention: 11.250 lbs
      • UL Rating: UL94V-0
      • ISO/IEC Compliance: IEC 60603-7
      • Data Category: Category 5e
      • TIA/EIA Compliance: Category 5e - TIA 568.2-D, ISO/IEC 11801-1
      • IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBase TTM (up to 100W)
      • Other Standards: UL 1863, ANSI/TIA 1096-A (formerly FCC Part 68-F)
      • Environmental Space: Indoor
      • Safety Listing: c(UL)us Listed

    • Item Includes:

      • 48x Cat5E UTP REVConnect Jacks
      • 50x REVConnect Cores
      • 4x Screws (10x32)
      • 8x Clear Windows
      • 2x Rear Cable Management Bar
      • 4x Screws (12x24)
      • 2x Velcro Straps
      • 1x Installation Guide

    • GTIN:

      0611589224918
