Blustream C44CS-KIT 4K HDMI 4x4 HDBaseT Matrix Switch Kit - 4 HDMI Input Tx to 4 HDBaseT Receivers Via Cat5/6

C44CS-KIT - Overview

• Features:

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
  • Features 4x HDMI inputs which can be independently routed to 4x HDBaseT outputs
  • Output 1 features simultaneous HDMI and HDBaseT output
  • Video down-conversion on HDBaseT outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR on all HDBaseT outputs

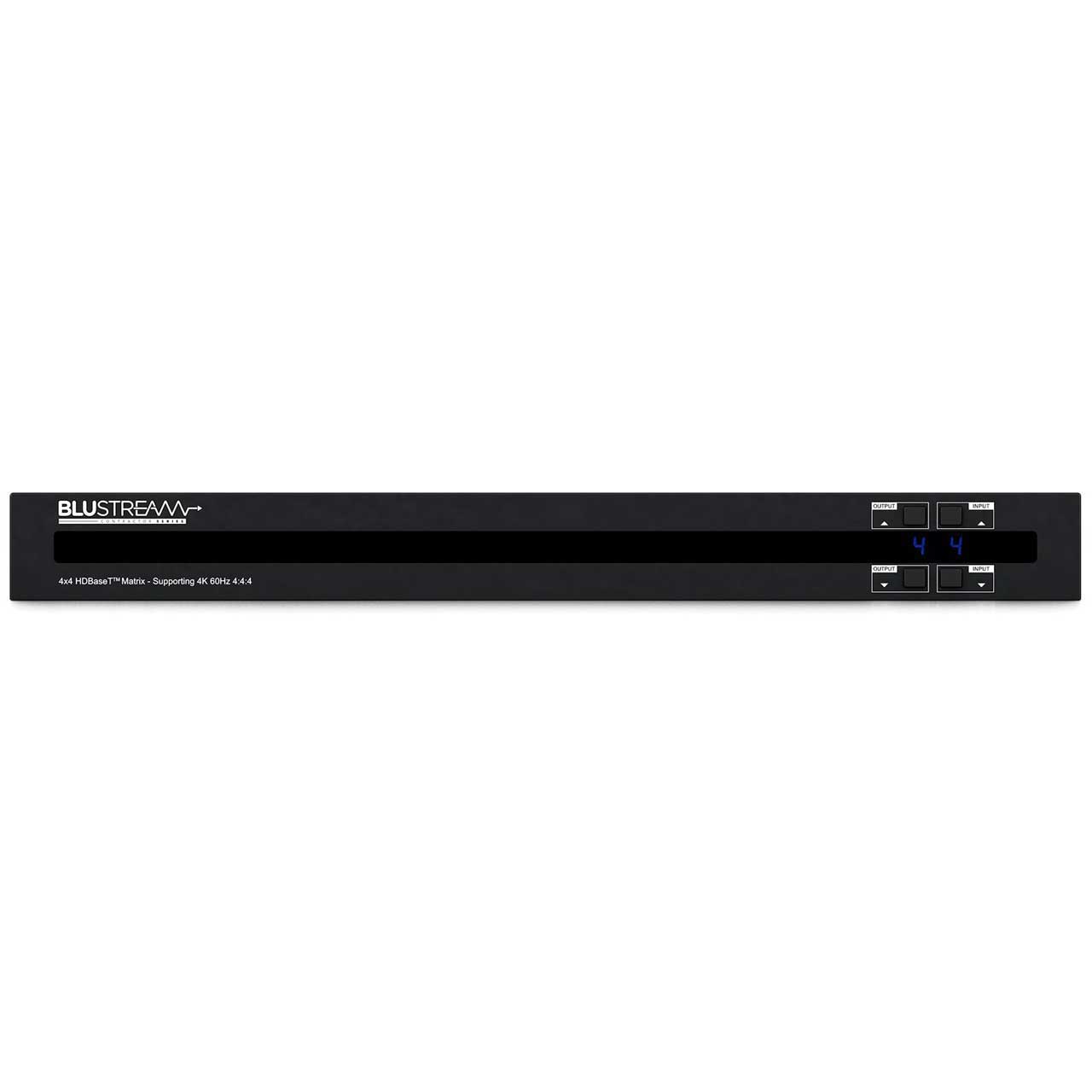

  • Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP
  • Supports 12V PoC (Power over Cable) to power compatible HDBaseT receivers
  • Supplied with Blustream IR receivers and emitters
  • 3rd party drivers available for all major control brands

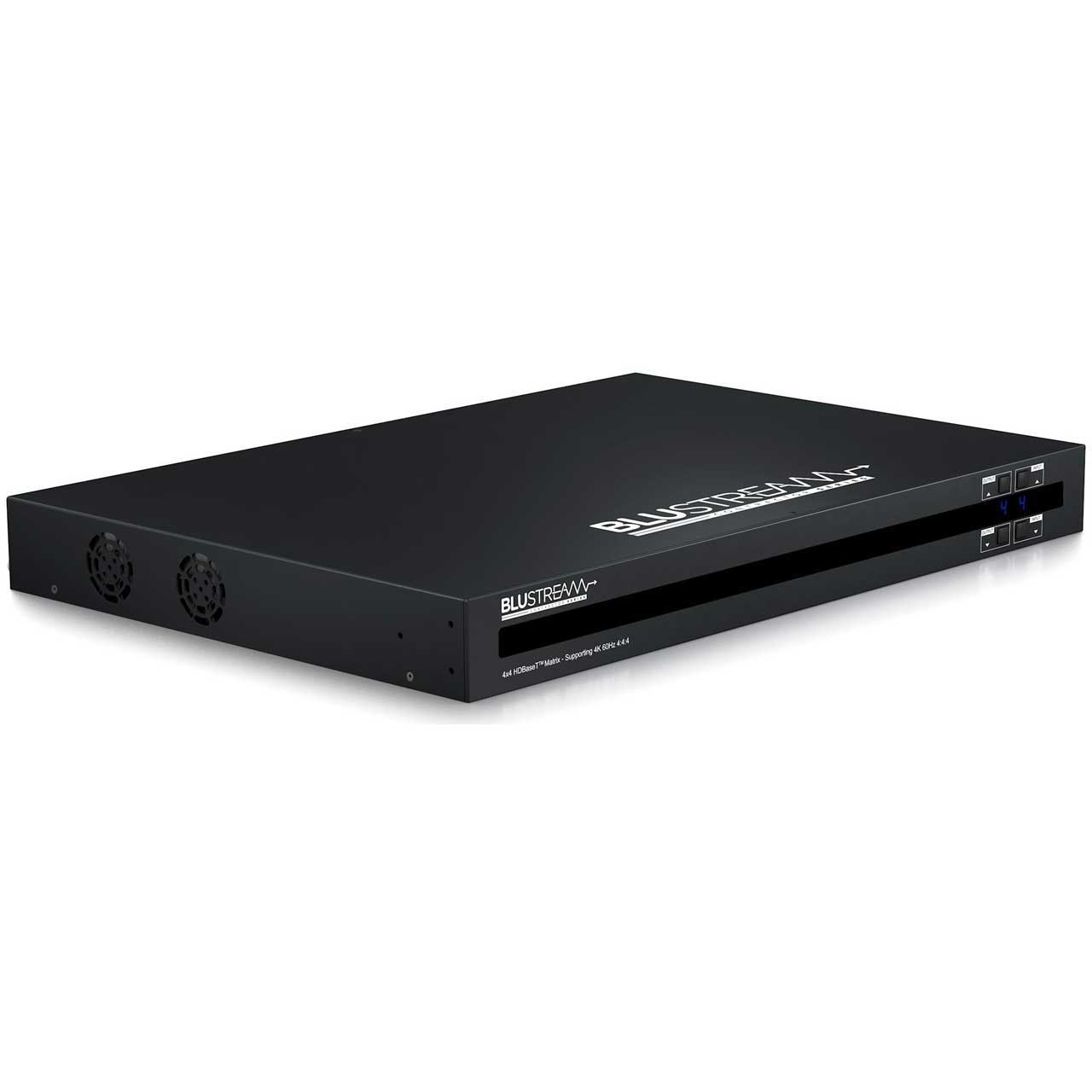

  • 1U design for 19" rack mount integration - mounting kit included
  • Advanced EDID management and HDCP 2.2 compliant
    *CSC feature compatible with RX70CSL only


• Specifications:

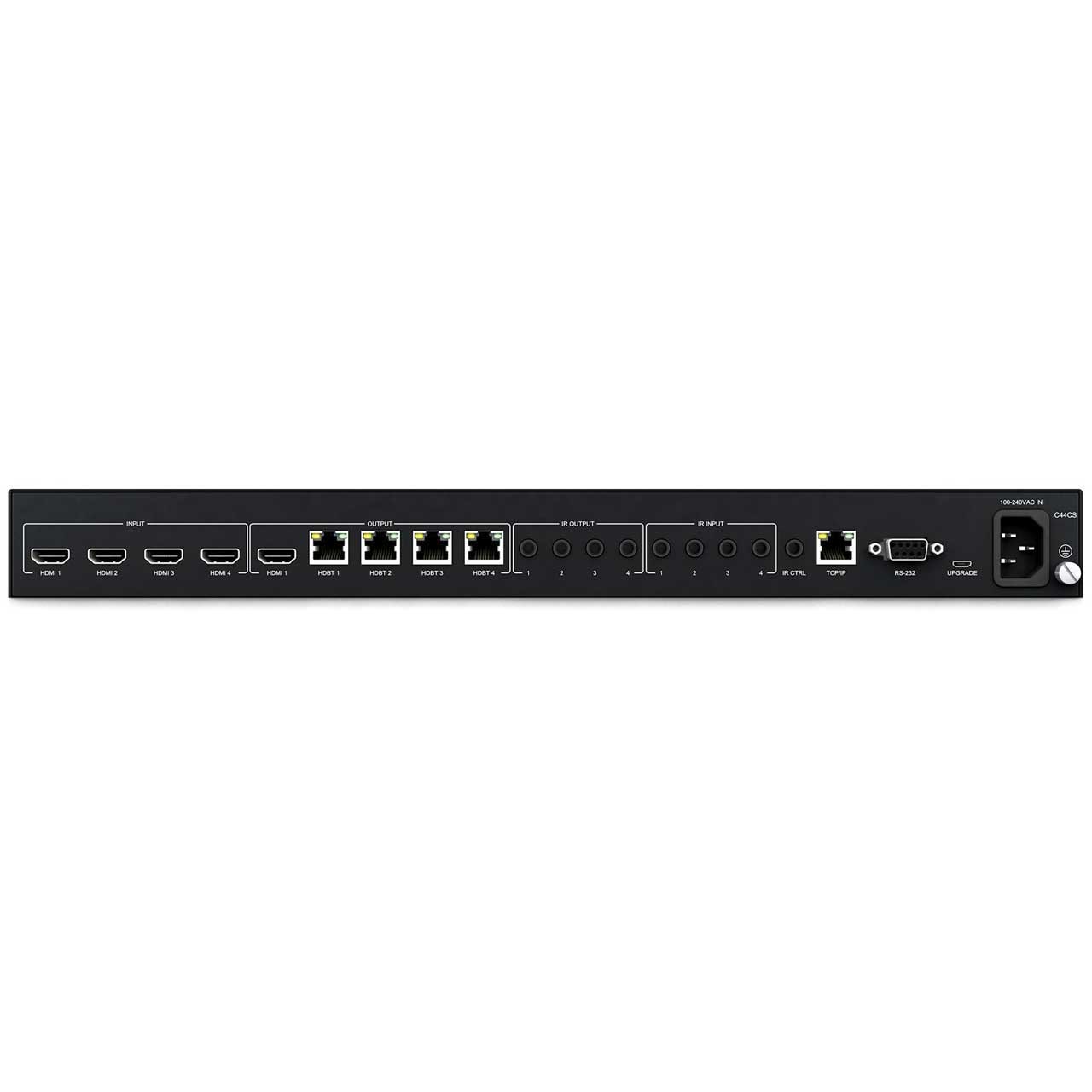

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female, 4x HDBaseT RJ45 connectors
  • TCP/IP Control: 1x RJ45, female
  • RS-232 Serial Ports: 1x DB-9, female
  • IR Input Ports: 5x 3.5mm stereo jack
  • IR Output Ports: 4x 3.5mm mono jack
  • Rack Mountable: 1U rack height, rack ears included
  • Casing Dimensions (WxHxD): 17.2" x 1.7" x 11.8" (437mm x 44mm x 300mm)(without feet)

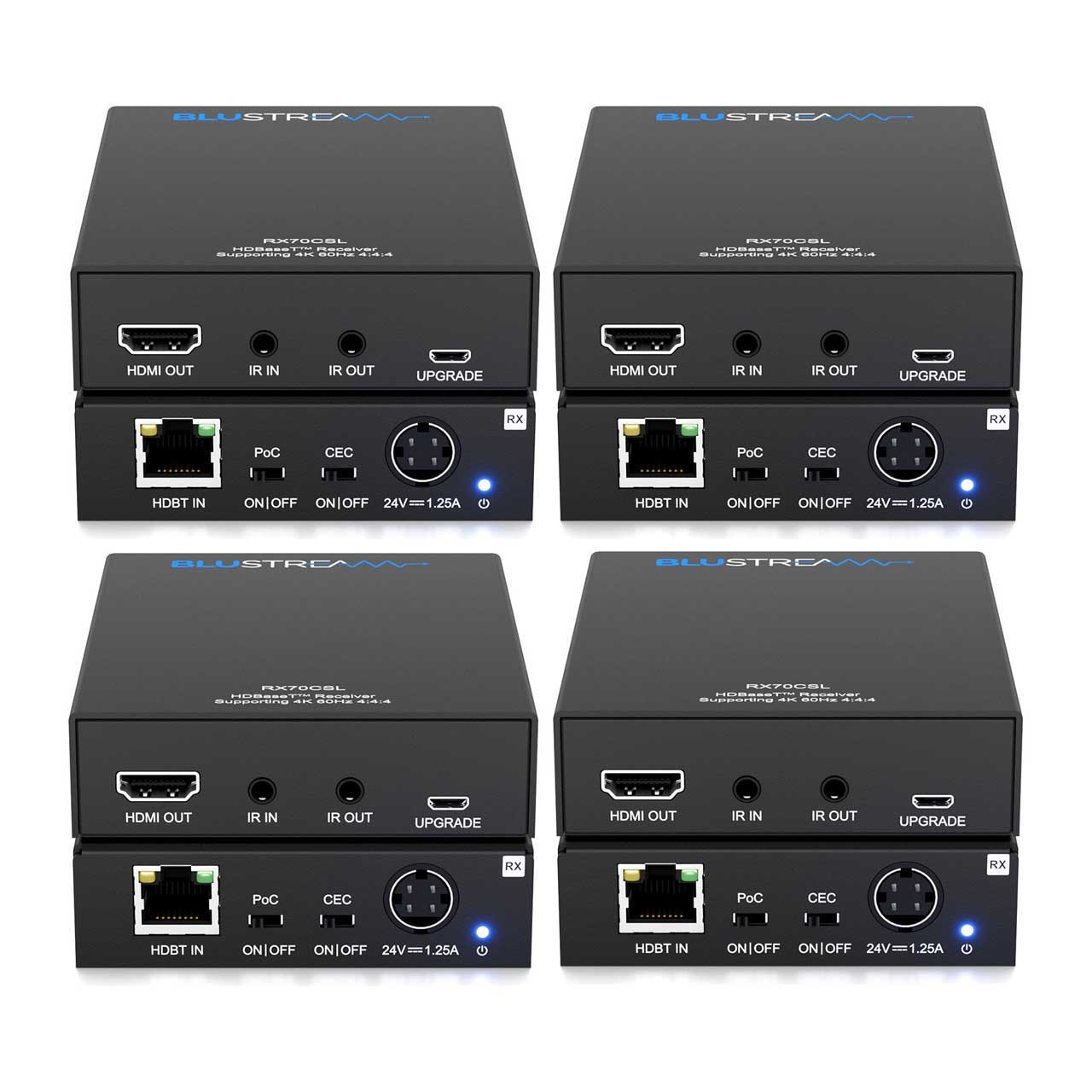

    RX70CSL Receiver
  • Video Input Connectors: 1x HDBaseT RJ45 connectors
  • Video Output Connectors: 1x HDMI Type A
  • IR Input Ports: 1x 3.5mm stereo jack
  • IR Output Ports: 1x 3.5mm mono jack
  • Casing Dimensions (WxHxD): 3.3" x .94" x 4.72" (85mm x 24mm x 120mm)
  • Mounting Wings: Supplied

    C44CS-KIT
  • Power Supply: Internal 100-240V AC
  • HDBT Power Output: 12V DC 0.8A per port
  • Shipping Weight: 13.22lbs (5.9kg)
  • Operating Temperature: 23°F to 122°F (-5°C to 50°C)
  • Storage Temperature: -13°F to 158°F (-25°C to 70°C)


• Item Includes:

  • 1x C44CS Matrix
  • 4x RX70CSL Receivers
  • 1x Rack Mounting Kit
  • 4x Mounting Kits for RX70CSL
  • 4x Mounting Feet
  • 1x Remote Control
  • 4x IR Emitters
  • 5x IR Receivers
  • 1x Serial Cable - DB9 to DB9
  • 1x IR Control Cable - 3.5mm-3.5mm Cable
  • 1x Quick Reference Guide
  • IEC Power Cable(s)


• Warranty:

  • 3-Year Warranty


• GTIN:

  9340242004727
