Blustream HMXL44ARC-KIT 4x4 HDMI2.0 HDCP2.2 HDBaseT ARC Matrix Kit - 4K 60Hz 4:4:4

HMXL44ARC-KIT - Overview

• Features:

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
  • Features 4x HDMI inputs which can be independently routed to 4x HDBaseT outputs
  • Output 1 features simultaneous HDMI and HDBaseT output
  • Video Smart Scaling on HDBaseT outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
  • 14x4 Audio Matrix independently controllable from video. Audio source inputs include:
  • 4x audio breakout from HDMI source inputs
  • 4x audio breakout from zone outputs
  • 4x ARC from zone outputs*
  • 1x Optical and 1x Analogue audio input
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR and RS-232 on all HDBaseT outputs
  • Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
  • Supports PoC (Power over Cable) to power compatible HDBaseT receivers
  • Supplied with Blustream IR receivers and emitters
  • Advanced EDID management and HDCP 2.2 compliant

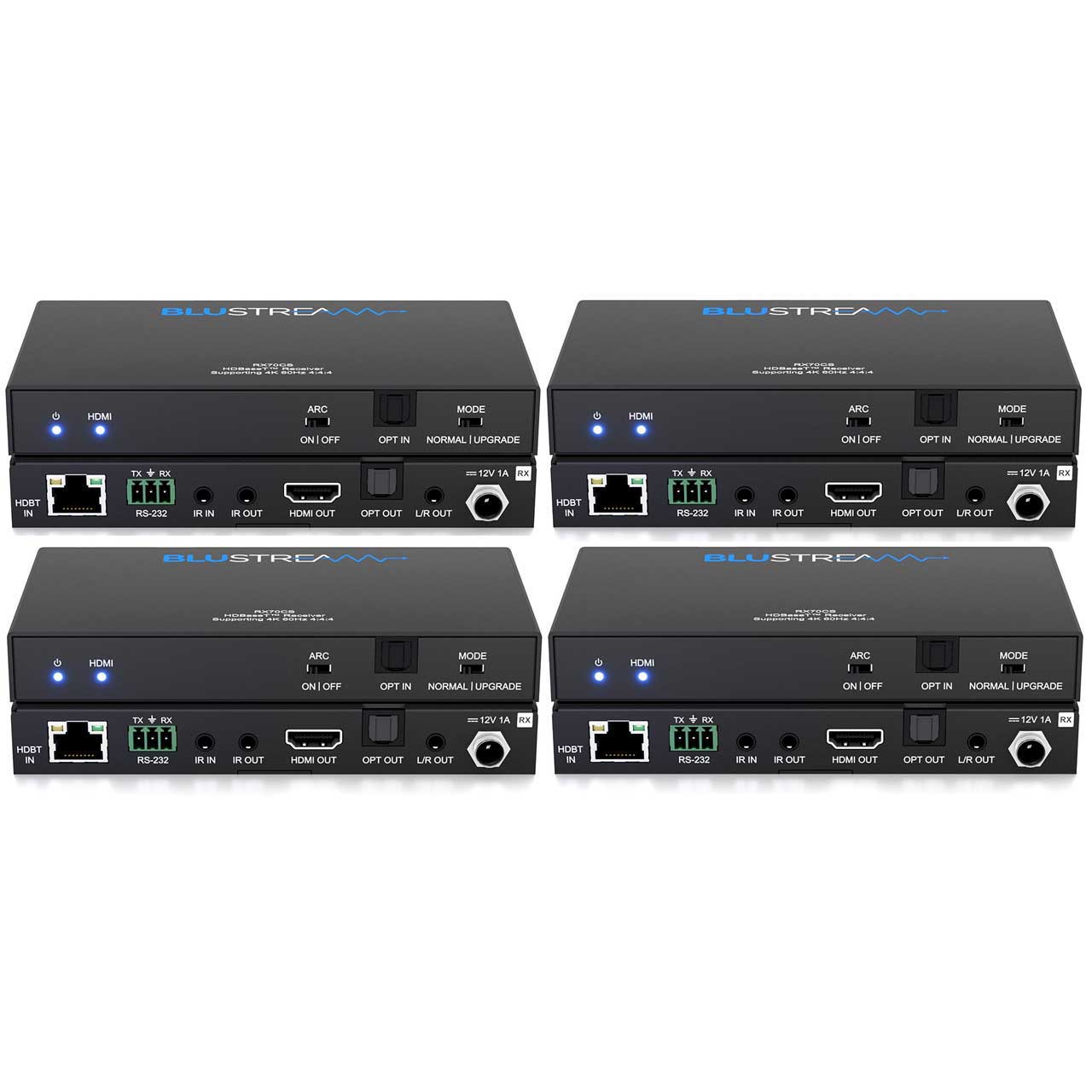

  • Supplied with 4x RX70CS HDBaseT Receivers
    *ARC feature supports HDMI ARC or Optical ARC
  • *CSC and ARC Feature compatible with RX70CS only


• Specifications:

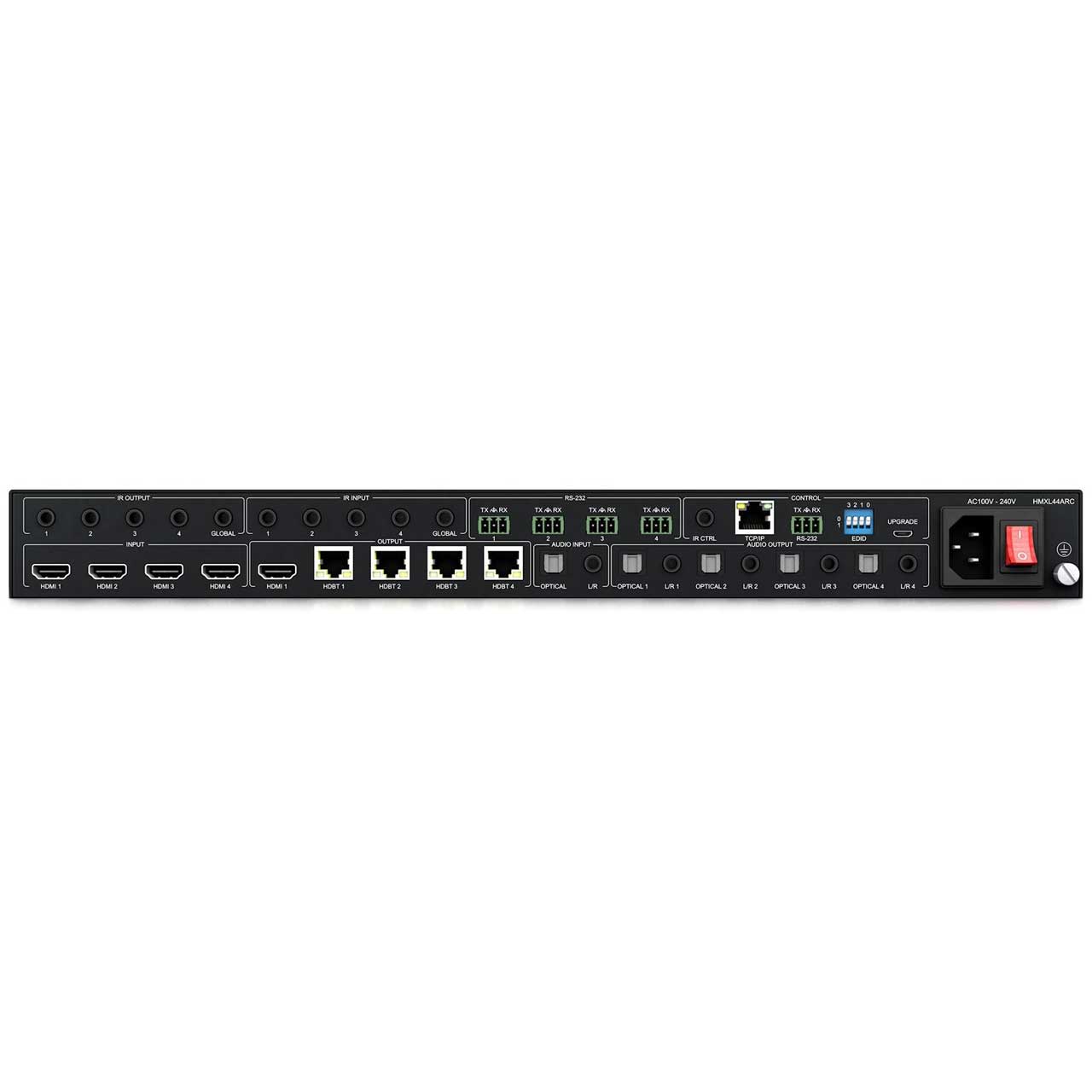

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female, 4x HDBaseT RJ45 connector
  • Audio Output Connectors: 1x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (SPDIF)
  • Audio Output Connectors: 4x Analogue audio L/R (3.5mm stereo Jack), 4x Optical (SPDIF)
  • RS-232 serial ports: 5x 3-pin phoenix connector
  • TCP/IP Control: 1x RJ45, female
  • IR Input ports: 5x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Rack-Mountable: 1U rack height, rack ears included
  • Casing Dimensions (WxDxH): 17.1" x 11.8" x 1.7" (436 mm x 300 mm x 44 mm)
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: Internal 100-240v AC


• Item Includes:

  • 1x HMXL44ARC
  • 4x RX70CS
  • 1x Rack mounting kit
  • 1x Remote control
  • 4x IR emitters
  • 5x IR receivers
  • 1x Serial Cable - DB9 to 3-pin phoenix connector
  • 1x IR Control Cable - 3.5mm-3.5mm Cable
  • IEC Power Cable(s)
  • 1x Quick Reference Guide


• Warranty:

  • 3-Year Warranty


• GTIN:

  9340242004666
