Blustream PRO88HBT100CS Custom Pro Preconfigured 8x8 HDMI 2.0 4K @ 60Hz 4:4:4 HDBaseT Matrix - 328ft/100m

PRO88HBT100CS - Overview

• Features:

  • HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Features 8x HDMI inputs which can be independently routed to 8 x HDBaseT outputs
  • Supports 4K @ 60Hz 4:4:4 UHD video up to 70m
  • Independent downscaling of resolutions up to 4K @ 60Hz 4:4:4 video input to the following formats: 1080p @ 60Hz (for screens that do not support 4K) / 4K @ 60Hz 4:2:0 (for screens that do not support full 4K @ 60Hz 4:4:4)
  • Supports 4K with HDR
  • Extends HDMI 1080p video up to 100m
  • 4x Simultaneous HDMI Outputs
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • 8x simultaneous coaxial digital and variable line-level analog L/R audio outputs
  • Analog audio input can be embedded onto any HDMI input
  • Web interface module for control and configuration of Matrix
  • Supports bi-directional IR/RS-232
  • Supplied with Blustream IR receivers and emitters

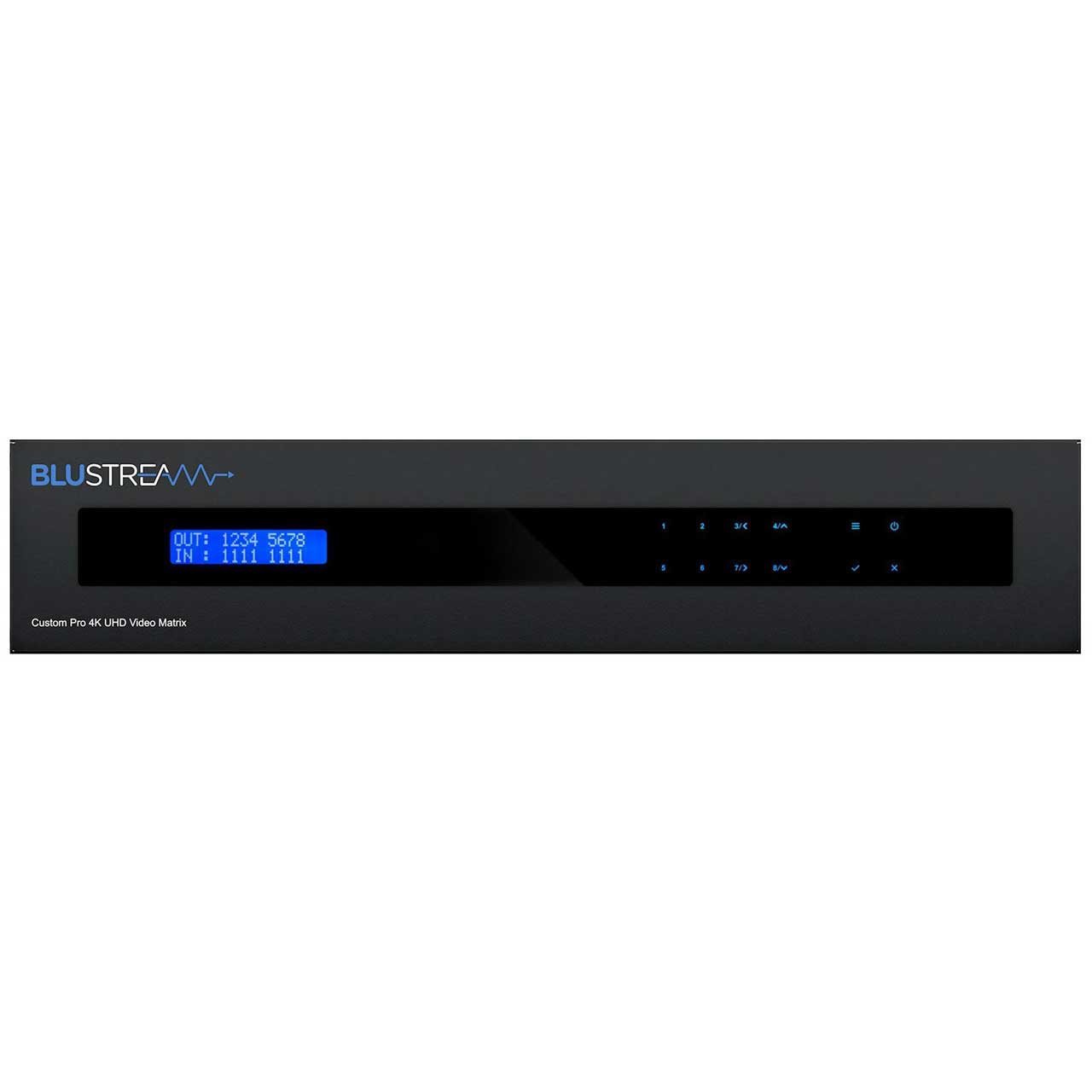

  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT) to power compatible HDBaseT receivers
  • 3rd Party drivers available for all major home control brands
  • 2U Design for 19" rack mount integration - Mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant
  • To be used with the HEX100CS-RX receivers


• Specifications:

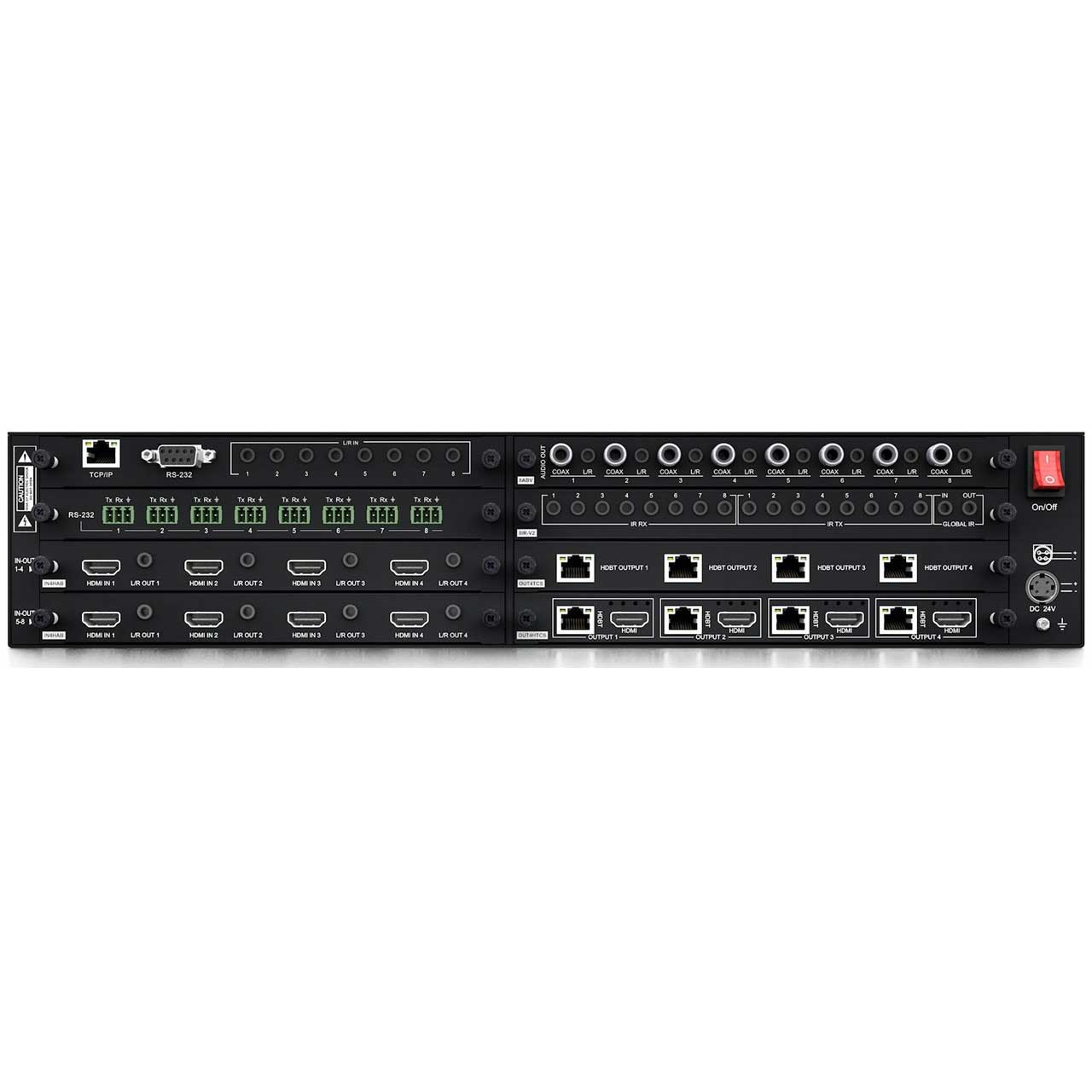

  • Video Input Connectors: 8x HDMI Type A, 19-pin, female
  • Video Output Connectors: 8x HDBaseT RJ45 connector, 4x HDMI Type A, 19-pin, female
  • Audio Input Connectors: 8x 3.5mm stereo jack (L/R)
  • TCP/IP Control: RJ45, female
  • Ethernet/Network: RJ45, female
  • IR Input ports: 9x 3.5mm stereo jack
  • RS-232 serial port: DB-9, female
  • Rack-Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 17.3" x 3.42" x 11.1"(440mm x 87mm x 282mm) without feet
  • Dimensions Including Connections (W x H x D): 17.3" x 3.7" x 11.3" (440mm x 94mm x 288mm) with feet
  • Shipping Weight: 11lbs (5kg)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/6A DC


• Item Includes:

  • 1 x Custom Pro Hub Matrix
  • 1 x PRO-8RS232: RS-232 pass-through card - for sending RS-232 to the associated HDBaseT receivers.
  • 2 x PRO-IN4HAB: 4 x HDMI2.0 Input with Audio Breakout
  • 1 x PRO-8AB-V2: Coax digital, or stereo audio breakout card.
  • 1 x PRO-8IR-V2: IR pass-through card - for 2-way IR control, or IR control of matrix (8x8 chassis only).
  • 1 x PRO-OUT4TCS: 4 x HDBaseTT CSC output (70m at 4K, 100m at 1080p).
  • 1 x PRO-OUT4HTCS: 4 x simultaneous HDMI / HDBaseT CSC output (70m at 4K, 100m at 1080p).
  • 1 x 24V/8A Power Supply
  • 1 x Remote Control
  • 1 x Rack Mounting Kit
  • 1 x Quick Reference Guide


• Warranty:

  • 3-Year Warranty
