SP14AB-V2 - Overview

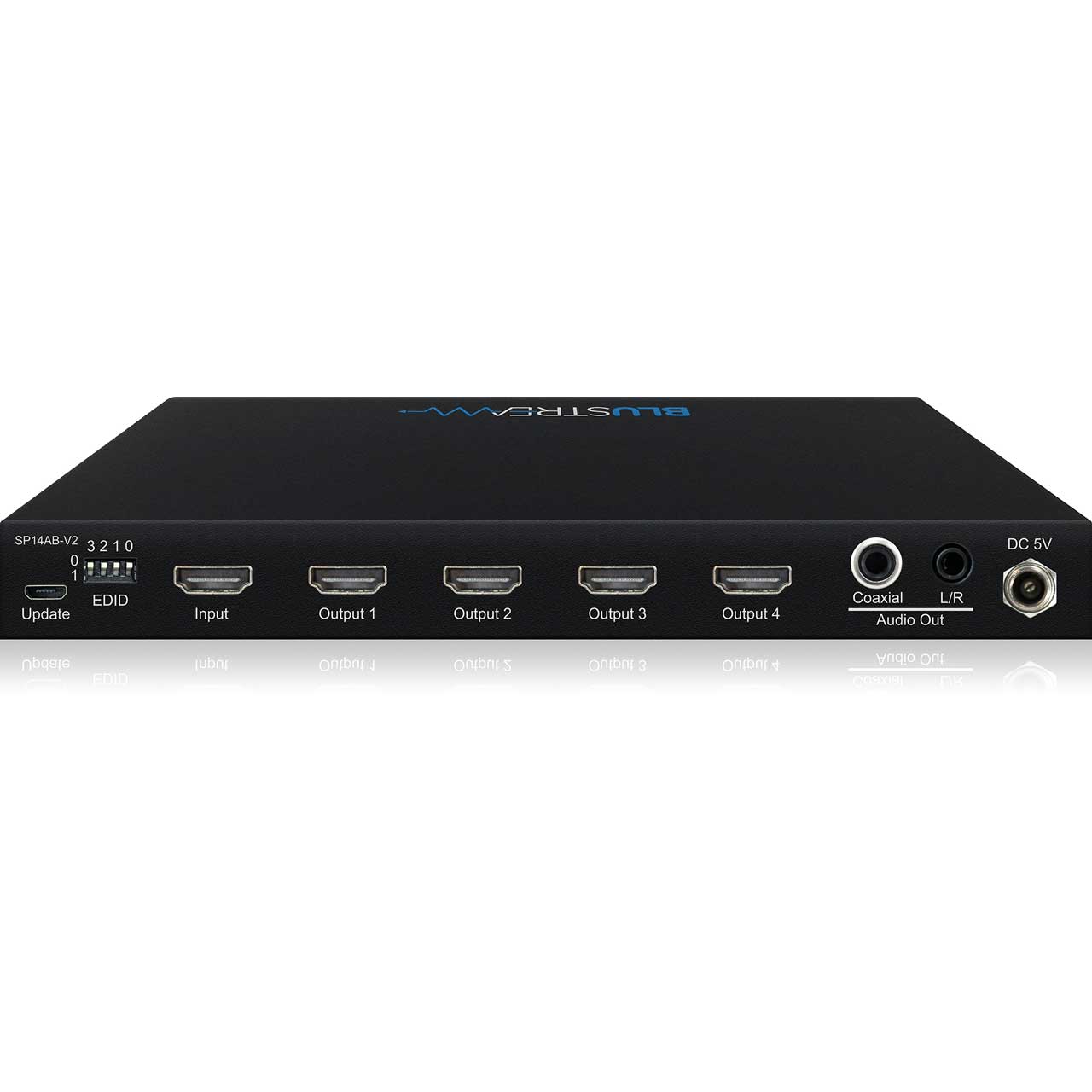

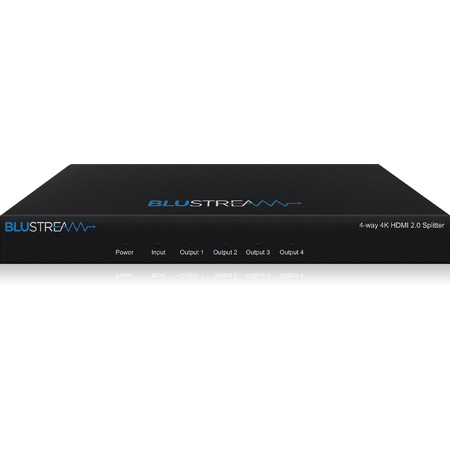

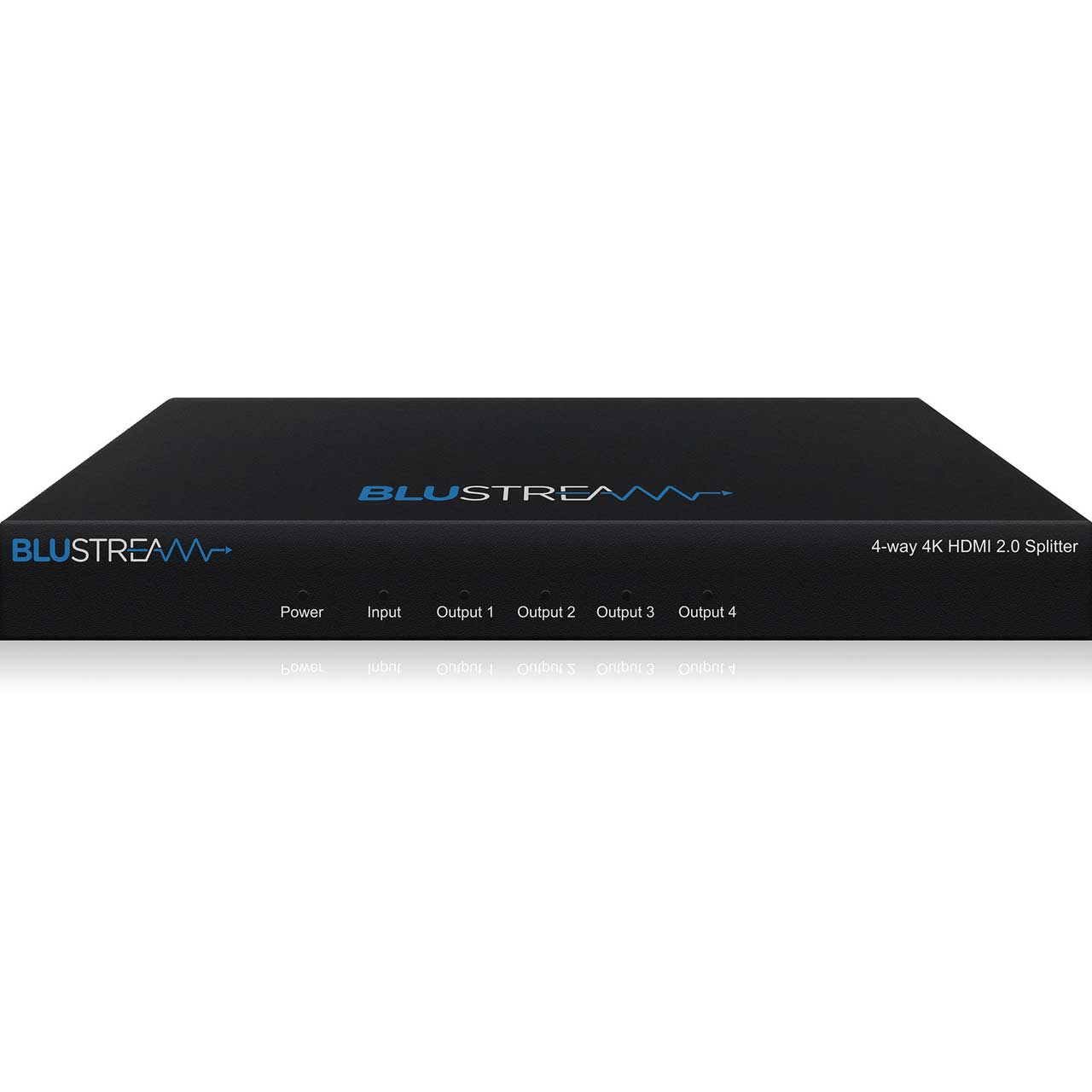

The Blustream SP14AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4

  • Features:

    • Features 1 x HDMI input that is replicated to 4 x HDMI outputs
    • Supports HDMI 2.0 18 Gbps specification including HDR
    • Supports up to 4K UHD 60Hz 4:4:4
    • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
    • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
    • HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently
    • Advanced EDID management
    • HDCP2.2 Support

  • Specifications:

    • Video Input Connectors: 1 x HDMI Type A
    • Video Output Connectors: 4 x HDMI Type A
    • EDID: 4-PIN DIP switch
    • Audio Output Connectors: 1 x RCA (S/PDIF), 1 x Analog audio L/R (3.5mm stereo Jack)
    • Dimensions (W x D x H): 203mm x 84mm x 23mm , without feet
    • Shipping Weight: 0.5kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
    • Power Supply: 5V/2A DC

  • Item Includes:

    • 1x SP14AB-V2
    • 1x 5V/2A DC power supply
    • 1x Quick Reference Guide

  • Warranty:

    • 3 Year Warranty

  • GTIN:

    9340242002709
