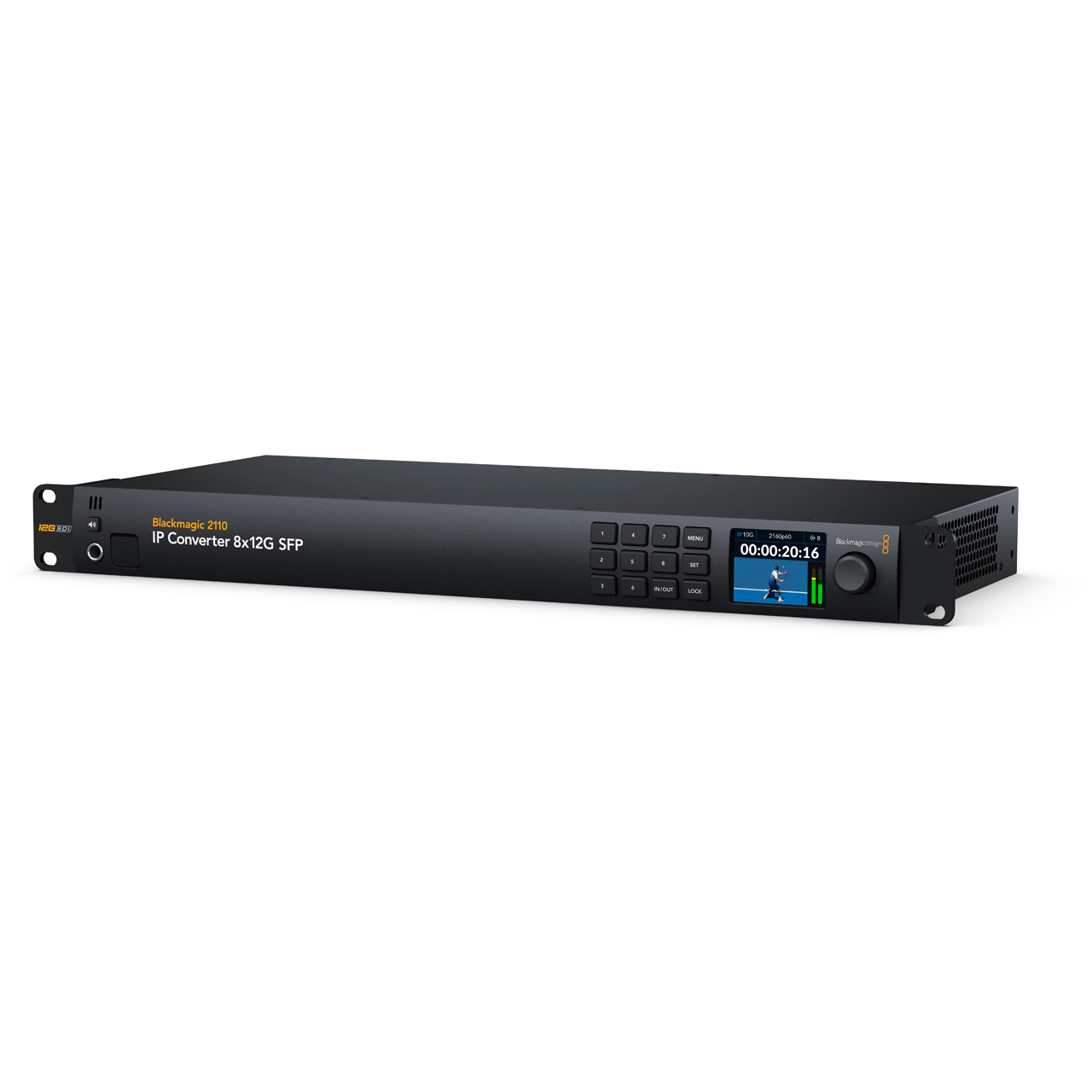

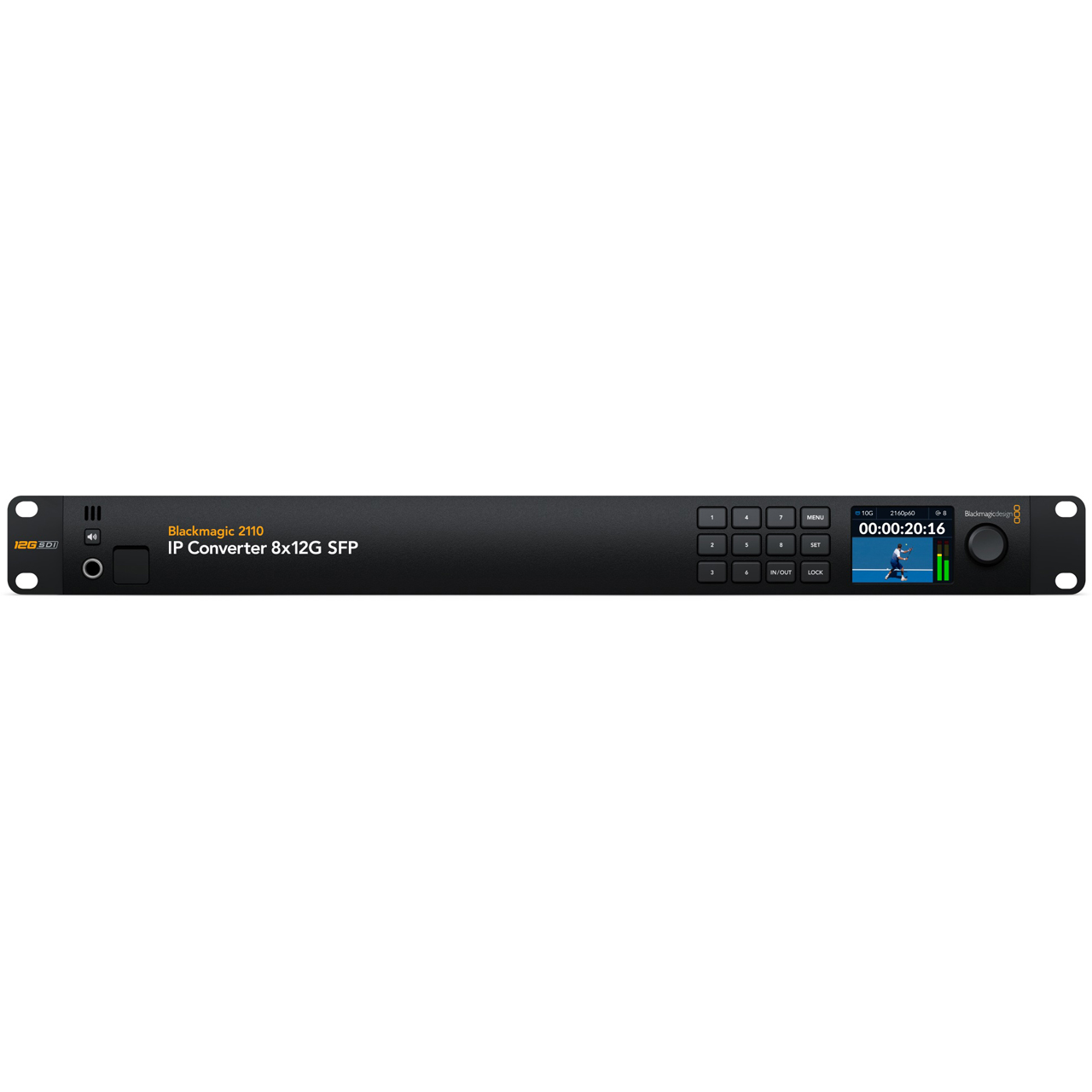

Blackmagic Design CONVNVIPC8/12GSFP 2210 IP Converter 8x12G SFP - Add SMPTE-2110 UP Video to 12G-SDI Broadcast Equipment

CONVNVIPC8/12GSFP - Overview

• Features:

  • All converters conform to the SMPTE-2110 IP video standard.
  • Choose between Mini Converter or rack mount models.
  • Uses readily available 10G Ethernet for low cost installation.
  • Re-syncs SDI inputs to a common PTP clock.
  • Includes NMOS Protocol for building a virtual router.
  • Low latency, open standard Blackmagic IP10 codec.
  • Supports all SD, HD and Ultra HD formats up to 2160p60.


• Specifications:

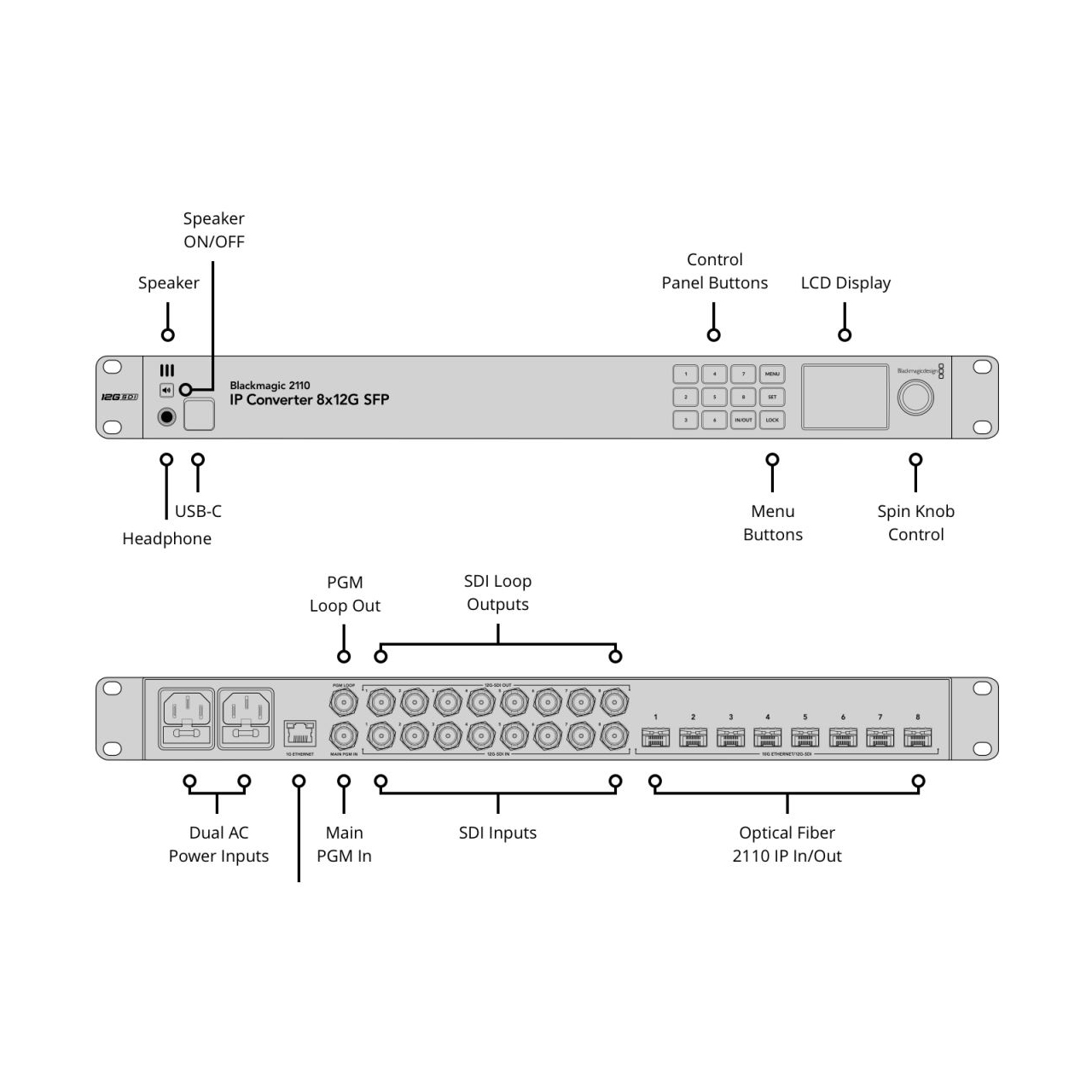

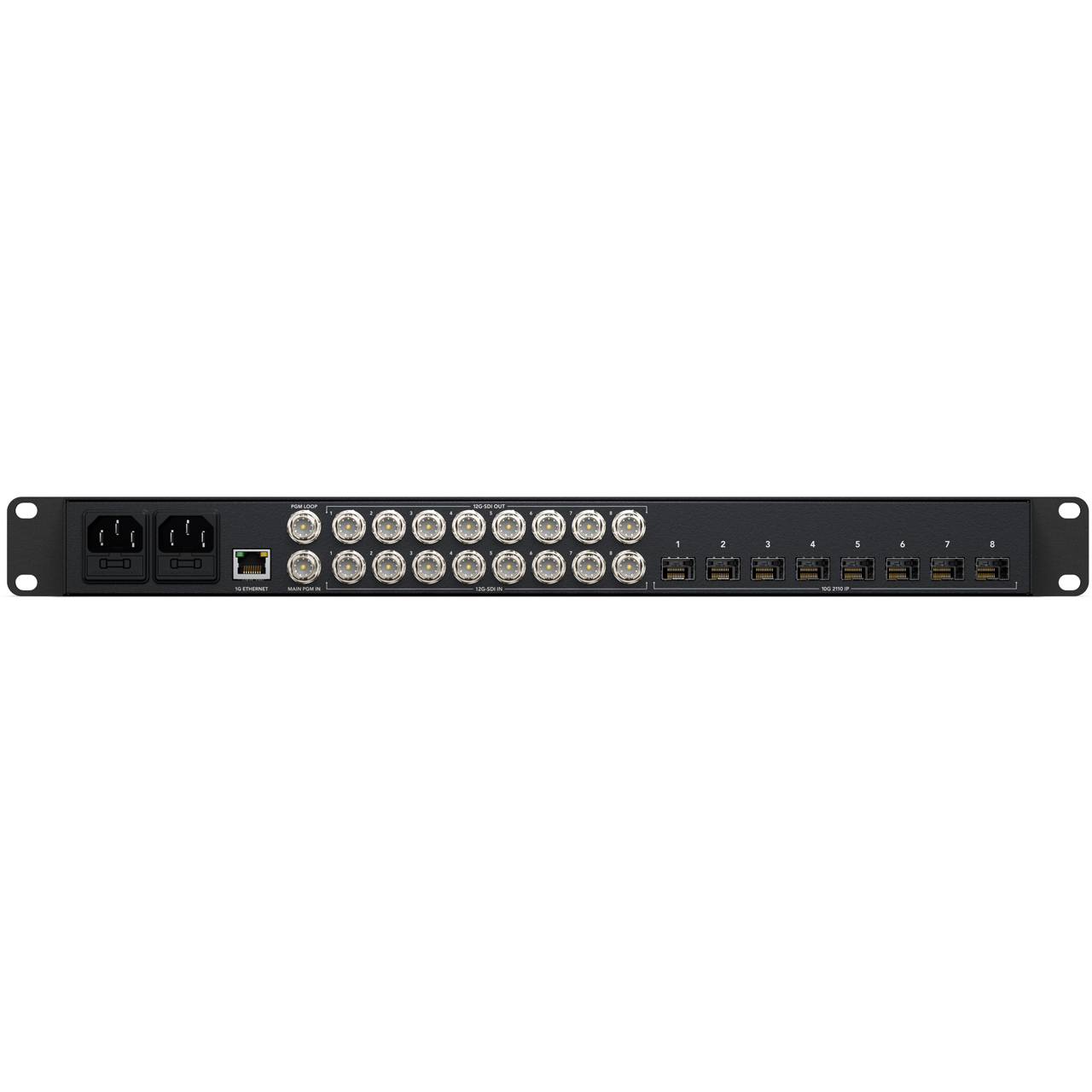

  • Connections
  • Total SDI Inputs: 9
  • SDI Video Inputs: 8
  • SDI Main Program Inputs: 1
  • SDI Video Outputs: 8
  • SDI Main Program Outputs: 1 Loop Out
  • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
  • SMPTE ST-2110 IP Video Inputs/Outputs: 8x 10G Ethernet
  • Analog Audio Outputs: 1x 6.35 mm headphone socket
  • SDI Audio Inputs: 16 Ch embedded audio on SDI input
  • SDI Audio Outputs: 16 Ch embedded audio on SDI loop output
  • SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet
  • SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet
  • Analog Audio Outputs: 1x 6.35 mm headphone socket
  • Multi Rate Support: Auto detection of SD, HD, Ultra HD and 4K
  • Reclocking: Yes
  • Ethernet: 8x 10Gb/s SFP sockets supporting up to 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out
  • Computer Interface: 1x USB-C 3.0 for configuration and firmware updates

    SDI Video Standards
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30
  • 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
  • SDI Video Rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output

    IP Video Compliance
  • SMPTE 2110-20 (Uncompressed Video): IGMP v2
  • SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
  • SMPTE 2110-30 (PCM): Audio Conformance level: Level C
  • SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata
  • Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video
  • Precision Time Protocol: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
  • NMOS IS-04 Discovery and Registration: v1.3.2, Peer-to-peer via mDNS/DNS-SD
  • NMOS IS-05 Connection Management: v1.1.2
  • NMOS BCP-002-01: Natural Grouping
  • NMOS BCP-004-01: Receiver capabilities

    Operating Systems:
  • Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11

    Power Requirements
  • Power Supply: 2x Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.

    Environmental Specifications
  • Operating Temperature: 41°F to 104°F (5°C to 40°C)
  • Storage Temperature: -4°F to 113°F (-20°C to 45°C)
  • Relative Humidity: 0% to 90% non-condensing


• Item Includes:

  • 1x Blackmagic Design 2210 IP Converter 8x12G SFP


• Warranty:

  • 1-Year Limited Warranty


• GTIN:

  9338716009149
