    CONVNVIPA3/3G - Overview

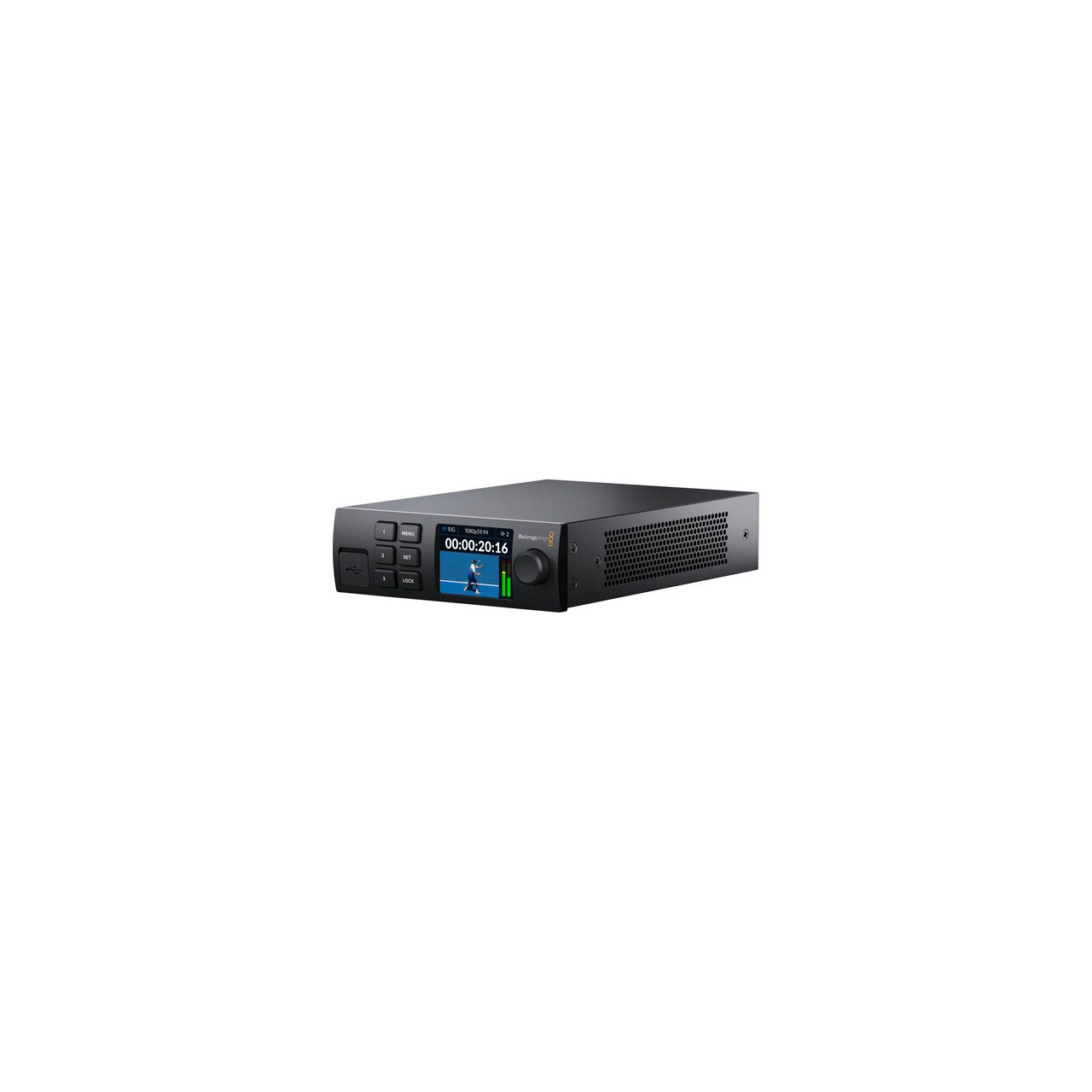

    The Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That's because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There's also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!

    • Specifications:

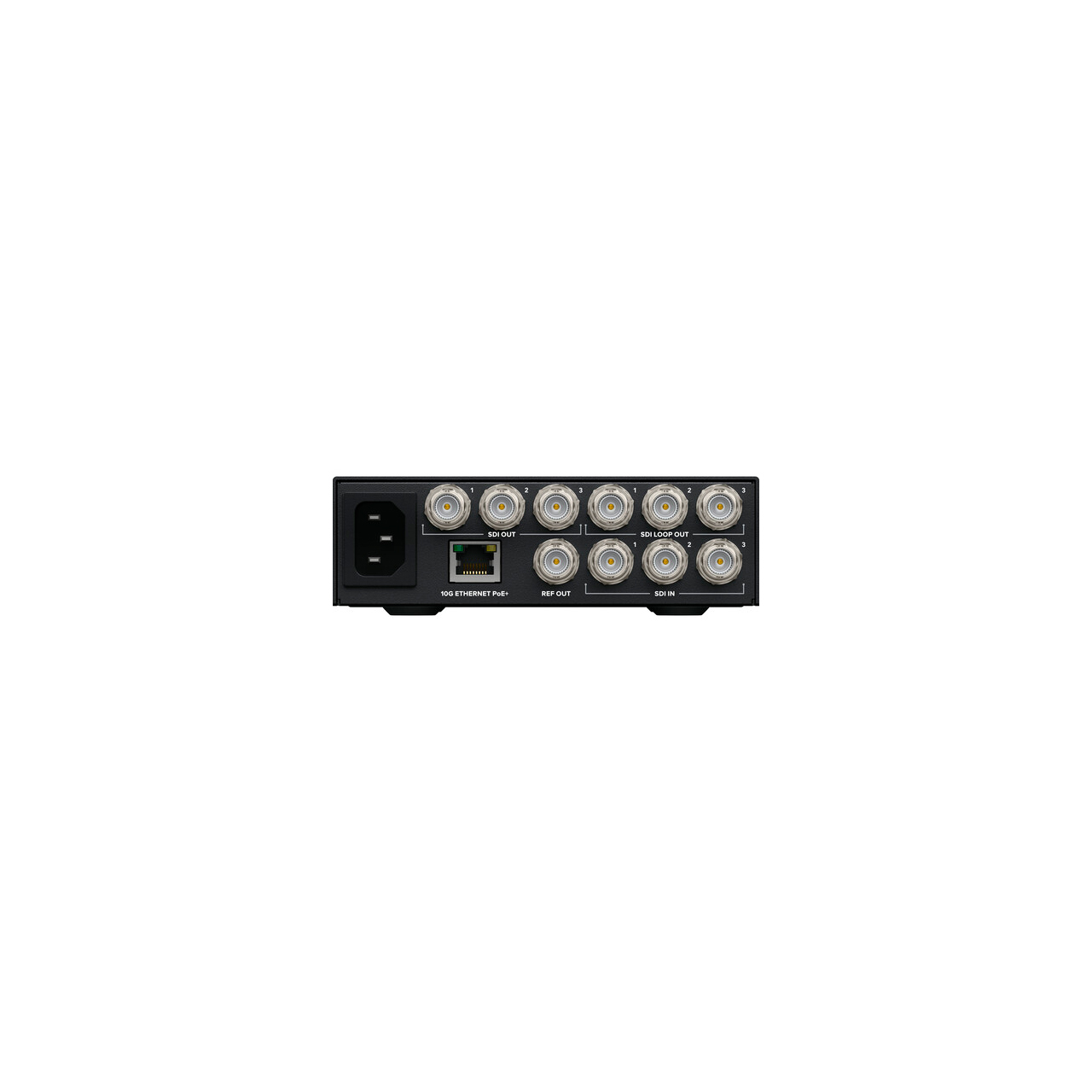

      • Connections
      • SDI Inputs: 3
      • SDI Loop Outputs: 3
      • SDI Outputs: 3
      • SDI Audio Inputs: 16 channels embedded audio
      • SMPTE 2110 Input / Output: 10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data
      • 10G Ethernet Port: 1 x 10Gb/s PoE+ RJ-45 connector supports 10/100/1000/10G BASE-T
      • Reference Output: Tri-Sync or Black Burst
      • Computer Interface: USB-C for updates, configuration and control

        Video Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and level B, ITU-R BT.656, ITU-R BT.601.
      • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
      • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
      • Color Precision: 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
      • Color Space: REC 601, REC 709

        IP Video Compliance
      • SMPTE 2110-20 (Uncompressed Video): IGMP v2
      • SMPTE 2110-21 (Traffic Shaping): Sender: Narrow, Receiver: Narrow, Wide Synchronous, Asynchronous
      • SMPTE 2110-30 (PCM): Audio Conformance level: Level C
      • SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
      • Precision Time Protocol: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
      • NMOS IS-04 Discovery and Registration: v1.3.2, Peer-to-peer via mDNS/DNS-SD
      • NMOS IS-05 Connection Management: v1.1.2
      • NMOS BCP-002-01: Natural Grouping
      • NMOS BCP-004-01: Receiver capabilities

        Control

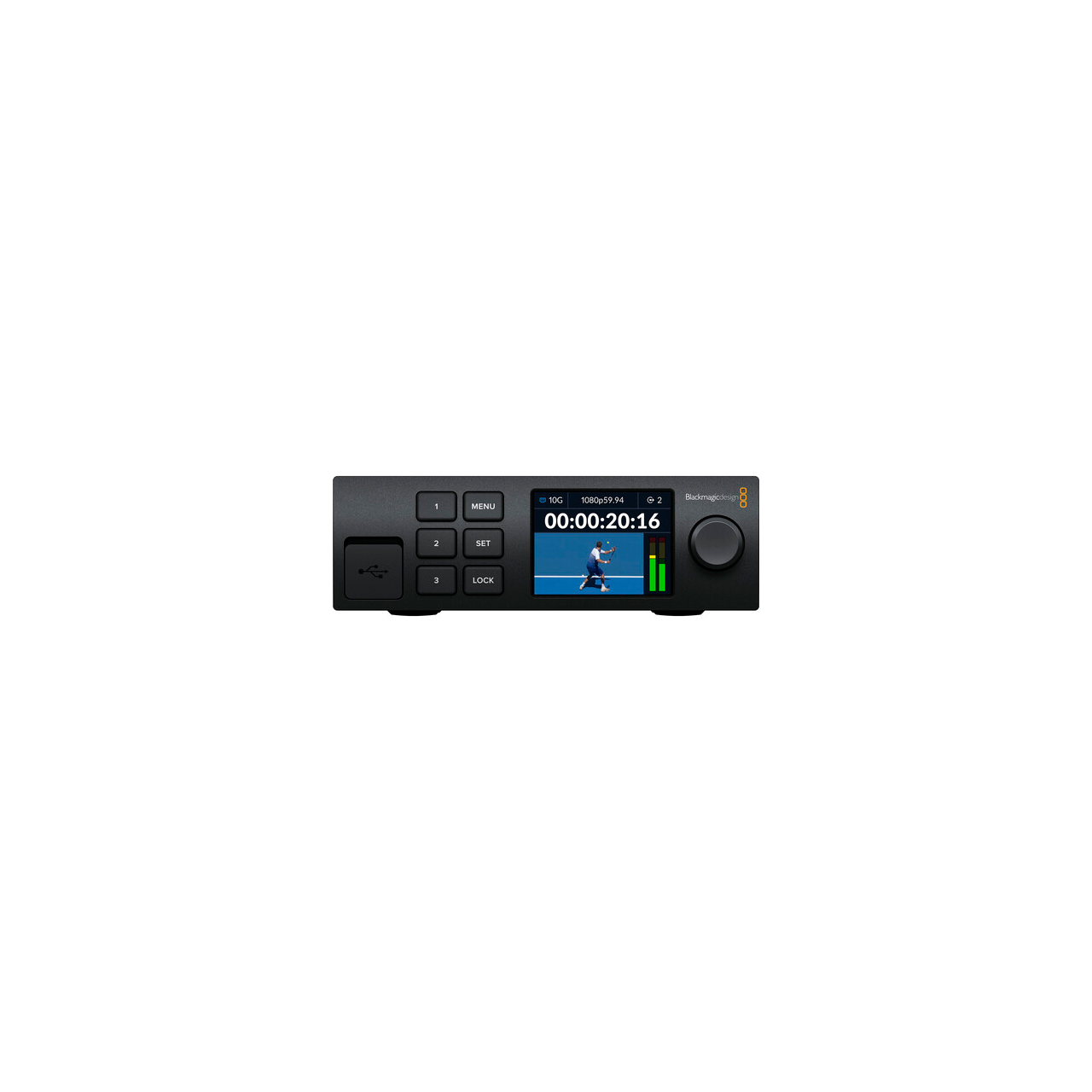

      • Built in Control Panel: 6 buttons with spin knob control and 2.2 inch color display for device control and menu settings
      • External Control: RJ-45 10Gb/s Ethernet and USB-C

        Display
      • Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings

        Operating Systems
      • Mac 12.0 Monterey, Mac 13.0 Ventura or later
      • Windows 10, 64-bit. Windows 11
      • Linux

        Power Requirements
      • Power Supply: 1 x Internal 100 - 240V AC 50/60Hz
      • Power Inputs: 1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE power supplies

        Environmental
      • Operating Temperature: 32° to 104° F
      • Storage Temperature: -4° to 140° F
      • Relative Humidity: 0% to 90% non-condensing

    • Item Includes:

      • 1x Blackmagic 2110 IP Converter 3x3G

    • Warranty:

      • 1 Year Limited

    • GTIN:

      9338716008395
