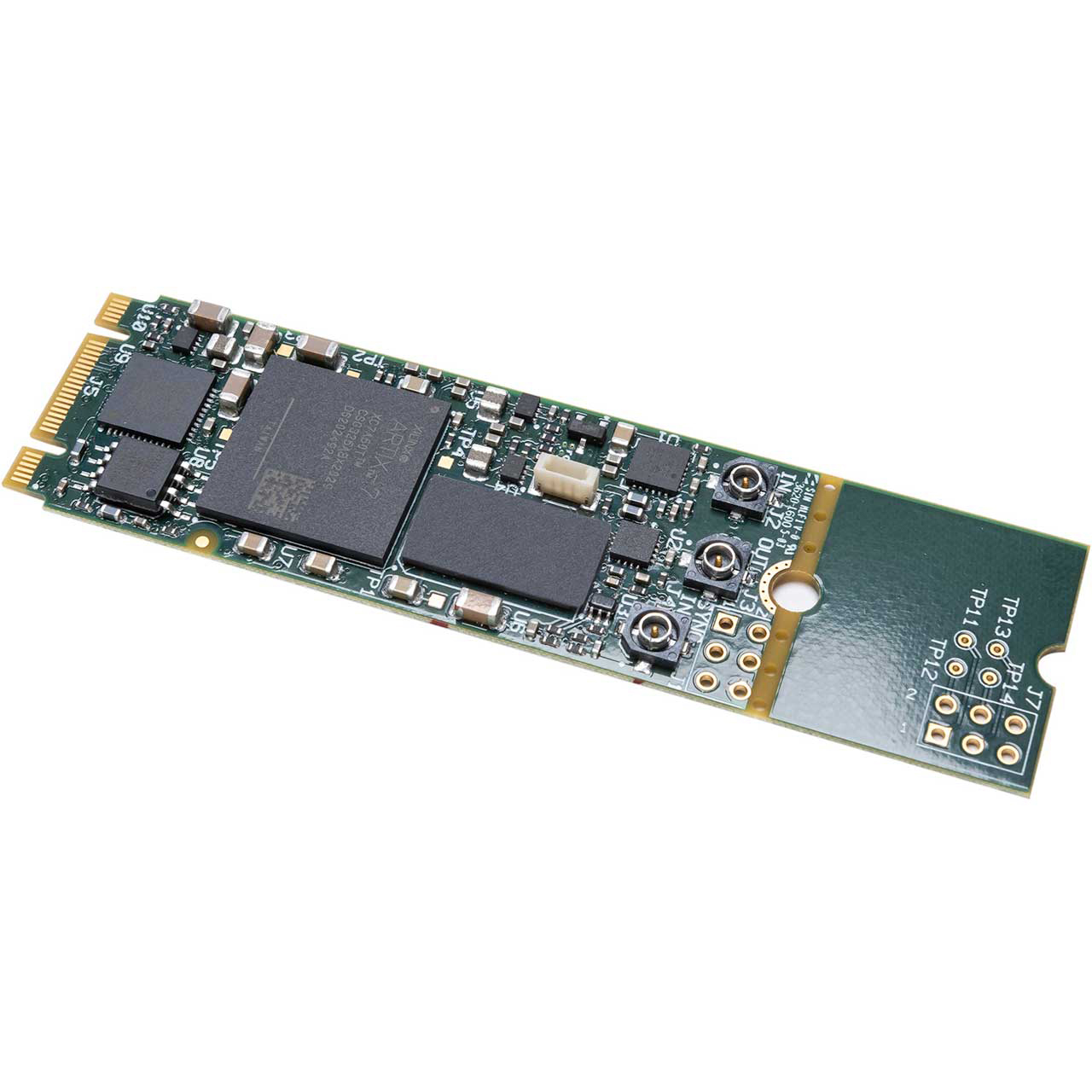

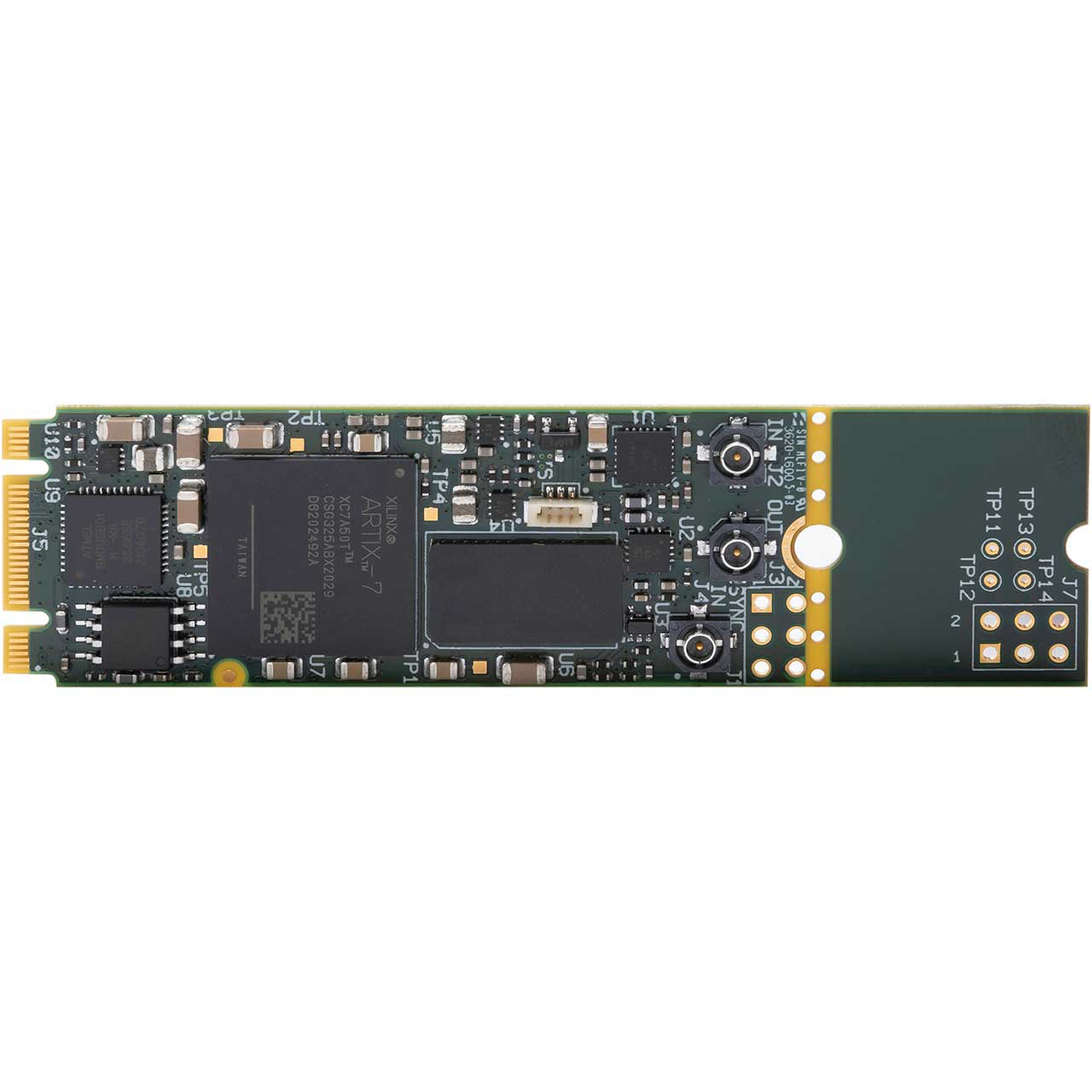

Blackmagic Design BDLKMICROSDI DeckLink Micro Miniature M.2 Capture Card with 3G-SDI - SD & HD - B-Stock (Used/Warranty)

BMD-DLKMICROSDBS - Overview

• Specifications:

  • Connections: M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL

    HD Video Standards
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  • 1080i50, 1080i59.94, 1080i60


  • SDI Video Sampling: 4:2:2, 4:4:4
  • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601.

    Operating Systems
  • Windows 8.1 and 10, both 64-bit.
  • Linux


  • Power Requirements: Power Consumption: 4.03W (max)
  • EMC Certifications: EMC, FCC, CE, C-Tick and KCC

    Environmental Specifications
  • Operating Temperature: -25°C to 55°C (-13°F to 131°F)
  • Storage Temperature: -40°C to 75°C (-40°F to 167°F)
  • Relative Humidity: 0% to 90% non-condensing


• Item Includes:

  • 1x DeckLink SDI Micro
  • 1x Fan and Heat Sink assembly


• Warranty:

  • 3 Year Limited
