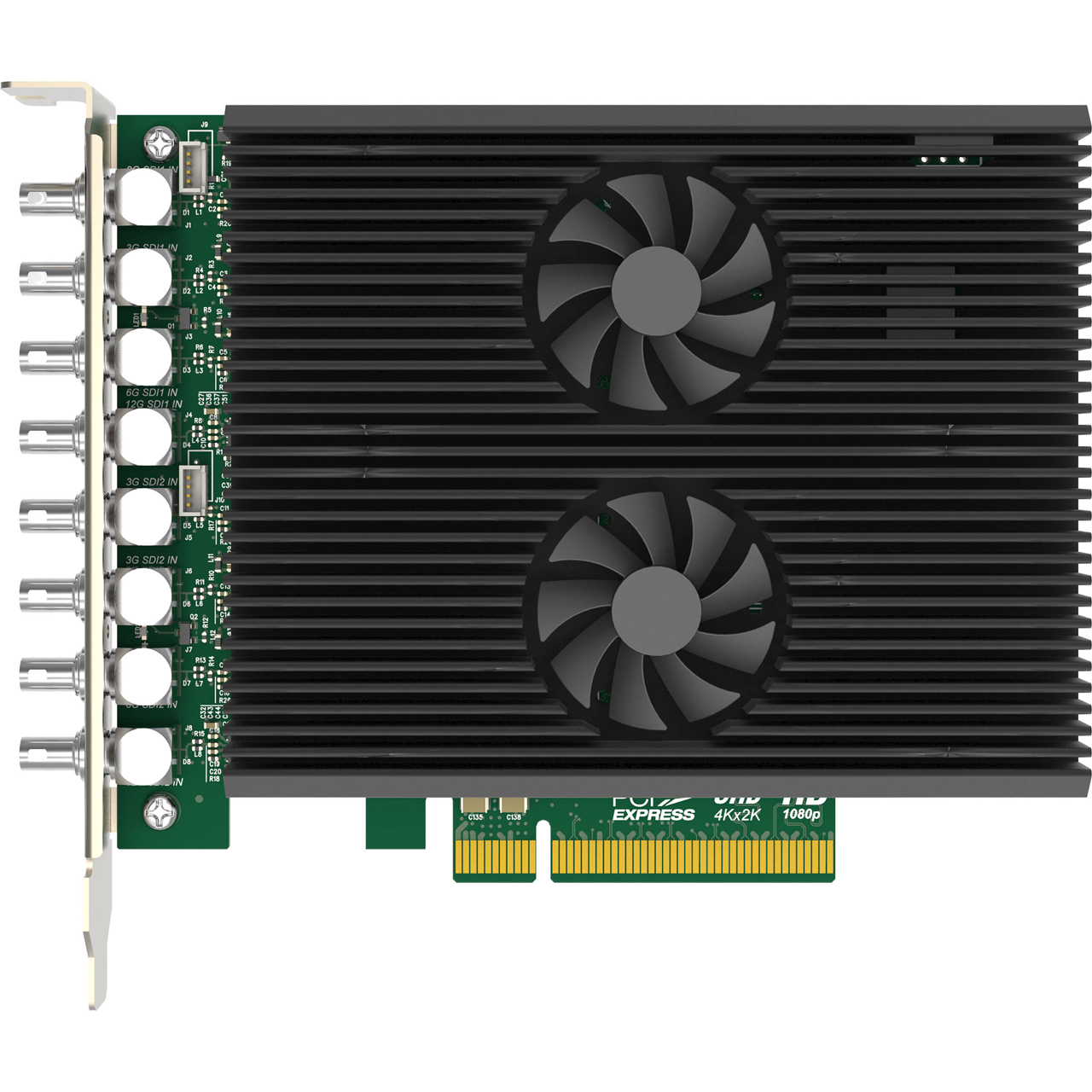

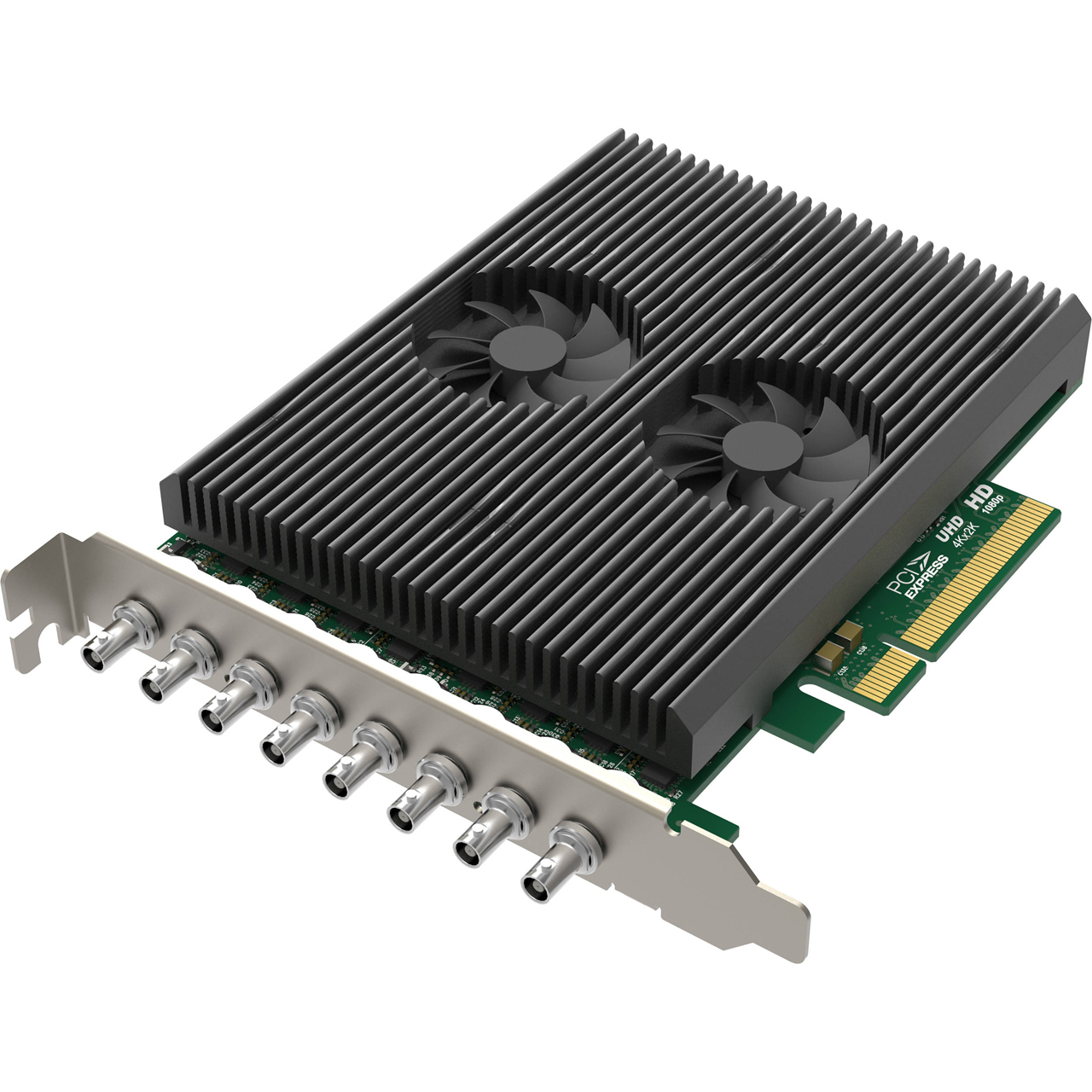

Magewell 11270 Pro Capture Dual SDI 4K Plus Two-Channel PCIe Gen2 x8 4K Capture Card

11270 - Overview

• Features:

  • Two video processing pipelines with 720 megapixels per second processing bandwidth for each one
  • Full 10-bit video processing
  • Video cropping
  • Video scaling
  • Video deinterlacing (weave, blend top/bottom field, top field only, bottom field only)
  • Auto or manual selection of input aspect ratio
  • Auto or manual selection of capture aspect ratio
  • Three aspect ratio conversion modes: Ignore (anamorphic), Cropping, or Padding (letterbox or pillarbox)
  • Auto or manual selection of input color format and quantization range
  • Auto or manual selection of capture color format, quantization range, or saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 color formats
  • Support for limited or full quantization range
  • Support for limited, full, and extended gamut saturation range
  • Video frame rate conversion
  • Support for PNG OSD images (up to 4096 x 2160)
  • Support for dynamic loading of RGBA OSD images via SDK
  • Support for multiple cards plugged into one system
  • On-board rotary switch to set the card number, with 16 positions from 0 to F
  • System hardware device tree will display "01: Pro Capture Dual SDI 4K+" when the rotary switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)


• Specifications:

  Input

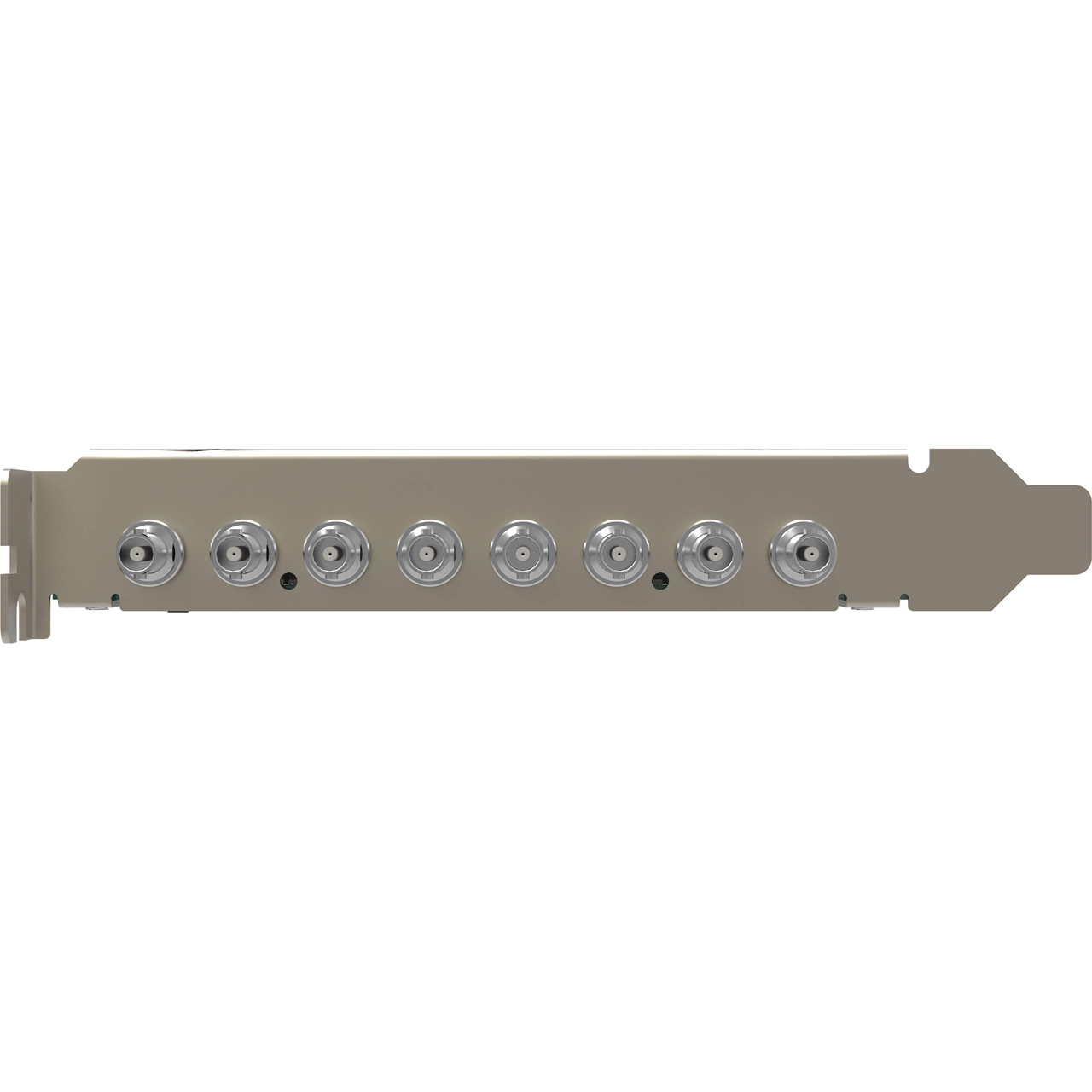

  • 8x HD-BNC:
    - 2x BNC (12G-SDI)
    - 2x BNC (6G-SDI)
    - 4x BNC (3G-SDI)
  • Input video resolutions up to 4096 x 2160
  • Four connectors are compatible with 3G/HD/SD-SDI
  • Two connectors are compatible with 6G/3G/HD/SD-SDI
  • Two connectors are compatible with 12G/6G/3G/HD/SD-SDI
  • Auto-detection of single-link, dual-link, and quad-lin
  • Broadcast System Compatibility: NTSC

    Supported Video Capture Formats
  • Resolutions up to 4096 x 2160
  • Frame rates up to 144 fps (actual capture frame rate can be limited by PCIe bandwidth and image resolution)
  • 4:2:0 8-bit: NV12, I420, YV12
  • 4:2:2 8-bit: YUY2, YUYV, UYVY
  • 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32
  • 4:4:4 10-bit: V410, Y410
  • More capture formats are supported via the Magewell Capture SDK


  • Supported Software: Adobe Flash Media Encoder, Livestream, Microsoft Media Encoder, OBS, Skype, Vahana, VirtualDub, VidBlaster, Video Stitch, VLC, vMix, Wirecast, XSplit
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Operating Humidity: 5% - 90%
  • Storage Temperature: -4°F - 158°F (-20°C - 70°C)
  • Dimensions: 5.04" x 4.06" (128mm x 103mm)


• Item Includes:

  • 1x Magewell Pro Capture Dual SDI 4K Plus
  • 8x HD-BNC to BNC Cable


• Warranty:

  • 2 Year Limited Warranty


• GTIN:

  0814395021188
