    KONA 5 - Overview

    Blazingly fast 8-lane PCIe 3.0 I/O card!

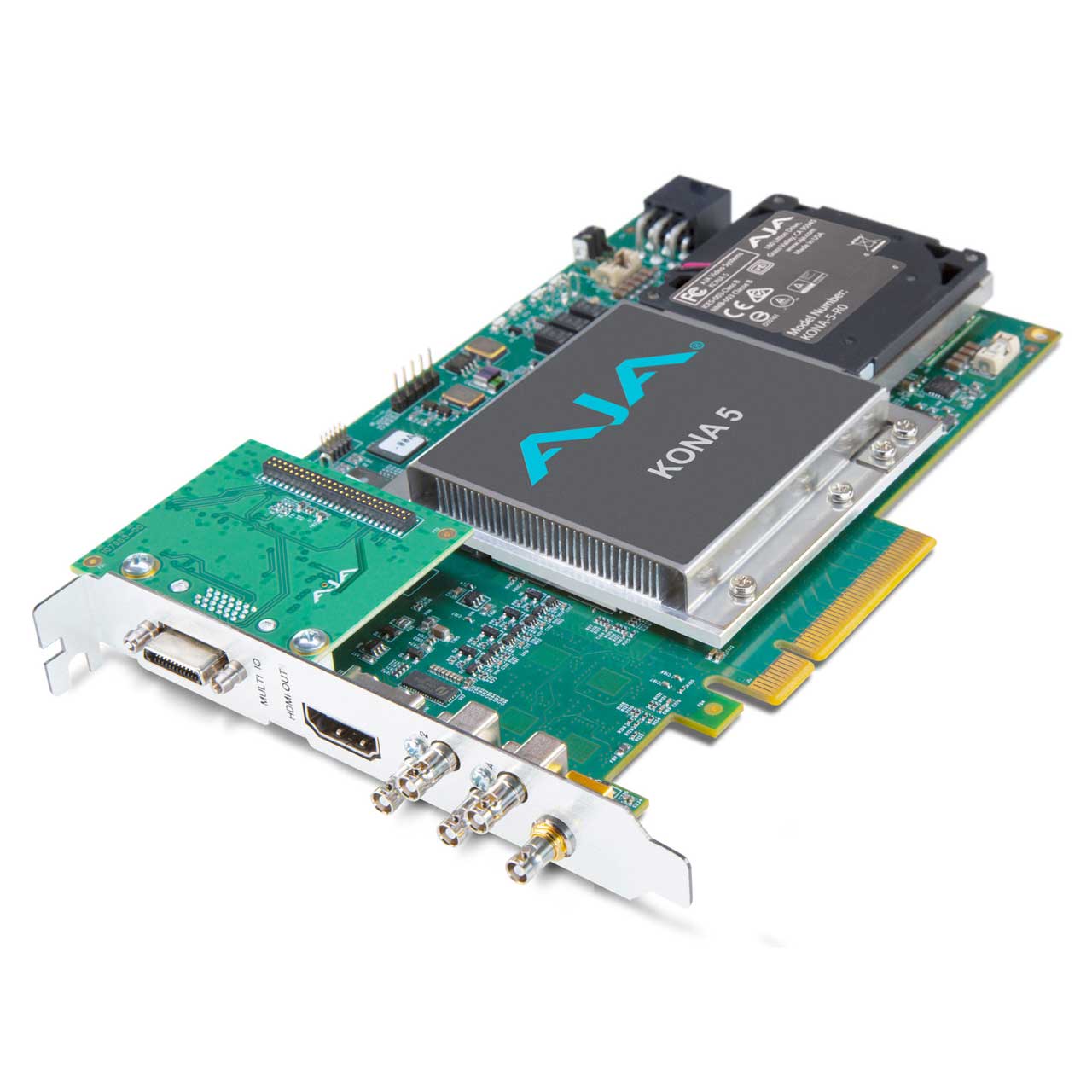

    AJA's KONA-5 is the perfect tool to take command of the most challenging projects using the immense power of the newest member of the KONA product line. KONA 5 is AJA's blazingly fast, 8-lane PCIe 3.0 I/O card, designed for today's most demanding video and audio workflows.

    Whether you are working with HFR 8K/UltraHD2, 4K/UltraHD, 2K/HD, SD, Deep Color and/or HDR, experience the quality and peace of mind that KONA 5 brings to your world. Supporting 10-bit 4:2:2 and 4:4:4, or even 12-bit*(*Application dependent) color spaces for pristine imagery, KONA 5 allows the flexibility to ingest and output with 12G/6G/3G-SDI and monitor with a full-size HDMI 2.0 port. The bidirectional 12G-SDI ports provide immense flexibility for capture and simultaneous pass through, and with the appropriate software, multi-channel capture and streaming.

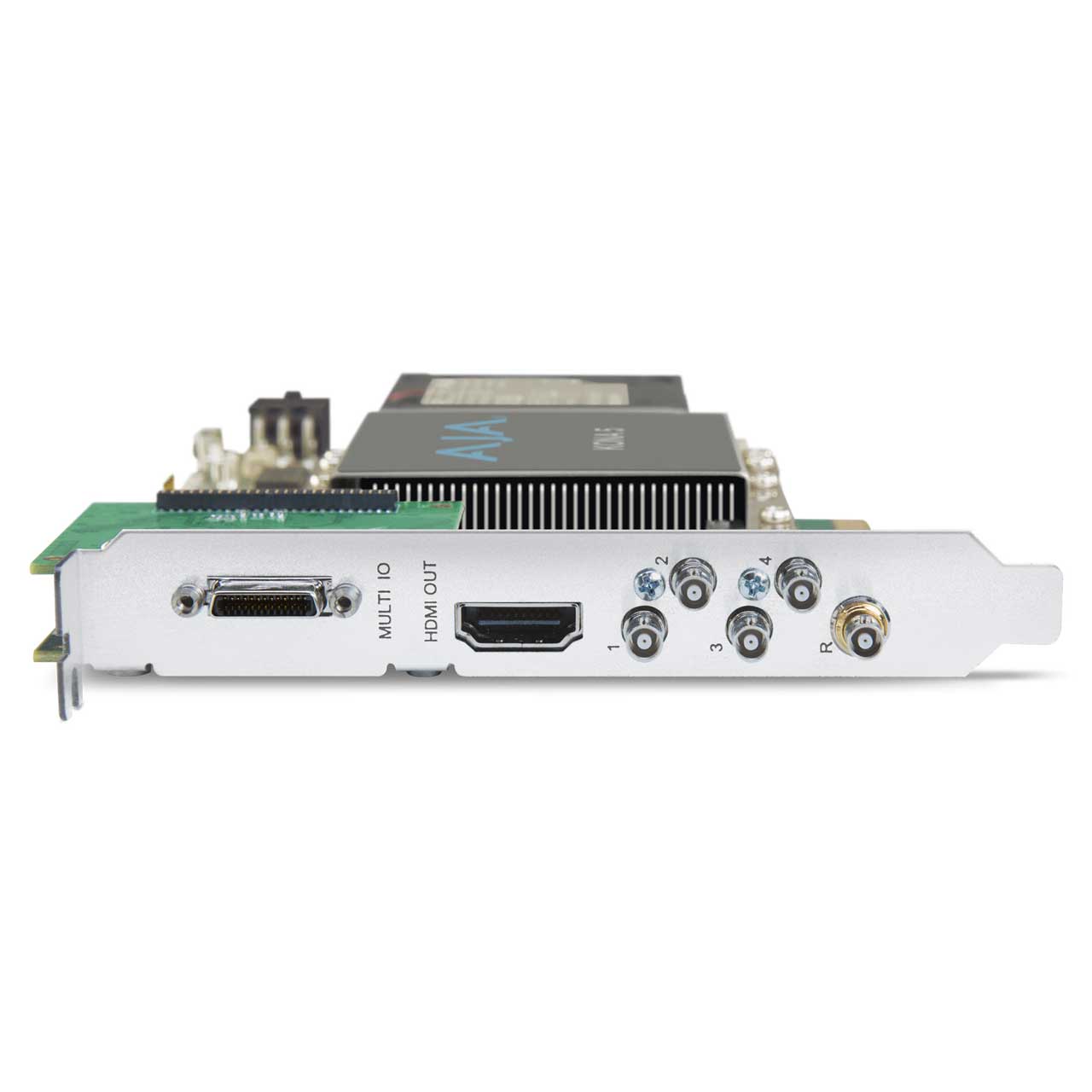

    KONA 5 boasts 4x bidirectional 12G-SDI spigots and a Reference Input directly on the card bracket. The 4x HDBNC SDI connections can be used in a wide variety of configurations to support your creative needs; use four cables simultaneously to support either 8K/UltraHD2 (via 4x 12G-SDI) or 4K/UltraHD (via 3G-SDI), alternatively use a single cable for input and a single cable for simultaneous pass-through/output for either 4K/UltraHD (via 1x 12G-, or 6G-SDI) or HD/2K (via 1x 3G-SDI, or even single/dual link 1.5G-SDI).

    A full-sized HDMI 2.0 connection offers monitoring and output, with HDR, Deep Color and HFR support. Across the board, KONA 5 is the professionals choice for post, broadcast, graphics, virtual sets, pre-viz, live compositing and more.

    • Features:

      • 8K/UltraHD2/4K/UltraHD/2K/HD/SD up to 50/60p
      • 4x bidirectional 12G-SDI spigots with 16-channel embedded audio
      • HDMI 2.0 output, 4K/UltraHD HFR, plus 8K to 4K downsampling
      • RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
      • 8K support for Apple Final Cut Pro, Adobe Premiere Pro and Avid Media
      • Composer, 8K or multi-channel 4K support for OEM applications with AJA SDK
      • Dynamic FPGA Firmware Reconfiguration
      • 4K Closed Caption Support
      • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
      • PQ, HLG, HDR10, HDR10+ and Dolby Vision Support*
      • HDR Metadata Capture and Auto Playback Detection
      • Compatible with leading creative apps
      • Reference Input on card (Analog black burst or Tri-level)

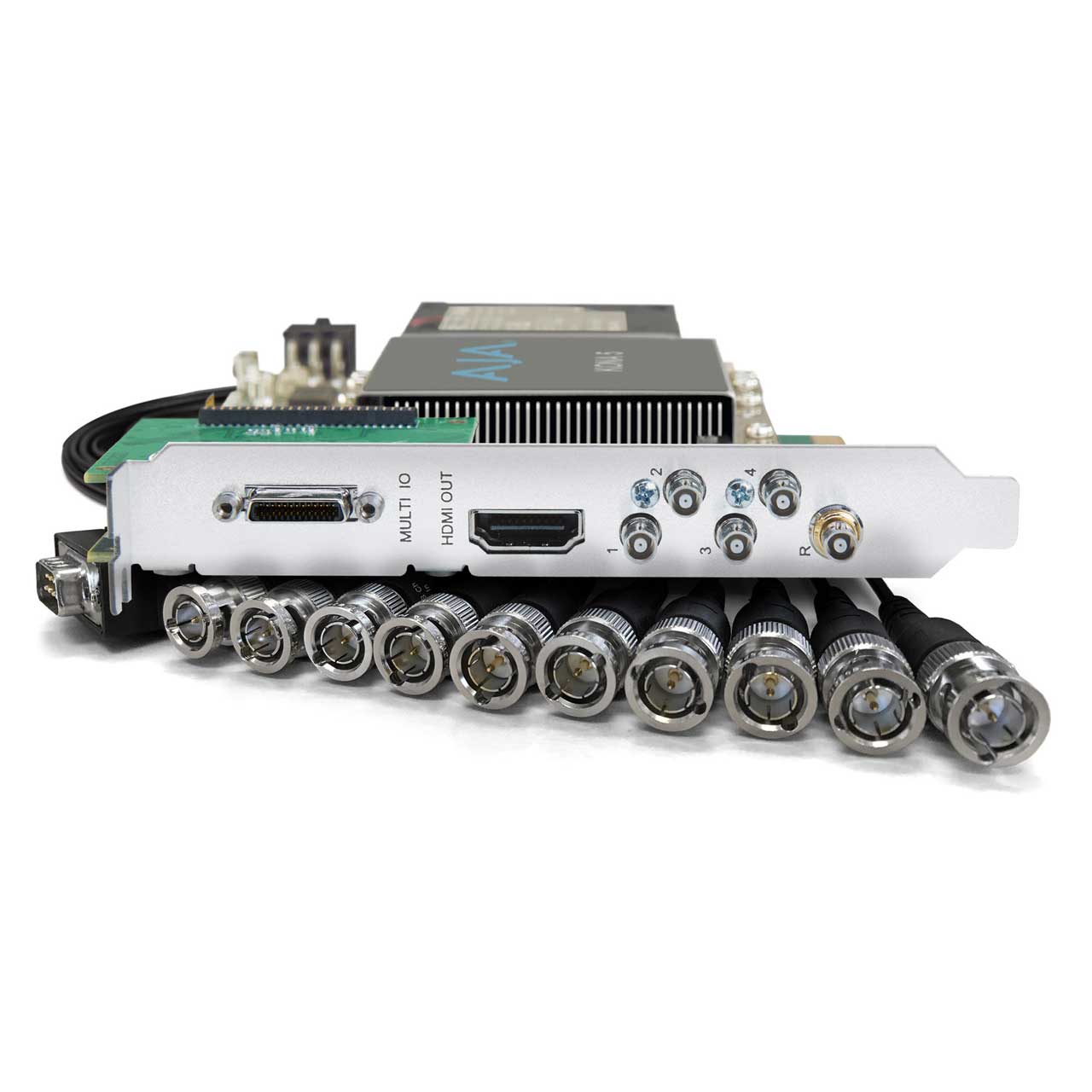

      • Included breakout cable for LTC, RS-422, 8-ch AES/EBU
      • *Dolby Vision support is 3rd party software dependent

    • Specifications:

      • Video Formats
      • (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
      • (UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
      • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
      • (2K) 2048 x 1080PsF 23.98, 24, 25
      • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1080i 50, 59.94, 60
      • (HD) 720p 50, 59.94, 60
      • (SD) 625i 50
      • (SD) 525i 59.94
      • Note: High Frame Rate and 8K/UltraHD2 capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.

        Video Inputs Digital
      • 12G-SDI, SMPTE-2082, 12-bit*, 10-bit
      • 6G-SDI, SMPTE-2081, 10-bit
      • 3G-SDI, SMPTE 425
      • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
      • 1.5G-SDI, SMPTE 292M
      • Single Link HD-SDI YCbCr 4:2:2 10-bit
      • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
      • 270 Mbps SDI, SMPTE 259M-C
      • YCbCr 4:2:2 10-bit, 8-bit
      • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
      • Note: KONA 5 SDI connectors are HD BNC

      • Video Outputs Digital
      • 12G-SDI*, SMPTE-2082, 12-bit*, 10-bit
      • 6G-SDI*, SMPTE-2081, 10-bit
      • 3G-SDI, SMPTE 425
      • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
      • 1.5G-SDI, SMPTE 292M
      • Single Link HD-SDI YCbCr 4:2:2 10-bit
      • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
      • 270 Mbps SDI, SMPTE 259M-C
      • YCbCr 4:2:2 10-bit, 8-bit
      • HDMI v2.0
      • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
      • 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit
      • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
      • Note: KONA 5 SDI connectors are HD BNC

        HDR
      • SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
      • HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
      • HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G
      • Note: HDR support is application dependent. Check with your software manufacturer for compatibility.

        SDI I/O
      • SDI connections are bidirectional
      • 2K/HD, capture and monitoring is simultaneous
      • 4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous.
      • 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output
      • 8K/UltraHD2 with 12G-SDI, connections must be used for either Input or Output.
      • Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UltraHD2/8K formats are supported.

        Audio Inputs Digital
      • 16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
      • 8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

        Audio Outputs Digital
      • 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
      • 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
      • 8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

        Downstream Keyer
      • Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

        Reference
      • Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) (via 1x HD-BNC at PCIe bracket)
      • Reference input is terminated into 75 ohms when Genlock is set to Ref In

        Timecode
      • LTC timecode input and output (via 2x BNC on breakout cable)
      • LTC timecode input (via 2-pin header on PCIe card)
      • LTC timecode input (via HD-BNC at PCIe bracket)

        Electrical Interface
      • 8-lane PCIe

    • GTIN:

      0812321031676
