    D20S - Overview

    The Bolin D20S(12G-SDI) decoder is part of Bolin DanteAV camera system. Over standard Gigabit network, a single-channel networked AV decoder outputs baseband video HDMI 2.0 and/or 12G-SDI, which not only works with Bolin DanteAV PTZ camera but also works with standard DanteAV video device within Dante eco system.

    It transports up to UHD/4K60 4:4:4 video output with ultra low latency and lossless quality. It supports HDCP, plus IP PTZ camera control, embedded audio and control pass-through.

    As part of Dante Audio over IP eco family, using standard Gigabit Ethernet network switches and CAT5e UTP wiring, D Series decoder delivers a high-performance virtual video matrix routing solution for presentation of multimedia, and live camera images, Dante 4k video content application such as demanding conference room and classroom applications.

    Unicast and Multicast for Video Display Routing

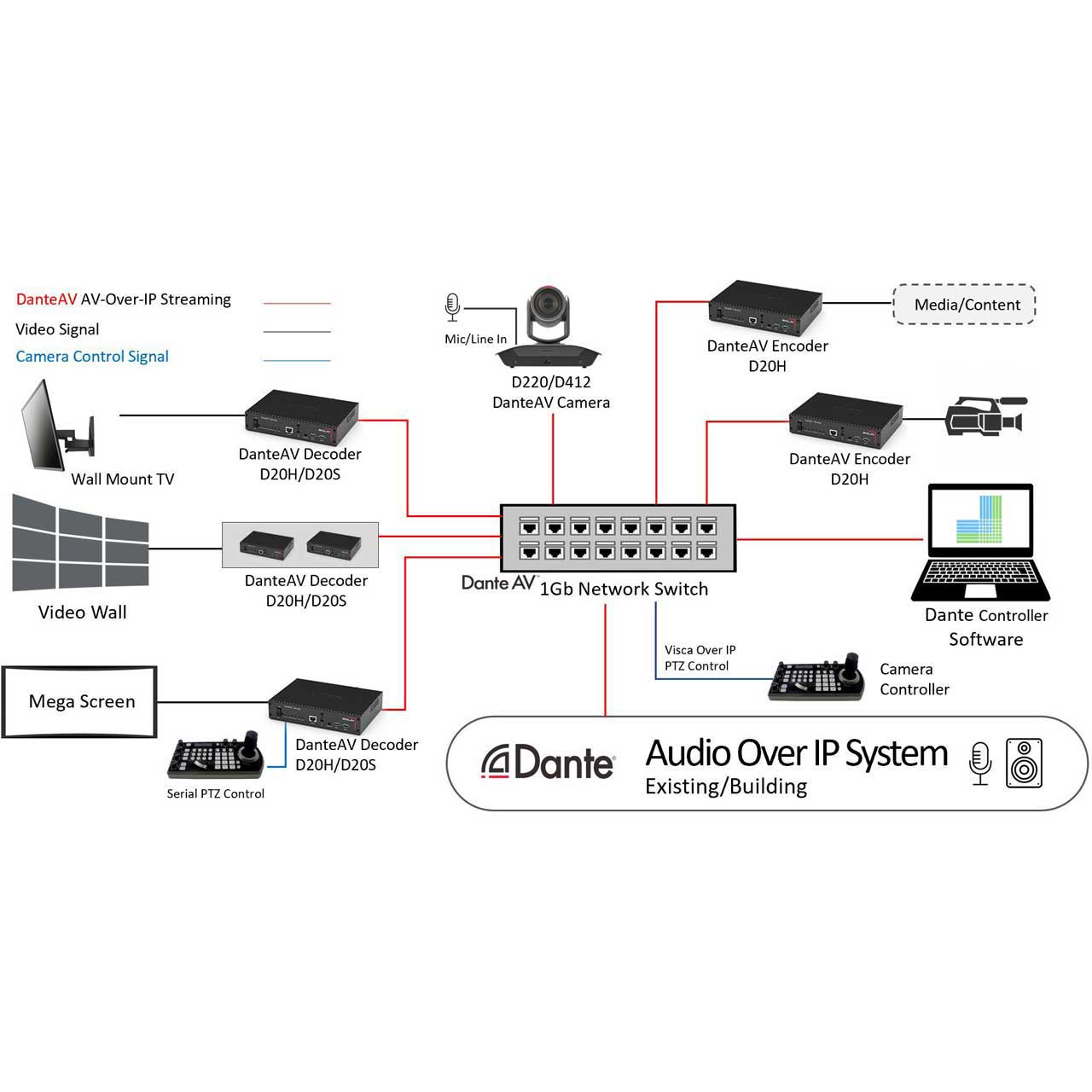

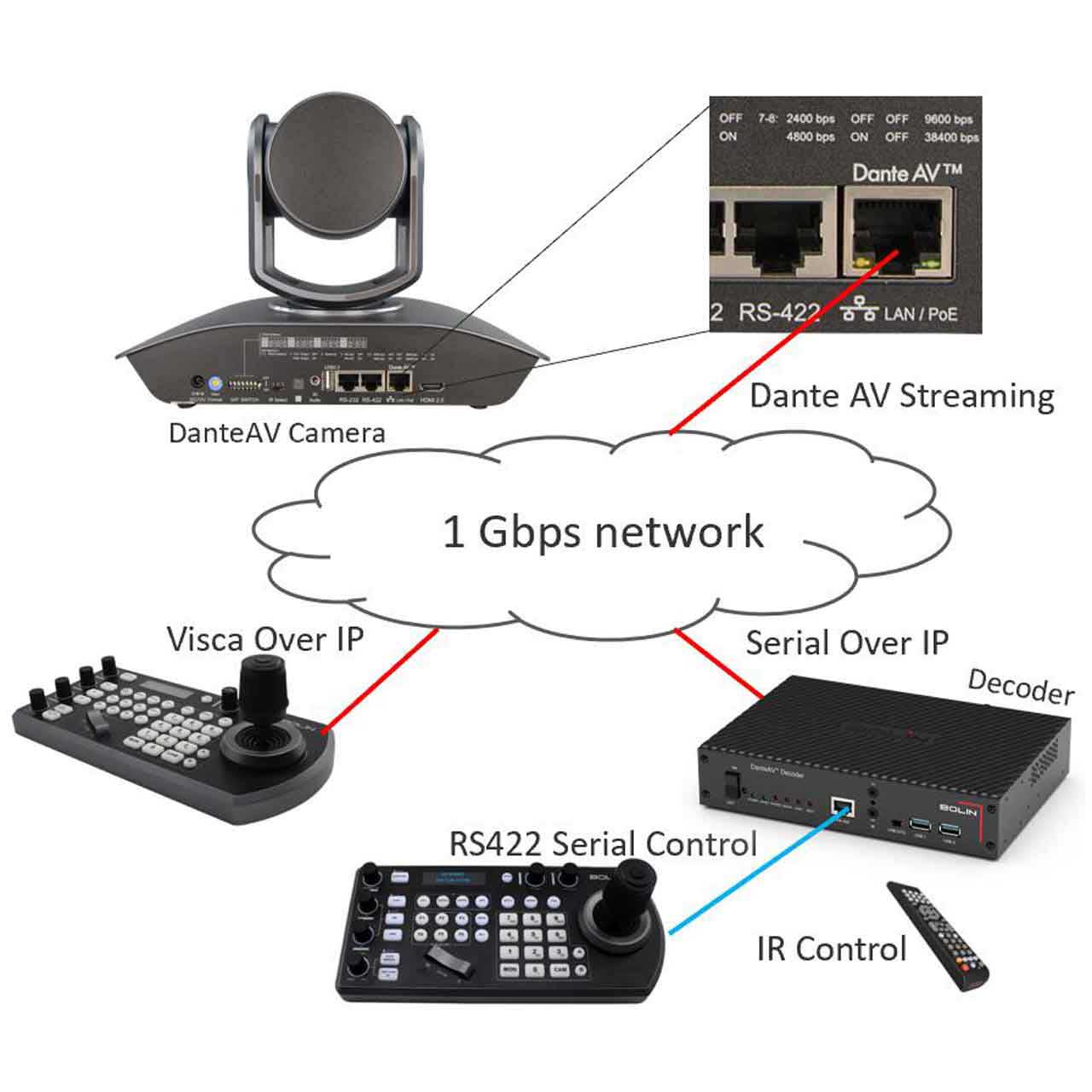

    Paired with Dante AV decoder, it receives the signal from a DanteAV PTZ camera or an encoder and feeds it to a display device via the HDMI and/or 12G-SDI output. Using familiar Dante Controller software, the decoder can quickly and easily switch between multiple DanteAV endpoints including cameras or encoders on the network, with no need for breakouts or matrix switches to unicast or multicast display the video on any number of screens and video router system to use.

    Implementation of HDCP 2.2 Encryption
    Adheres to the latest HDCP 2.2 (HDCP 2.3 for network) specification for High-bandwidth Digital Content Protection. Allows protected content streams to pass between authenticated devices.

    Dante Controller Supported
    Full setup and control and monitoring of the device is enabled through Dante Controller that delivers standard Dante features such as automatic device discovery and system configuration, making network setup a simple plug and play experience.

    Always Up To Date
    Firmware updates, upgrade via Bolin Dante AV software IP interface to keep the decoder features and performance up to date.

    Audio Formats, Dante Audio over IP
    The D20 Series Dante AV Transceiver supports Dante compatible networked audio streams from encoders and audio interfaces. The received Dante audio streaming can be combined with the video and then output via the HDMI output.

    Two Ethernet Ports and POE

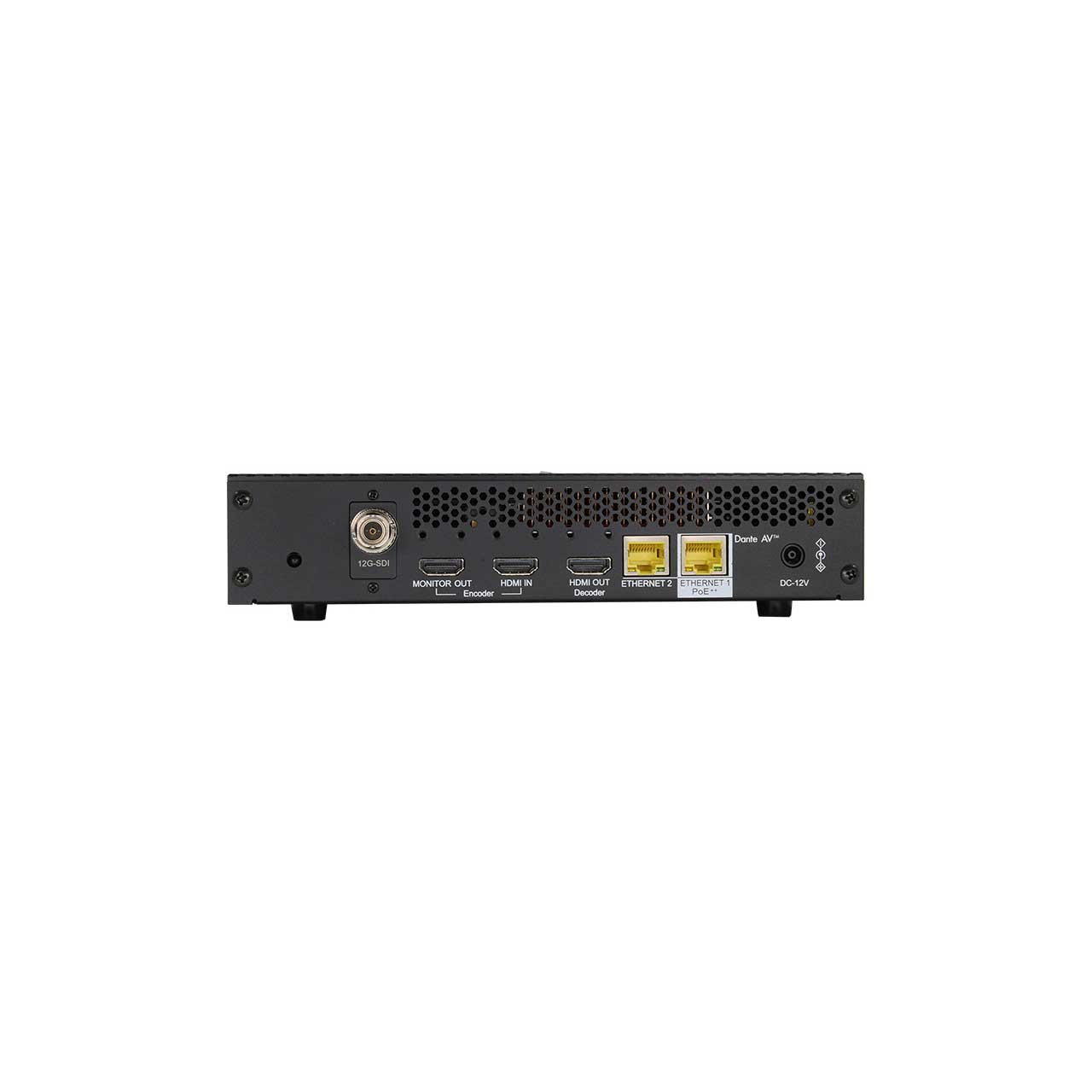

    The D20 Series Dante AV Transceiver includes two RJ-45 1000BASE-T ports can be used to transport video over a Gigabit Ethernet network. Ports 1 for Dante network primary connection and Port 2 can be used to daisy-chain other endpoints. Port 1 is also capable of receiving power via POE++.
