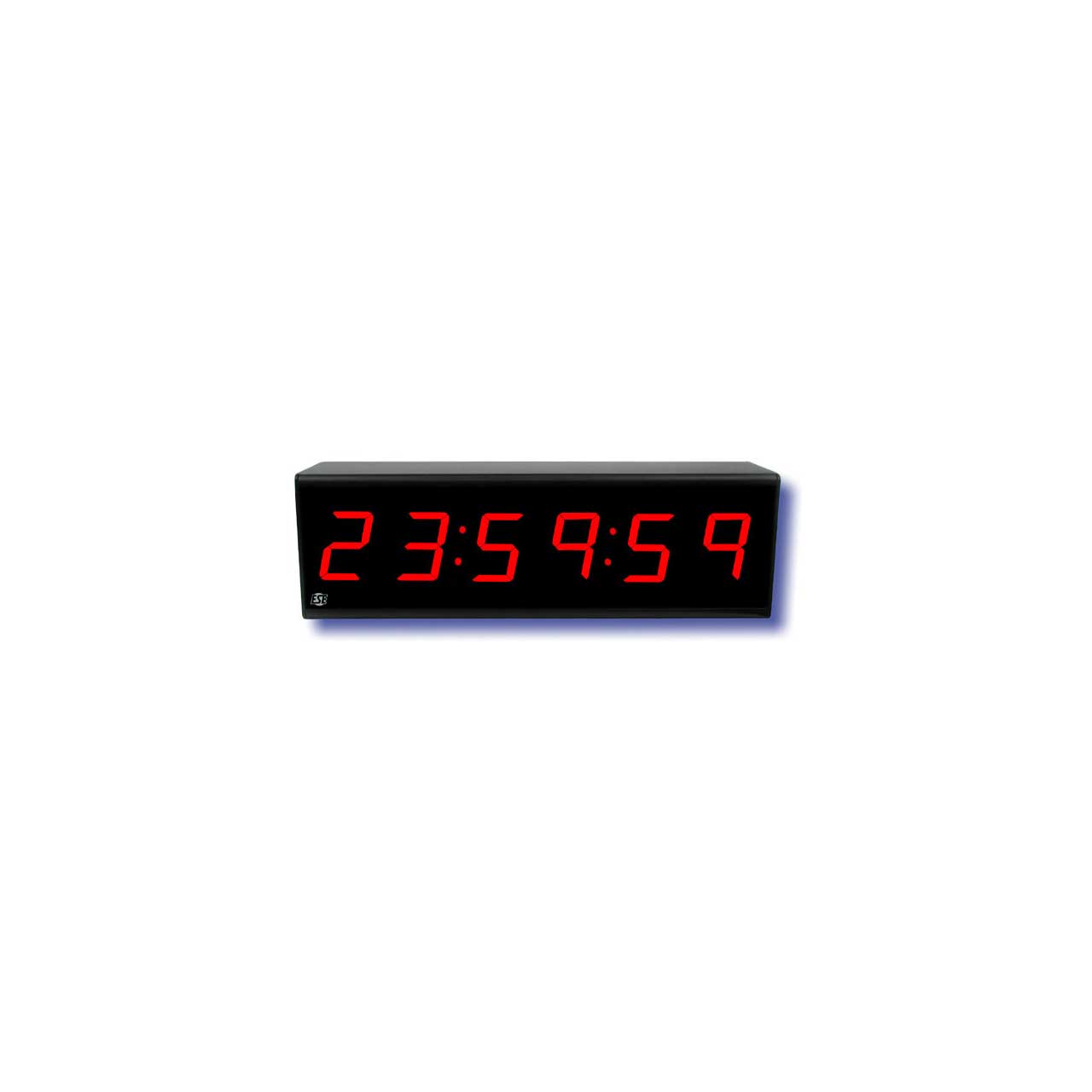

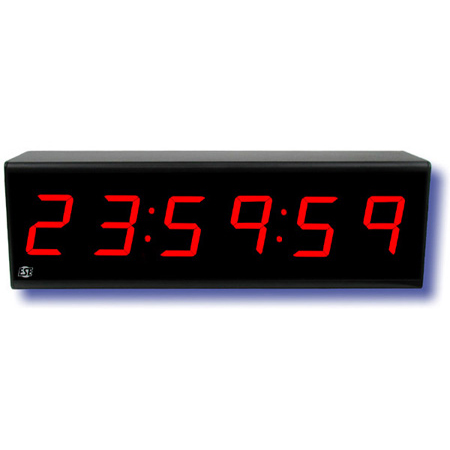

The ES-996U is a Time Code display featuring 2.3" high red LED displays. The unit is housed in a black-textured aluminum wall-mount enclosure (5" H x 15" W x 3.5" D). The unit accepts, via the rear-mounted terminal block (BNC connector on rack-panel units), either ESE Time Code™ (TC76, TC89, or TC90) or SMPTE/EBU Time Code. RS-232C ASCII Time Code (format "0", "1" or "A" at 9600 baud) may be input via the rear-mounted 9-pin connector. The ES-996U will automatically determine which code is being received. A rear-mounted DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A"). If the Time Zone option is ordered, a rear-accessible DIP switch is installed for this function. If receiving ESE Time Code from a timer, the unit will display Minutes, Seconds and Tenths of Seconds (if the timer has the Tenths option).
Included at no charge:
Option 'P' is required
EBU and/or PAL may also be specified
Specify the ES-169B
Not available with option "Wall"
ESE time code output option may be specified if ordering 'NTP' option
Specifying option 'NTP' for the ES-185U or the ES-911/GPS provides an NTP server, option price is $400
'10ns' option must be specified
Custom "DST" available @ $150 on any Master Clock with DST feature
If contact closures at other times are desired, the user can program up to four relay closures using the PC Software, which can be downloaded from the ESE web site. The reed relay is rated at 10 watts maximum resistive load (500 mA switching current) and is intended for control applications only. The relay contacts are accessible on the DB-9 connector.
(J) 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
(K) provides a 10 MHz output and a 1 KHz output. Option '10ns' is required if option 'K' is specified. UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
