Barnfind BTF1-41-SFP16 Extension Module for BTF1-41 - Adds 16 SFP+ Transceiver Ports to 12G Capable BTF1-41 Frame

ITEM #: BRN-BTF1-41SFP16 MFG #: BTF1-41SFP16

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$4,300.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BTF1-41SFP16 - Overview

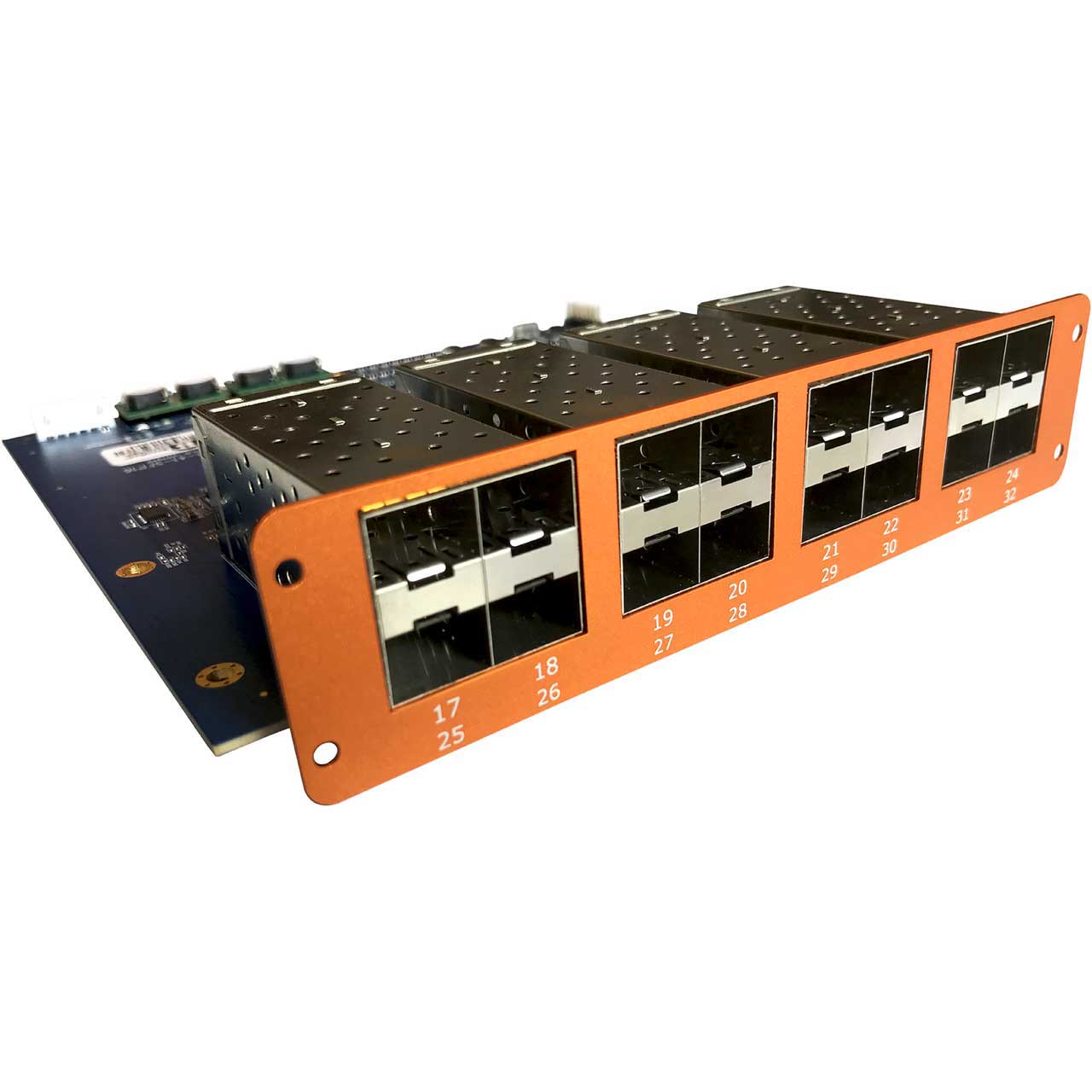

    Barnfind BTF1-41-SFP16 adds 16 SFP cages expanding the BTF1-41 capabilities from 16 to 32 transceiver SFP cages.

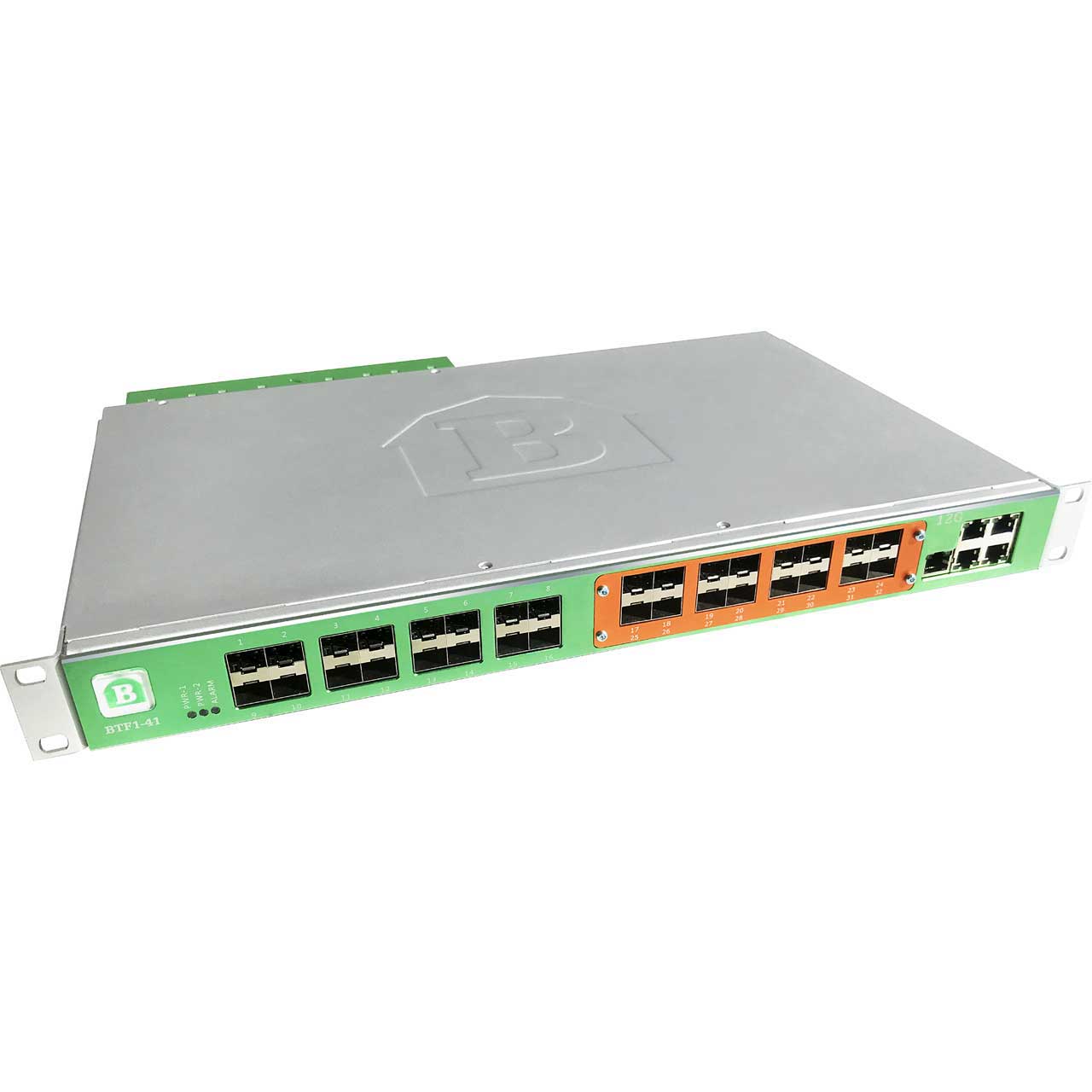

    BTF1-41 was designed to serve Ultra High Definition (UHD) and 4K-DCI applications. Together with the transition to 12Gbps bandwidth per matrix port, the basic layout of the BarnOne series changes to a more flexible and user friendly and flexible design. BTF1-41 is always equipped with16x SFP+ cages connecting to the first set of the internal 32x32 crosspoint matrix. Next to the SFP+ cages, which are arranged in two rows of 8 cages, is an open slot which is in the basic version covered with a blind panel. This slot can house an user
    exchangeable expansion board with 16 bi-directional matrix connections, each handling a bandwidth of 12Gbps.

    • Specifications:

      • SFP ports
      • 16x SFP+ ports (enhanced small formfactor pluggable) for transceivers, MSA and non-MSA compliant, up to 12Gbps
      • SMPTE 259M, 292M, 372M, 424M, 297M, ST 2081, ST 2082, DVB-ASI
      • SFP modules are hot pluggable/swappable
      • Single-mode, multi-mode or media-converter SFP modules
      • Multirate reclocking of outputs 125Mbps - 12Gbps

        Power Supply
      • Provided by BTF1-41 mainframe

    • Item Includes:

      • 1x BTF1-41-SFP-16 extension board for BTF1-41
