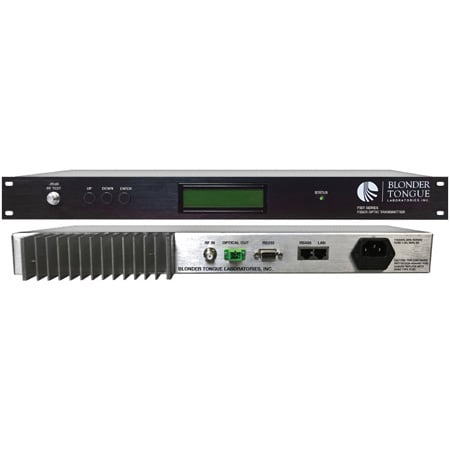

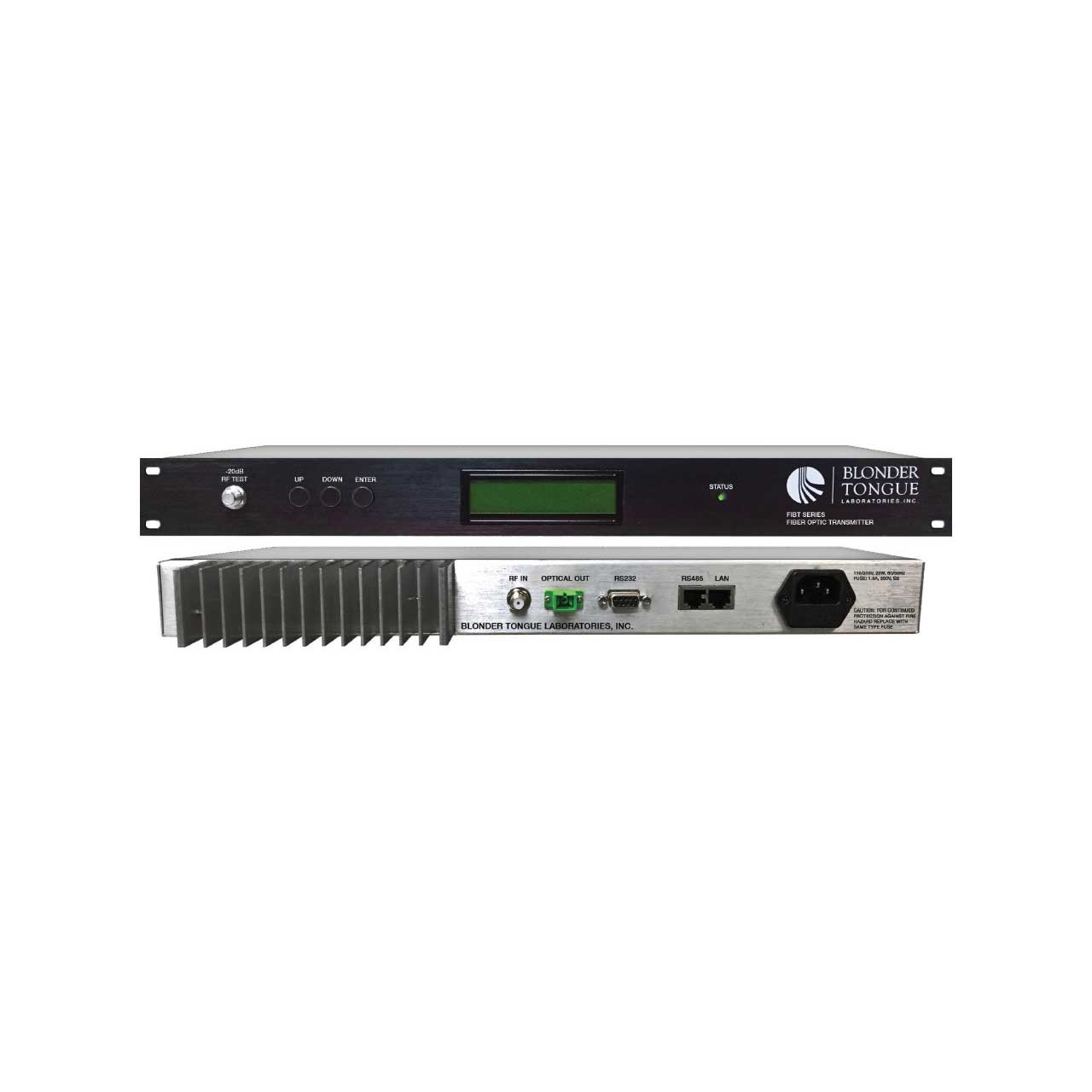

Blonder Tongue FIBT-S3A-106 Fiber Optic Transmitter Single-Mode DFB Laser 45-1218 MHz 1310 nm plus6 dBm Output SC/APC

ITEM #: BT-FIBT-1310-06 MFG #: FIBT-1310-06

free ship

List Price:

$3,193.00

Our Price:

$2,918.98

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    FIBT-1310-06 - Overview

    The Blonder Tongue Laboratories FIBT-1310-06 Fiber Optic transmitter is an ideal solution to seamlessly transport extremely high-speed digital data over single mode optical fiber. The product is specifically designed to transport data streams which maintain conformance with the DOCSIS 3.1 standards and/or were generated utilizing high order quantization techniques, such as QAM 1024, 8PSK, AND COFDM.

    The transmitter is available in power output levels ranging from +3 dBm (2 mW) to +15 dBm (31 mW) to satisfy various system topologies and supports an increased band-edge to 1218 MHz for DOCSIS 3.1 applications.

    The FIBT-1310 is built with a directly modulated DFB laser, providing low noise and high linearity performance. The RF AGC and pre-distortion circuit insures the optimum laser drive level for the best overall CNR, CSO, and CTB operation.

    Laser output power, unit temperature, and RF input level are accurately monitored by a built-in microprocessor shown on the front panel LCD display, in addition to the unit function messages. Remote status monitoring is provided through SNMP network management.

    • Features:

      • 47 to 1218 MHz RF bandwidth for DOCSIS 3.1 compatibility
      • High performance and low power consumption GaAs technology
      • 1310nm DFB laser in 5 output power levels (3, 6, 10, 12, 15 dBm)
      • RF AGC for optimum laser performance
      • LCD front panel status display with built-in microprocessor
      • SNMP network management for remote monitoring
      • ETL certified

    • Specifications:

      • Optical
      • Operating Wavelength: 1310 nm ±20 nm
      • Optical Power Output: 3 dBm (2 mW), 6 dBm (4 mW), 10 dBm (10 mW), 12 dBm (16 mW) & 15 dBm (31 mW)
      • Laser Type:Class 1 DFB (directly modulated, Hazard Level 1). The 3 dBm model is built with an uncooled laser. The 6 & 10 dBm models are available with either a cooled or uncooled laser. The 12 & 15 dBm models employ only cooled lasers.
      • Beam Divergence Angle: 8° max.
      • Connector: SC/APC (For applications requiring a FC/APC connector an adapter (ordered separately) is required (Model: FC Adapter,Description: SC/APC-Male to FC/APC-Female, Stock #7607).

        Link Performance*
      • CNR: ? 51 dB
      • CSO: <-62 dBc
      • CTB: <-65 dBc
      • *77 CW carriers (50-550 MHz) and digital channels (550 MHz-1218 MHz, RF level 10 dB lower) at -1 dBm optical input into a Blonder Tongue FTTB receiver.

        RF
      • Connector: F Female
      • Frequency Range: 47-1218 MHz
      • Input Level: 15-25 dBmV
      • Flatness: ±1.0 dB
      • Impedance: 75 Ω
      • Return Loss: ≥ 16 dB
      • AGC Range: 0-15 dB
      • MGC Range: 0-15 dB

        General
      • Dimensions (WxHxD): 19 x 1.75 x 15.31" (483 x 44 x 389mm)
      • Weight: 7.0 lbs (3.18 kg)
      • Power Supply: 100-240 VAC 50/60 Hz
      • Power Consumption: 15 W
      • Operating Temperature Range: 32 to 113°F (0 to 45°C)
      • Relative Humidity: 95% non-condensing

        Indicators/Controls
      • Status: Tri-color LED Red/Green/Orange
      • Front Panel Display: LCD
      • Navigation: Buttons: Up, Down, Enter for LCD
      • SNMP: RJ45 Connector @ 10 Mbps
