Blonder Tongue FRRA-S4A-1000-SC Fiber Optic Receiver/RF Distribution Amplifier 45-1000 MHz - Single-Mode SC/APC Connect

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

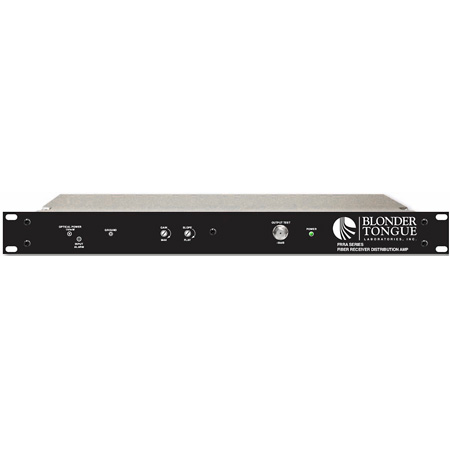

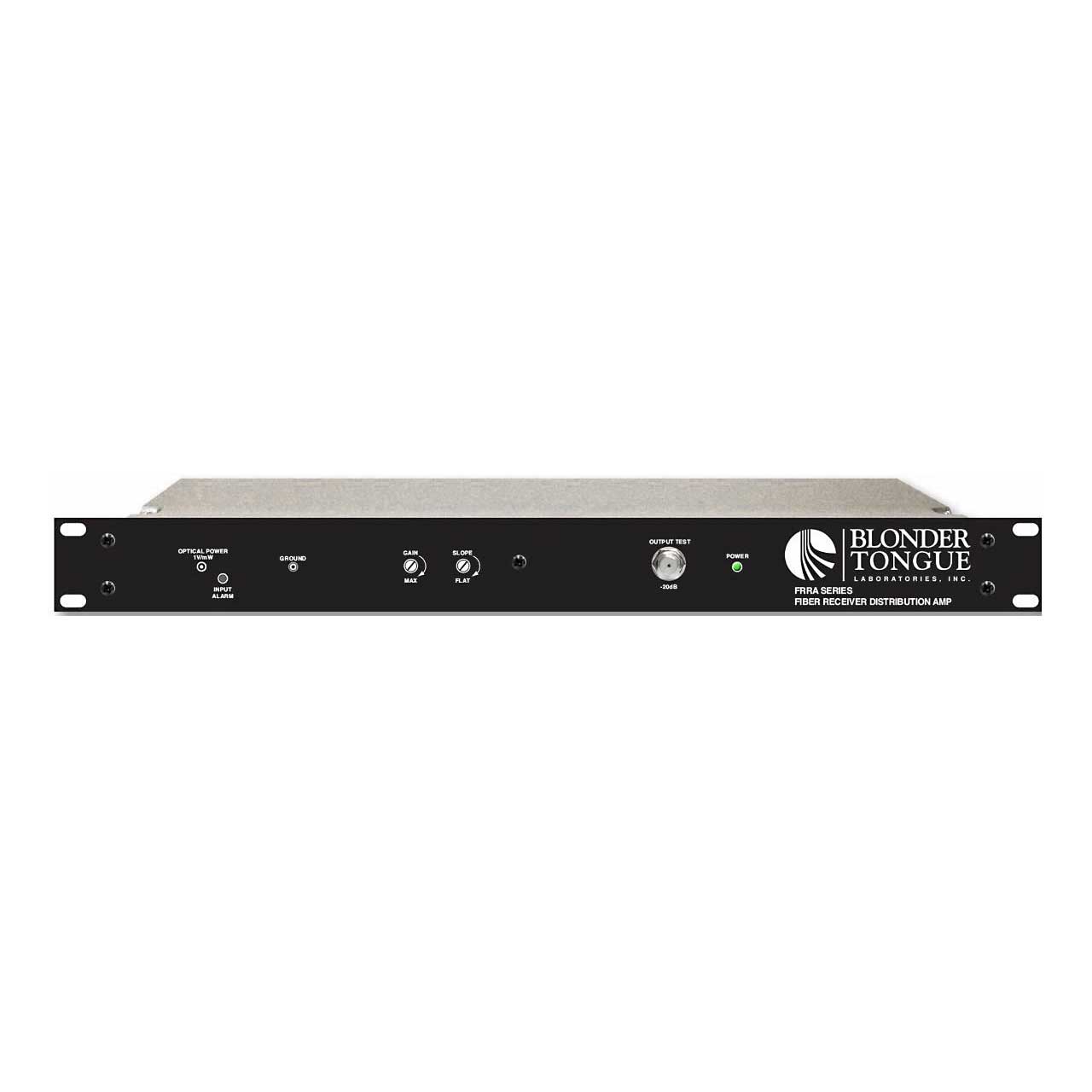

    Blonder Tongue FRRA-S4A-1000-SC Fiber Optic Receiver/RF Distribution Amplifier 45-1000 MHz - Single-Mode SC/APC Connect

    Item #: BT-FRRAS4A1000SC   •   MFG #: FRRA-S4A-1000-SC



    List Price:$1,563.00
    Our Price:$1,250.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The FRRA-S4A-1000-SC is a fiber optic receiver module integrated with a rack mounted broadband distribution amplifier (RMDA). The FRRA is used as a launch amplifier in a coaxial distribution sub-system fed from a single mode broadband fiber network. The FRRA’s optical receiver section provides exceptional CNR performance at low optical input levels. This feature is also a cost saving one, since it permits the use of lower power optical transmitters. The FRRA has two RF bandwidths available, 860 MHz and 1000 MHz, and features power doubling hybrid amplifier technology for high RF output levels and low distortion. The FRRA operates with the FIBT Series of transmitters as well as those from other leading manufacturers.


      • Features

        • 860 MHz and 1000 MHz (1 GHz) power doubling hybrid models
        • LED for optical input status
        • Gain and slope controls
        • Exceptional CNR performance at low optical input levels
        • Optical input power jack scaled 1V/mW
        • Model option: SC/APC Optical Input Connector

      • Specifications

        • Optical Receiver
        • Bandwidth: 45 to 1000 MHz
        • Bandpass Flatness: 1 dB P/V
        • Operating Wavelength: 1310/1550 nm
        • Optical Input Range: -3 to +3.0 dBm
        • Carrier Noise Ratio(CNR): -1 dBm input, 40 Channel Load: 54 dB; -1 dBm input, 79 Channel Load: 53 dB; -1 dBm input, 110 Channel Load: 52 dB
          Distribution Amplifier
        • Impedance (All Ports): 75 Ω
        • Return Loss Input: 16 dB
        • Return Loss Output: 16 dB
        • Test Port Level: -30, ±2 dB
        • Gain Control Range: 10 dB
        • Slope Control Range: 8 dB
        • Channel Loading: 110
        • Flatness: ±0.75 dB
        • Output Level: 34/42 dBmV
        • Composite Triple Beat (CTB): -60 dB
        • Composite Second Order (CSO): -58 dB
        • Hum Modulation: -70 dB
          General
        • Dimensions (W x D x H): 19” x 1.75” x 6.25”
        • Weight: 5.75 lbs.
        • Operating Temperature Range: -20 to +60 °C
        • Number Of Hybrids: 2
        • Hybrid Technology: Power Doubling
        • Power Supply Requirements: 117 VAC, 60 Hz, 28 W
        • Optical Input: SC/APC (Model dependent)
        • RF Output and Test Ports: “F” Female
        • Indicators: Power - LED, Green; Optical Input Alarm - LED, Tri-colored
